Overview
The Lovejoy 685144 35451 10JES EPDM sleeve is a split-design elastomer coupling element for Lovejoy S-Flex flexible coupling assemblies. Made of ethylene propylene diene monomer (EPDM) synthetic rubber, it is designed for transferring and absorbing shock load. The single split piece enables easier installation when coupled shafts must be separated, and its teeth help distribute torsional load across the elastomer and flanges, reducing wear and extending service life.
Key Features
- EPDM synthetic rubber construction for shock load absorption and vibration damping
- Split-design geometry for simplified assembly and disassembly
- Rated torque capacity of 3735 in-lbs with maximum RPM rating of 3600
- Suitable for applications including blowers, compressors, conveyors, dredges, feeders, generators, mills, and presses
- Torsional flexibility and vibration isolation for rotating shaft coupling
Technical Specifications
- Coupling Size: 10 (JES design)
- Outside Diameter: 7.06 inches
- Elastomer Length: 3.44 inches
- Rated Torque: 3735 in-lbs
- Maximum RPM: 3600
- Operating Temperature Range: -30°F to 275°F
- Material: EPDM Rubber
- Design Type: Split (Single Piece)

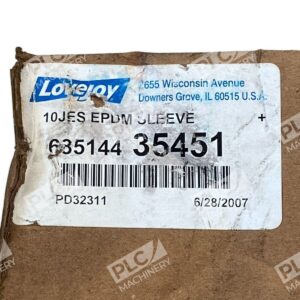

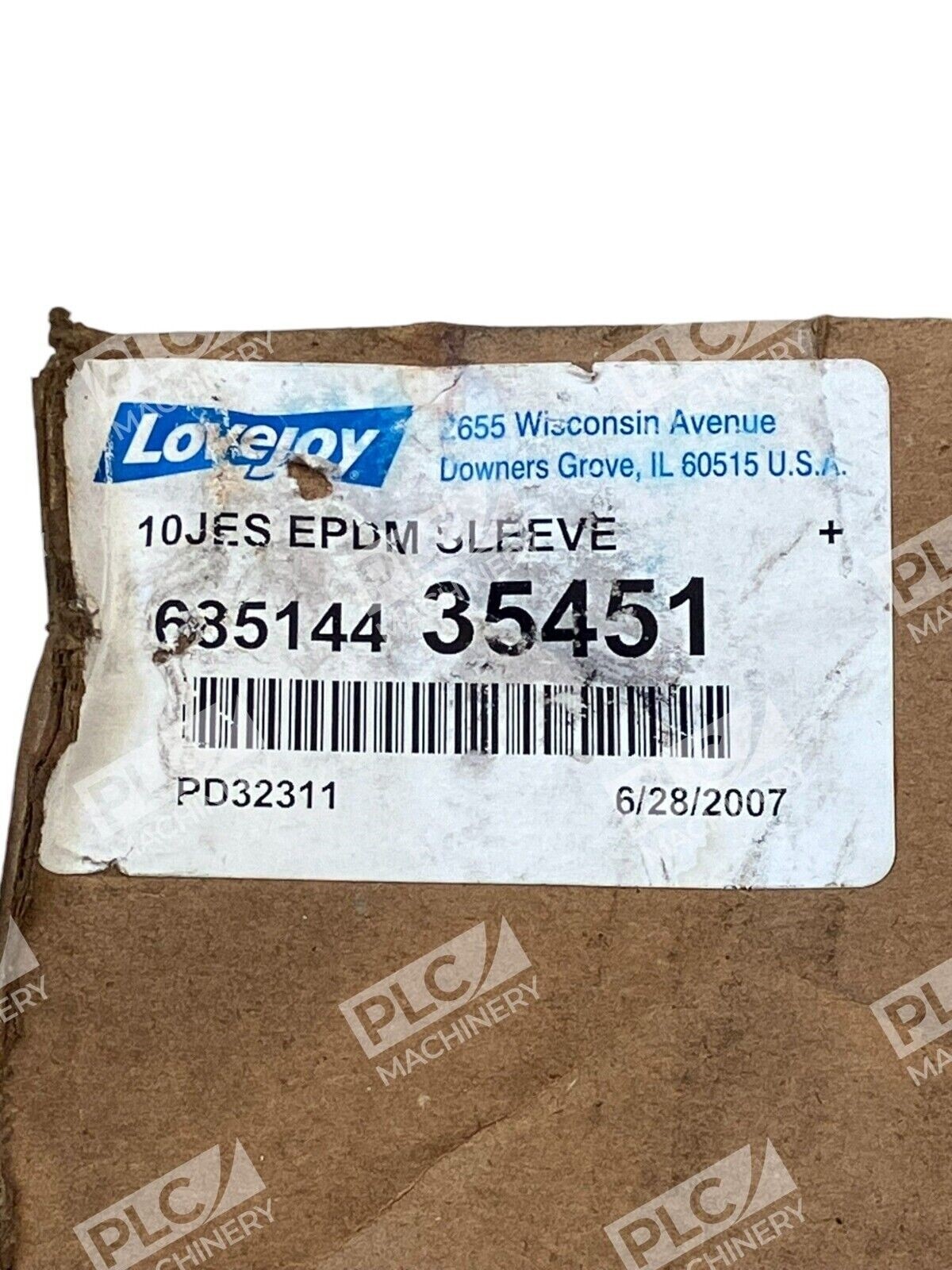

- Part Number: 685144 35451
Typical Applications
S-Flex coupling sleeves are suitable for use in applications requiring torsional flexibility and the capacity to withstand shock loads and vibration, including blowers, compressors, conveyors, dredges, feeders, generators, mills, and presses. The 10JES size handles higher torque loads in industrial machinery where reliable shaft alignment and power transmission are critical.
Compatibility & Replacements
Compatible With
- Lovejoy S-Flex flexible coupling series
- Lovejoy J-type flanges (10 size)
- Lovejoy SC-type spacer flange systems
- Standard 1-1/2″ bore and keyway (verify for metric specifications)
Replaces / Drop-In Replacement For
- Lovejoy 35451 (base part number)
- Lovejoy 10JE solid-design sleeves (split alternative)
Works With
- Lovejoy flexible coupling assemblies and maintenance kits
- Industrial shaft coupling systems requiring EPDM elastomer elements
- Equipment performing repetitive shock load and vibration isolation
