Overview

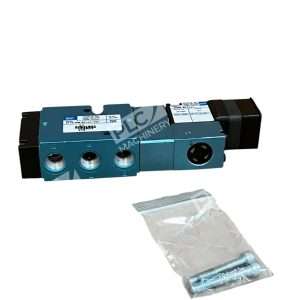

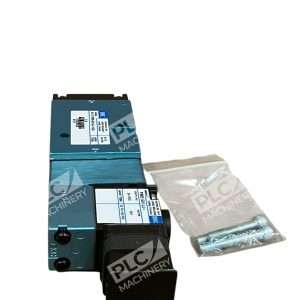

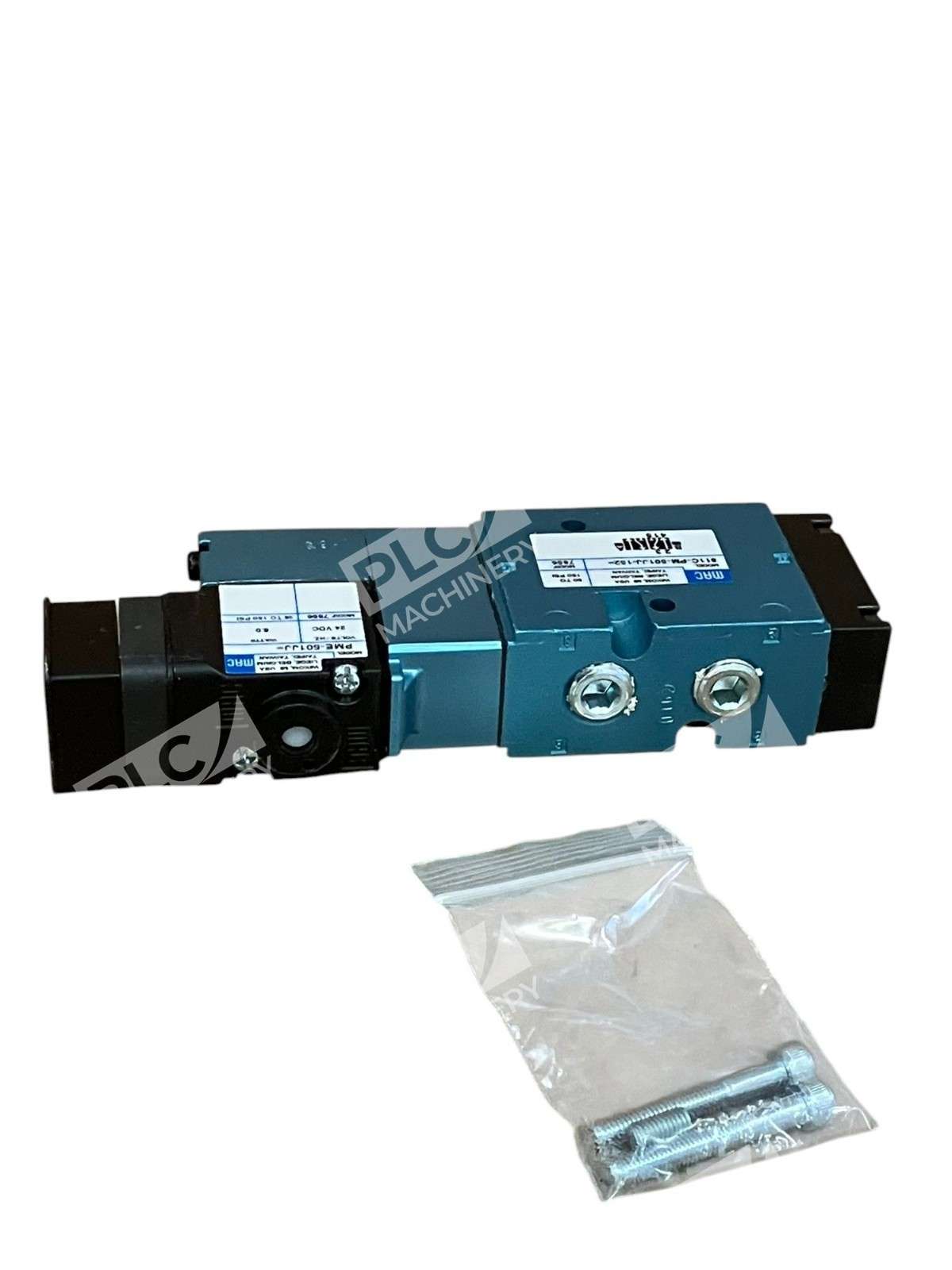

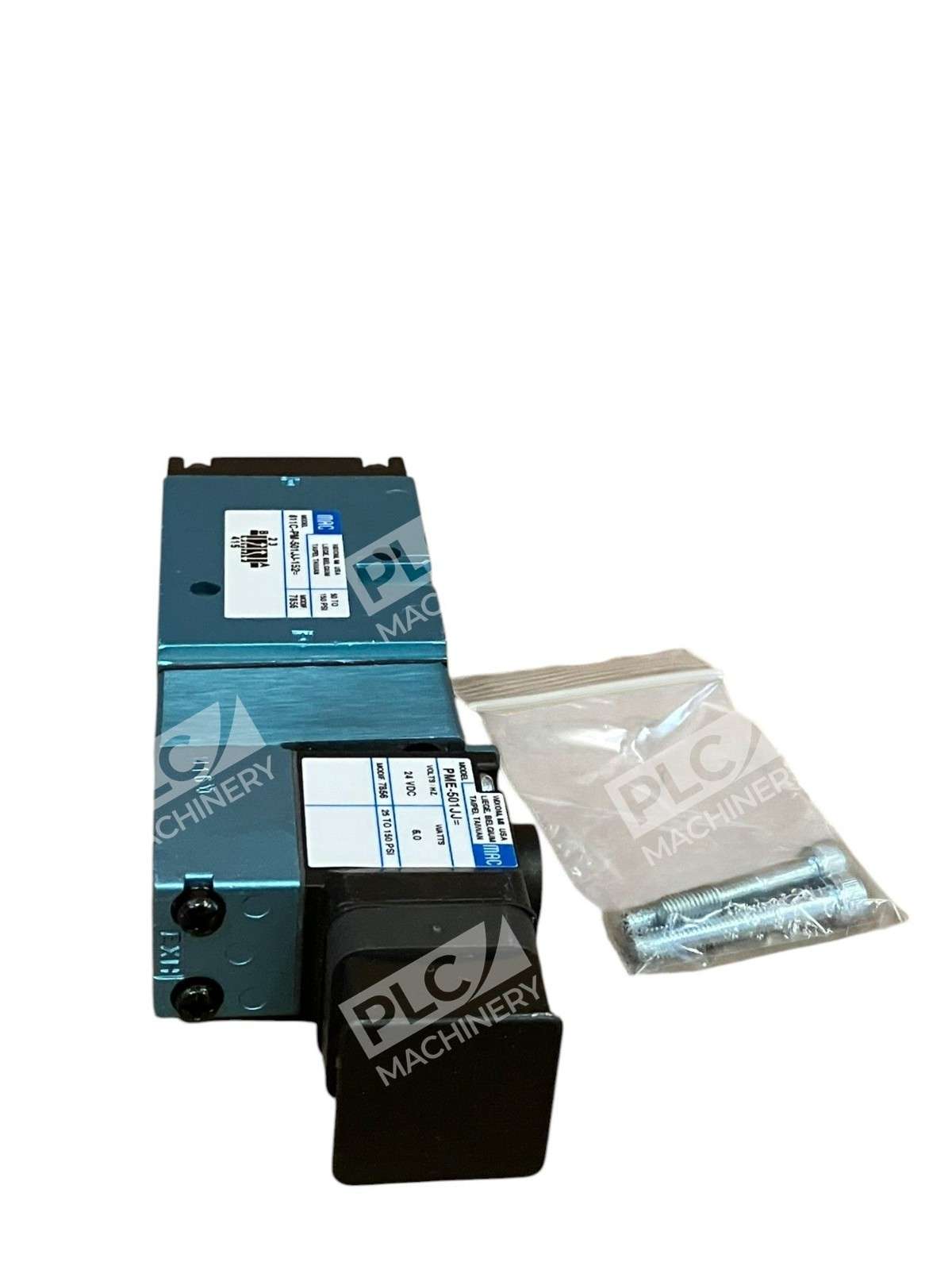

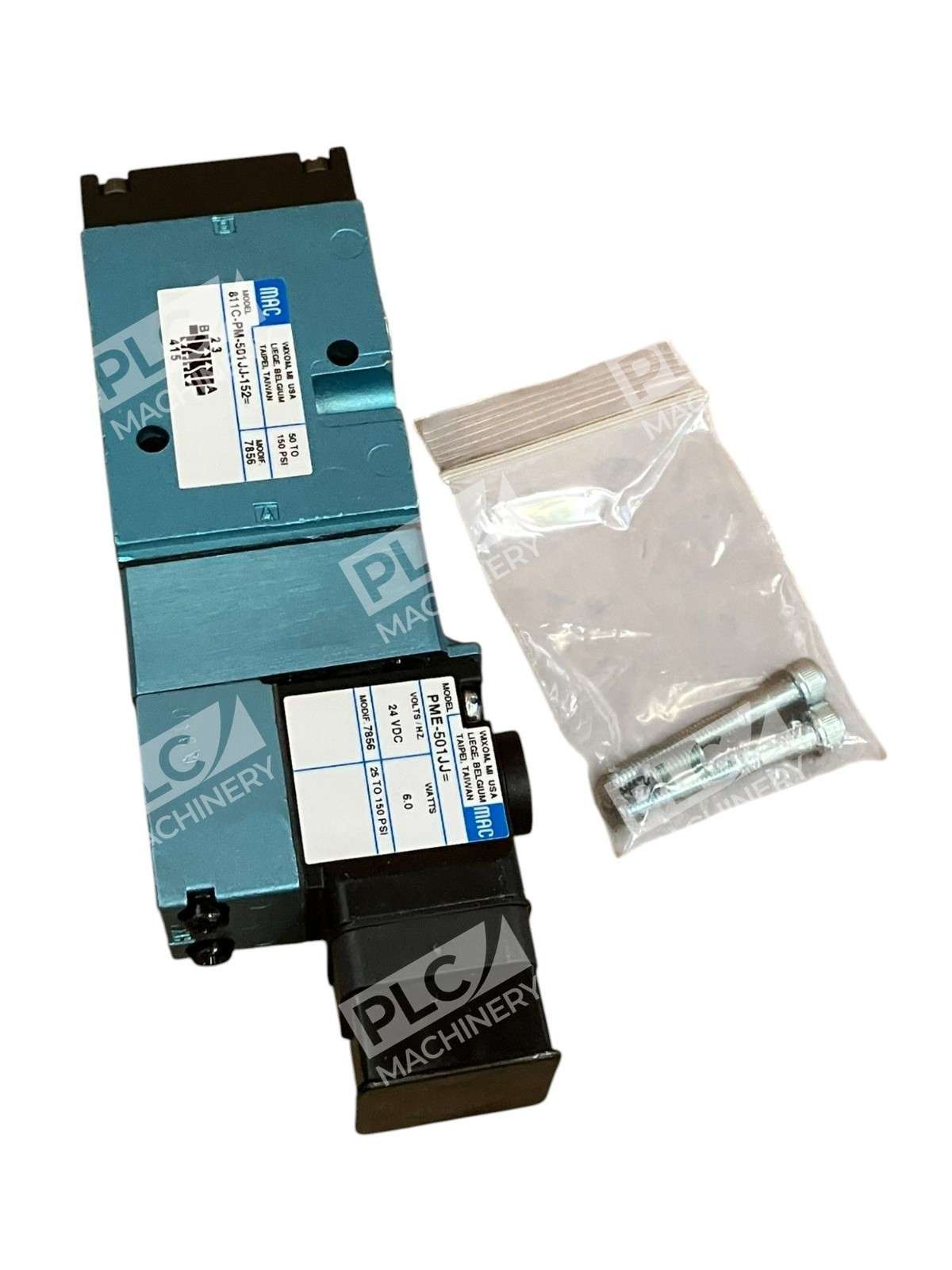

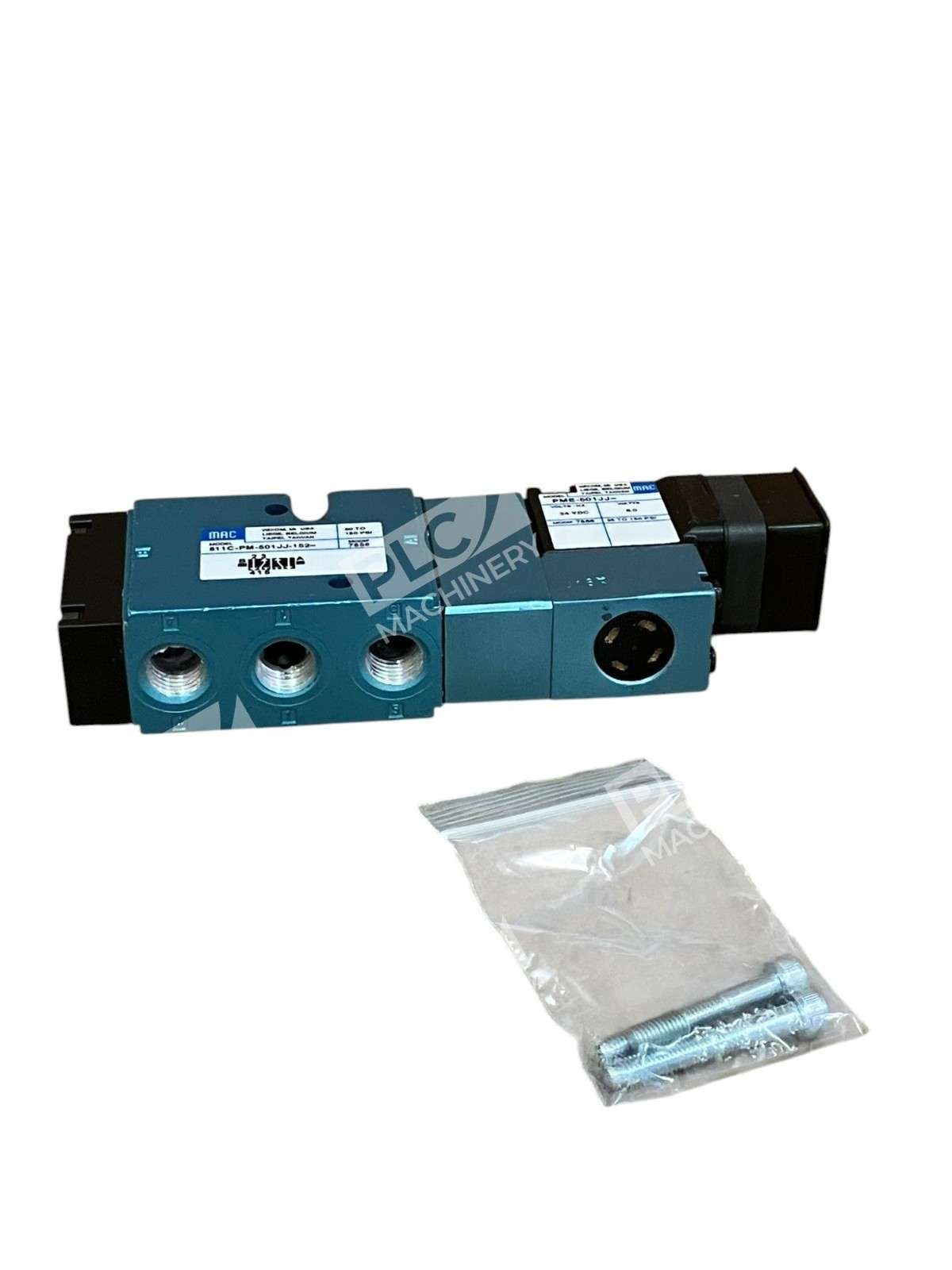

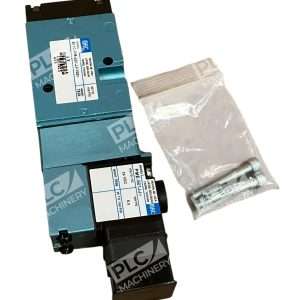

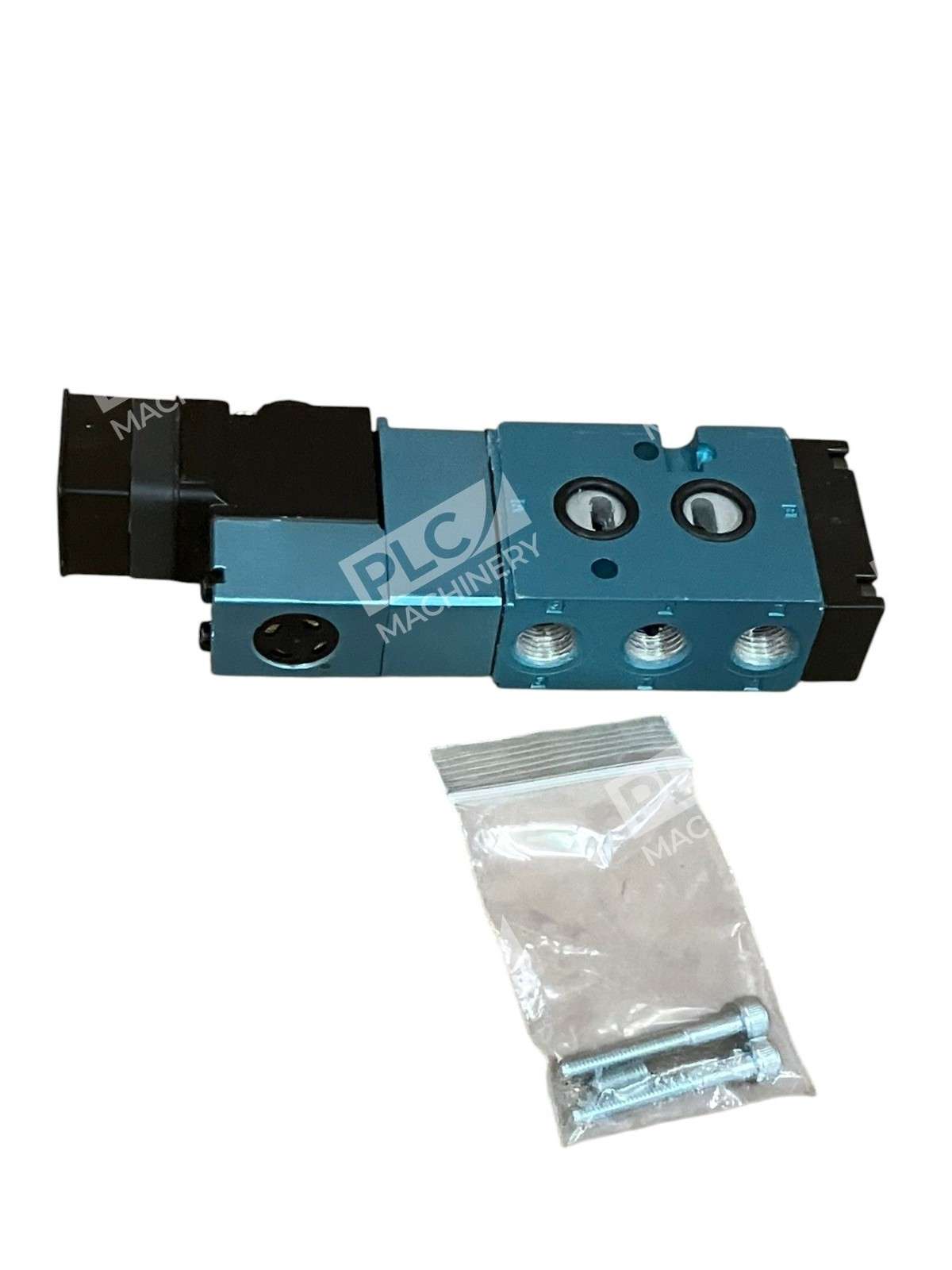

The MAC 811C-PM-501JJ-152 is a proven 4-way solenoid-piloted spool valve from MAC Valves’ 800 Series, engineered for responsive pneumatic control in industrial automation and motion control systems. This inline valve combines solenoid actuation with internal pilot operation to deliver smooth, pressure-independent shifting across a wide operating range. The air/spring return mechanism ensures monostable operation—the valve returns to its default state when de-energized, making it ideal for fail-safe applications in manufacturing, packaging, process automation, and fluid power systems.
Key Features
- Solenoid-Piloted Design: Internal pilot air reduces operating pressure requirements while maintaining consistent response times
- 4-Way, 2-Position Configuration: Single solenoid with spring reset enables efficient directional control for double-acting cylinders
- 24 VDC Power Supply: Low-voltage coil (6W) integrates easily with standard PLC and industrial control systems
- Non-Locking Manual Override: Recessed operator allows emergency manual control without defeating safety interlocks
- Robust Construction: Class A encapsulated coil, steel mechanical spring, and muffled pilot exhaust designed for long service life with minimal maintenance
- Compact Inline Mounting: Individual body design simplifies plumbing and reduces panel space requirements
Technical Specifications
| Part Number | 811C-PM-501JJ-152 |
| Manufacturer | MAC Valves Inc. |
| Series | 800 (4-Way Solenoid-Piloted) |

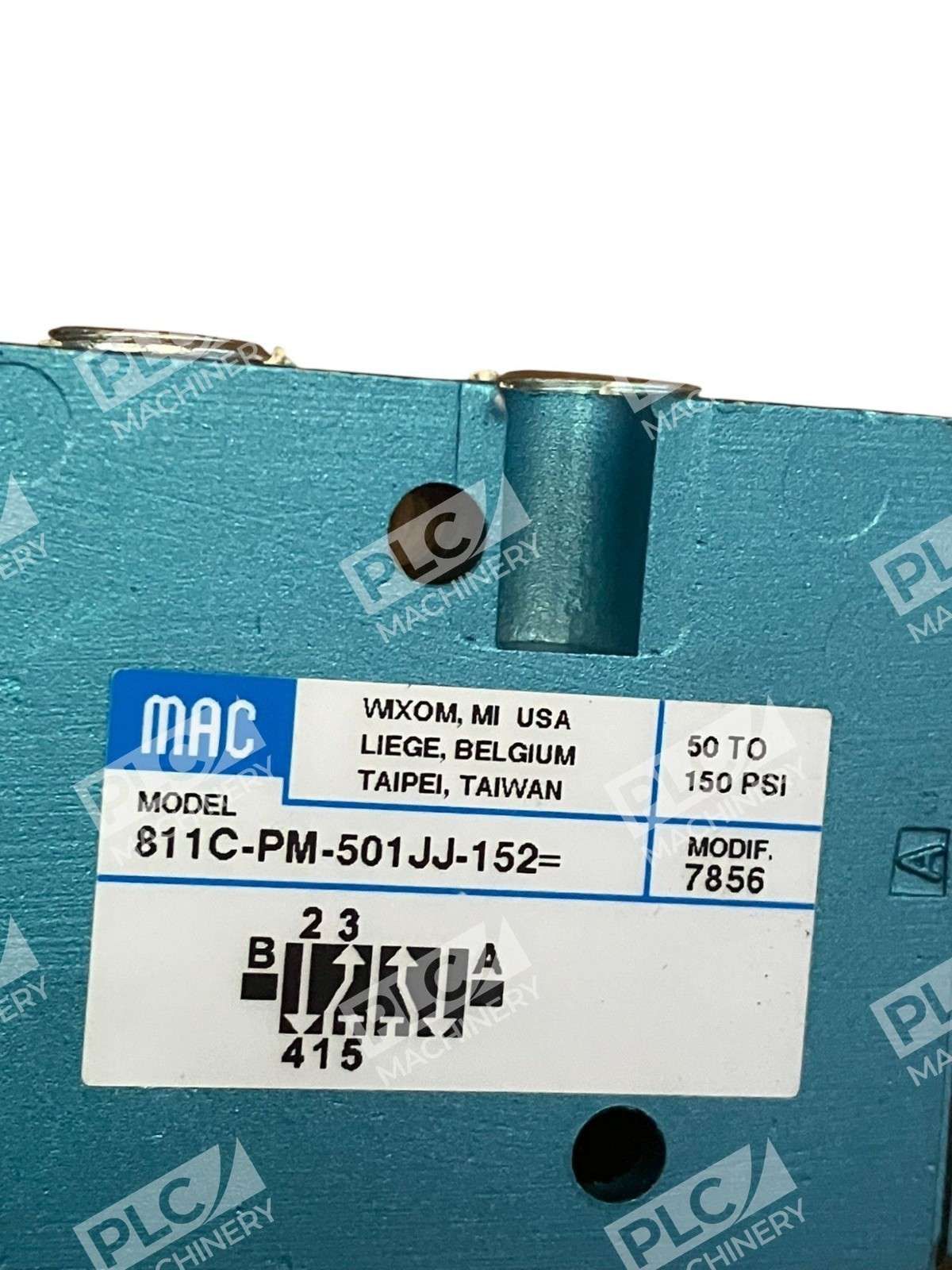

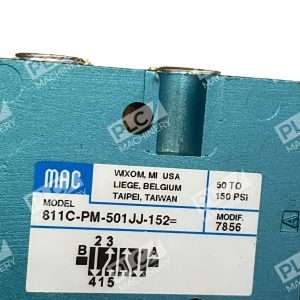

| Configuration | 4-Way, 2-Position (5-Port) |
| Valve Type | Spool valve, monostable (spring return) |

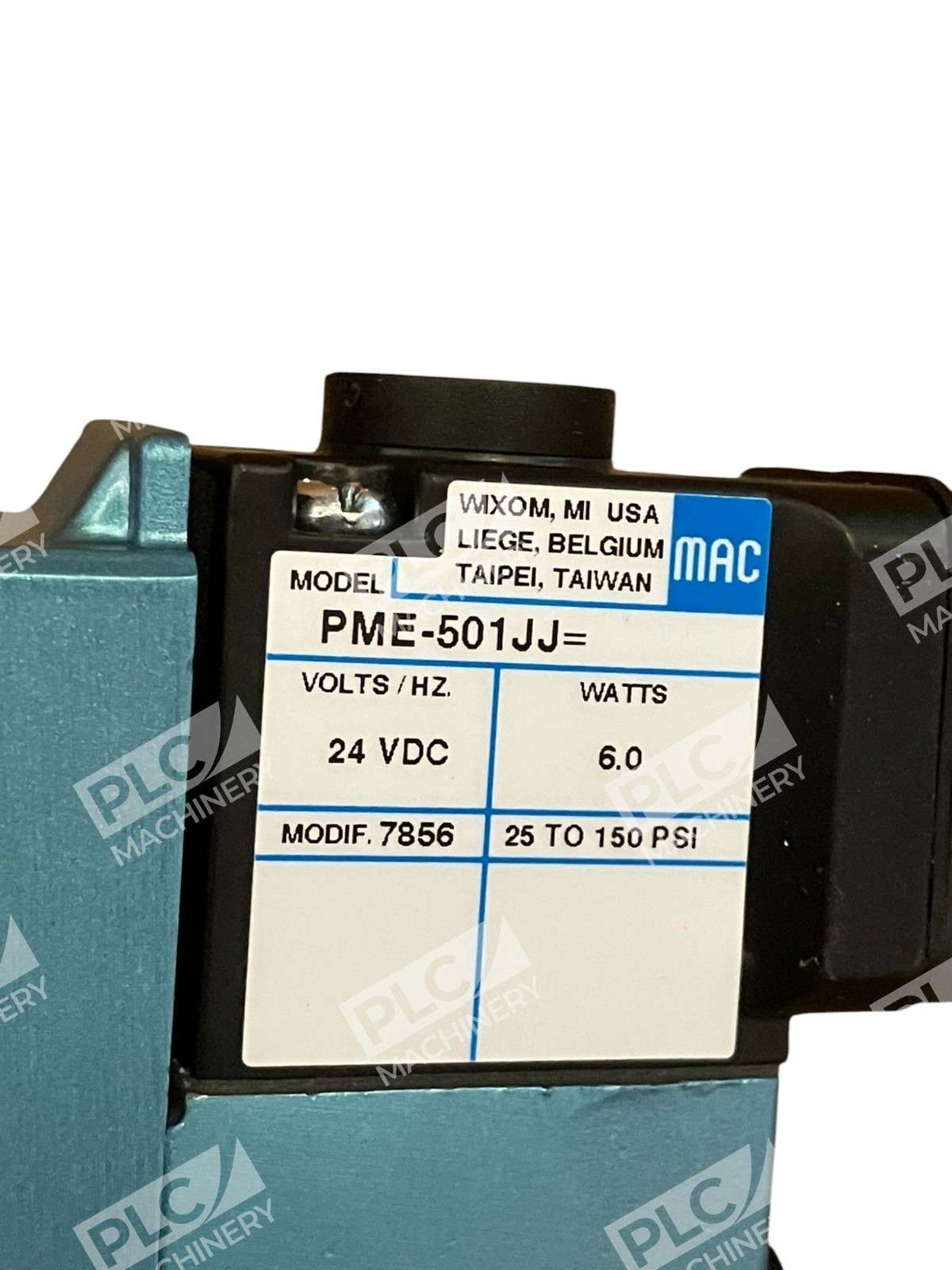

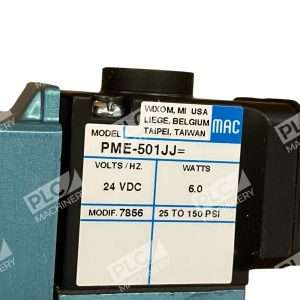

| Solenoid Voltage | 24 VDC |
| Solenoid Power | 6W |
| Connector Type | Square connector (male only) |
| Port Size | 1/4″ NPTF (female) |
| Pressure Rating | 20–150 psi |
| Operation Mode | Internal pilot, single pressure |
| Manual Operator | Non-locking recessed |
| Weight | 1.0 lb |
| Pilot Exhaust | Muffled (no lubrication required) |
Typical Applications
- Double-acting pneumatic cylinder control in assembly and transfer lines
- Automated clamping and ejection systems
- Pneumatic press and stamping equipment actuation
- Vacuum and blow-off applications (via 3-way or 2-way piping configurations)
- Factory automation and packaging machinery
- Fluid power systems requiring fail-safe spring return and manual override capability
Compatibility & Replacements
Compatible With
- MAC 800 Series valve stacks and manifold blocks
- Standard pneumatic cylinders (ISO 6432, NFPA)
- Industrial control systems with 24 VDC signal output
- PLC, relay logic, and proportional control modules
- Compressed air systems rated 20–150 psi
Replaces / Drop-In Replacement For
- Other MAC 811C-PM series valves with equivalent solenoid and pilot configurations
- Direct replacements for equivalent solenoid-piloted 4-way, 2-position 24 VDC valves with 1/4″ ports and internal pilot operation
- Verify specific model compatibility with your system integrator before ordering if upgrading from older or non-standard valve types
Works With
- Allen-Bradley PLC processors (CompactLogix, ControlLogix) via 24 VDC output modules
- Siemens S7 series control systems with 24 VDC discrete outputs
- Proportional control amplifiers and on/off solenoid drivers
- Pneumatic control logic systems and relay banks
- Industrial automation software platforms supporting discrete solenoid actuation
