Overview

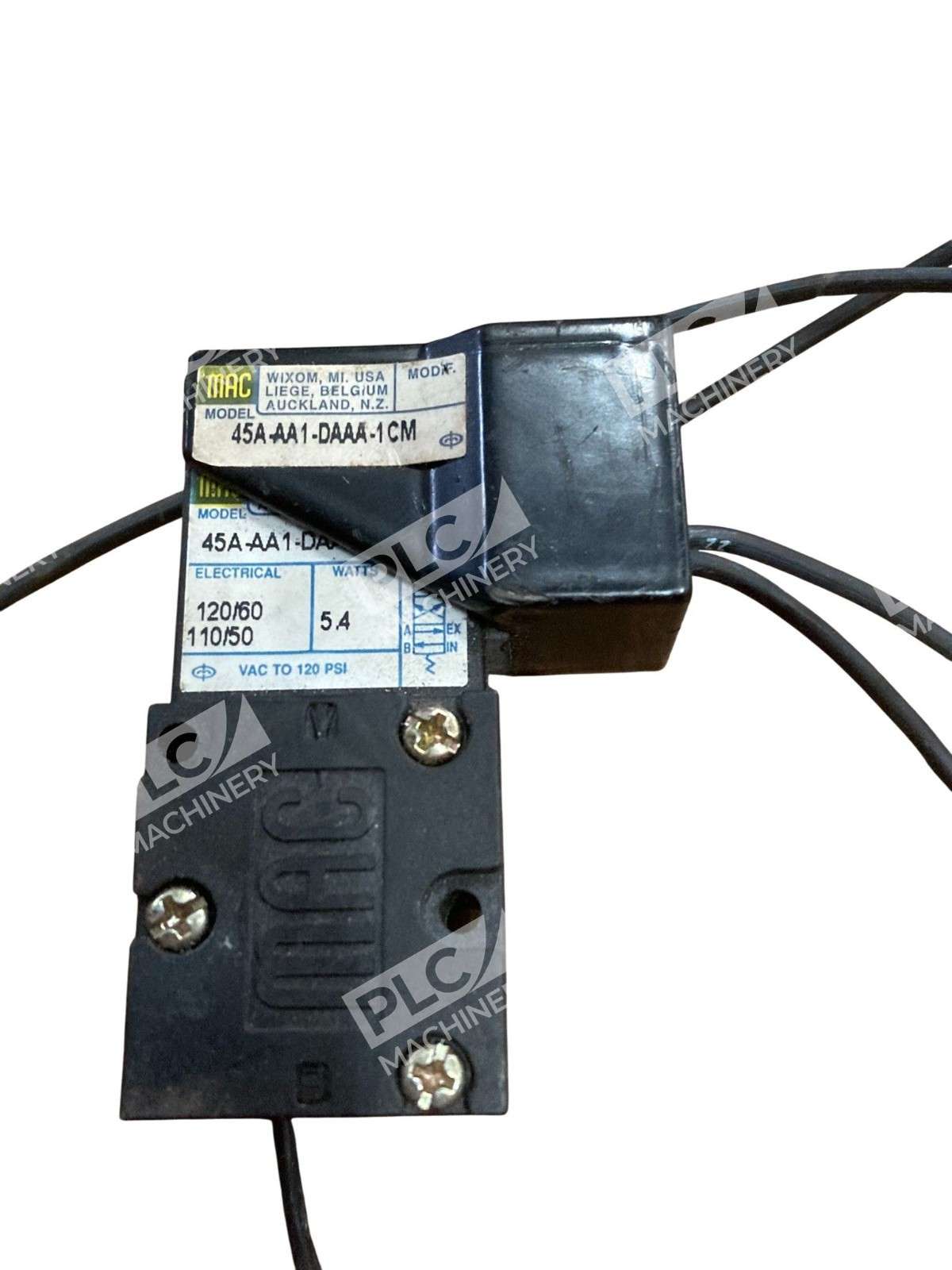

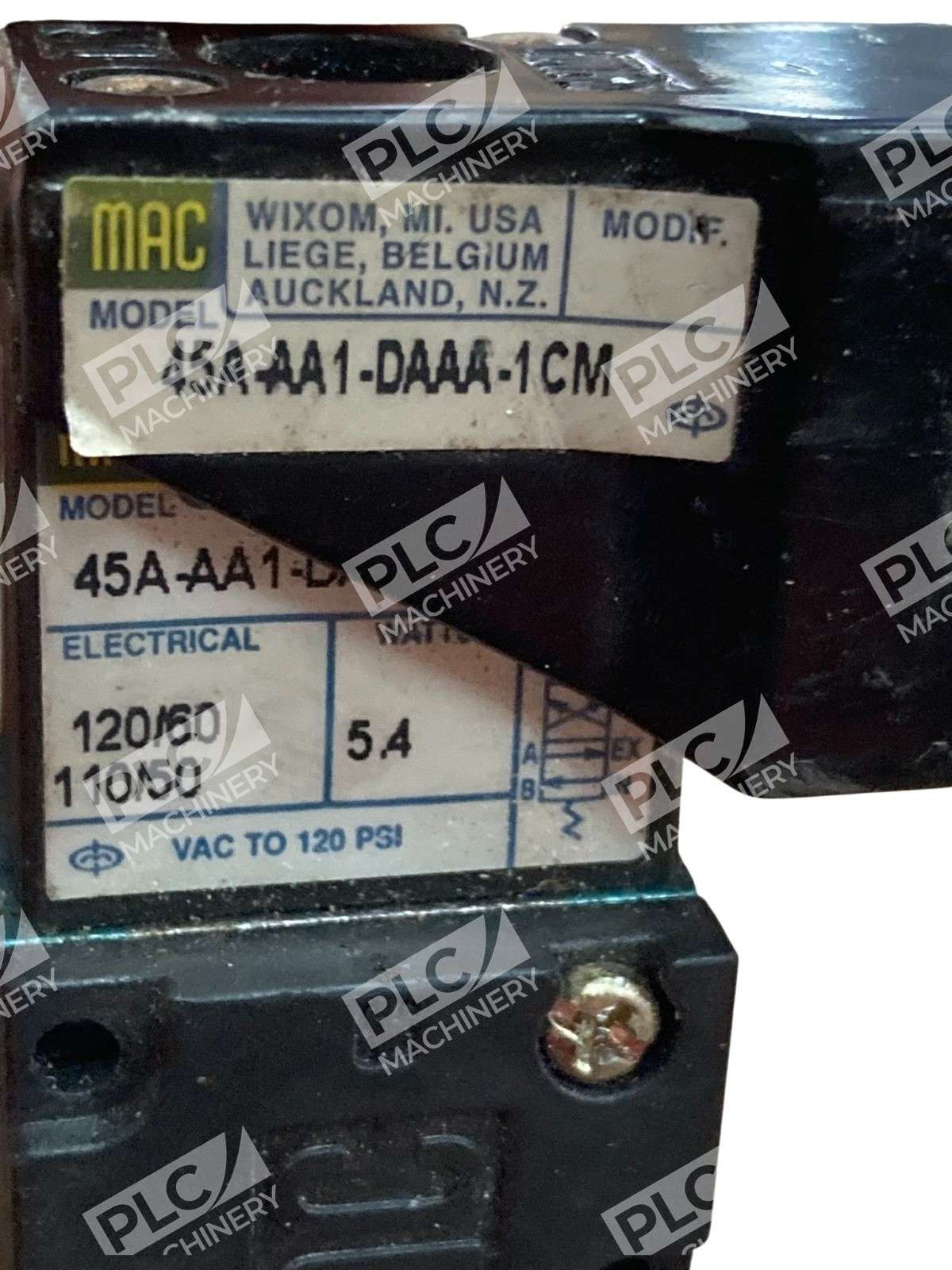

The MAC 45A-AA1-DAAA-1CM is a direct solenoid-operated 4-way poppet valve from MAC’s proven 45 Series product line. Rated for 120VAC operation at 60Hz, this valve features 1/8″ NPT female threaded ports and a monostable (single-solenoid) design with manual override. Designed for pneumatic and inert gas applications, the 45A-AA1-DAAA-1CM delivers repeatable performance in motion control, automation, and fluid power systems.
Key Features
- Direct solenoid actuation with short-stroke design for rapid, consistent response
- Balanced poppet and conical seat design for high shifting forces and long service life
- Monostable operation with mechanical spring reset

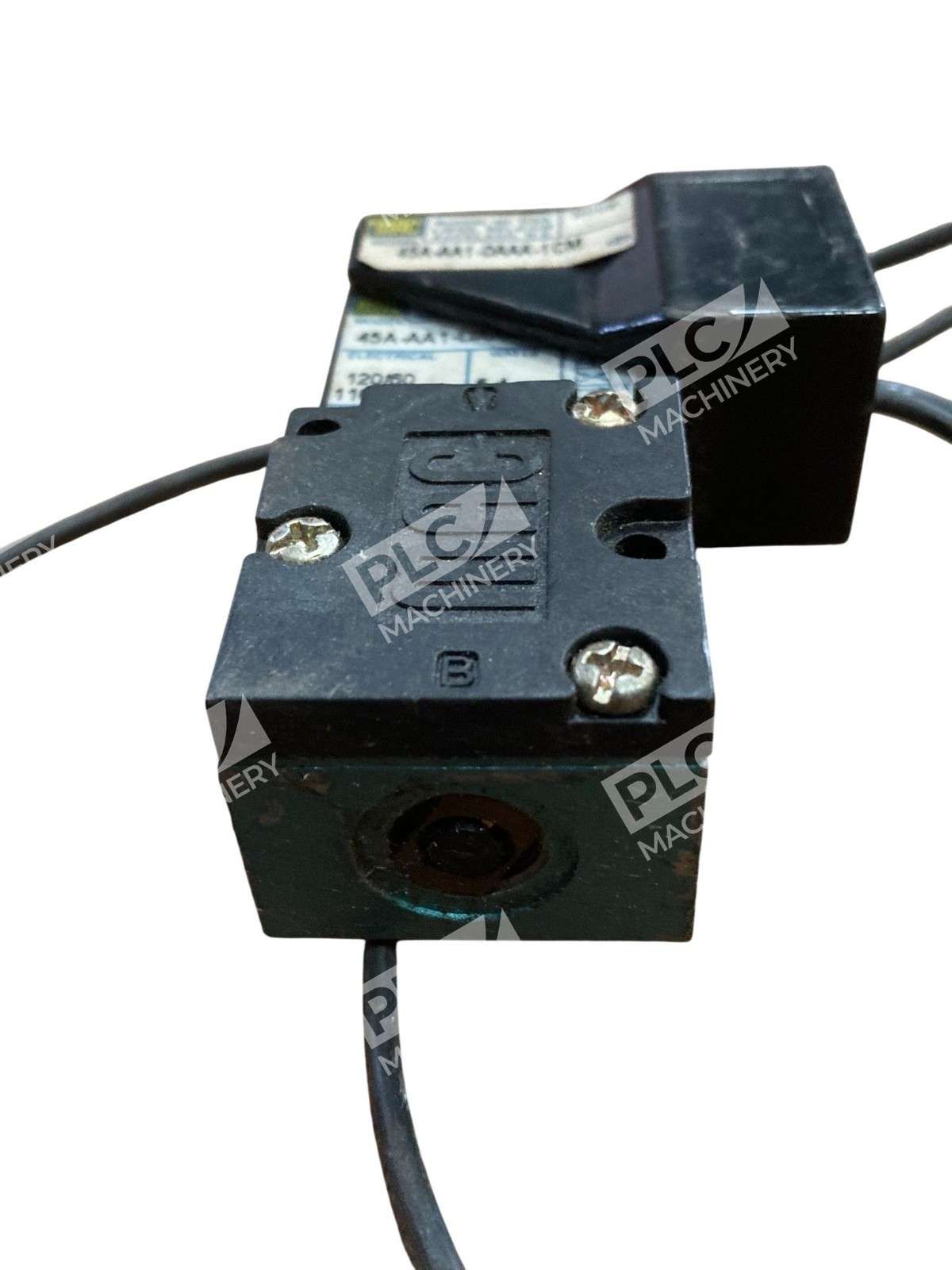

- Non-locking recessed manual operator for emergency control or manual cycling

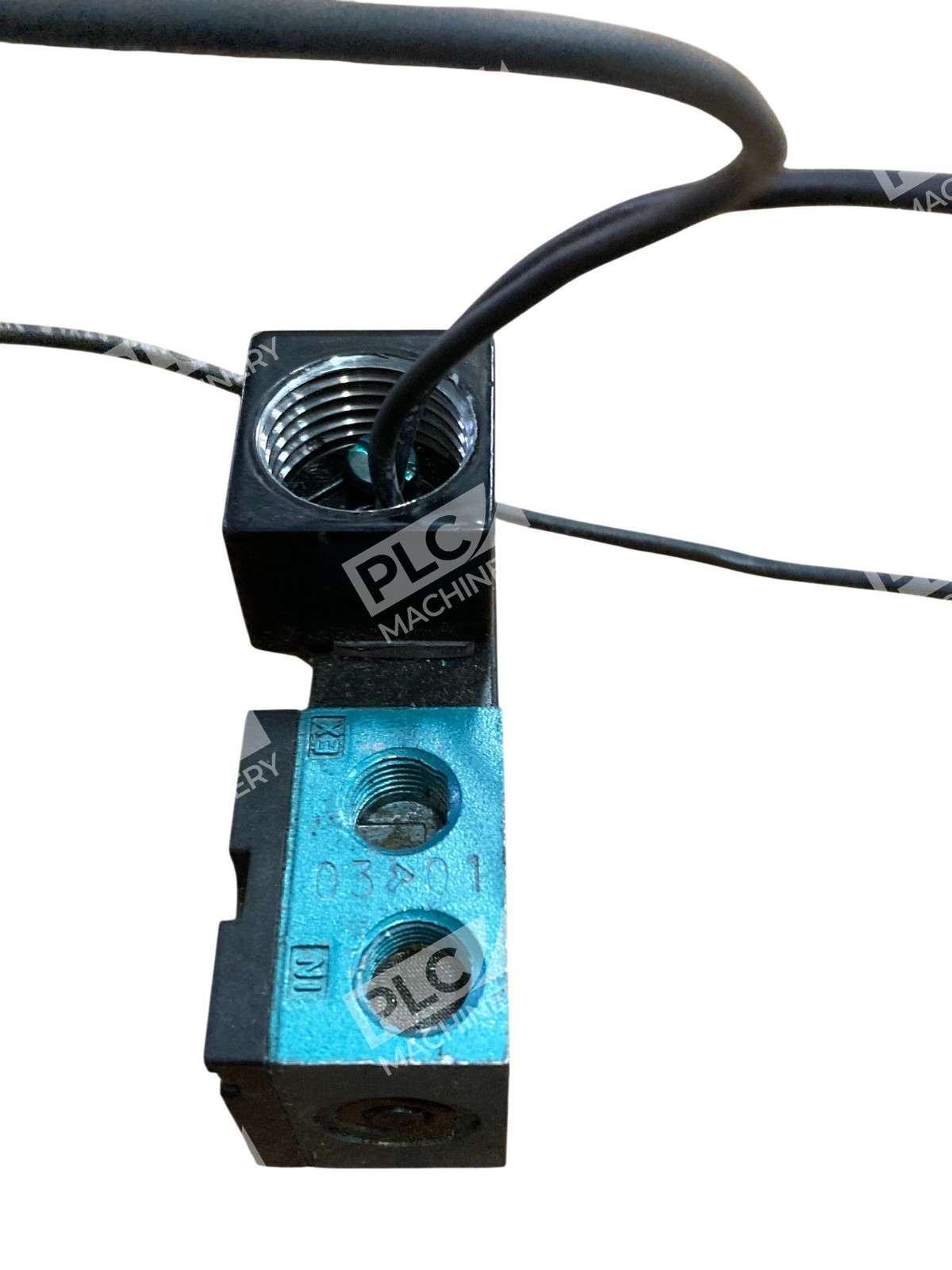

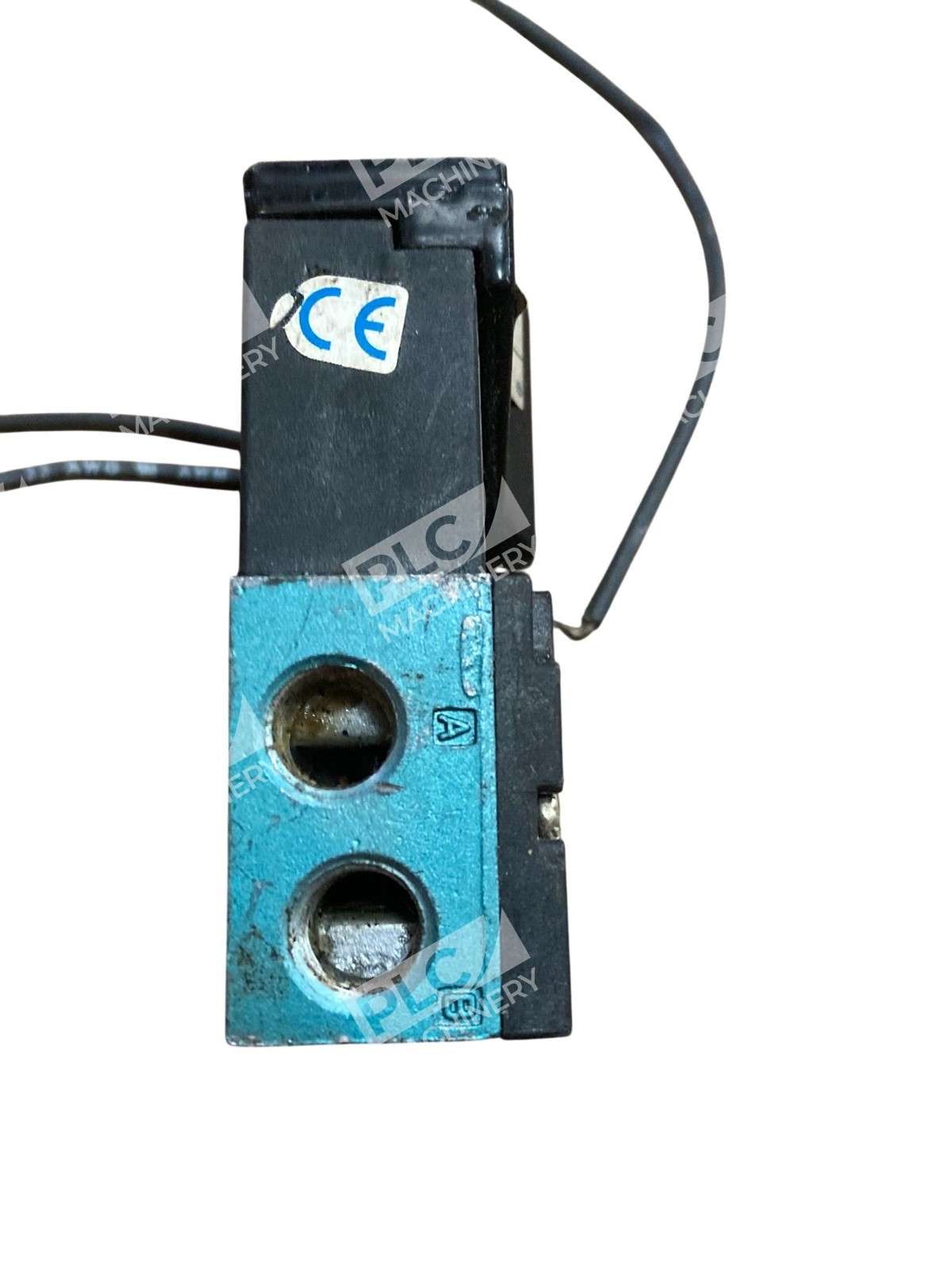

- Four 1/8″ NPTF female pneumatic ports (A, B, EXH, IN) for flexible piping configurations

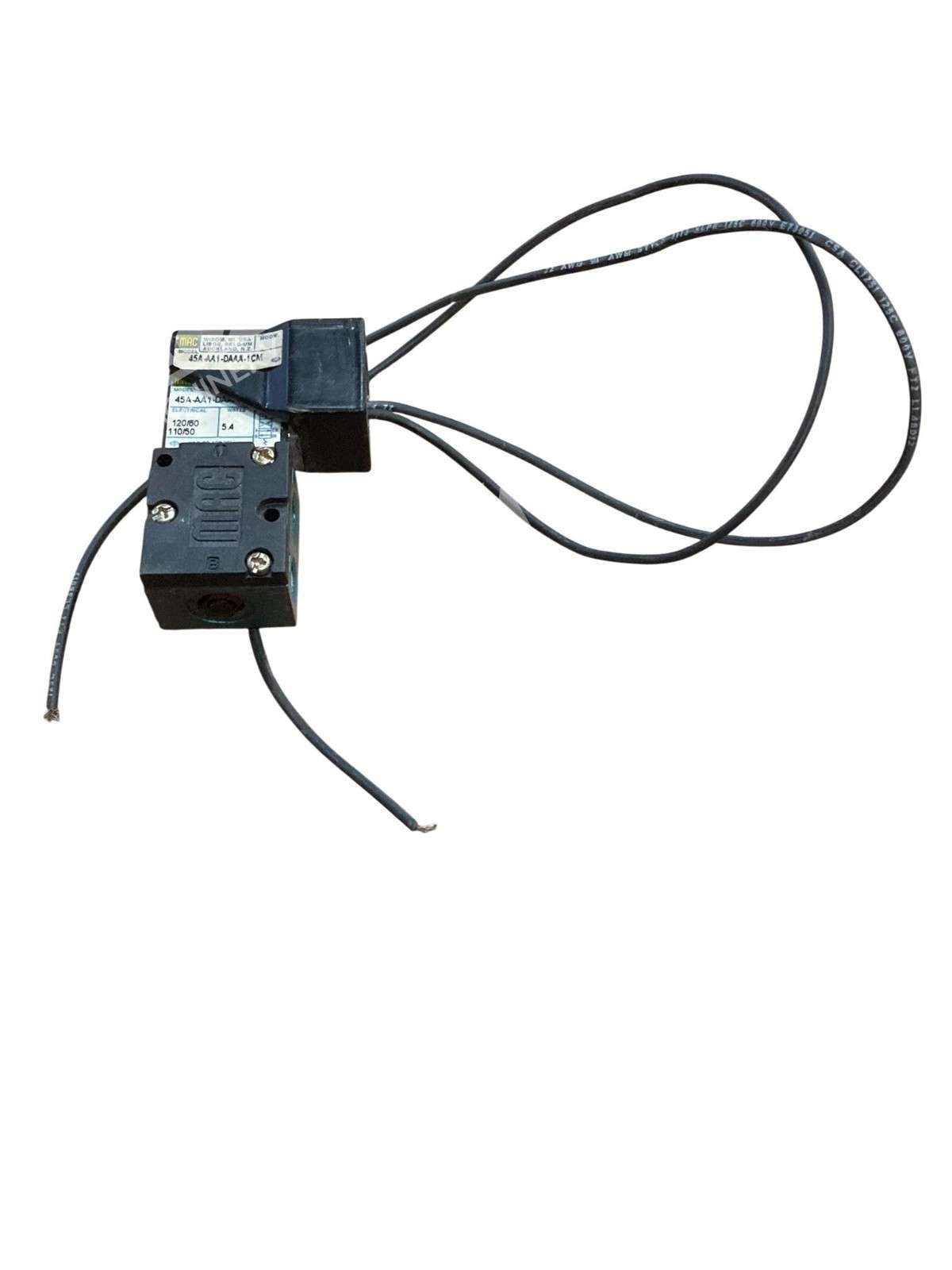

- 1/2″ NPS metal conduit connection with 18″ flying lead wires
- Versatile 4-way/3-way/2-way piping configurations for diverter, selector, or standard directional control applications
- Compatible with vacuum to 120 psi pressure range
Technical Specifications
- Voltage: 120 VAC, 50/60 Hz
- Valve Type: 4/2-way (4-port, 2-position) direct poppet solenoid
- Port Size: 1/8″ NPTF (female threaded)

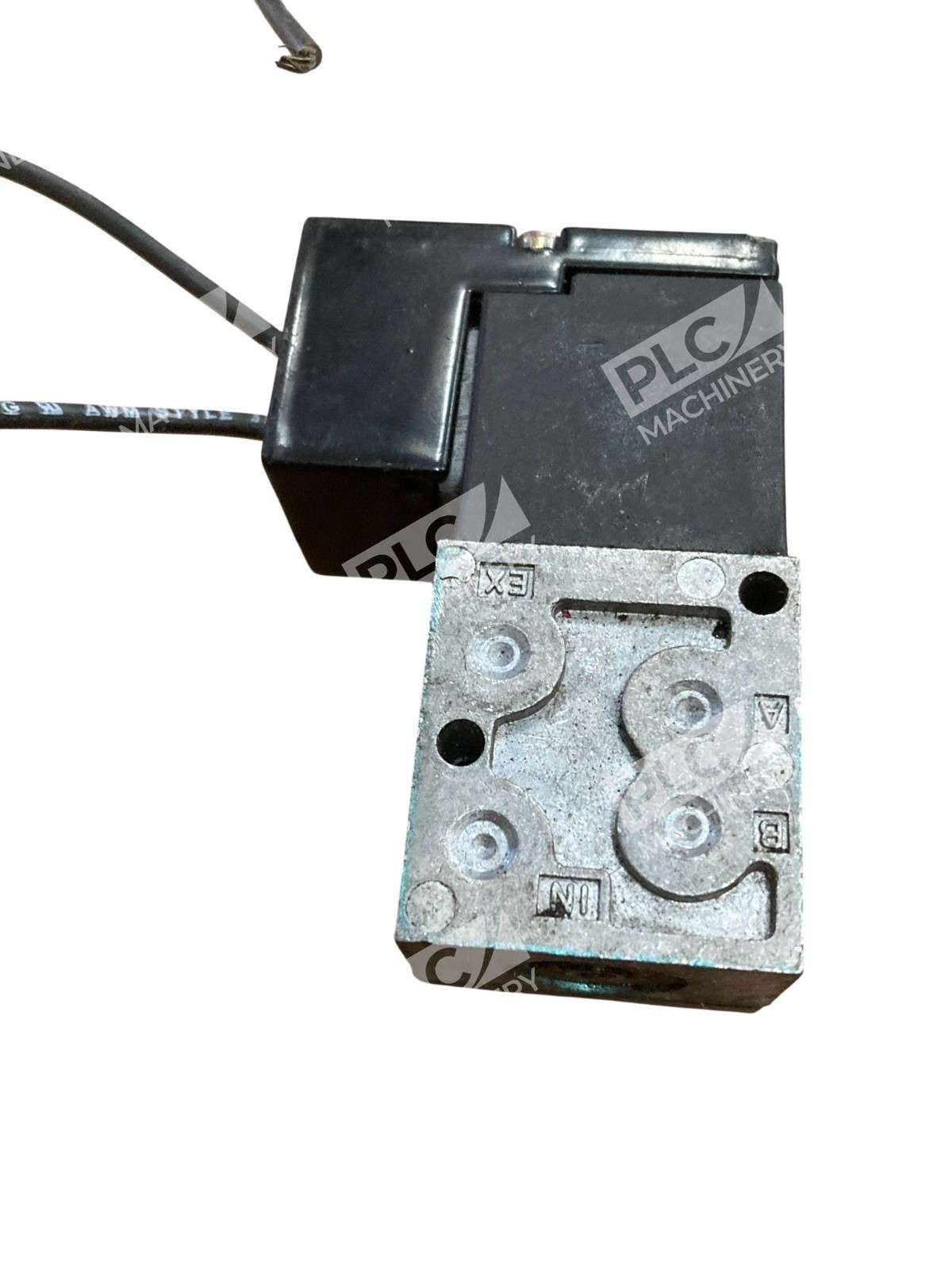

- Port Configuration: 4 ports (A, B, EXH, IN)
- Flow Coefficient (Cv): 0.15
- Pressure Range: Vacuum to 120 psi

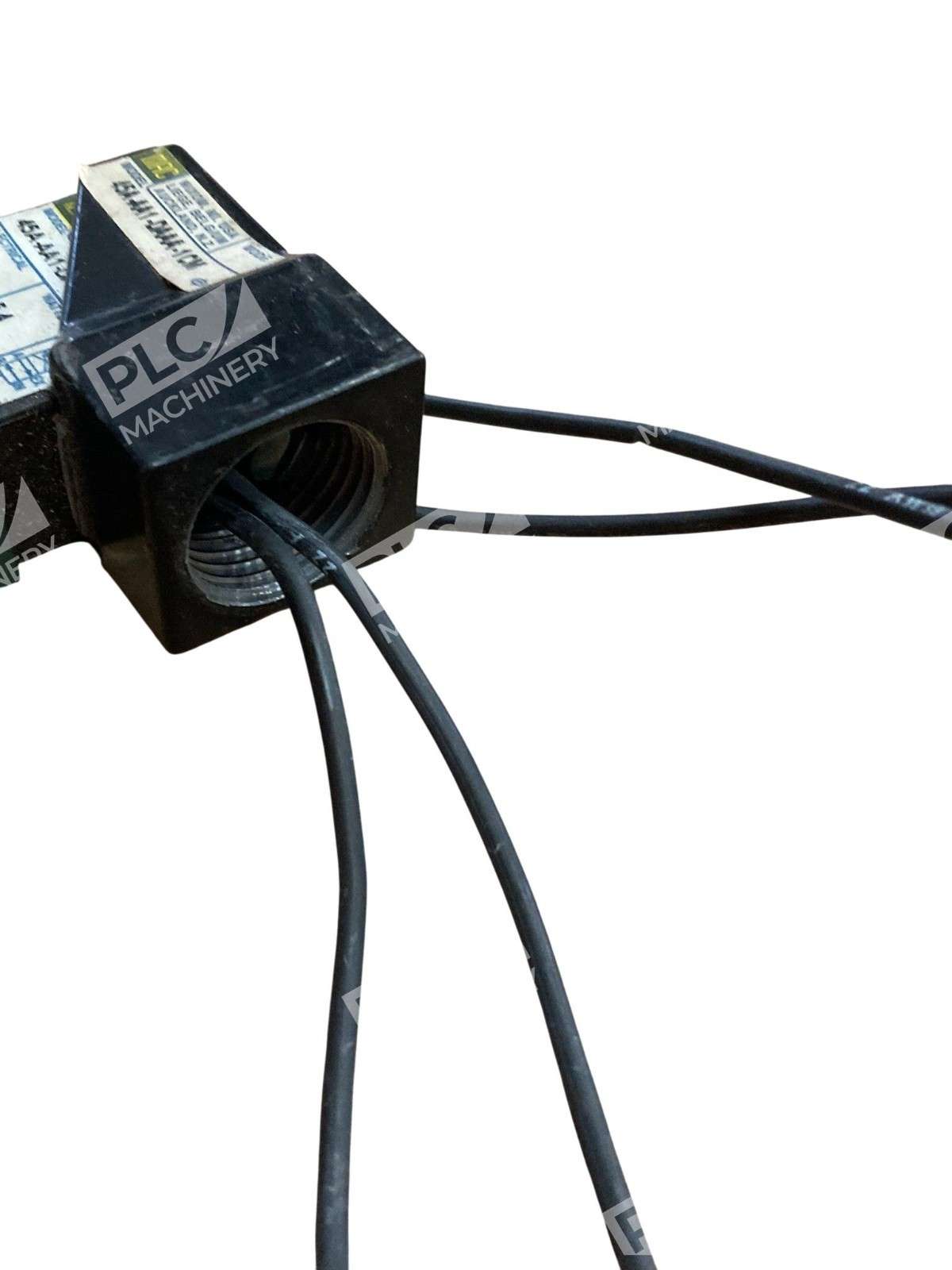

- Electrical Connection: 1/2″ NPS metal conduit, 18″ wire length with bare flying leads
- Manual Operator: Non-locking recessed type
- Operation: Monostable (spring-centered return)
- Mounting: Individual in-line installation
- Dimensions: 63 mm (H) × 25 mm (W) × 62 mm (D)
- Weight: Approximately 0.45 lbs
- Series: MAC 45 Series
Typical Applications
The MAC 45A-AA1-DAAA-1CM is used in a wide range of industrial pneumatic applications, including:
- Car wash equipment (manifold control, spray head direction)
- Pneumatic actuators and cylinders (direction reversal, speed control)
- Vacuum systems (diverter and selector functions)
- Automated assembly and material handling systems
- Packaging machinery and dispensing equipment
- Clamping and fixturing systems requiring fast, repeatable switching
Compatibility & Replacements
Compatible With
- Standard pneumatic systems operating at 1/8″ NPT port size
- Compressed air and inert gas applications
- Industrial 120VAC, 50/60 Hz electrical power supplies
- Manual pneumatic manifold blocks with 1/8″ NPT cavity porting
- Flexible hose and rigid tubing in 1/8″ NPT sizes
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. This part number variant (45A-AA1-DAAA-1CM) is the 120VAC version; units with other voltage codes (e.g., 45A-AA1-DAAA-1CA for 110Vac, 45A-AA1-DDAA-1CM for 24VDC) are not direct functional equivalents.
Works With
- MAC 45 Series manifold blocks and cavity porting systems
- Pneumatic control circuits (single solenoid, spring return topology)
- Industrial PLC and relay-based automation systems
- Standard 120VAC control panels and enclosures
- Manual valve control and override systems
