<h2>Overview</h2>

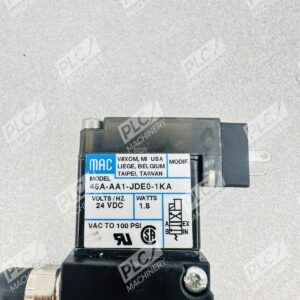

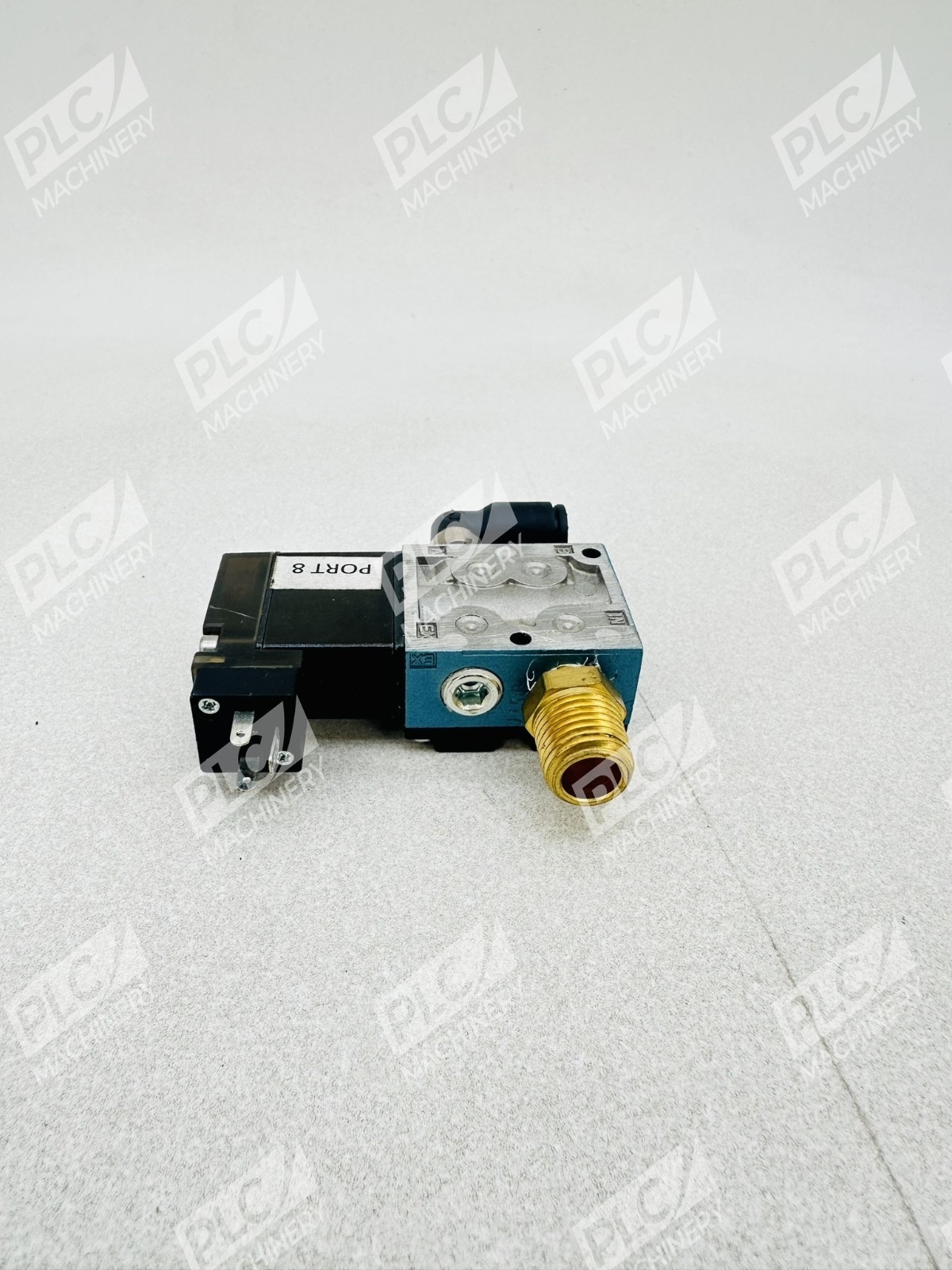

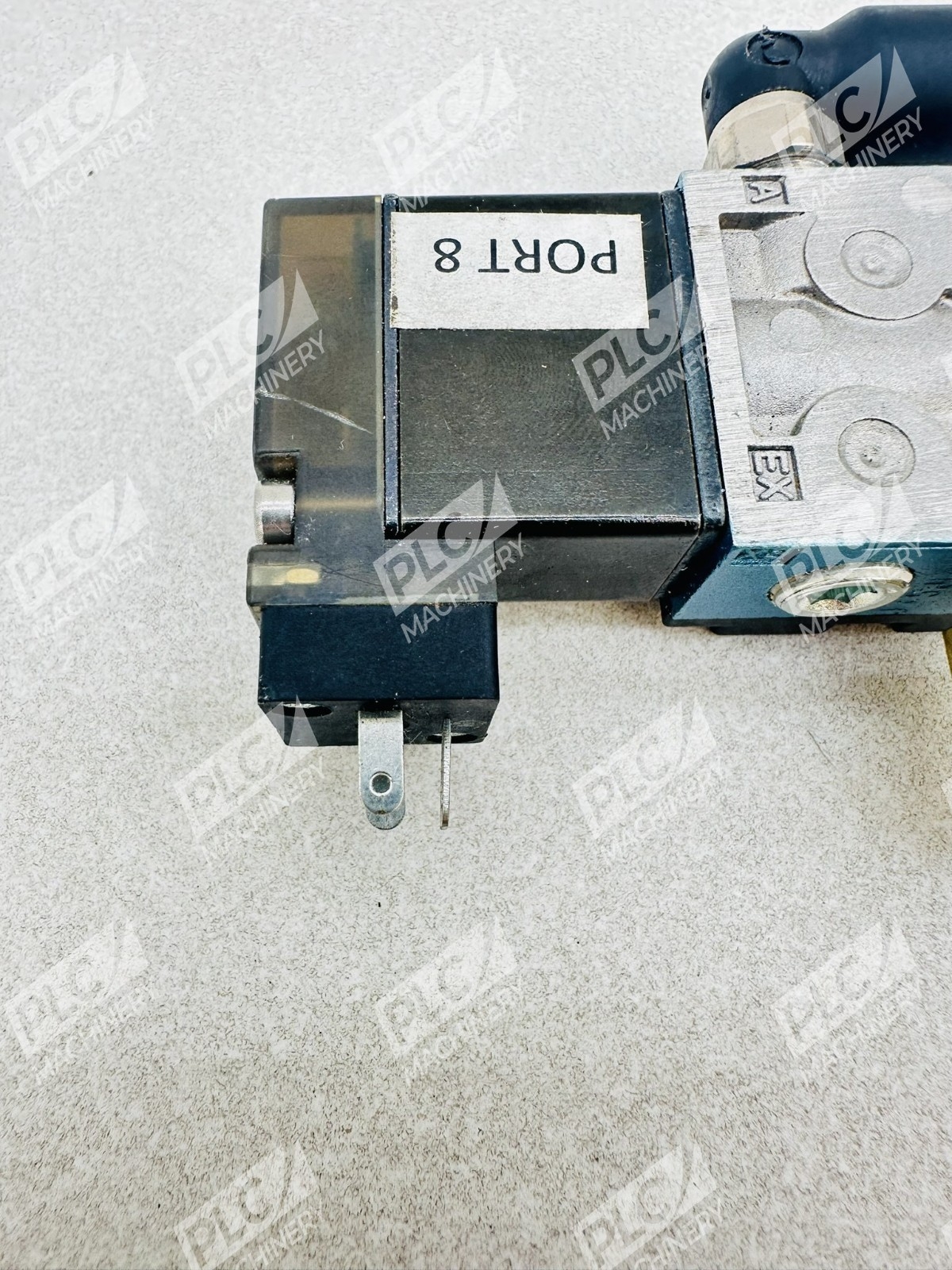

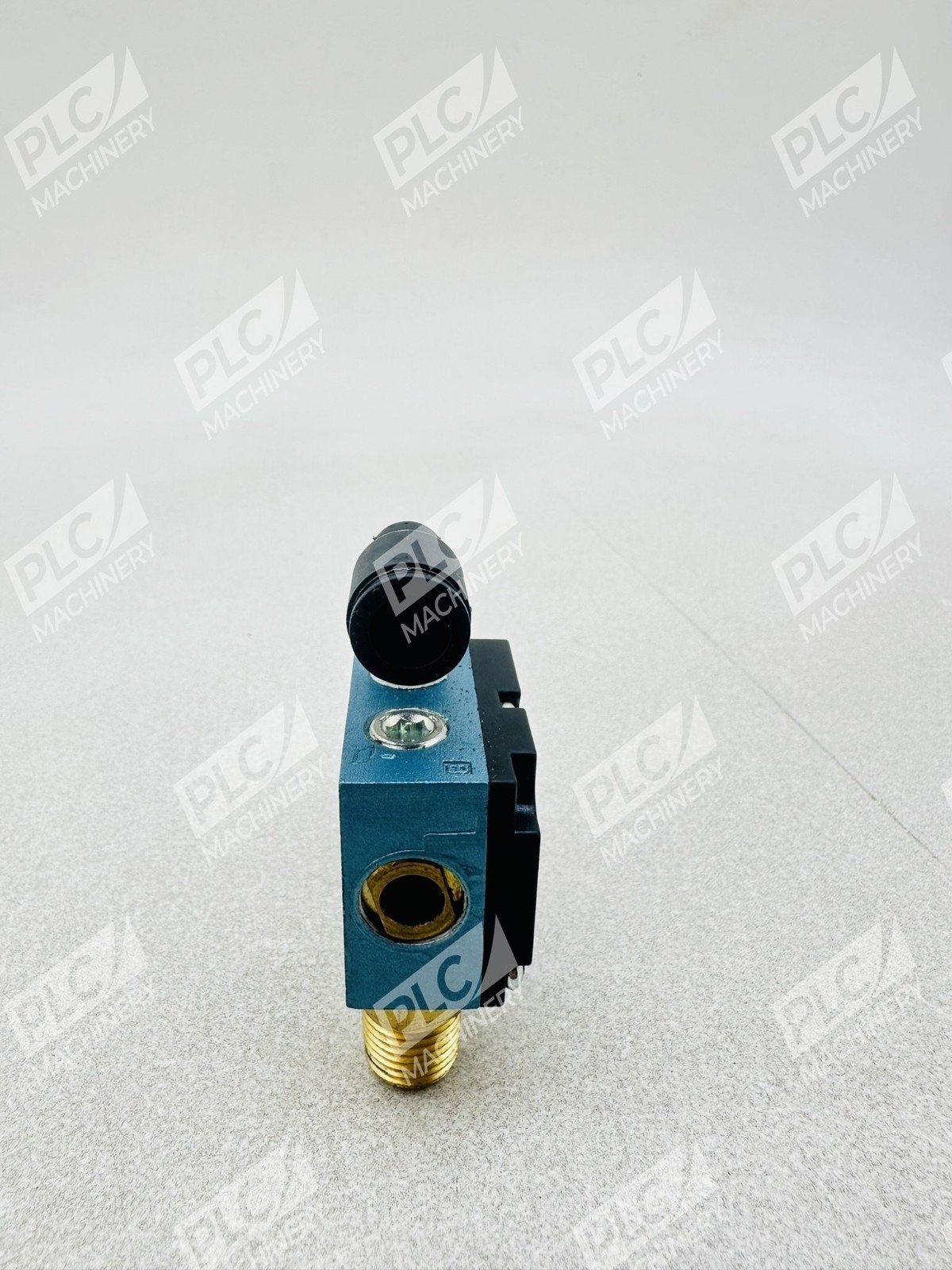

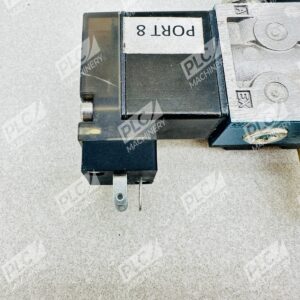

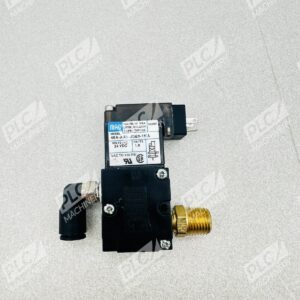

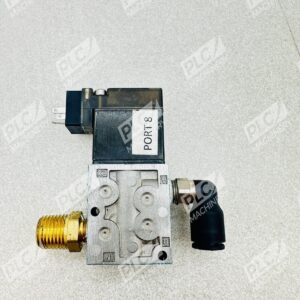

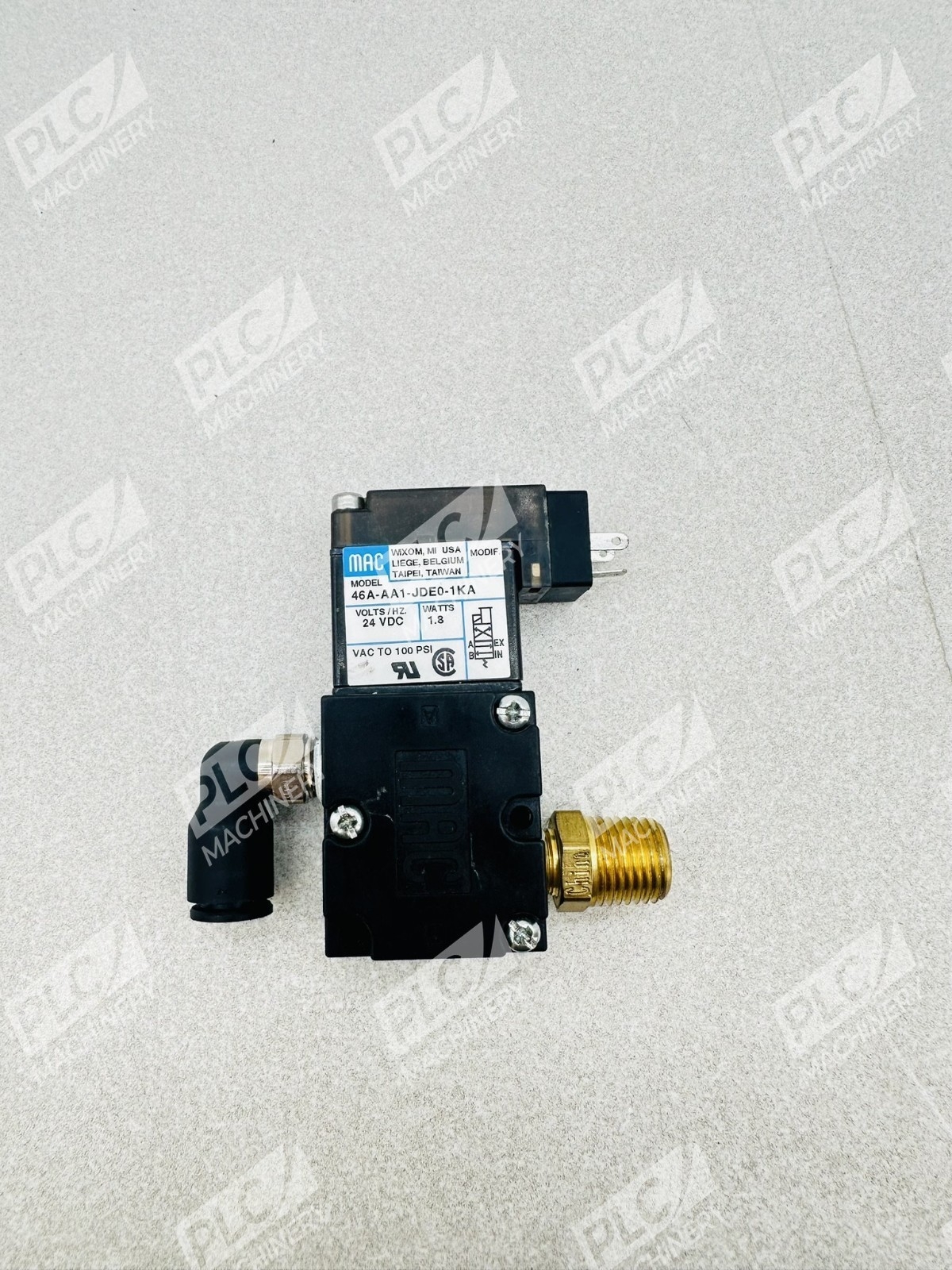

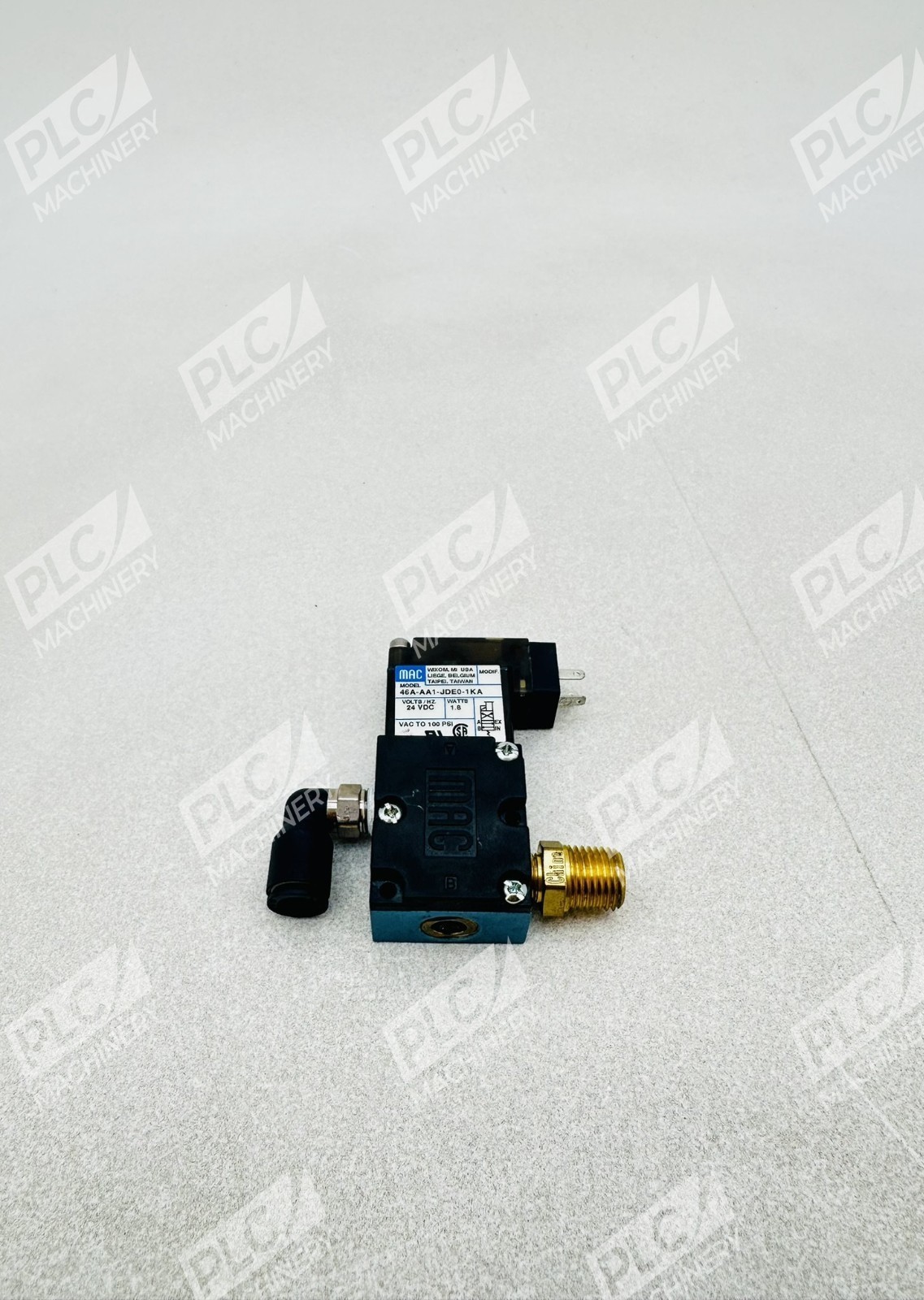

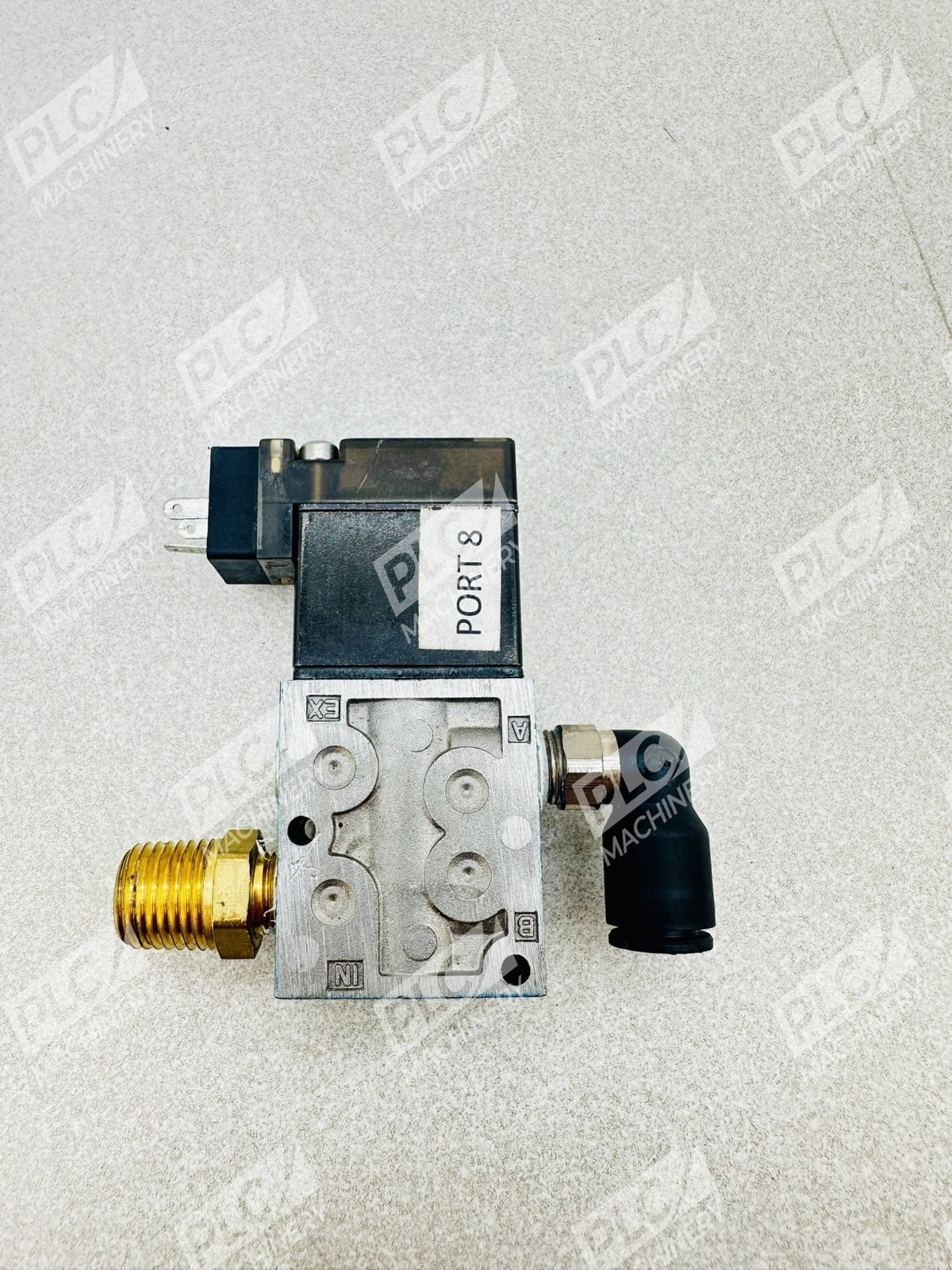

<p>The <strong>MAC 46A-AA1-JDE0-1KA</strong> is a direct-operating 4-way inline pneumatic solenoid valve designed for bidirectional control of compressed air in demanding industrial applications. Operating at 24VDC with 1.8W power consumption, this compact valve suits manufacturing equipment, process control systems, and pneumatic automation where fast switching and reliable directional control are essential. The MAC 46 series delivers proven performance through balanced poppet technology and short-stroke solenoid design.</p>
<h2>Key Features</h2>
<ul>
<li>Direct-operating 4-way, 2-position configuration for simple pneumatic circuits</li>
<li>Short stroke solenoid with oval armature for high shifting force at low power consumption</li>
<li>Balanced poppet with conical seating—minimizes friction, reduces wear, extends service life</li>
<li>Fast, repeatable response times ideal for precision automation and actuator control</li>
<li>Compact 1/8″ NPT inline form factor fits tight spaces</li>
<li>9.4 mm DIN connector (male) integrates with standard industrial control interfaces</li>
</ul>

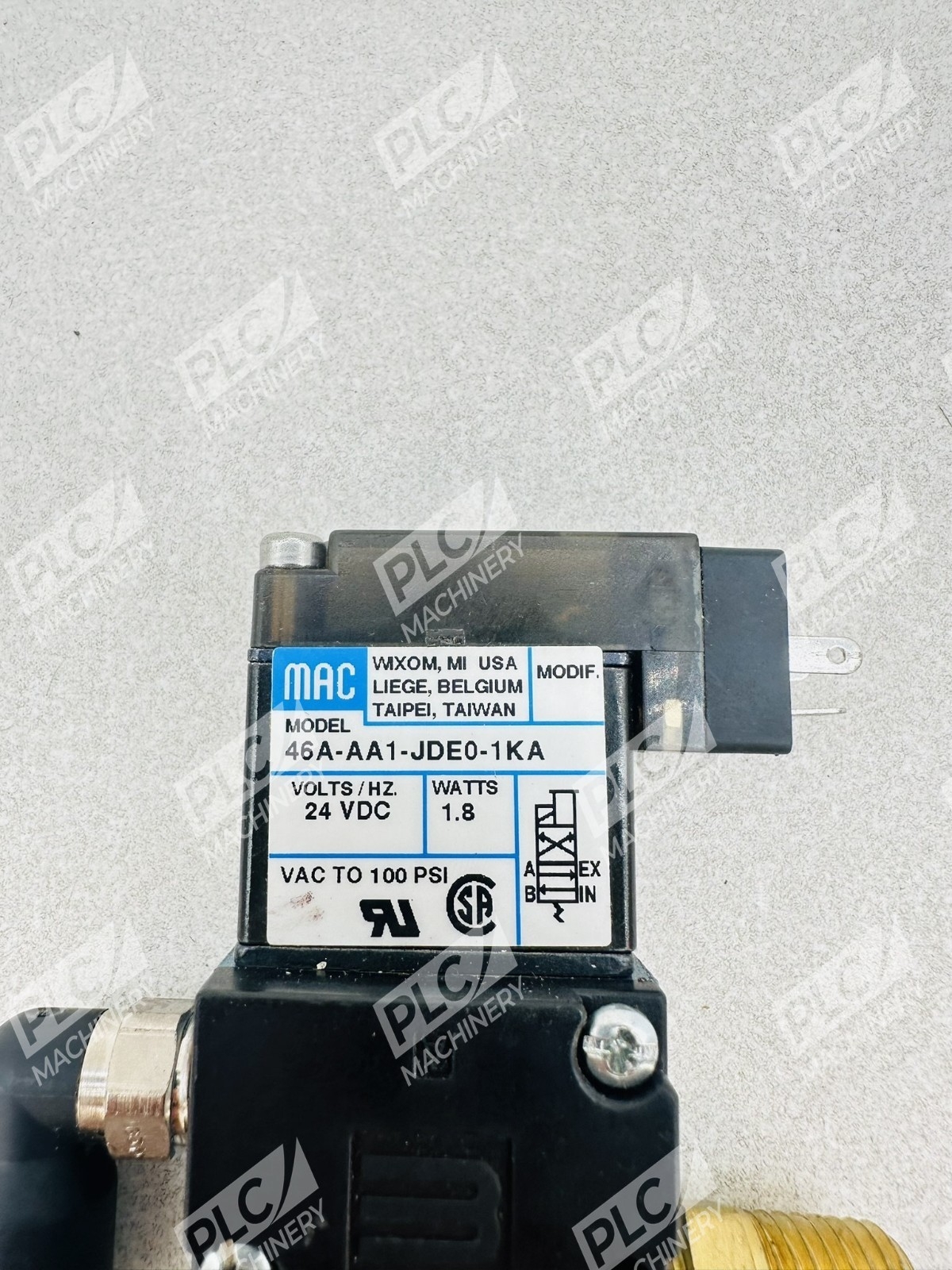

<h2>Technical Specifications</h2>
<ul>
<li><strong>Valve Configuration:</strong> 4-Way, 2-Position Solenoid (Directional Control)</li>
<li><strong>Operating Voltage:</strong> 24 VDC</li>
<li><strong>Power Consumption:</strong> 1.8 W</li>
<li><strong>Port Size:</strong> 1/8″ NPT (female)</li>
<li><strong>Flow Coefficient (Cv):</strong> 0.2</li>
<li><strong>Connector Type:</strong> 9.4 mm DIN (male)</li>
<li><strong>Solenoid Design:</strong> Single solenoid, short stroke, oval armature</li>
<li><strong>Mounting Style:</strong> Inline, direct mount</li>
<li><strong>Series:</strong> MAC 46</li>
</ul>
<h2>Typical Applications</h2>
<ul>
<li>Pneumatic cylinder and actuator directional switching</li>
<li>Industrial manufacturing equipment control and sequencing</li>
<li>Process automation and fluid power systems</li>
<li>Material handling and conveyor control circuits</li>
<li>Air brake and emergency stop valve circuits</li>
<li>Precision positioning and speed control applications</li>
</ul>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>24 VDC pneumatic automation and control systems</li>
<li>Industrial PLC, PAC, and motion controllers</li>
<li>DIN-standard 9.4 mm solenoid connectors (male)</li>
<li>MAC series 46 manifold mounting bases and subplates</li>
<li>Standard 1/8″ NPT pneumatic hose fittings and tube assemblies</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<ul>
<li>MAC 46A-AA1-JDA0-1KJ (higher power 5.4W variant with matching port and connector)</li>
<li>Other MAC 46 series 4-way 24VDC solenoid valves with 1/8″ NPT configuration where electrical and flow ratings match</li>
</ul>
<h3>Works With</h3>
<ul>
<li>24 VDC regulated power supplies and PLC output modules</li>
<li>Industrial DIN-standard solenoid valve connectors and terminals</li>
<li>Pneumatic manifold systems, subplates, and flow control accessories</li>
<li>Pressure regulators and inline flow control valve attachments</li>
</ul>
