Overview

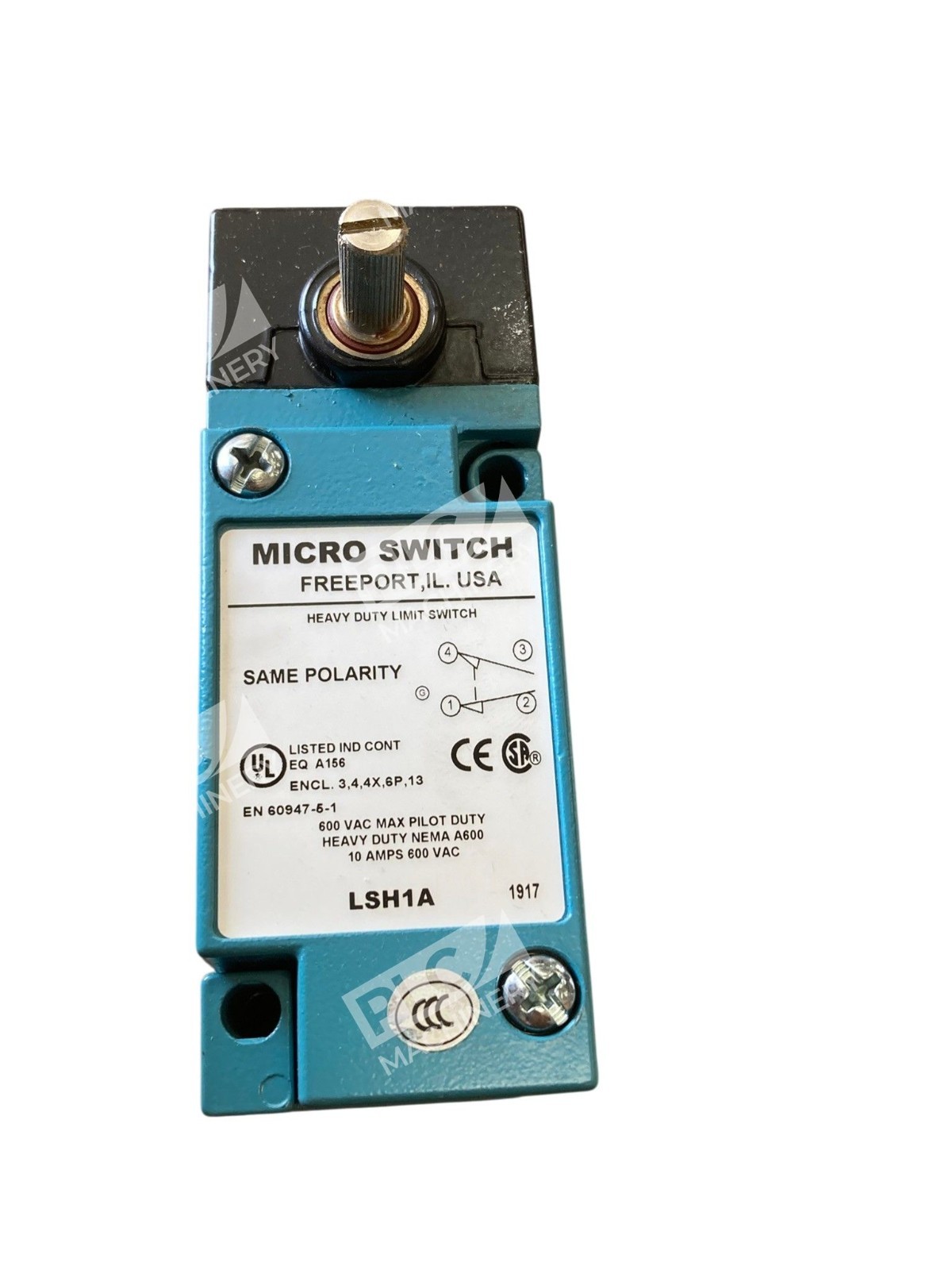

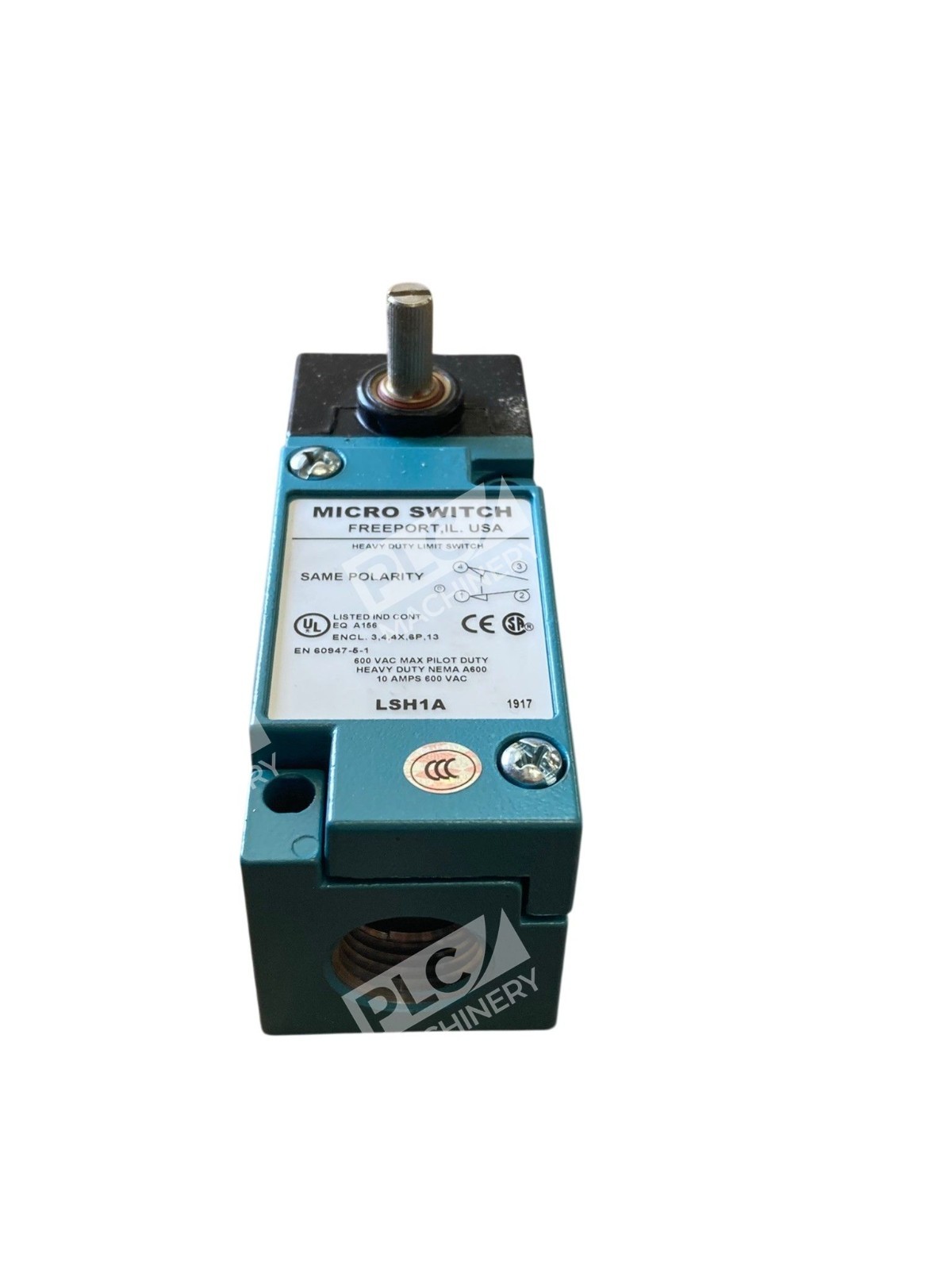

The Honeywell LSH1A is a MICRO SWITCH heavy-duty limit switch from the HDLS series, engineered for industrial automation and machinery control. The modular construction allows for a wide variety of actuator styles, operating heads, and electrical circuitry options. The plug-in versions greatly reduce downtime on production lines with high actuation rates as replacement of the switch is accomplished in seconds. The LSH1A features a side rotary actuator and is rated for 10A at 600Vac.
Key Features
- SPDT contact configuration (1NO/1NC) for versatile switching logic
- Plug-in base receptacle contains all wiring and conduit connection while the switching component easily assembles with two screws.
- Side rotary actuator head for rotational motion detection
- Ideal for demanding indoor and/or outdoor environments subjected to shock or vibration, temperature extremes, dust, splashing water, coolant, and/or hose-directed water.
- Robust construction for long service life in harsh industrial settings
Technical Specifications
- Contact Configuration: SPDT (1NO/1NC)
- Actuator Type: Side Rotary
- Electrical Rating: 10A at 600Vac
- Connection: 1/2″ NPT
- Series: HDLS (Heavy-Duty Limit Switch)
- Mounting: Enclosed rotary actuated
- Certifications: NEMA listed
Typical Applications
- Machinery guard and safety interlock systems
- Position sensing for rotational equipment and shafts
- Motor and compressor cut-off control
- Industrial conveyor and automation line control
- Equipment with high shock, vibration, or environmental stress
- Heavy-duty manufacturing and processing facilities
Compatibility & Replacements
Compatible With
- Industrial control systems requiring SPDT switching logic
- PLC discrete input modules (via dry contact interface)
- Relay logic and hardwired control circuits
- Machinery control panels and safety circuits
- Standard 600Vac industrial power environments
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The LSH1A is part of the HDLS modular family; confirm your existing switch model number matches the SPDT side rotary configuration.
Works With
- Allen-Bradley CompactLogix and ControlLogix PLC discrete inputs
- Siemens S7-1200 and S7-1500 digital inputs
- Omron CJ and CP series controllers
- Rockwell Automation safety circuits and interlocks
- Standard 24VDC and 120VAC control signal conversion circuits
