<h2>Overview</h2>

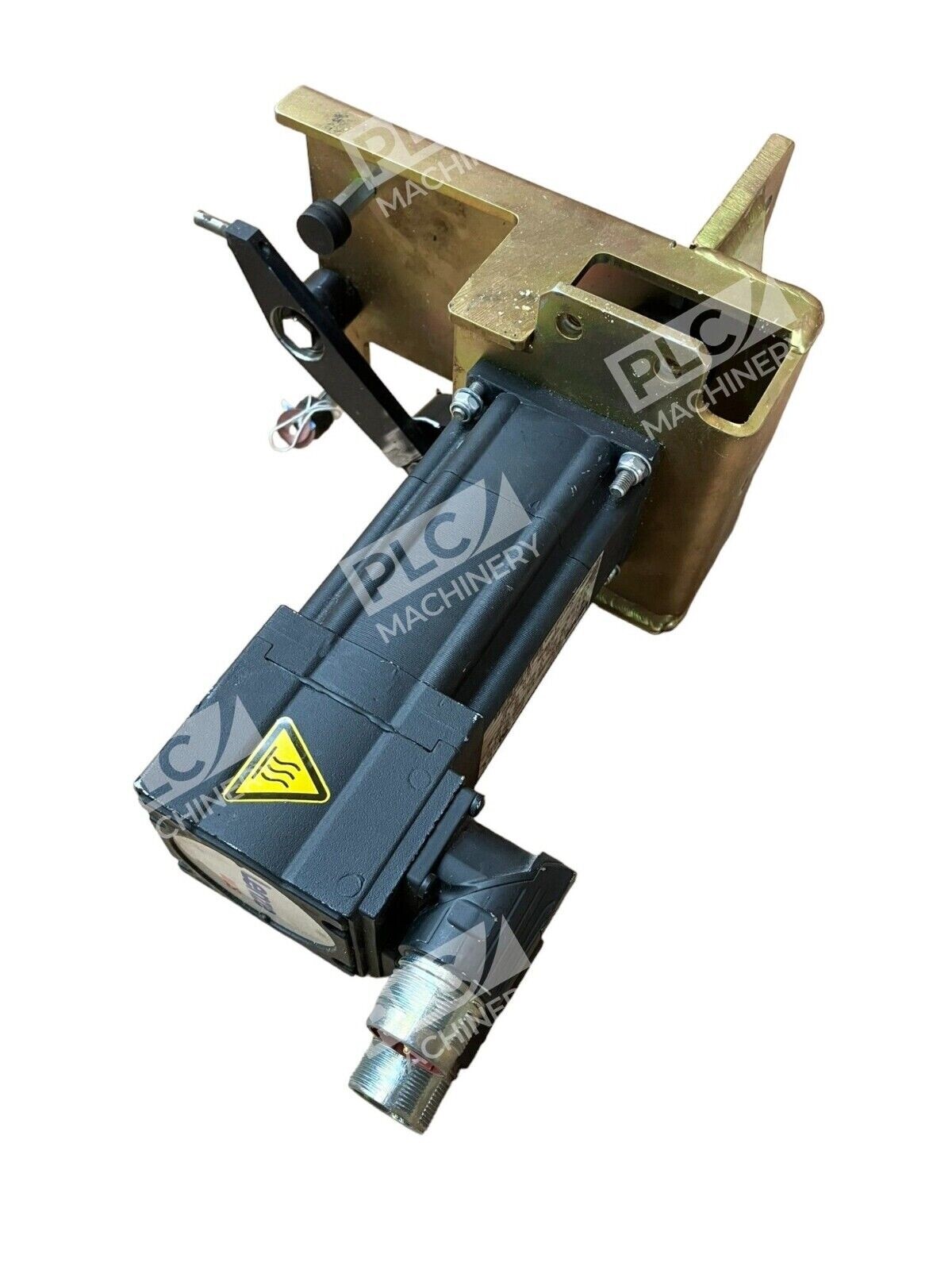

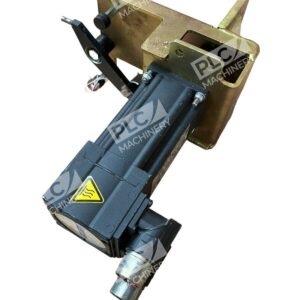

<p>The <strong>Lenze MCS 06F41LRS0B0-B11N-ST5S00N-R2SU</strong> servo motor is a synchronous servo motor designed for high-precision motion control in industrial automation systems. This 06F-frame size unit delivers consistent performance with resolver-based feedback, making it suitable for applications requiring precise speed and position control. The motor’s robust construction and IP54 enclosure rating ensure reliable operation in demanding production environments.</p>
<h2>Key Features</h2>
<ul>
<li>Synchronous servo motor with resolver feedback for accurate position and speed control</li>
<li>400 VAC, 3-phase input voltage for standard industrial power systems</li>
<li>0.510 kW (0.68 HP) rated power output with 1.20 Nm continuous torque</li>
<li>Standard shaft with keyway, 11 mm diameter for direct coupling applications</li>
<li>IP54 rating with natural ventilation cooling</li>
<li>Round plug connectors for reliable circuit integration</li>
</ul>

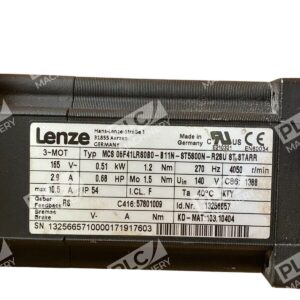

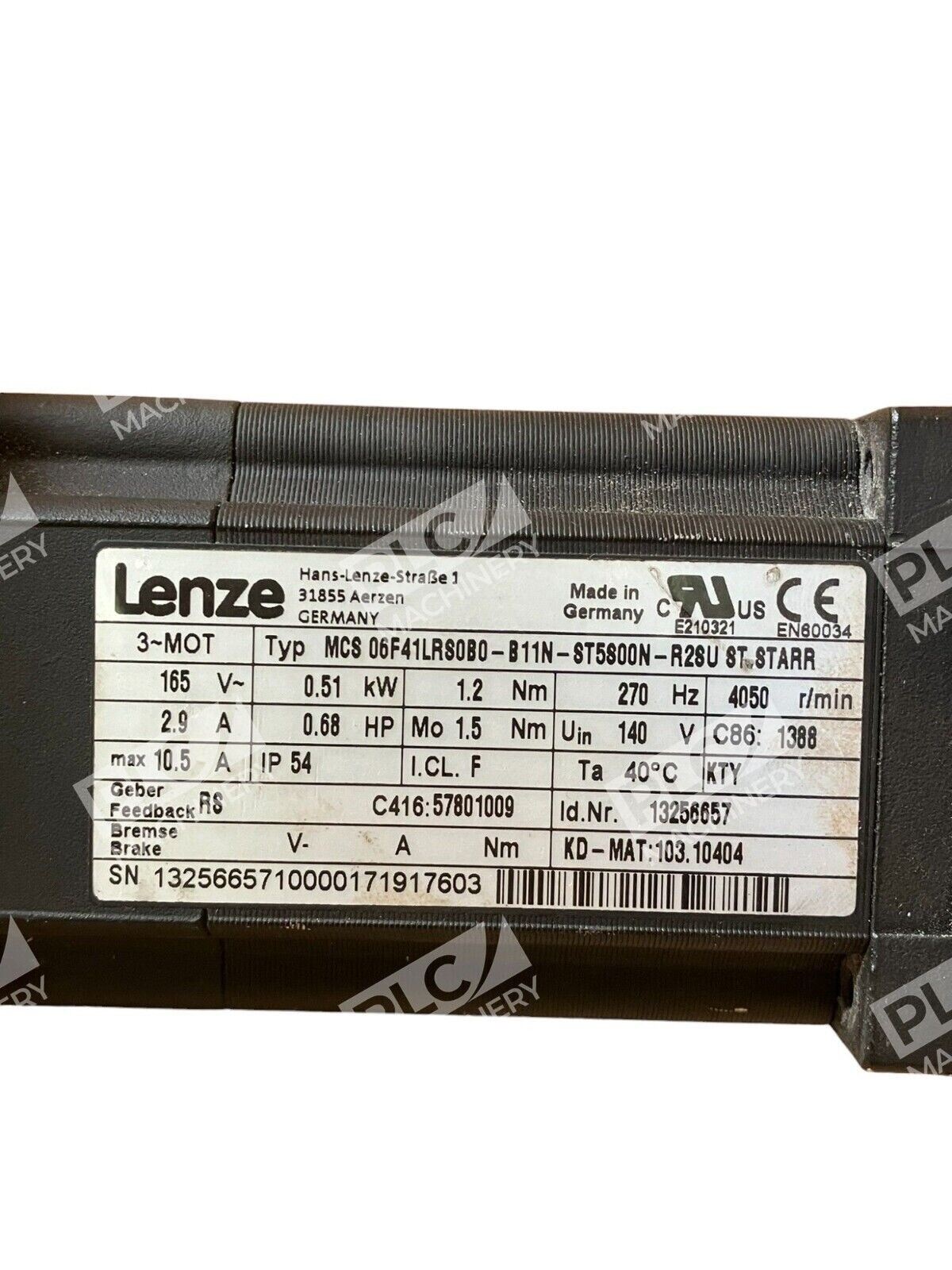

<h2>Technical Specifications</h2>
<ul>
<li><strong>Motor Type:</strong> MCS Synchronous Servo Motor</li>
<li><strong>Frame Size:</strong> 06F</li>
<li><strong>Input Voltage:</strong> 400 VAC, 3-phase</li>
<li><strong>Rated Power:</strong> 0.510 kW (0.68 HP)</li>
<li><strong>Rated Speed:</strong> 4050 RPM</li>
<li><strong>Continuous Torque:</strong> 1.20 Nm</li>
<li><strong>Rated Current:</strong> 1.5 A</li>
<li><strong>Feedback Type:</strong> Resolver with TTL Incremental Encoder</li>
<li><strong>Shaft Design:</strong> Standard shaft with keyway, diameter 11 mm</li>
<li><strong>Brake:</strong> None</li>
<li><strong>Enclosure Rating:</strong> IP54 (dust and splash protected)</li>
<li><strong>Cooling:</strong> Natural ventilation</li>
<li><strong>Connectors:</strong> Round plugs</li>
</ul>
<h2>Typical Applications</h2>
<ul>
<li>Precision positioning systems in manufacturing automation</li>
<li>Textile and printing machinery requiring synchronized speed control</li>
<li>Packaging equipment with coordinated multi-axis motion</li>
<li>Robotics and machine tool spindle drives</li>
<li>Materials handling conveyor systems</li>
<li>Industrial process control requiring repeatable angular velocity</li>
</ul>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>Lenze drive controllers (MDS, INVERSO, i700 series)</li>
<li>Standard industrial 400 VAC, 3-phase power systems</li>
<li>Resolver and encoder-based servo control systems</li>
<li>Direct coupling to driven equipment via standard 11 mm keyway shaft</li>
<li>Automation control systems utilizing resolver feedback loops</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<ul>
<li>Lenze MCS 06F41-RS0B0-B11N-ST5S00N variants (same frame, similar electrical characteristics)</li>
<li>Other 06F-frame synchronous servo motors with resolver feedback and comparable torque ratings</li>
<li>Verify compatibility with your system integrator before ordering to ensure control software and resolver configuration match.</li>
</ul>
<h3>Works With</h3>
<ul>
<li>Lenze MDS Series drive controllers</li>
<li>Lenze INVERSO frequency inverters</li>
<li>Standard resolver signal conditioning modules</li>
<li>Industrial automation platforms supporting analog resolver feedback</li>
<li>PLCs and motion control systems with 4-20 mA analog input cards</li>
</ul>
