Overview

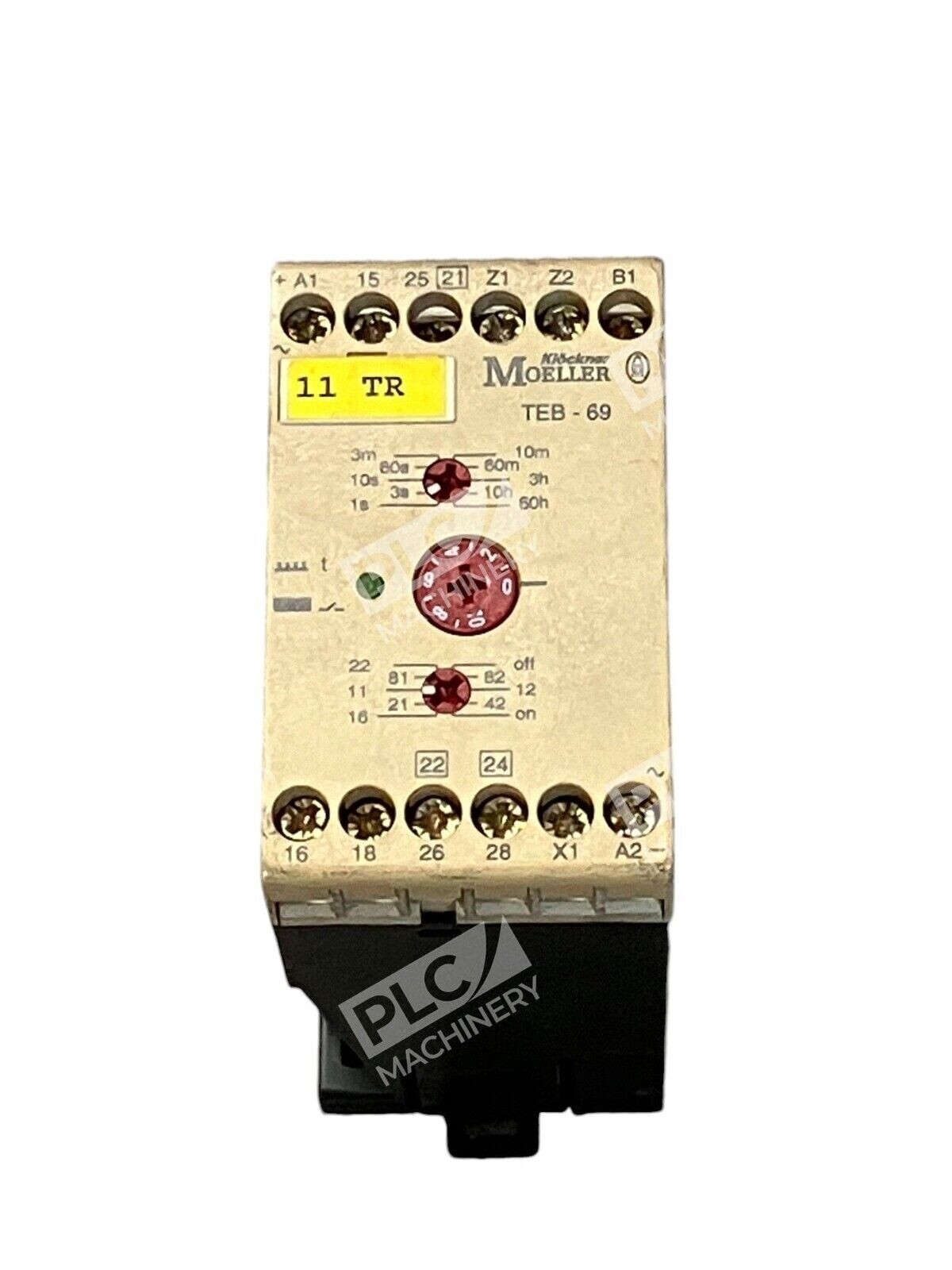

The Klockner Moeller TE69-A is an industrial time delay relay designed for control panel integration and machine automation. This DIN-rail mount timer offers wide voltage compatibility (24–240V AC/DC at 50/60 Hz) and adjustable time delays ranging from 0.05 seconds to 60 hours, making it suitable for diverse timing applications in manufacturing, HVAC, and process control environments. The unit features screw terminal connections and is rated for 3A contact current at 220–240V AC and 380–440V AC.
Key Features
- Wide supply voltage range: 24–240V AC/DC at 50/60 Hz
- Adjustable time delay: 0.05 seconds to 60 hours
- DIN-rail mounting for standard control panel installation
- Compact dimensions: 22.5 × 100.9 × 76.5 mm
- 3A contact rating at 220–240V AC and 380–440V AC
- Screw terminal connections
Technical Specifications
The TE69-A meets IEC 255, IEC 947, and IEC 664 standards for reliable operation in industrial environments. Operating temperature range spans –20 to +60°C, and the unit weighs 110 grams. Electrical parameters include surge voltage immunity (Uimp) of 6000V and thermal current withstand (Ith) of 6A.
Typical Applications
- Machine start/stop delay sequences
- Pump and motor soft-start timing
- HVAC system cycling and staging
- Furnace ignition and burner control delays
- Industrial process sequencing and synchronization
- Maintenance interval and alarm timing
Compatibility & Replacements
Compatible With
- Standard industrial control panels rated 24–240V AC/DC
- Machine control systems and process automation equipment
- HVAC and thermal management systems
- Manufacturing equipment requiring programmable delay sequences
- Any system using DIN-rail mounted relay logic
Replaces / Drop-In Replacement For
- Klockner Moeller TE-69 (predecessor model, same form factor)
- Klockner Moeller TE 69-A (alternate part number designation)
- Eaton Moeller TE69-A (rebranded variant under Eaton ownership)
Works With
- Screw-terminal control relay circuits
- Contactor and auxiliary relay logic networks
- Programmable timing sequences in hard-wired panel control
- Standard industrial 50/60 Hz AC mains and DC power supplies
