Overview
The Rexroth MDD093C-N-030-N2L-110PB0 is a permanent magnet-excited synchronous servo motor from Bosch Rexroth Indramat, designed for integration with digital drive controllers in industrial automation applications. This motor is a digital drive controller motor with size 093, length code C, and a nominal speed of 3000 min⁻¹. The motor is a permanent magnet-excited synchronous motor. With its robust permanent magnet design and precise feedback capabilities, this servo motor is well-suited for machine tool positioning, assembly automation, and other high-dynamics applications.
Key Features
- Operates with a 3000 min nominal speed, Digital Servo Feedback, and an Output Shaft with Keyway

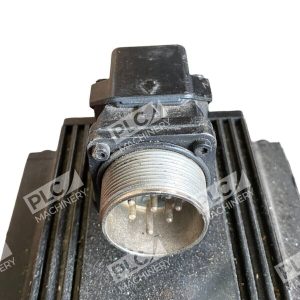

- Features digital servo feedback (DSF), side B connector connection, and a keyway shaft type
- Standard housing design that promotes natural convection as well as surface cooling
- Centering diameter of this unit is the standard 110 mm, with no blocking brake
- Balance class standard R according to the DIN VDE 0530 section 14, 2/93 edition specifications
- When combined with intelligent drive controllers from INDRAMAT, this servo motor will provide any operation with a cost-effective solution that provides rapid response to automation, with high contouring accuracies even at high feed rates
Technical Specifications

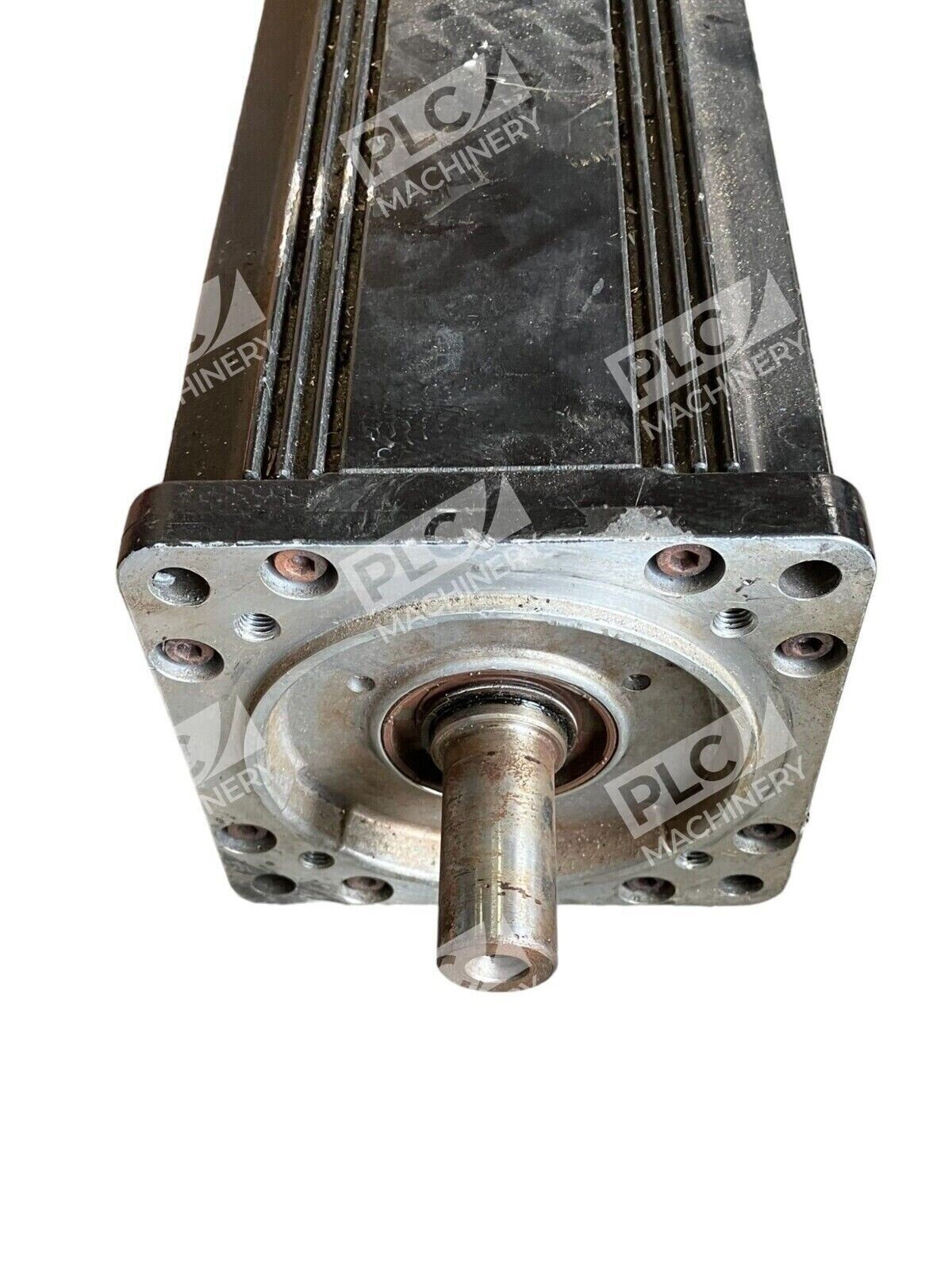

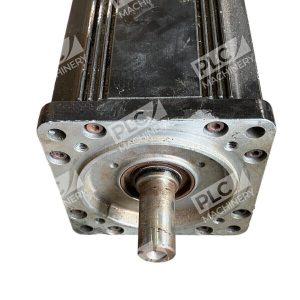

The MDD093C-N-030-N2L-110PB0 is engineered to deliver reliable servo performance in demanding applications. The motor has a nominal speed of 3000 min⁻¹. The servo motor’s unit has a standard side B shaft end and the power connection is also on side B. The motor employs digital servo feedback for precise rotor position and velocity data, enabling tight closed-loop synchronization in multi-axis systems.
Typical Applications
This motor has the ability to provide exceptional power and is great for use in tool changing machines, nibbling machines, punching machines, and pressing machines. The MDD093C-N-030-N2L-110PB0 is commonly deployed in:
- CNC machine tool spindle and axis drives
- Automated assembly and pick-and-place systems
- Precision positioning and contouring applications
- Industrial presses and stamping equipment
- Multi-axis motion control systems
Compatibility & Replacements
Compatible With
- Indramat DKS drive controllers
- Indramat DDS drive controllers
- Digital AC servo systems with DSF feedback capability
- IM B5 and IM B14 flange mounting configurations
Replaces / Drop-In Replacement For
- MDD093C-N-030-N2L-110PB2 (variant with integrated brake)
- Other MDD093C-N-030 series configurations with standard housing
Works With
- Indramat TwinCAT and other IEC 61131-3 automation software platforms
- CANopen and PROFIBUS communication protocols
- EtherCAT servo systems where Indramat gateways are deployed
- Standard side B connector-based wiring harnesses
