Overview

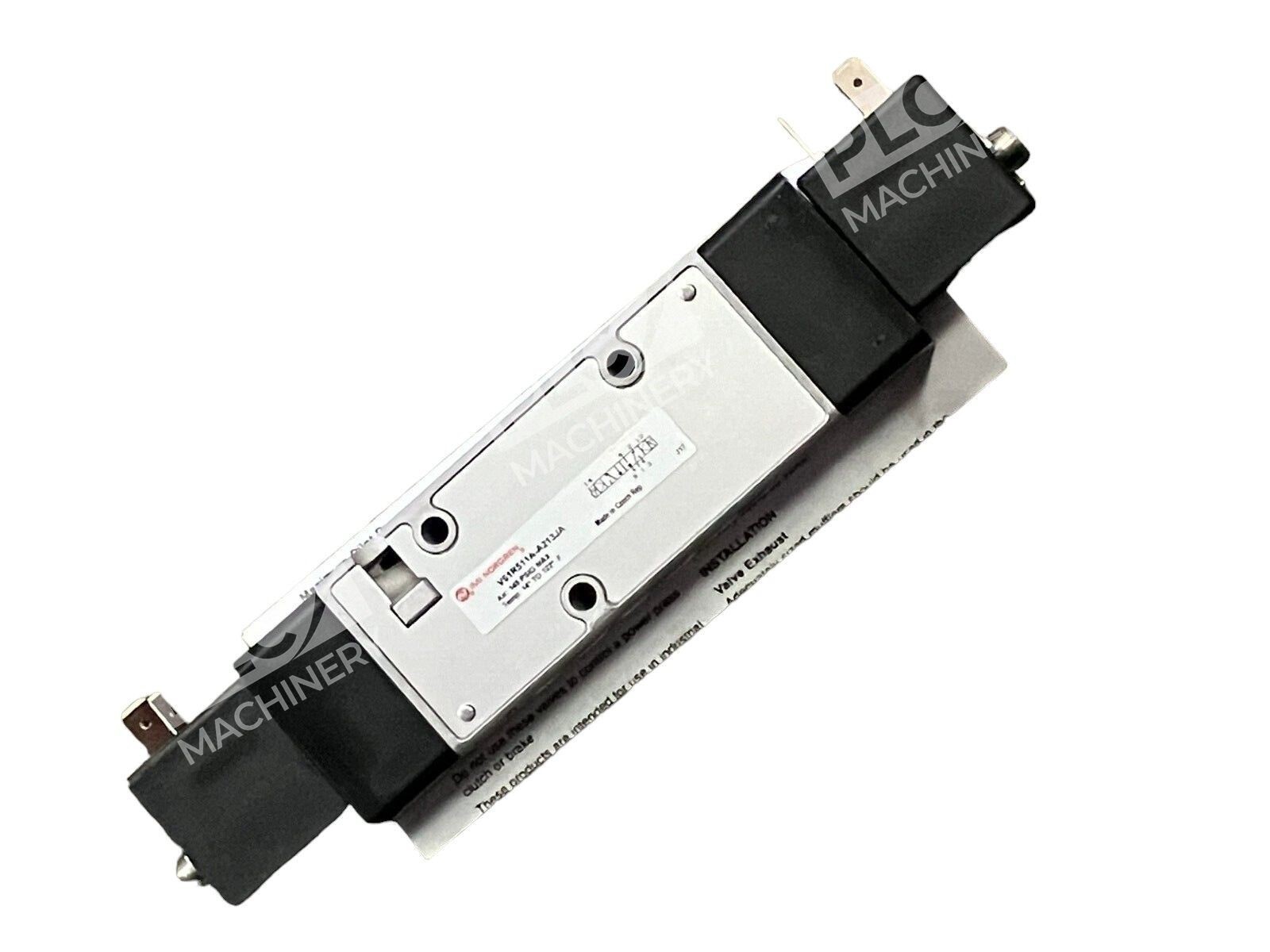

The Norgren V61R511A-A213JA is a V61 Series inline solenoid valve engineered for compressed air control in industrial automation and pneumatic systems. This 24VDC 5/2 configuration delivers locking solenoid actuation with solenoid return operation, providing bidirectional airflow control through 1/4″ NPT ported connections. Built to support demanding applications, this valve combines energy-efficient solenoid technology with a compact, high-flow design suitable for machinery controls, process automation, and fluid distribution systems.
Key Features
- 5/2 Solenoid Configuration: Locking solenoid actuated with solenoid return ensures precise positional control and repeatable switching cycles.
- Low Power, High Flow: Energy-efficient 24VDC solenoid minimizes electrical load while delivering robust airflow capacity.
- Compact Inline Design: Space-saving profile reduces footprint and simplifies panel integration without compromising performance.
- Robust Construction: Durable materials and precision engineering provide long service life in harsh industrial environments.
- Maintenance-Free Operation: Sealed internal design reduces downtime and eliminates frequent servicing requirements.
- Manifold-Ready: Fixed-length manifold mounting options available for modular system expansion.
Technical Specifications
The Norgren V61R511A-A213JA meets critical performance and compatibility requirements for modern pneumatic systems:

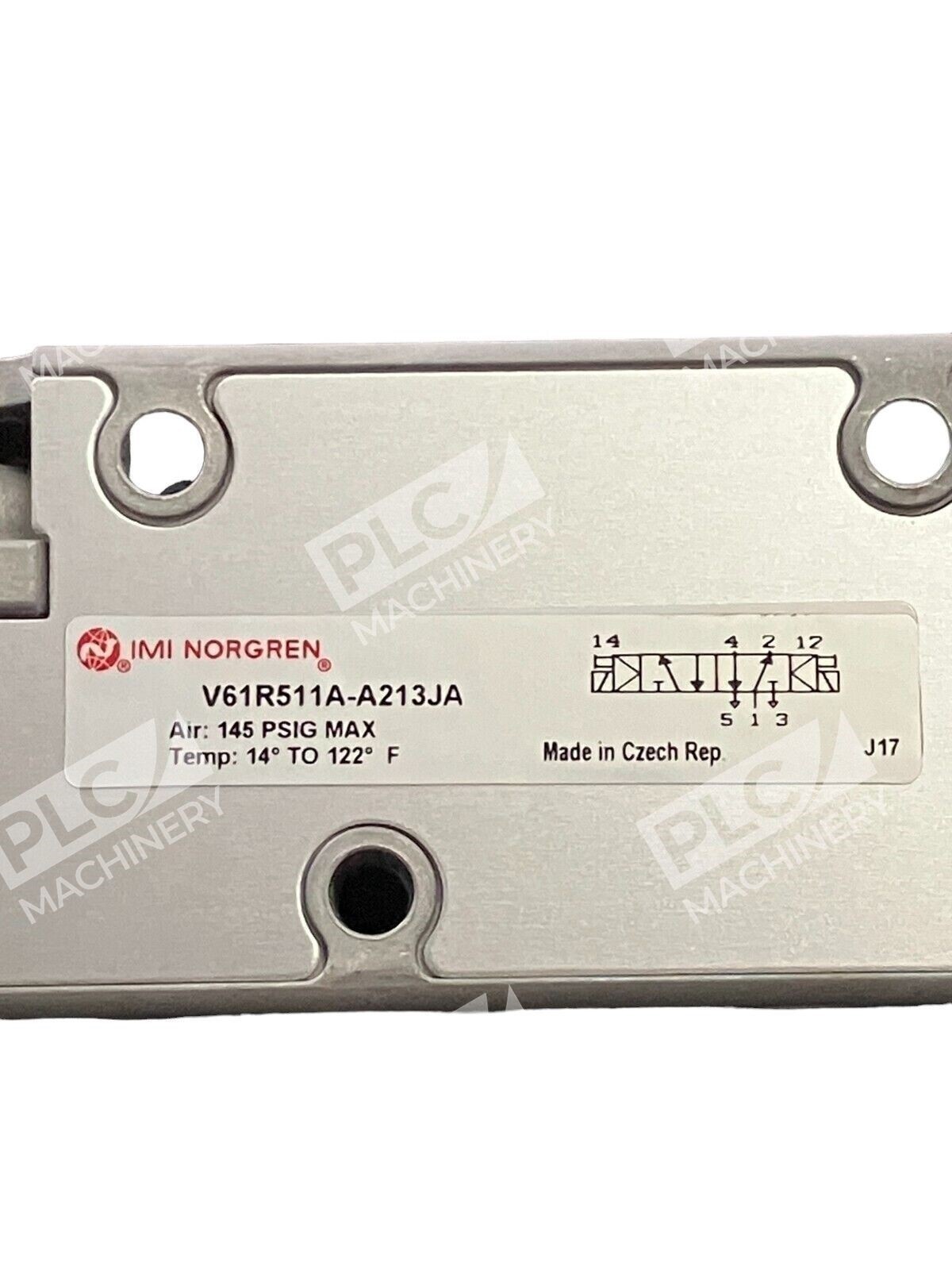

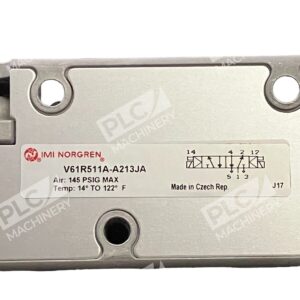

- Operating Pressure: 29–145 psi (2–10 bar)
- Operating Temperature: –10 to 50°C (14–122°F)

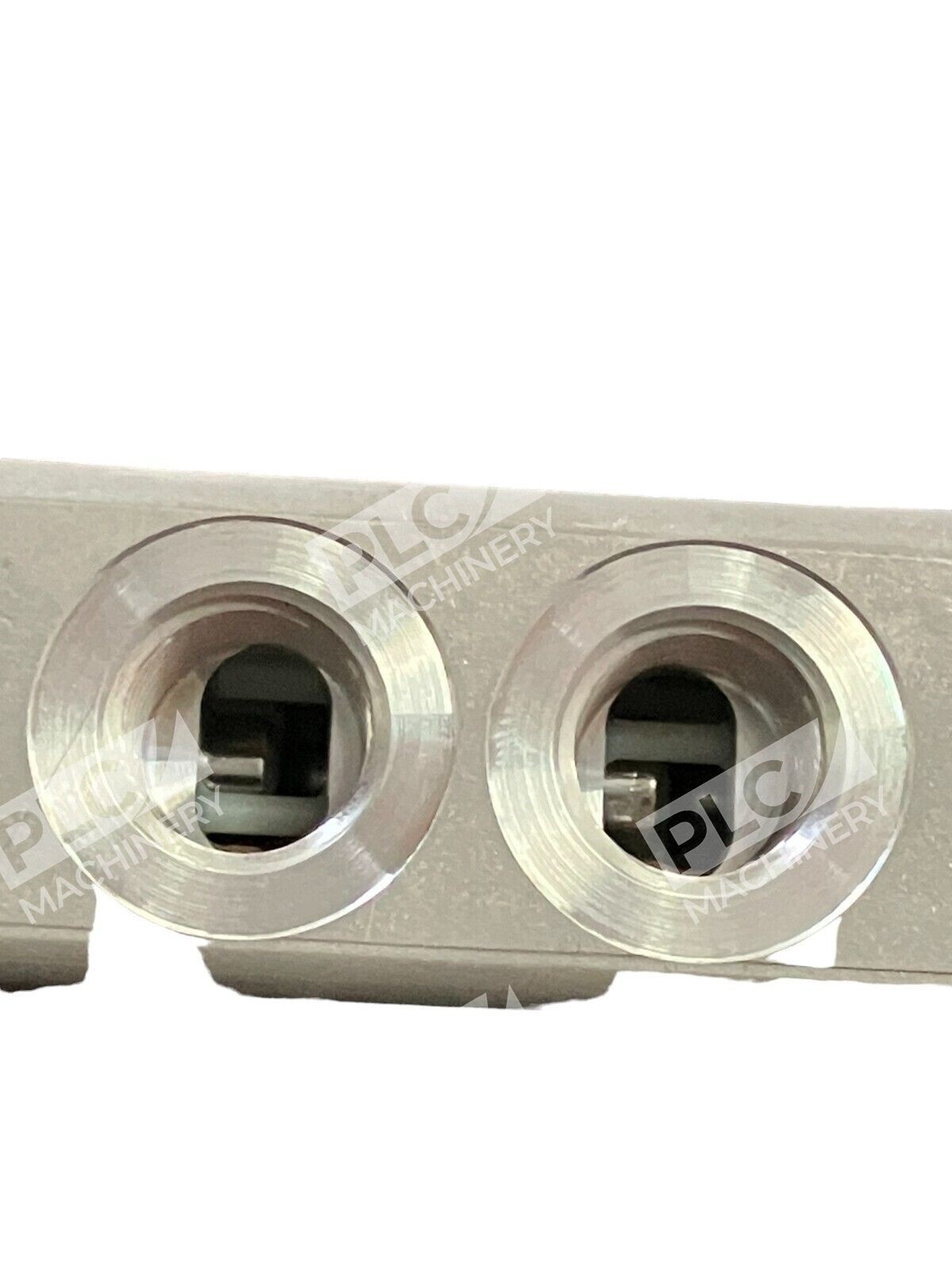

- Port Configuration: 1/4″ NPT

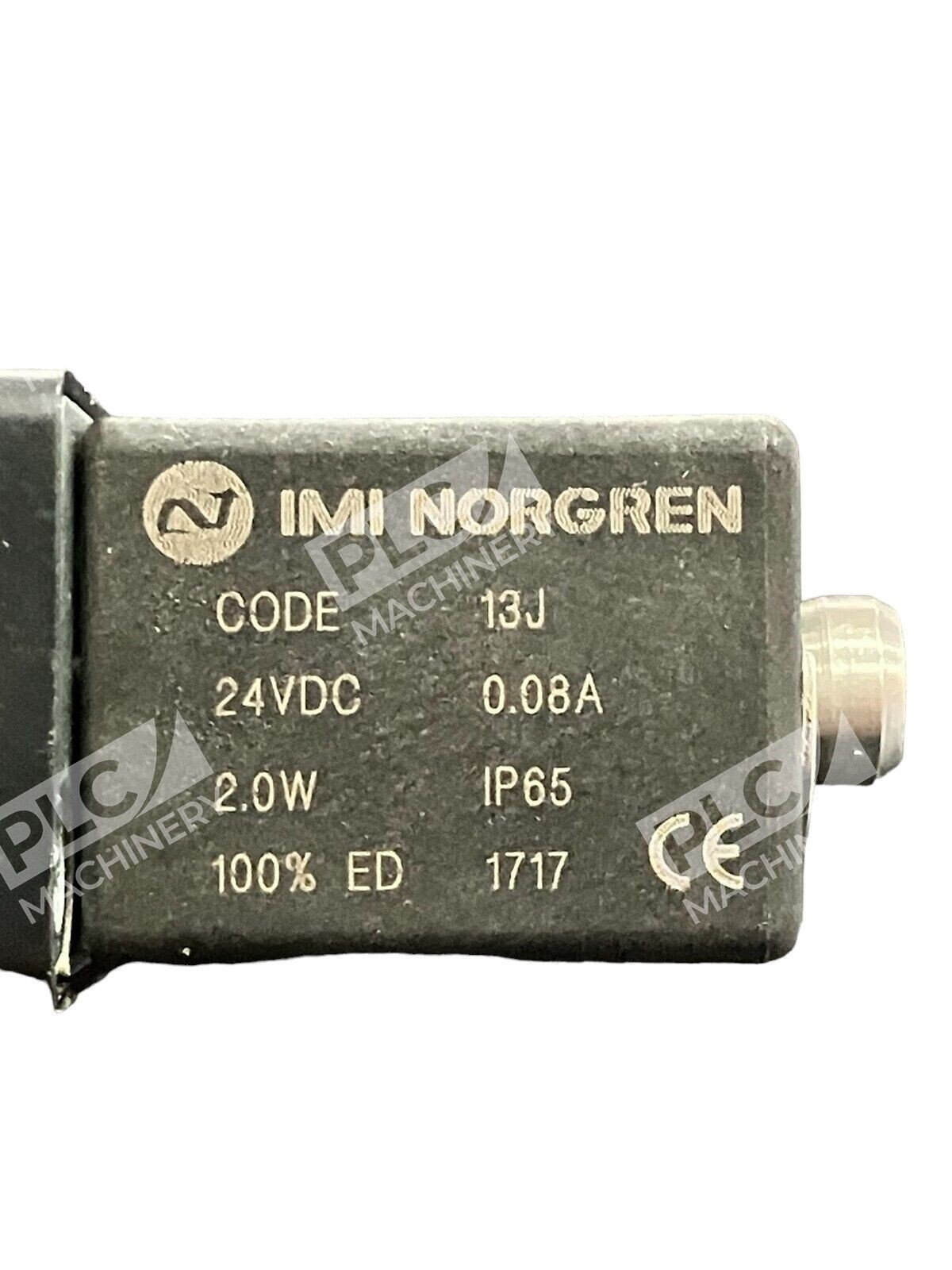

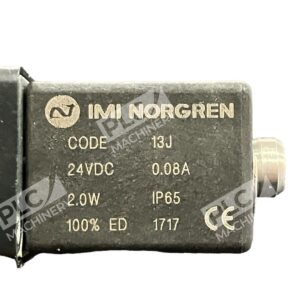

- Solenoid Voltage: 24 VDC
- Valve Function: 5/2, solenoid-operated directional control
- Medium: Compressed air
- Port Type: Ported (P, A, B, T)
- Series: V61
Typical Applications
The Norgren V61R511A-A213JA is widely deployed in:
- Pneumatic press and clamping systems
- Automated material handling and conveyor controls
- Packaging machinery and distribution equipment
- Industrial automation and machine tool flow control
- Pilot-operated and proportional air distribution networks
- Air-powered actuator and cylinder valve blocks
Compatibility & Replacements
Compatible With
- Standard 24 VDC industrial pneumatic control circuits
- Compressed air distribution systems (2–10 bar operating range)
- Industrial manifold banks and subplate-mounted configurations
- Pneumatic proportional and directional control networks
- Norgren accessory mounting blocks and silencer kits
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The Norgren V61R511A-A213JA is a member of the V61 Series; related V61 models may require configuration changes. Consult original equipment documentation or contact Norgren technical support for cross-reference information.
Works With
- Norgren pneumatic manifold systems and subplate configurations
- Standard 24 VDC solenoid coil assemblies
- Compressed air preparation and filtration equipment
- Industrial control relay and PLC-based switching systems
- Pilot-operated proportional control modules
