Overview

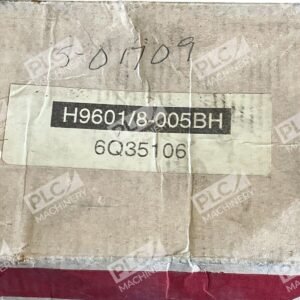

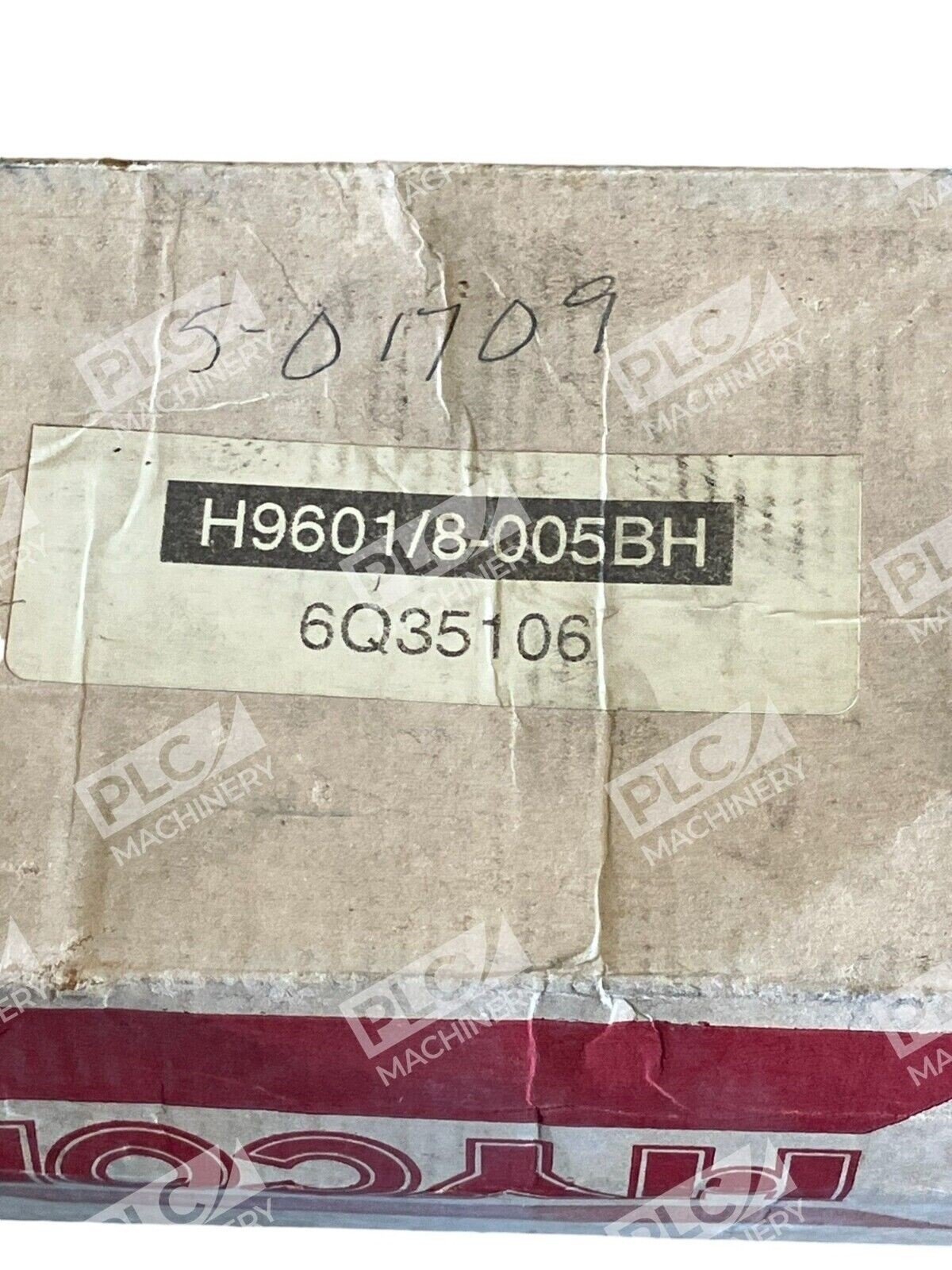

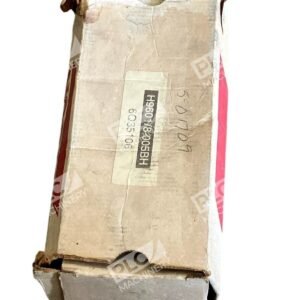

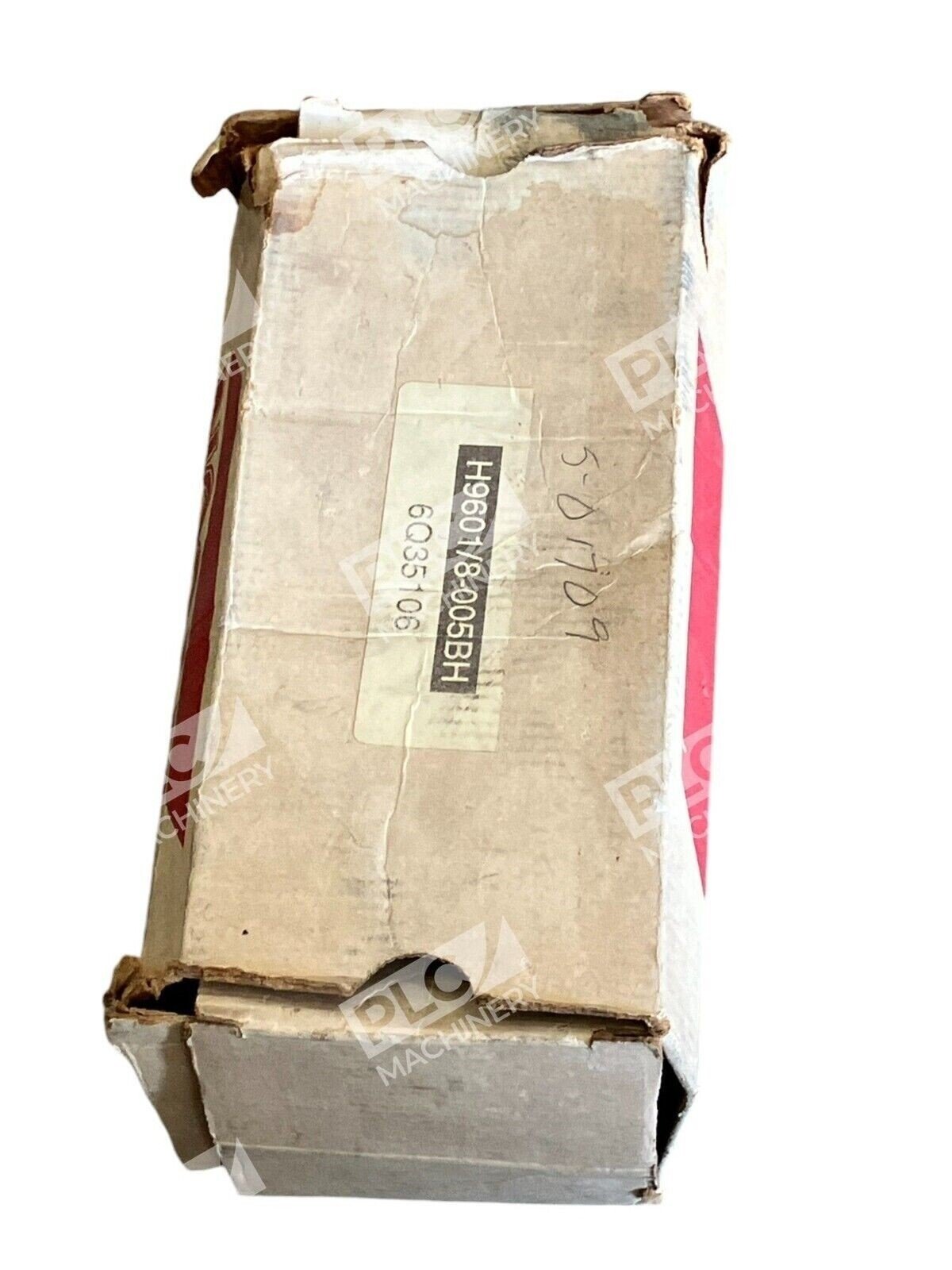

The Hydac H9601/8-005BH filter element (part 6Q35106) is a high-performance pleated microglass cartridge designed for precision hydraulic filtration in heavy industrial machinery. Hycon, a leader in industrial filtration, became a division of Hydac in 1997, and this element represents the reliability expected from both brands. The H9601/8-005BH delivers superior dirt-holding capacity and pressure stability in demanding return-line filter applications.
Key Features
- 3-micron absolute filtration rating (Beta3 = 200)
- 3000 PSID collapse pressure rating ensures durability under peak system loads
- Pleated microglass media maximizes filter area and dirt capacity
- Buna-N seals for broad fluid compatibility
- Outside-to-inside flow design optimizes flow distribution
- 250°F maximum fluid temperature rating
Technical Specifications
- Absolute Micron Rating: 3.00 µm
- Beta Rating: B3 = 200
- Collapse Pressure: 3000 PSID
- Maximum Operating Temperature: 250°F
- Recommended Changeout Pressure: 50 PSID differential
- Flow Direction: Outside-to-Inside
- Outer Diameter (top/bottom): 3.10 inches (78.74 mm)
- Inner Diameter (top): 1.72 inches (43.69 mm)
- Element Length: 8.30 inches (210.82 mm)
- Seal Material: Buna-N
- Endcap Material: Plated steel
- Center Tube: Plated steel
- Media Type: Pleated microglass
Typical Applications
The H9601/8-005BH is ideal for return-line and circulation filtering in:
- Heavy equipment hydraulic systems (excavators, loaders, presses)
- Industrial machinery with moderate to high flow requirements
- Hydraulic power units and central reservoir systems
- Systems requiring 3-micron ISO cleanliness targets
Compatibility & Replacements
Compatible With
- Hydac Type R return-line filter housings
- Legacy Hycon filter head designs (pre-1997)
- Standard spin-on and bowl-type hydraulic filter vessels
- Systems rated for 3000 PSID or less collapse pressure
Replaces / Drop-In Replacement For
- Hycon H9601/8-005BH (original OEM designation)
- Betafit HF3-05-3-N (Hydac equivalent, part 2060780)
Works With
- Hydac filter management systems and condition monitoring
- Standard mineral hydraulic fluids and biodegradable ester-based fluids
- ISO 4406 cleanliness tracking (17/15/12 target achievable)
