Overview

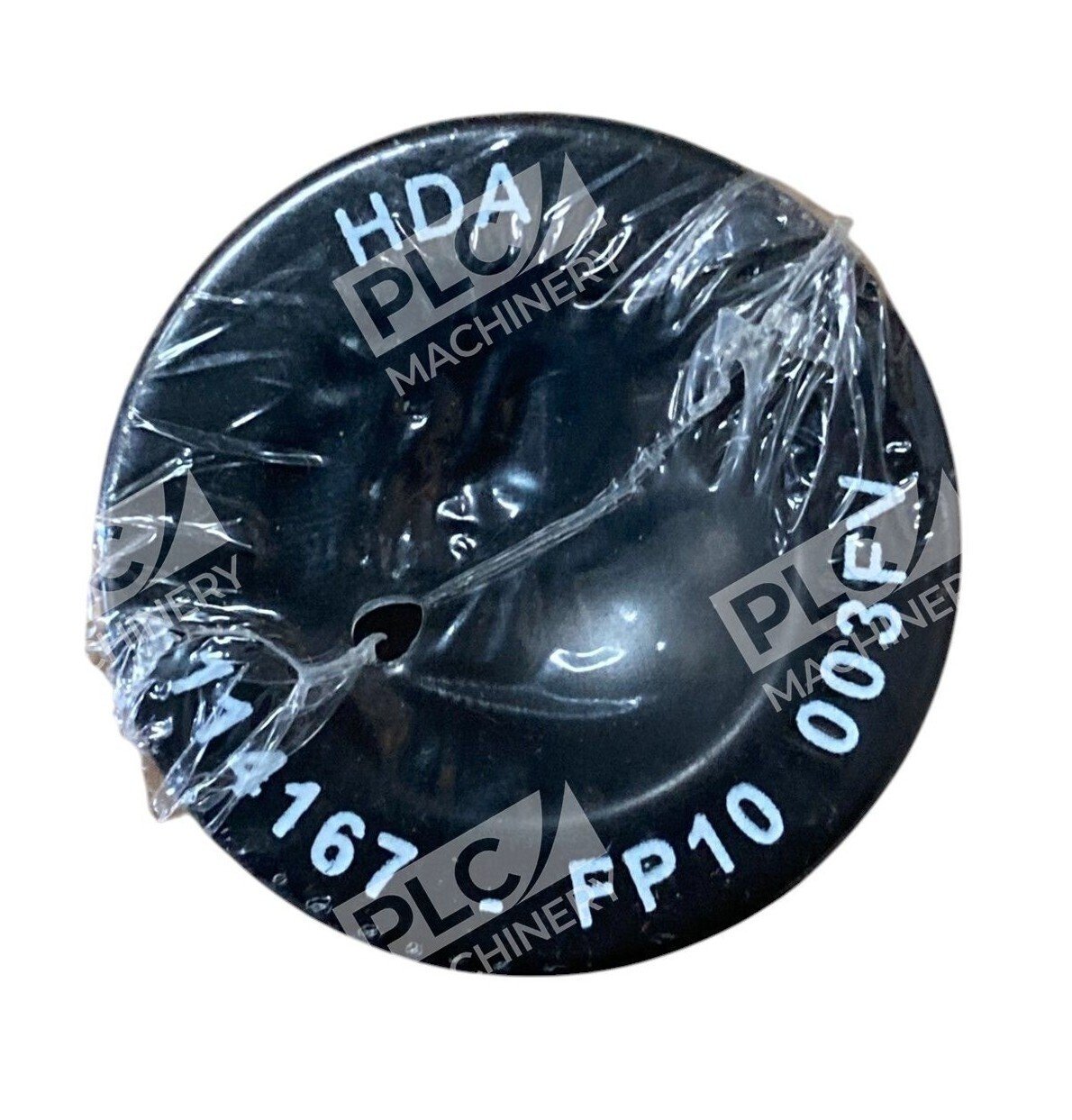

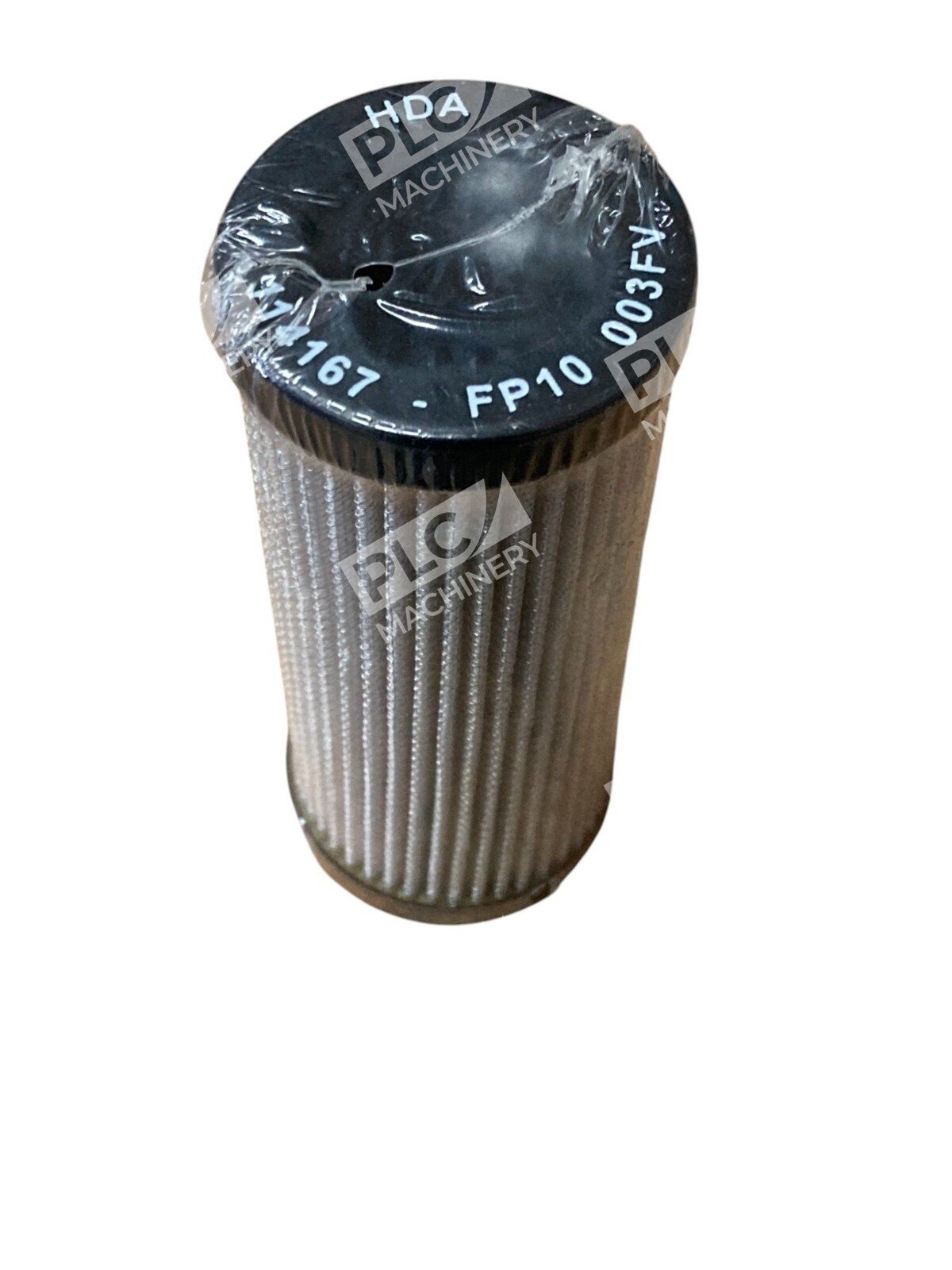

The HDA 114167-FP10 003FV filter element is a cartridge-style pressure filter designed for direct integration into existing hydraulic filter housings. This replacement filter element removes particulate and contaminant material from hydraulic fluid to maintain system cleanliness and protect downstream components. The FP10 003FV 06B/0 L6 variant is widely used in industrial fluid power systems where consistent filtration performance is critical.
Key Features
- Microfiber glass media with 3-micron absolute filtration efficiency (Beta 200:C)
- Layered fiberglass construction with epoxy-coated mesh for durability
- 350 PSI (24.1 bar) collapse pressure rating for high-pressure circuits
- Wide operating temperature range: -40°C to +107°C
- Drop-in cartridge design for quick replacement without system modification
- Suitable for industrial machine tools, mobile equipment, and stationary hydraulic systems
Technical Specifications
- Model Number: FP10 003FV 06B/0 L6
- Filter Media: Microfiber glass fiber (pleated cartridge)
- Filtration Rating: 3 microns absolute (Beta:C 200)
- Collapse Pressure: 24.1 bar (350 PSI)
- Operating Temperature Range: -40°C to +107°C
- Media Construction: Epoxy-coated multilayer mesh
- Flow Direction: Inside-out (typical for spin-on and cartridge housings)
- Application Type: Pressure filtration
Typical Applications
The HDA 114167-FP10 003FV is ideal for hydraulic systems requiring ISO cleanliness levels of 17/15/12 or better. Common installations include:
- Industrial machine tool hydraulic circuits
- Mobile equipment (loaders, graders, excavators) main filter stages
- Stationary pump systems and power units
- Secondary and tertiary filtration stages in multi-stage systems
- Machinery requiring tight contamination control to prevent valve and actuator wear
Compatibility & Replacements
Compatible With
- HDA pressure filter housings sized for FP10 cartridges
- Parker Filtration and HDA brand filter bowls and manifolds
- Standard SAE spin-on and cartridge filter housings with 3-micron media compatibility
- Hydraulic systems operating at pressures up to 350 PSI
- Fluids: ISO VG 46 mineral hydraulic oils and compatible synthetics
Replaces / Drop-In Replacement For
- HDA FP10 003FV (equivalent variant designations)
- Parker Filtration equivalent pressure filter cartridges in the 3-micron range
- OEM filter elements for systems originally specified with HDA FP10 series cartridges
Works With
- SAE flange-mount filter housings (spin-on and cartridge style)
- Hydraulic systems with pump displacement up to 30 cc/rev typical for FP10 cartridges
- ISO 4406 contamination monitoring and reporting systems
- Automated filter change-out indicators and bypass valves
