Overview

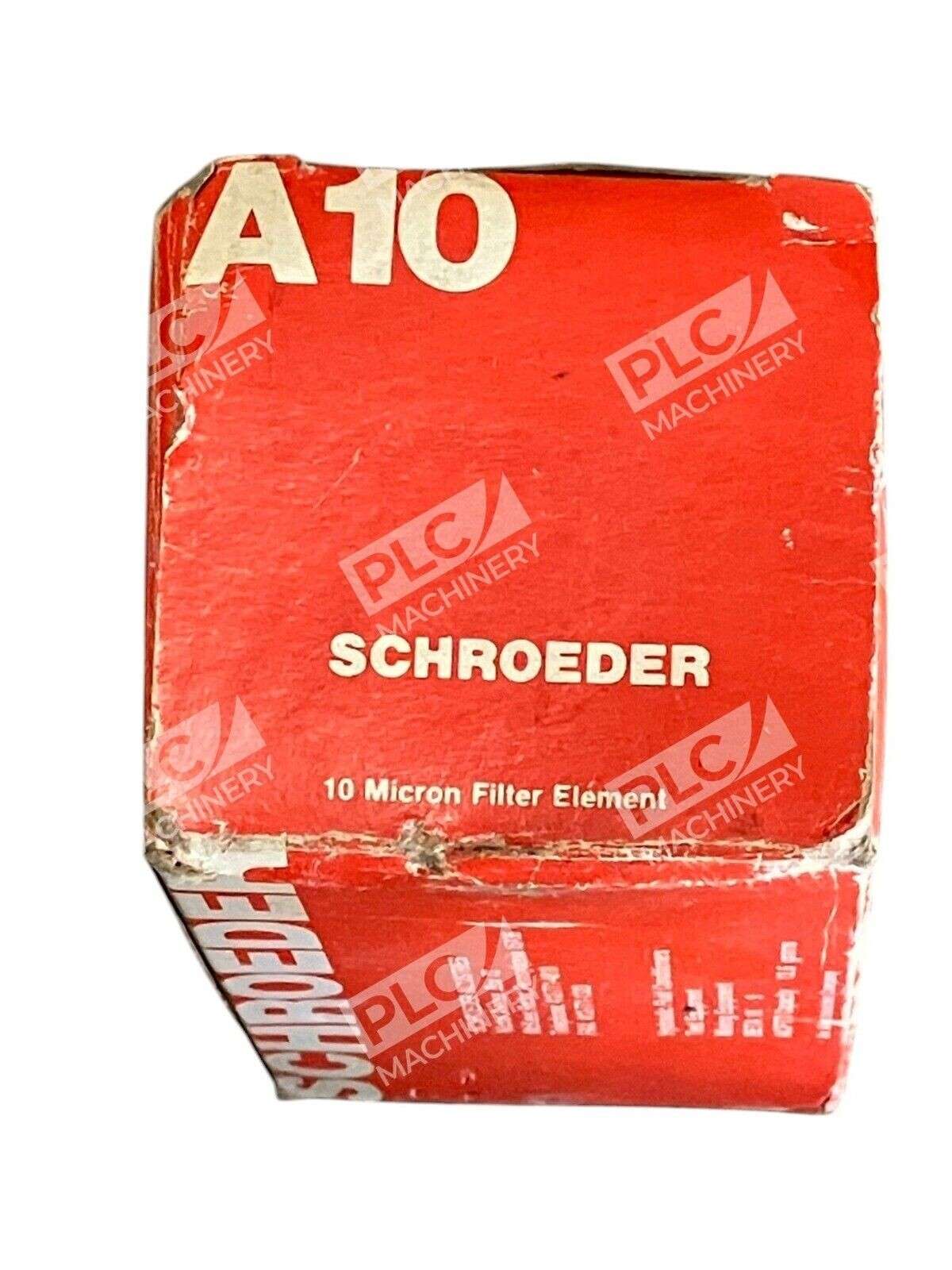

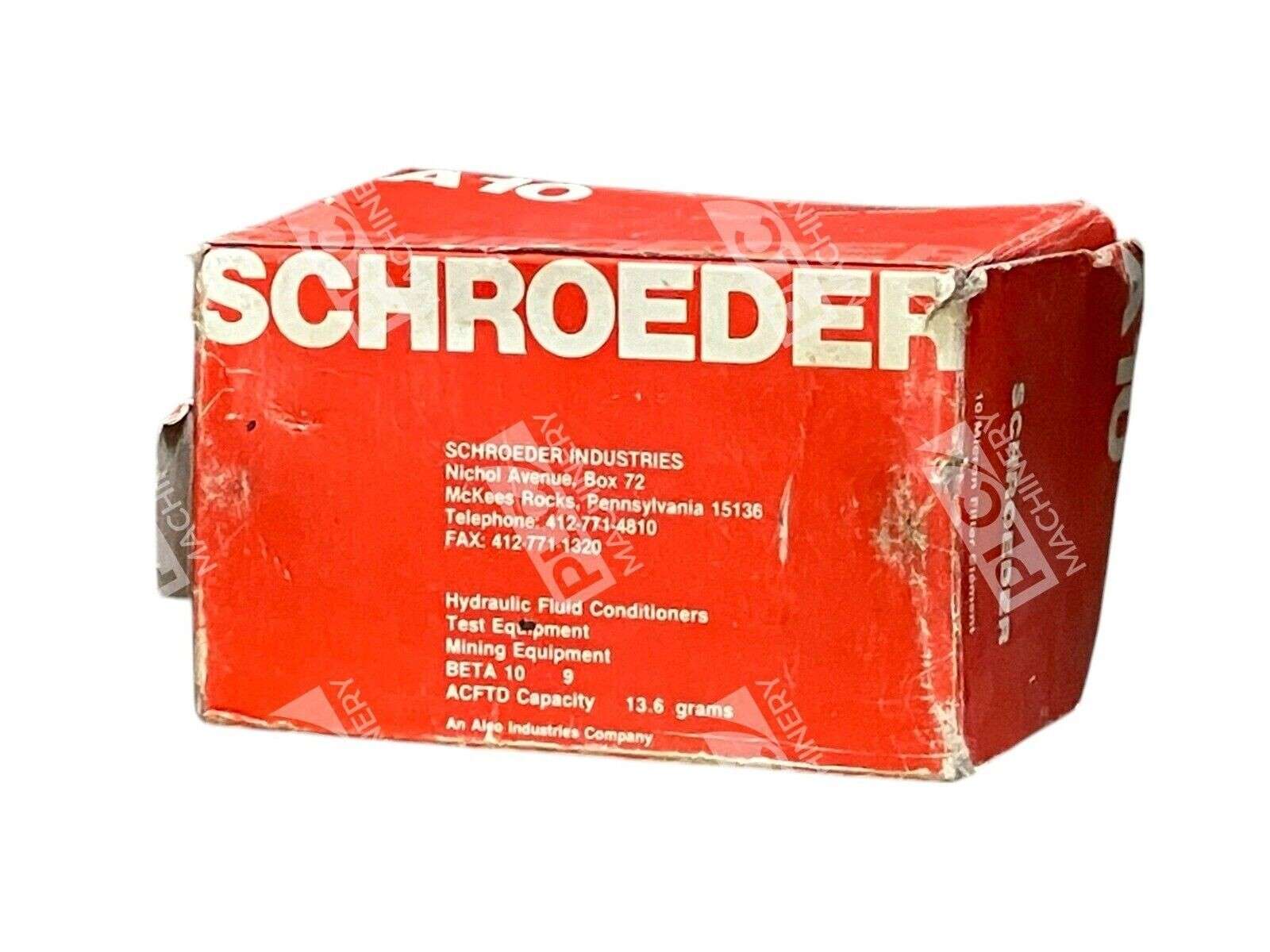

The Schroeder A10 filter element is a 10-micron cellulose cartridge designed for hydraulic return-line filtration. Engineered to remove suspended particles and contaminants, this filter protects downstream components from wear and degradation. The A10 is a cost-effective choice for maintaining system cleanliness and extending equipment life in industrial hydraulic applications.
Key Features
- 10-micron absolute filtration rating for effective particle removal
- Cellulose media with 2/10 beta ratio for reliable contaminant capture
- Rated for -13°F to 250°F operating range, suitable for diverse environments
- Outside-in flow design maximizes media utilization and dirt-holding capacity
- Viton seal material ensures compatibility with mineral hydraulic fluids
- Compact 3″ diameter footprint fits standard mounting housings
Technical Specifications
- Micron Rating: 10 micron (nominal)
- Filter Type: Return line, spin-on or cartridge element
- Media: Cellulose paper
- Seal Material: Viton (FKM)
- Overall Height: 4.80 inches
- Outside Diameter (Top): 2.89 inches
- Inside Diameter (Top): 1.08 inches
- Collapse Pressure: 305 psi
- Maximum Operating Pressure: 150 psi
- Operating Temperature Range: -13°F to 250°F (-25°C to 121°C)
- Flow Direction: Outside-in
- Beta Ratio (2/10µm): 2:1
Typical Applications
The A10 is commonly used in:
- Industrial hydraulic power units and presses
- Machine tool coolant and circulation systems
- Mobile equipment hydraulic systems (construction, agricultural)
- Bearing lubrication circuits requiring return-line protection
- Fluid maintenance in manufacturing and processing equipment
Compatibility & Replacements
Compatible With
- Standard hydraulic filter housings with 3″ diameter cartridge cavity
- Mineral-based ISO VG 32–VG 68 hydraulic fluids
- Systems designed for 150 psi maximum operating pressure
- Return-line filtration circuits in mobile and industrial equipment
Replaces / Drop-In Replacement For
- Parker 926567
- Pall HC9730FKS5H
- Hydac 5.01.05R10P
- Original Schroeder A10 cartridges in existing installations
Works With
- Spin-on and cartridge-style filter bowls compatible with 3″ diameter elements
- Hydraulic systems using ISO 46–68 mineral oils
- Equipment using synthetic hydraulic fluids (verify compatibility with system integrator)
