Overview

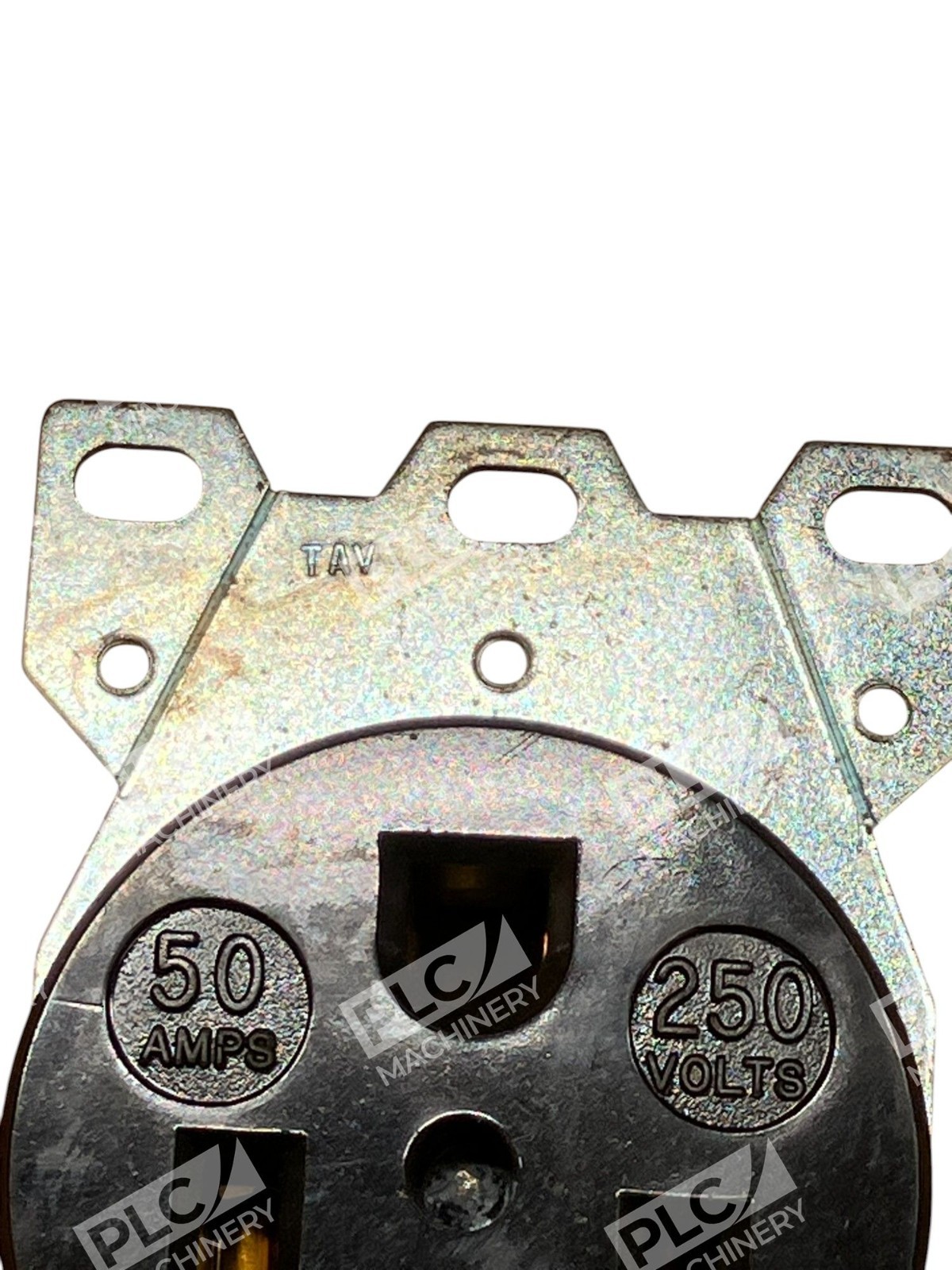

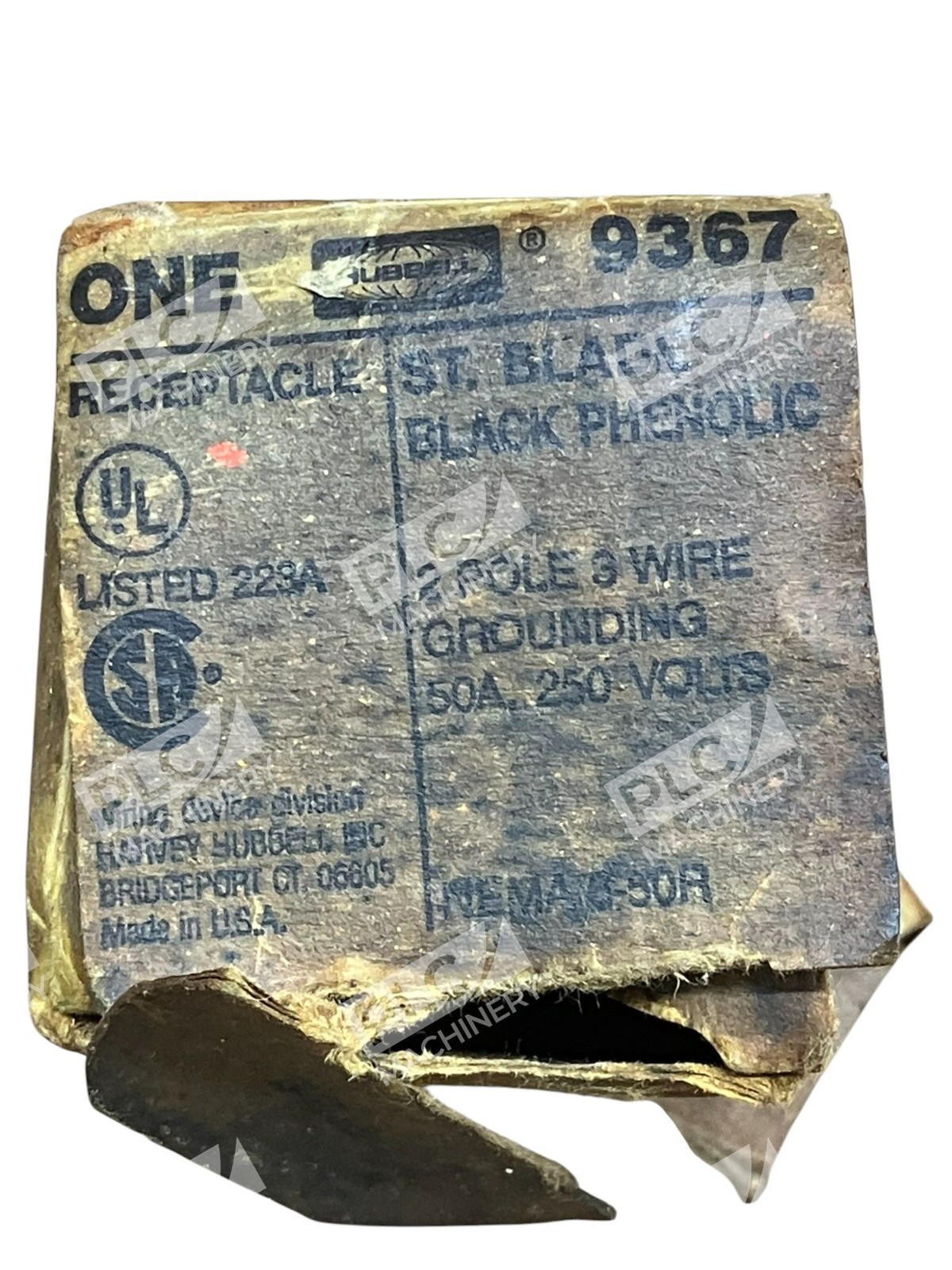

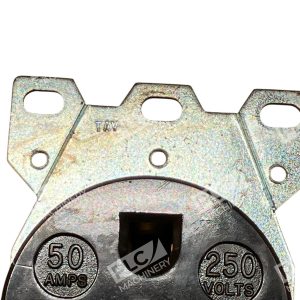

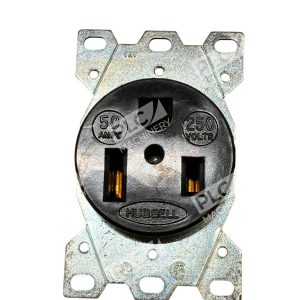

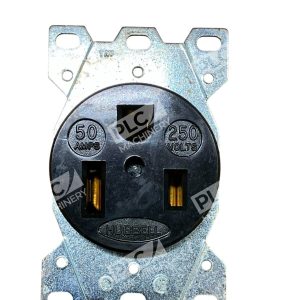

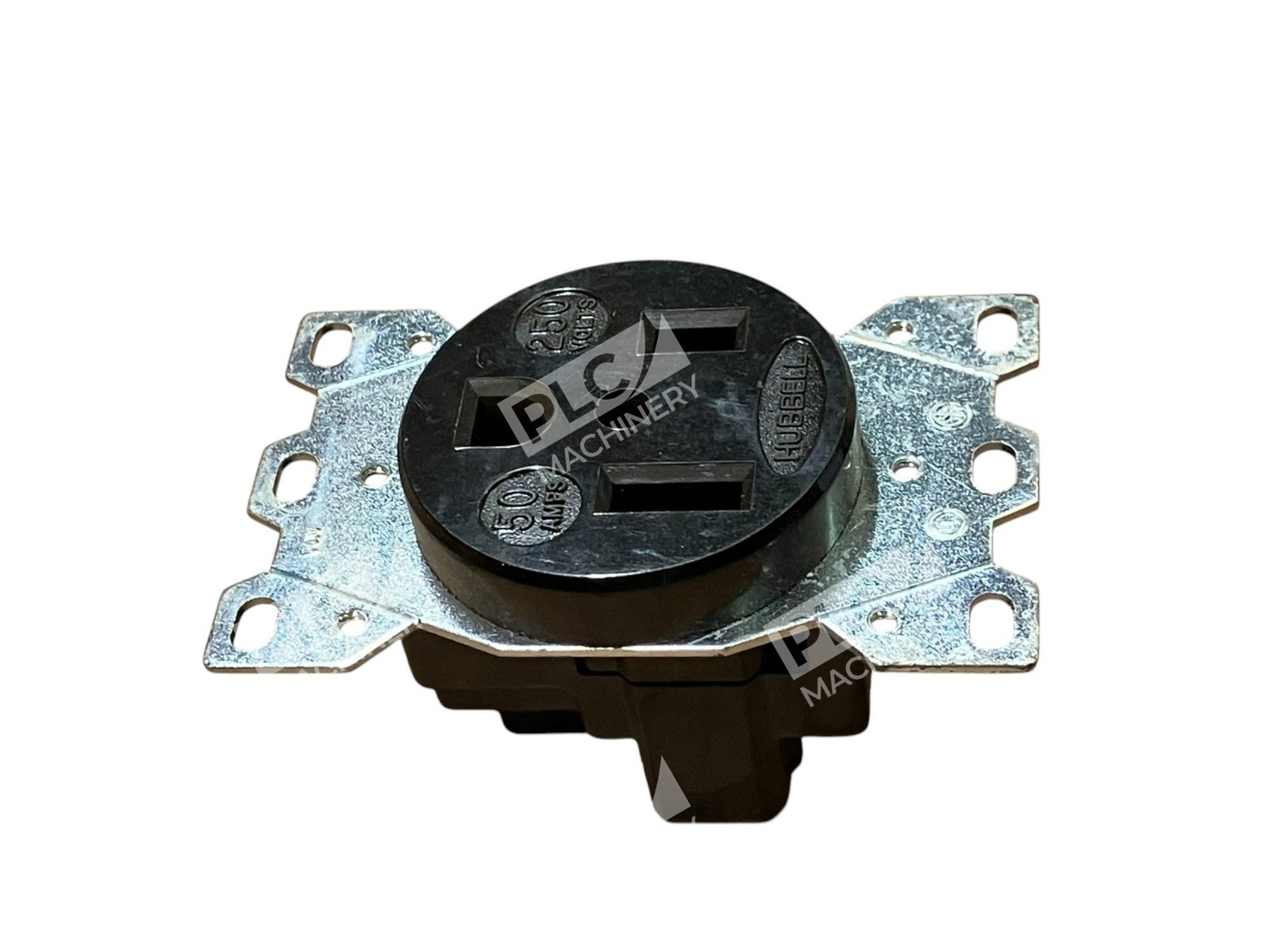

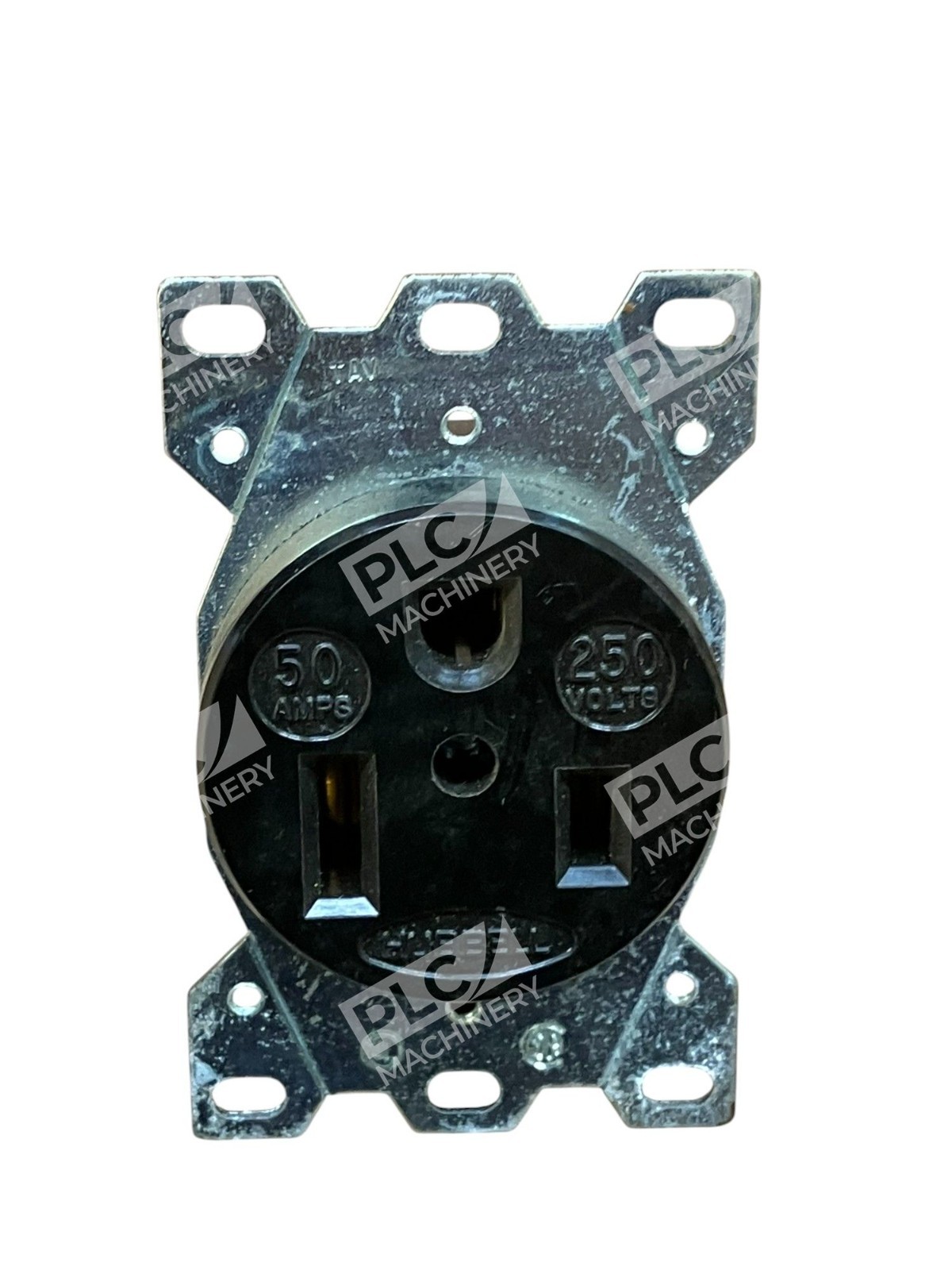

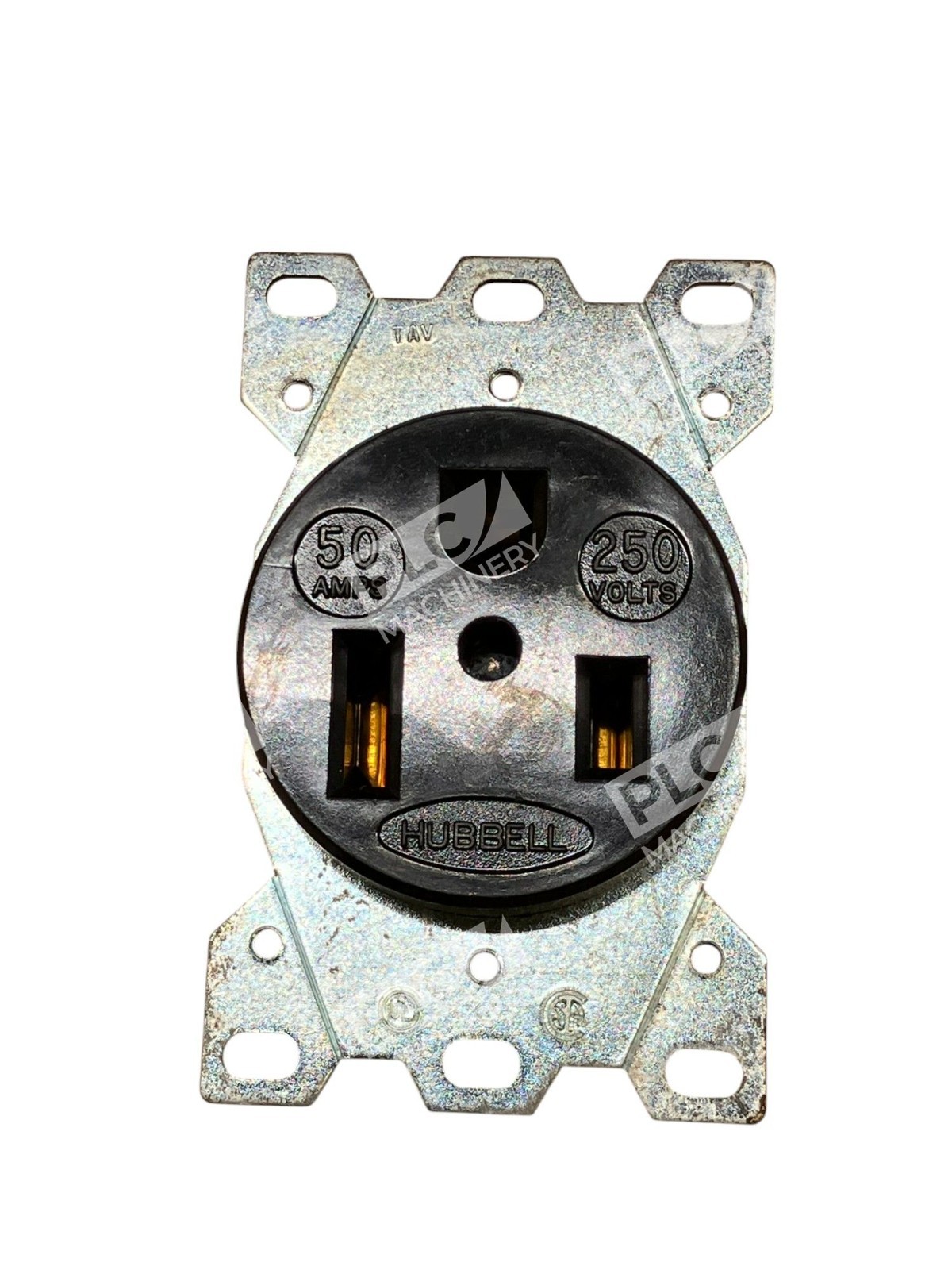

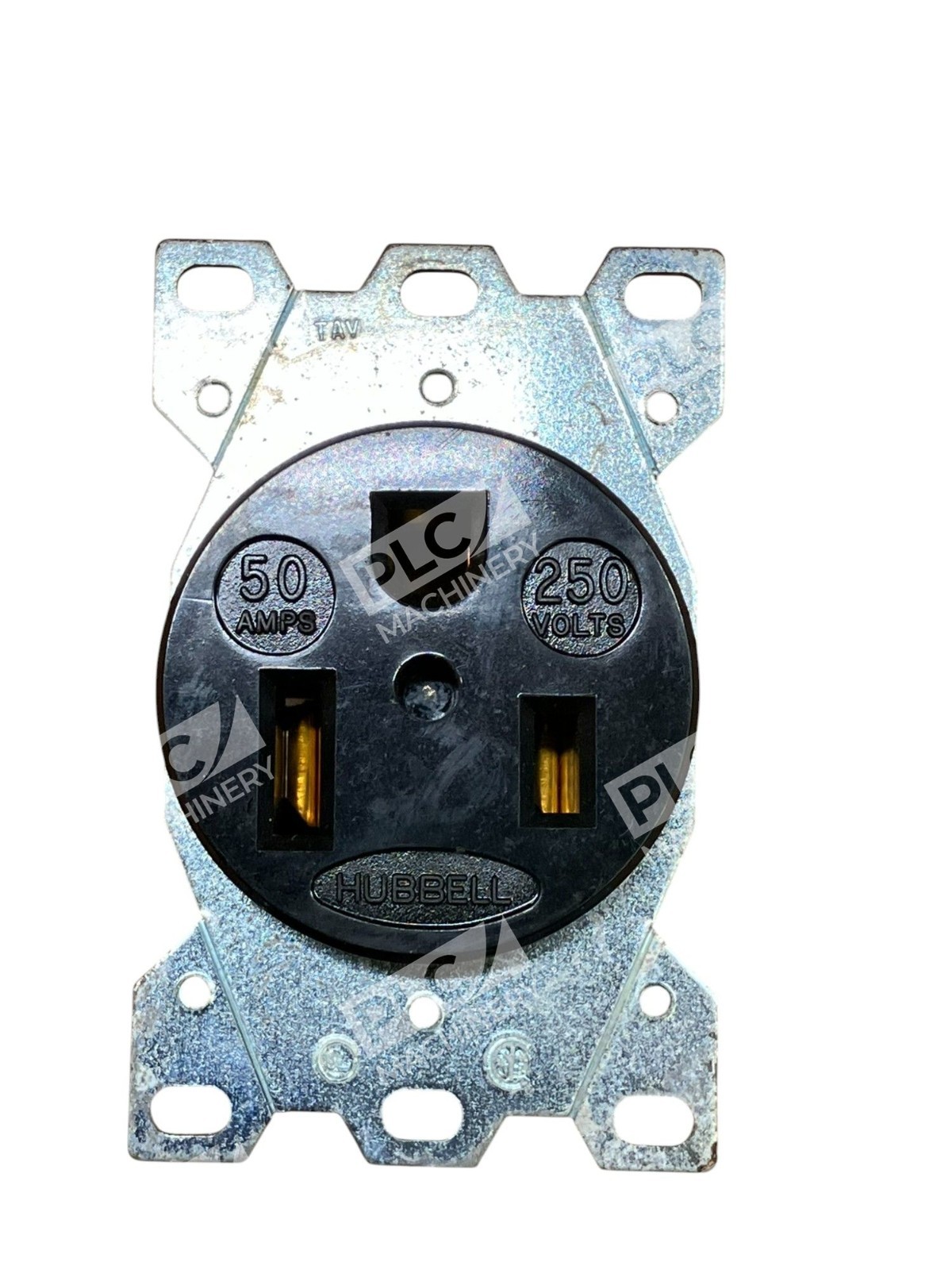

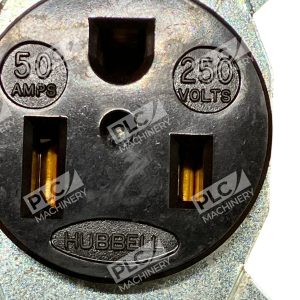

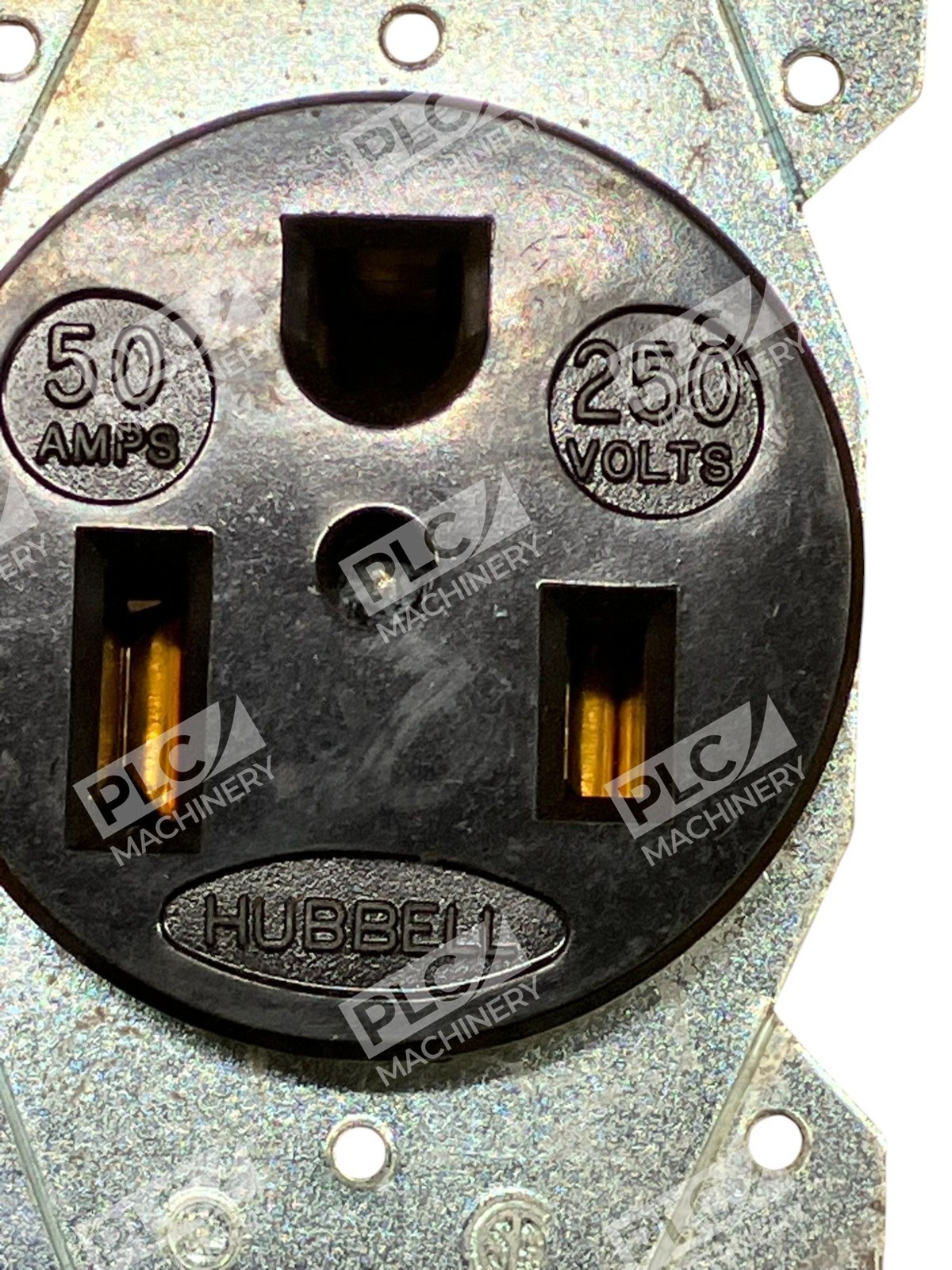

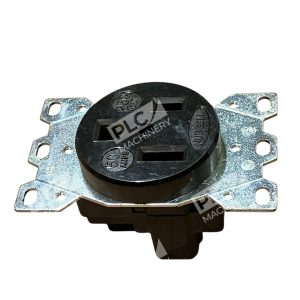

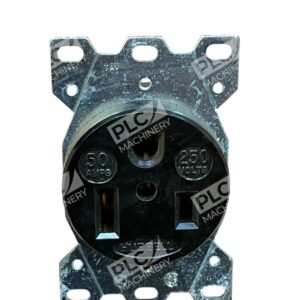

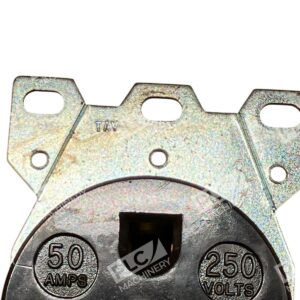

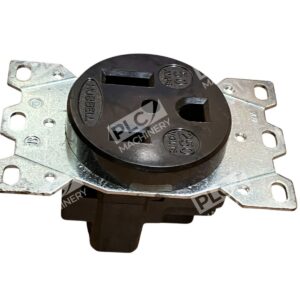

The Hubbell 9367 is an industrial-grade straight blade receptacle rated for 50A at 250V with NEMA 6-50R configuration. Built by Hubbell Wiring Device-Kellems, this unit features 2-pole 3-wire grounding and thermoplastic housing, making it suitable for permanent installation in commercial and industrial environments including EV charging applications.
Key Features
- 50A, 250V Rating: Rated for high-current demand applications with 250V AC supply.
- NEMA 6-50R Configuration: Standard receptacle for 50A circuits, ensuring compatibility with matching plugs.
- 2-Pole 3-Wire Grounding: Provides proper equipment grounding for safe electrical connections.

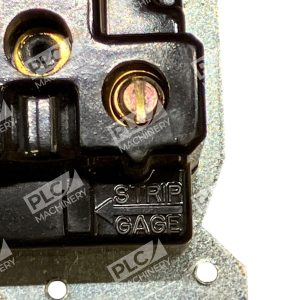

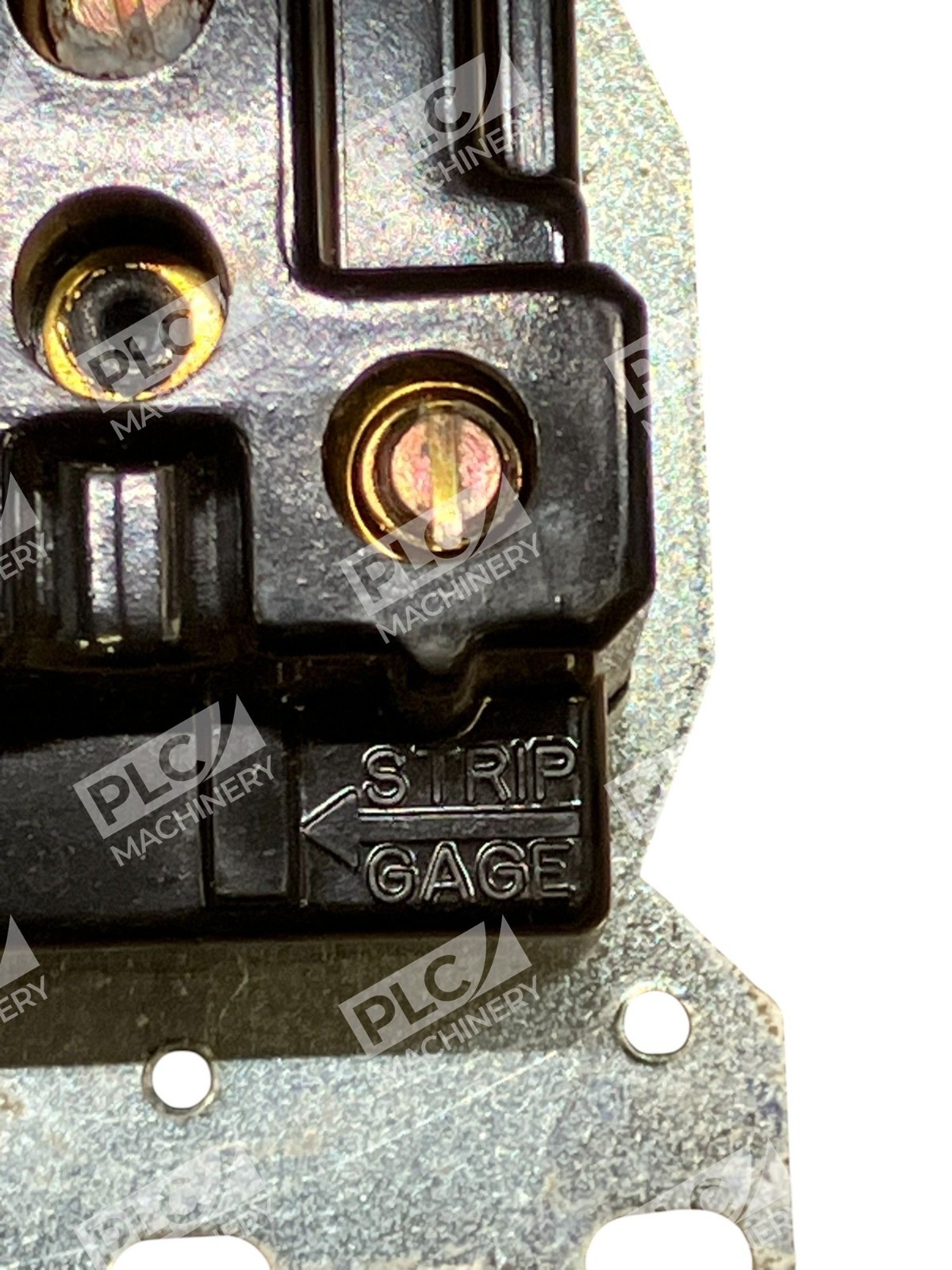

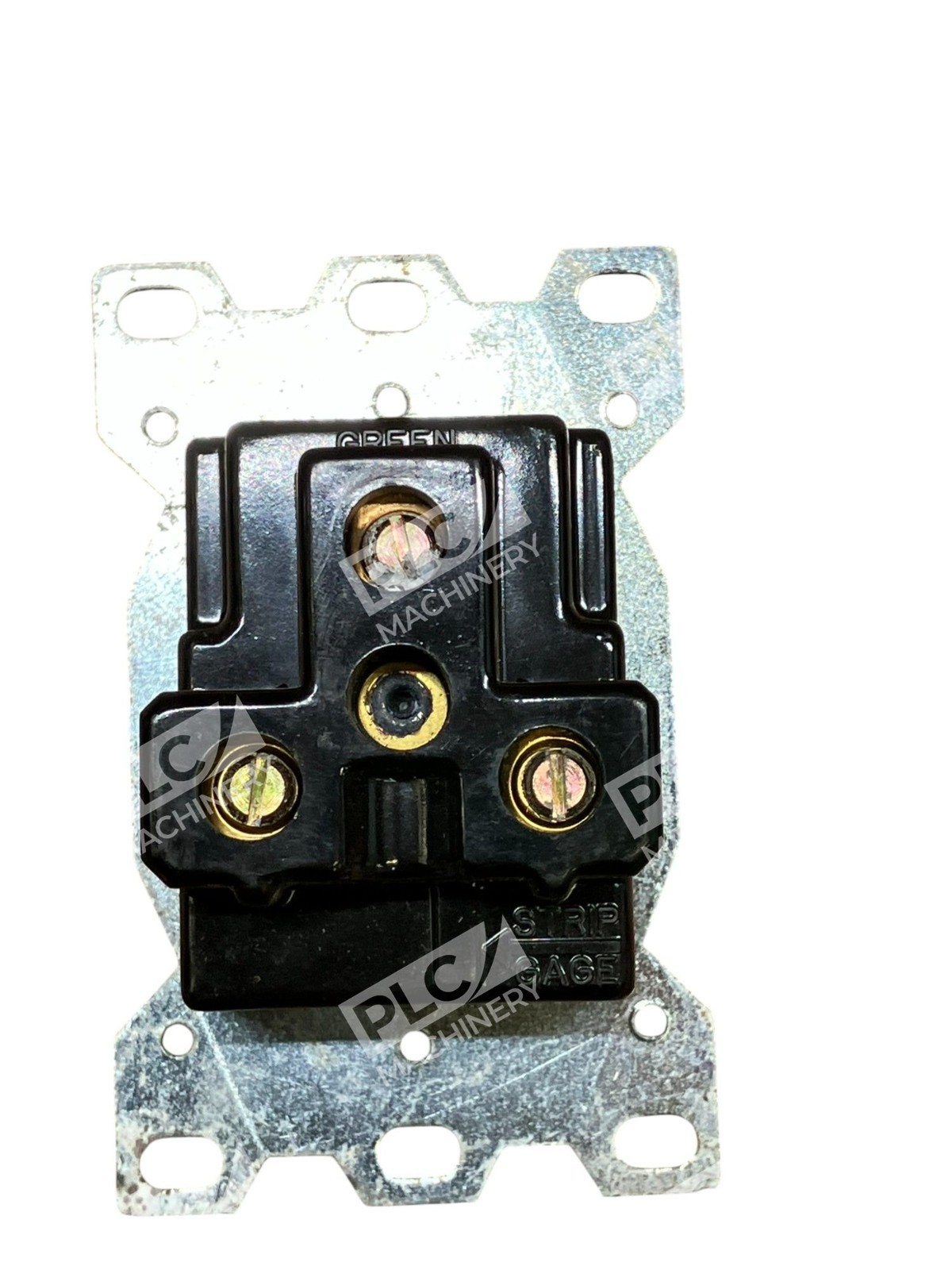

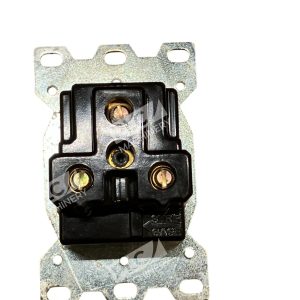

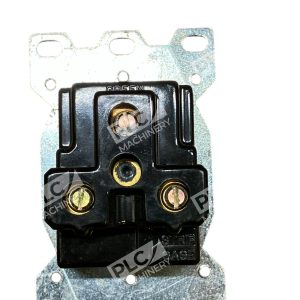

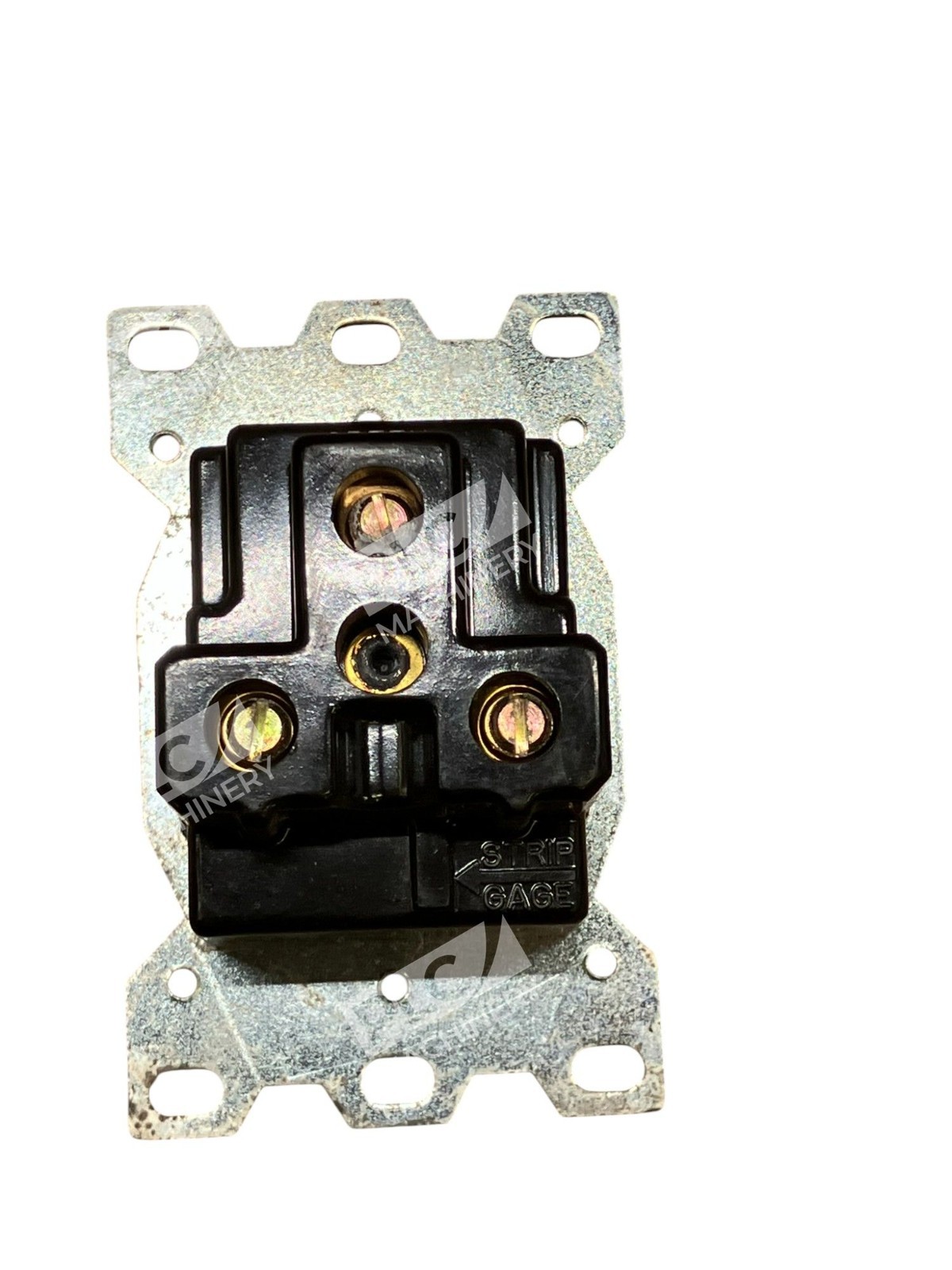

- Screw Terminals: Back and side wire/screw terminal design for secure, flexible wiring connections.
- Industrial-Grade Construction: Thermoplastic/composite housing resists wear and environmental stress in demanding settings.
- Clamping Mechanism: Tight wire termination reduces power loss and overheating risks.
- IP20 Enclosure Rating: Protected against contact with large objects and splashing water.
Technical Specifications
- Voltage Rating: 250V AC
- Current Rating: 50A
- Poles/Wires: 2-Pole 3-Wire Grounding
- NEMA Rating: 6-50R
- Terminal Type: Back and Side Wire/Screw
- Housing Material: Thermoplastic/Composite
- Color: Black
- Operating Temperature: −40°C to +75°C (−40°F to +167°F)
- Enclosure Rating: IP20
- Dimensions: 3.28 × 2.25 × 2.23 inches
- Horsepower Rating: 3 hp
- Mounting Style: Single screw mount
- Series: HBL (Hubbell Wiring Device-Kellems)
Typical Applications
- Electric vehicle (EV) charging stations
- Industrial machinery and equipment power distribution
- Temporary and permanent electrical installations requiring high-amperage circuits
- Standby generator connections
- Heavy-duty welding and power tool supplies
- Commercial kitchen and large appliance circuits
Compatibility & Replacements
Compatible With
- Standard 50A rated plugs and connectors with NEMA 6-50P male configuration
- 250V single-phase electrical systems
- Panel-mount and flush-mount electrical distribution systems
- Industrial control systems and power distribution networks
Replaces / Drop-In Replacement For
- Hubbell HBL9367 (standard model designation)
- Direct replacement for identical 50A 250V 6-50R receptacles
- Verify specific compatibility with your electrical panel or system integrator before ordering.
Works With
- NEMA 6-50P plug connectors and equivalent international standards
- 50A circuit breakers and disconnect switches
- 250V AC single-phase power distribution equipment
- Industrial cable gauges: 6 AWG to 2 AWG copper or aluminum wire
