Overview
The Hubbell HBL7485 is a heavy-duty industrial midget twist-lock plug rated for 15A at 125/250V AC. Designed for use with portable equipment and industrial cord sets, this 3-pole 3-wire non-grounding connector features screw terminals and a male plug configuration that mates with NEMA ML-3R receptacles. The compact midget form factor suits installations where space is tight, while the twist-lock design ensures a mechanically secure, low-resistance power connection.
Key Features
- Abuse-resistant nylon housing with phenolic body for high-heat resistance
- Angled body design for low-profile fit in tight spaces
- Totally insulated body for added electrical safety
- Screw terminal accommodation for #18 AWG to #14 AWG wire
- UL listed and CSA certified for electrical safety compliance
- Dielectric voltage withstands 2,000V minimum
Technical Specifications
- Amperage Rating: 15 Amp
- Voltage Rating: 125/250V AC
- Poles/Wires: 3-Pole, 3-Wire Non-Grounding
- NEMA Designation: ML-3P

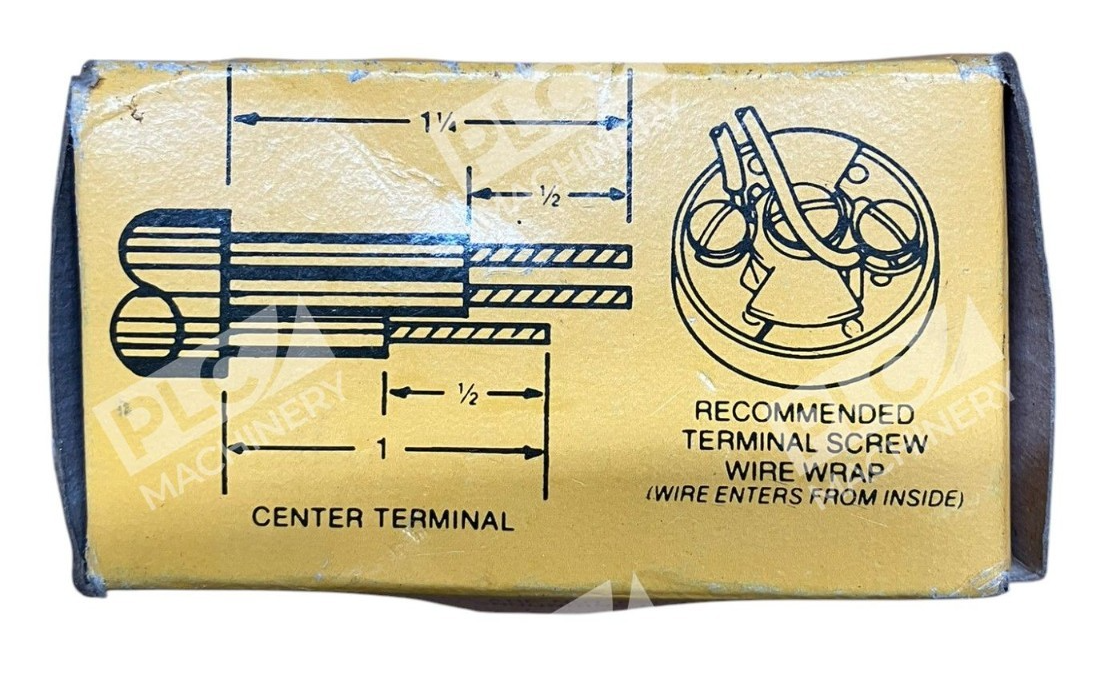

- Terminal Type: Screw Terminal
- Conductor Size: 14–12 AWG (accommodates #18–#14 AWG)
- Cord Range: 0.281″–0.421″ (7.1–10.7 mm)
- Housing Material: Nylon with Phenolic Body
- Blade Material: Brass
- Operating Temperature: –40°C to +75°C (maximum continuous)
- Environmental Rating: IP20, Indoor Dry Unless Protected
- Color: Black
- Mounting Type: Cord Mounted
- Certifications: UL Listed, CSA Certified
Typical Applications
- Industrial portable power tool cords and equipment
- Mobile machinery and temporary power distribution
- Compact equipment where space-saving connector design is required
- Mining, construction, and marine vessel electrical systems
- Temporary job-site power connections needing secure twist-lock interface
Compatibility & Replacements
Compatible With
- NEMA ML-3R midget twist-lock receptacles and inlets
- Hubbell HBL7486 and HBL7486N ML-3P twist-lock inlets
- Industrial portable equipment requiring 15A 125/250V three-wire input
- Standard portable cord assemblies rated for twist-lock connectors
Replaces / Drop-In Replacement For
- Hubbell HBL7485V (straight and vertical variants of the same ML-3P plug)
- Older midget twist-lock plugs requiring NEMA ML-3P configuration
- Generic 15A midget twist-lock plugs with matching pin configuration
Works With
- NEMA ML-3P receptacle connectors (inlets and flanged inlets)
- Portable equipment power cords and temporary power distribution systems
- Industrial electrical equipment using twist-lock locking interfaces
- Cord-mounted and panel-mounted ML-3P receptacles
