Overview

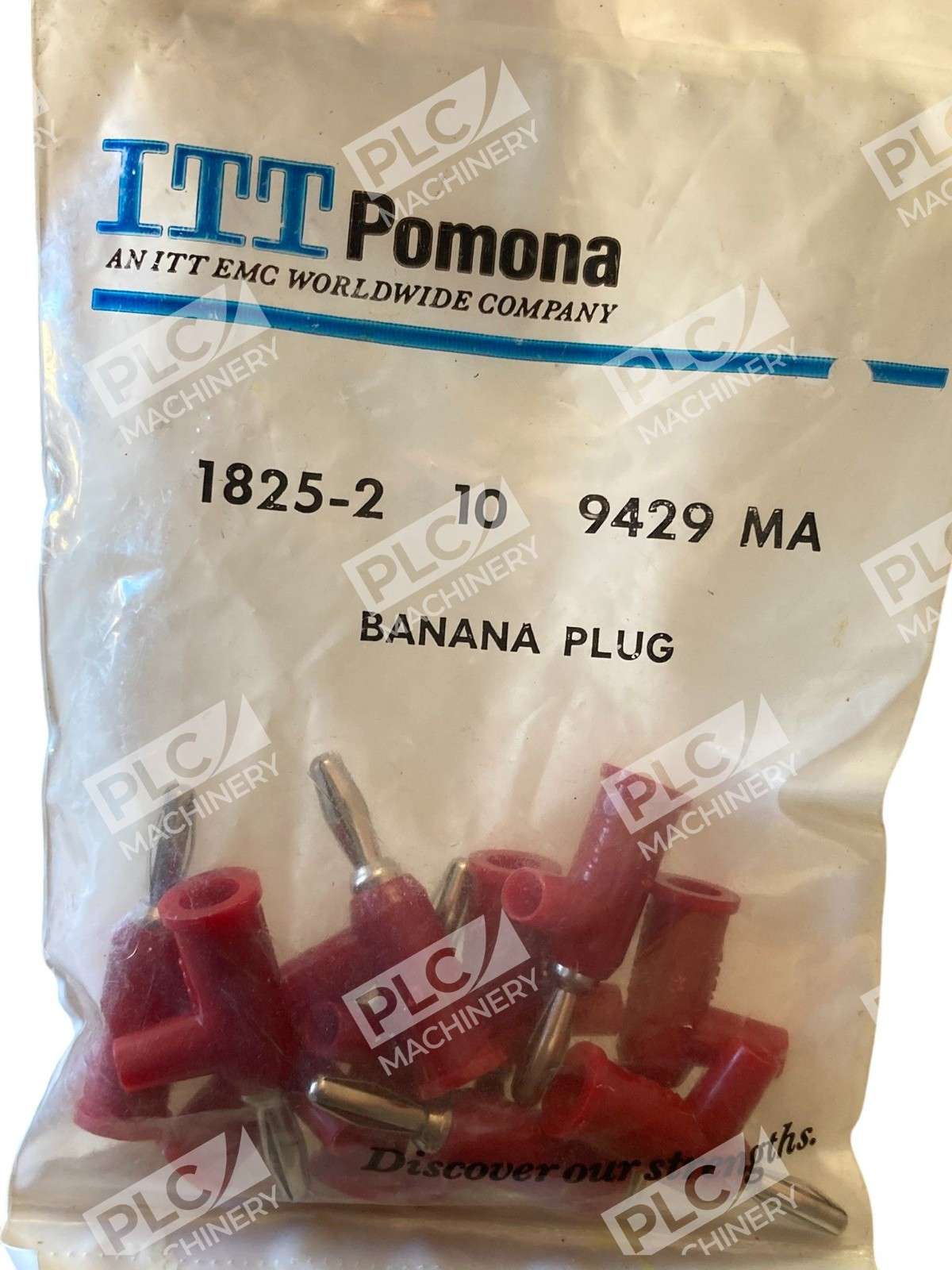

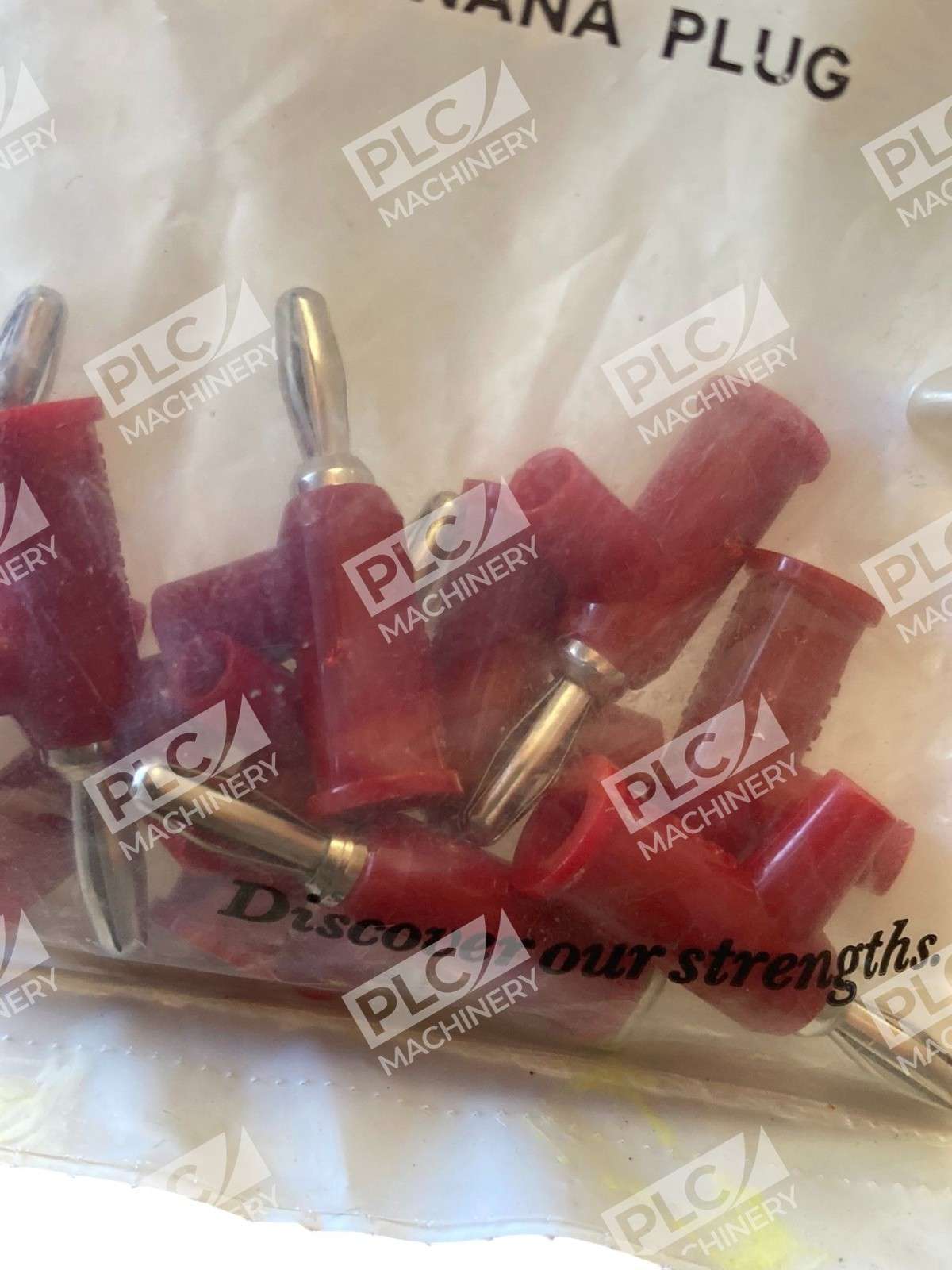

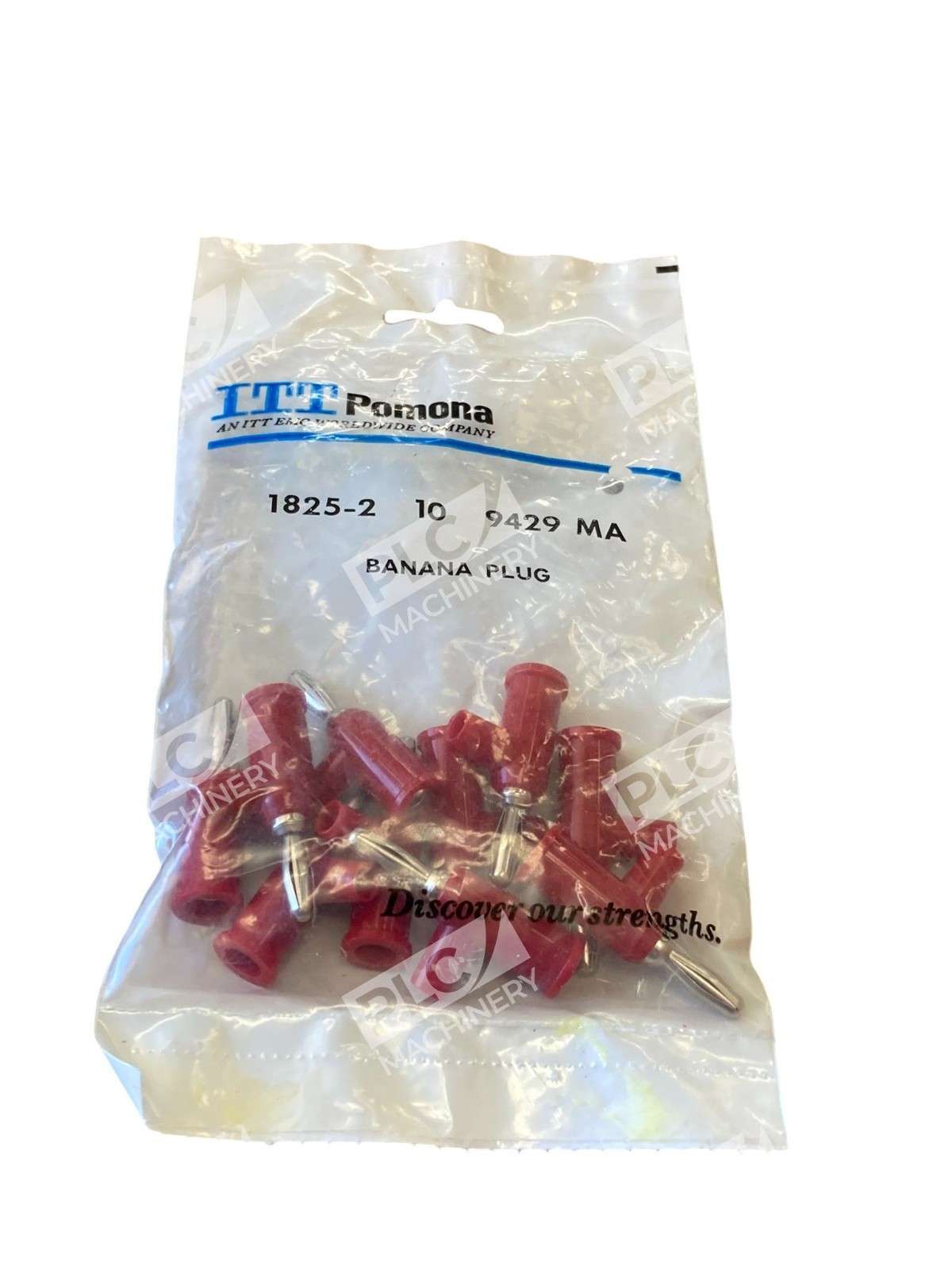

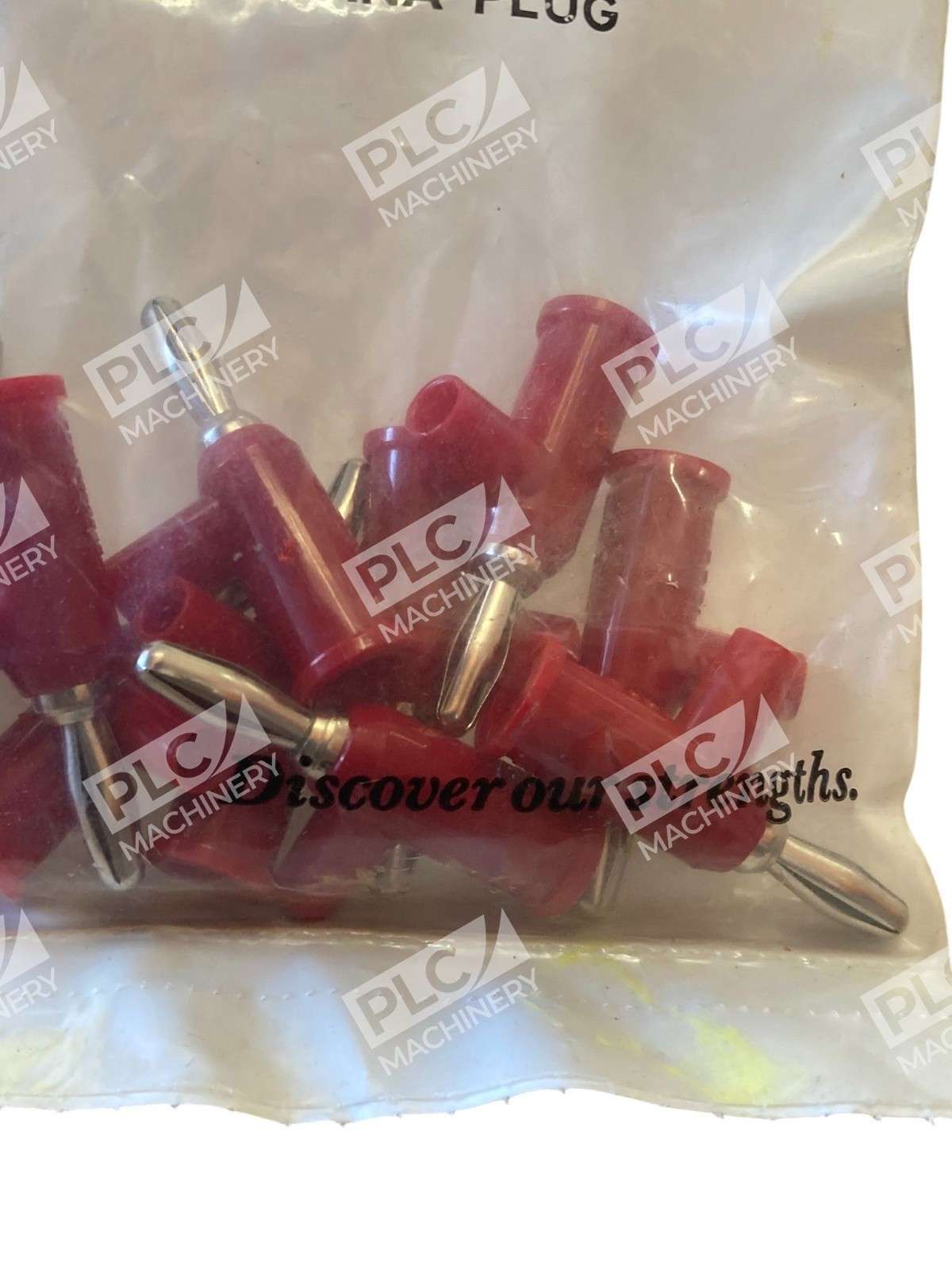

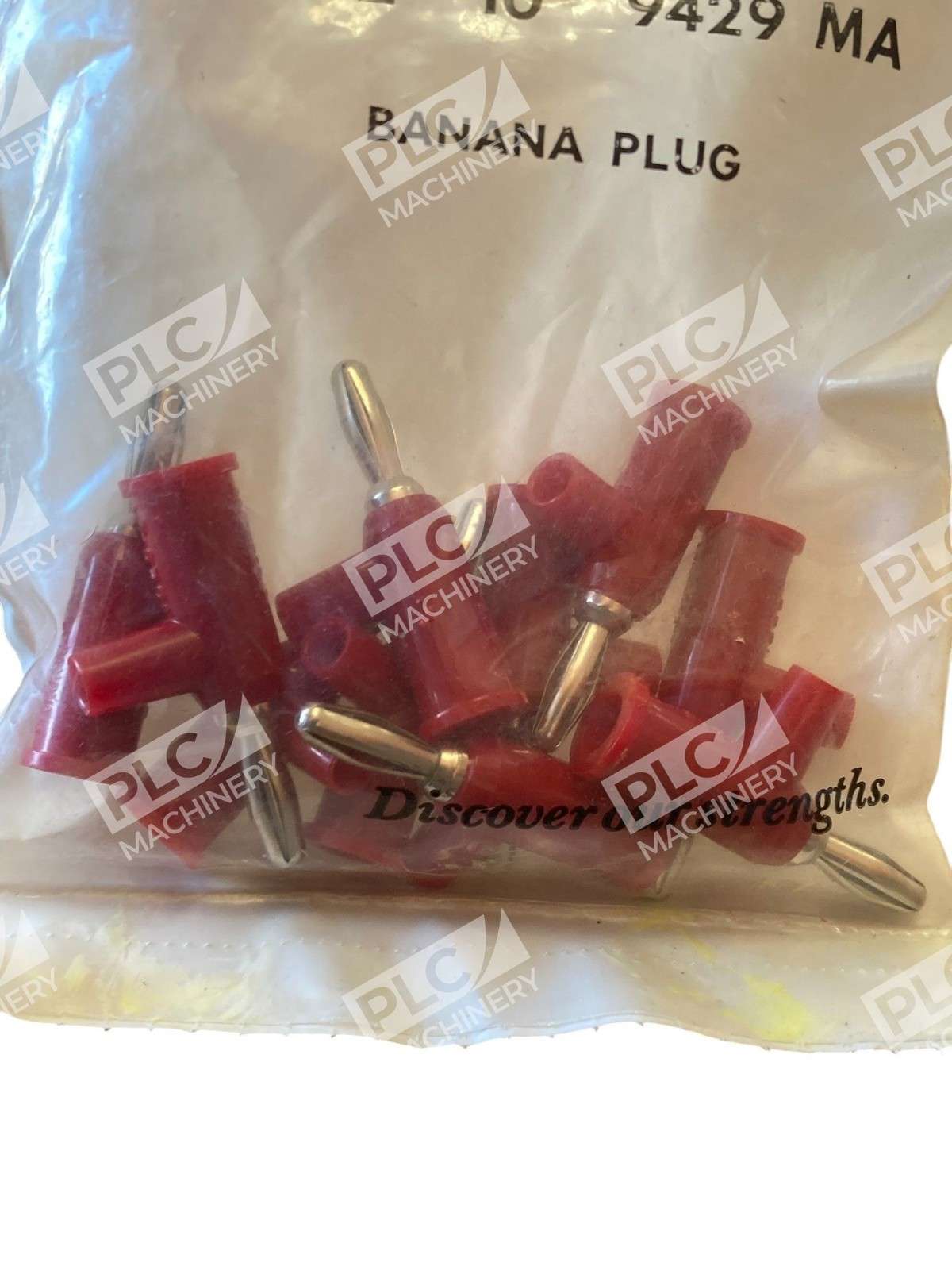

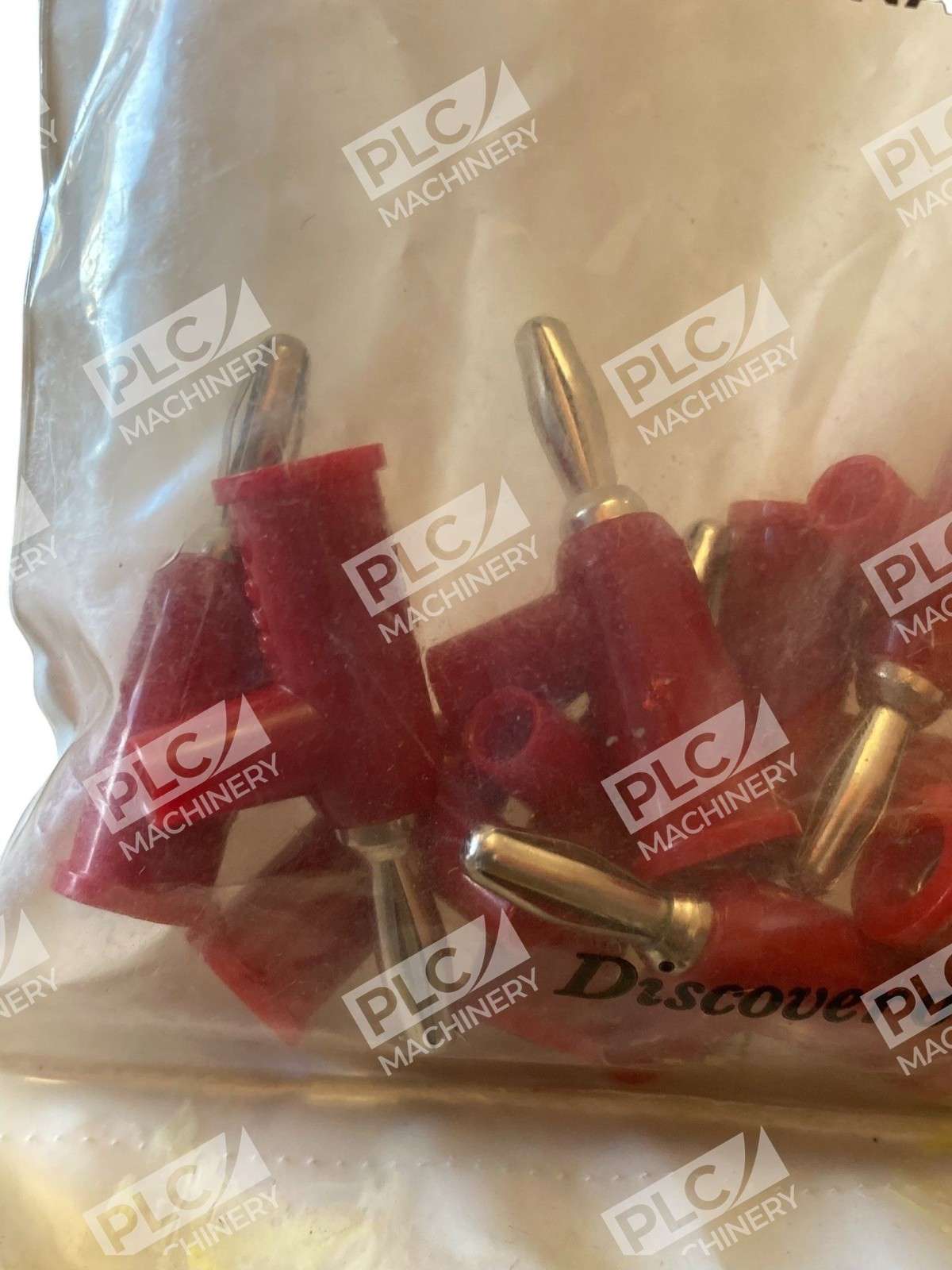

The Pomona 1825-2 banana plug is a solderless, stackable connector that terminates quickly using a flat-blade screwdriver and set screw (8-32 single slot). Designed to fit on the end of any 22 AWG to 18 AWG wire, this red connector offers low-cost, tool-free assembly for temporary and permanent test setups. The 1825-2 features screw termination, brass body with nickel plating, polypropylene insulation, and steel set screw with zinc plating.
Key Features
- 15 A current rating and 5000 V maximum voltage
- Fits standard panel and binding post banana jacks .161″ to .166″ (4.0 mm to 4.2 mm) diameter
- Cross hole wire entry fits wires up to .12″ (3 mm) in diameter
- Integral safety collar insulates wire conductor and offers wire strain relief
- Nickel-plated finish for tarnish resistance and low contact resistance
- Used to carry DC and low-frequency signals, common on power supplies and multimeters
Technical Specifications
- Current Rating: 15 A
- Voltage Rating: 5000 V (hands-free testing in controlled environments)
- Wire Size: 18–22 AWG
- Wire Entry: Cross hole, max. 0.12″ (3 mm) diameter
- Jack Fit: 0.161″–0.166″ (4.0–4.2 mm) diameter
- Body Material: Brass, nickel-plated
- Spring Material: Beryllium copper, nickel-plated
- Insulation: Polypropylene
- Set Screw: Steel, 8-32 single slot, zinc-plated
- Color: Red
- Maximum Temperature: 122°F (+50°C)
- Finish: Nickel-plated
- Series: 1825
Typical Applications
- Test equipment and measurement fixtures
- Multimeter leads and power supply connections
- Laboratory and bench testing setups
- Custom test harnesses and jumper leads
- Early prototypes and one-off engineering projects
- Educational and training applications
Compatibility & Replacements
Compatible With
- Standard banana jack sockets (.161″–.166″ diameter)
- Panel-mount and binding-post banana jacks
- Most test equipment and laboratory instrumentation
- Multimeter jacks and power supply terminals
- Other Pomona 1825 Series plugs and jacks
Replaces / Drop-In Replacement For
- Pomona 1825 Series (other colors)
- Standard red stackable banana plugs rated 15 A / 5000 V
- Verify compatibility with your test equipment jacks before ordering
Works With
- DC power supplies and bench test equipment
- Digital and analog multimeters
- Oscilloscope probes and leads
- Arbitrary function generators
- Laboratory power distribution systems
