Overview

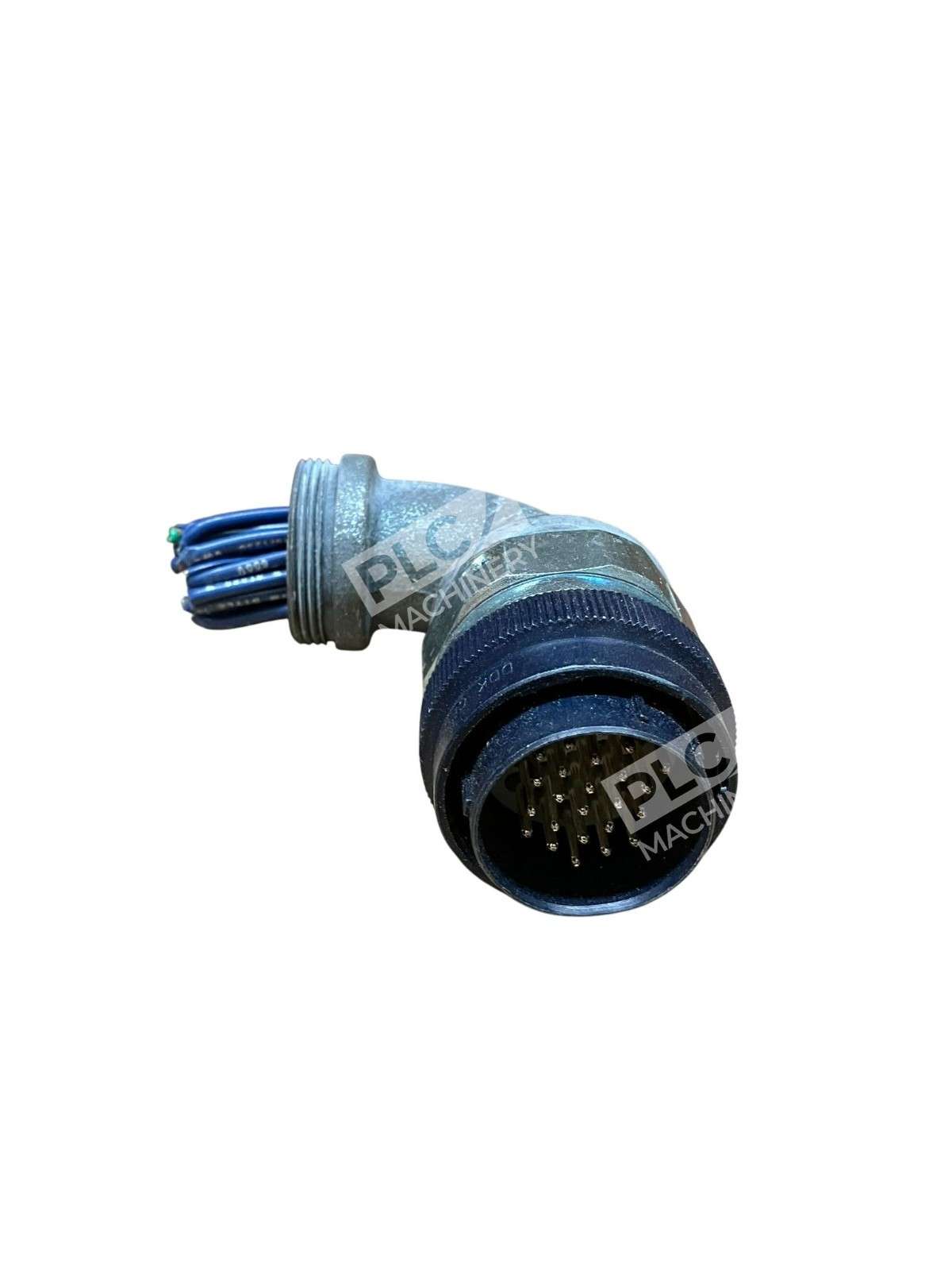

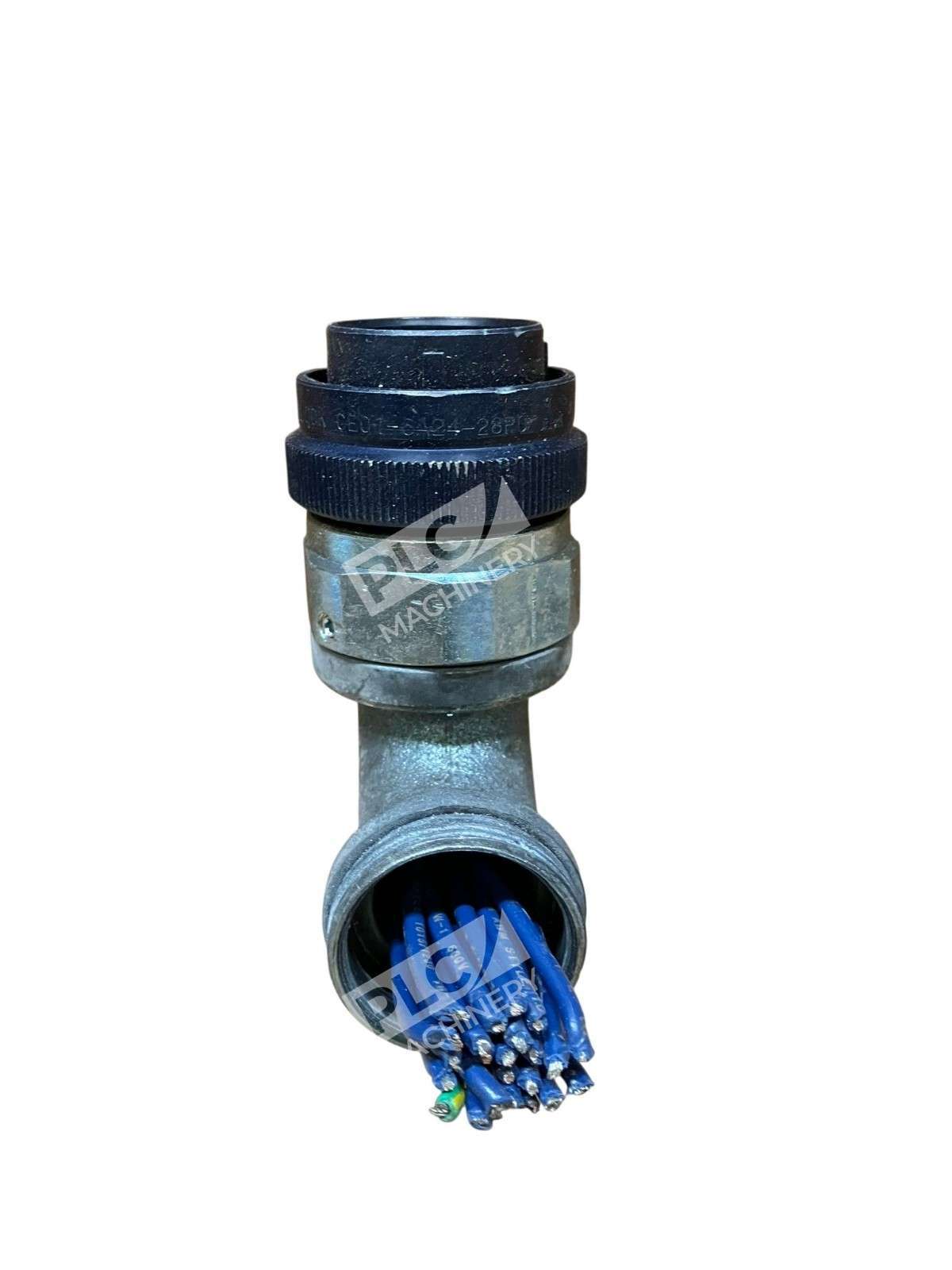

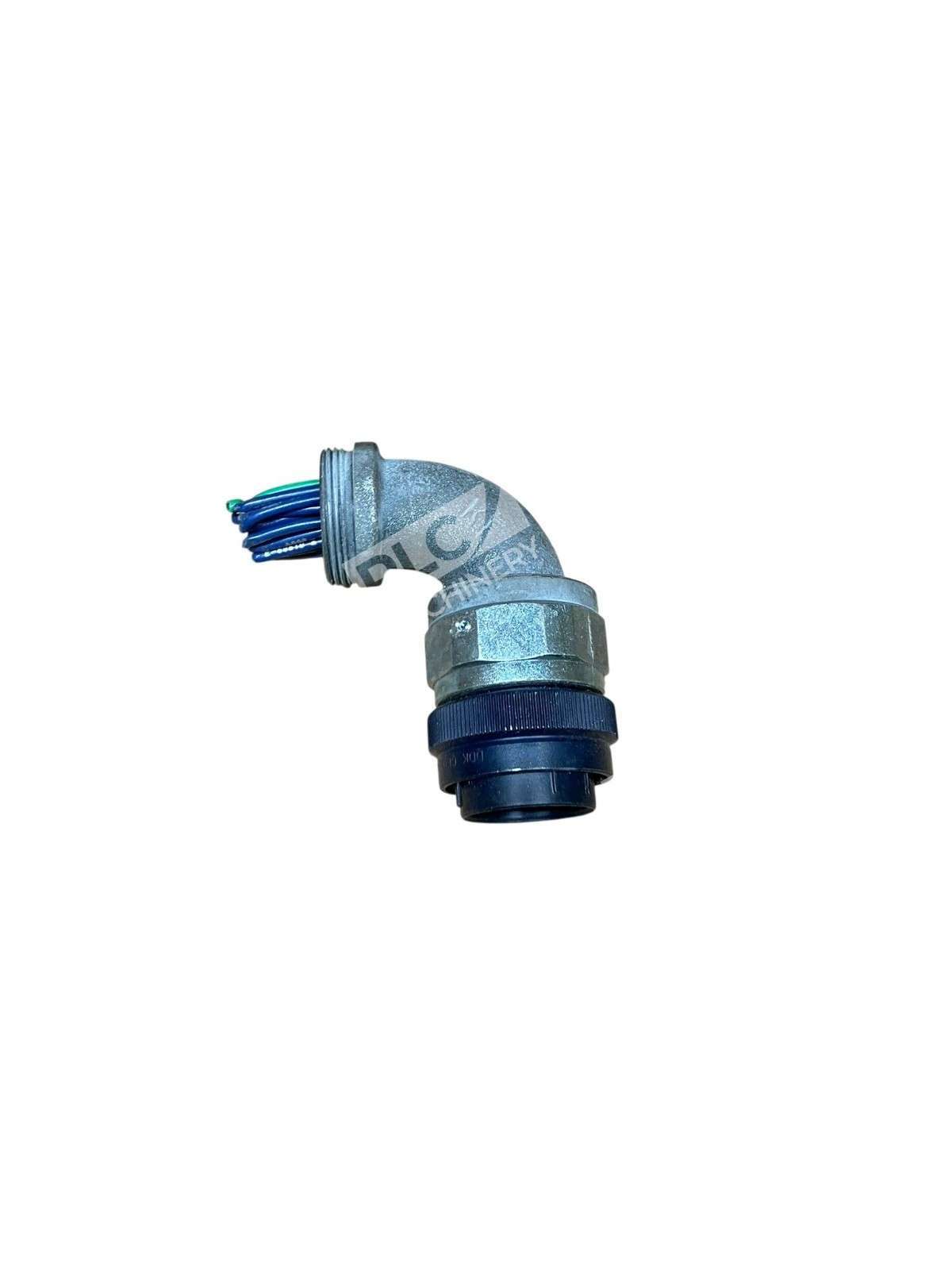

The DDK CE01-6A24-26PC circular connector is a military-style, 24-pole waterproof plug designed for demanding industrial and field applications. The angled cable mount configuration provides convenient routing in space-constrained installations while maintaining sealed environmental protection. This connector is built with crimp-type pin contacts and is part of DDK’s proven CE01 family, now manufactured under the Fujikura brand.
Key Features
- 24-pole pin connector with crimp-type contact style
- Waterproof and dust-proof sealed design for IP67-rated environmental resistance
- Angled cable mount for simplified cable routing and installation
- Operating temperature range: -55°C to +125°C for broad environmental compatibility
- Rated for up to 700V DC / 500V AC maximum
- Diameter: 45.4 mm shell for secure mechanical fit
Technical Specifications
- Connector Series: CE01
- Contact Configuration: 24 poles (PIN contact style)
- Connection Type: Crimp
- Housing Material: Metal shell with waterproof sealing
- Temperature Range: -55°C to +125°C
- Maximum Voltage: 700V DC / 500V AC
- Type Rating: Waterproof (IP67 equivalent)
- Diameter: 45.4 mm
- Length: 43 mm
- Weight: Approximately 2.16 oz (61 grams)
Typical Applications
- Industrial machinery and equipment interconnections
- Outdoor and harsh-environment electrical systems
- Field instrumentation and sensor connections
- Vehicle and mobile equipment wiring harnesses
- Military and aerospace connector applications
- High-reliability systems requiring sealed, vibration-resistant connections
Compatibility & Replacements
Compatible With
- DDK CE01 series connector family components
- Fujikura CE01 replacement parts (DDK now manufactured by Fujikura)
- Standard MIL-spec 24-pole circular connector systems
- Industrial control systems with crimp-contact circular connectors
- JIS B 6015 protective circuit configurations
Replaces / Drop-In Replacement For
- CE01-6A24-28PC (straight plug variant)
- Other CE01-6A24 series models with socket contacts
- Legacy DDK 24-pole circular connectors in same shell size
Works With
- Crimp-type pin and socket contacts for the CE01 family
- Standard MIL-spec circular connector back shells and protective covers
- Commercial and industrial power distribution systems
- Environmental sealing gaskets rated IP67
- Industrial cable assemblies up to 24-pole configurations
