Overview

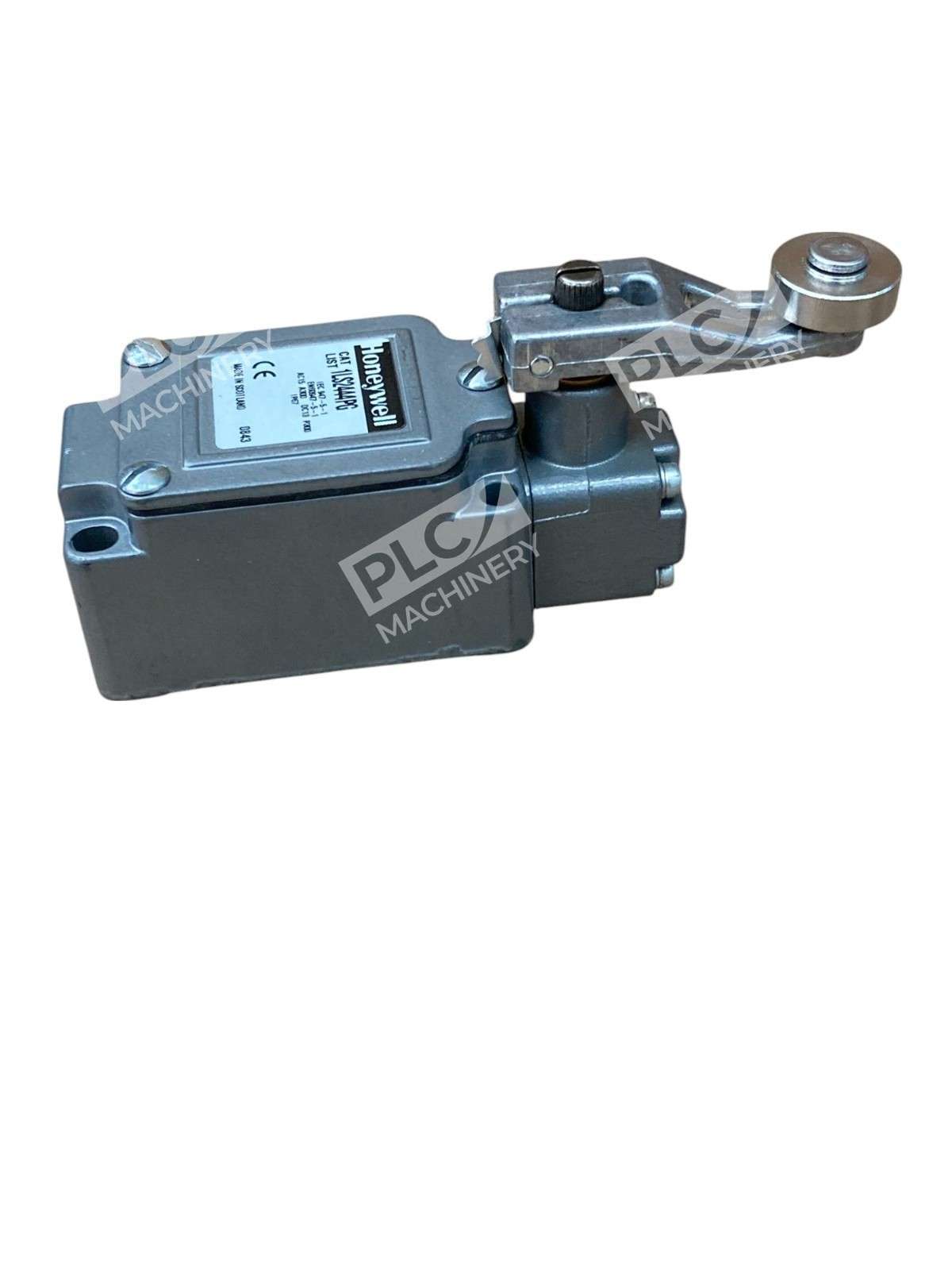

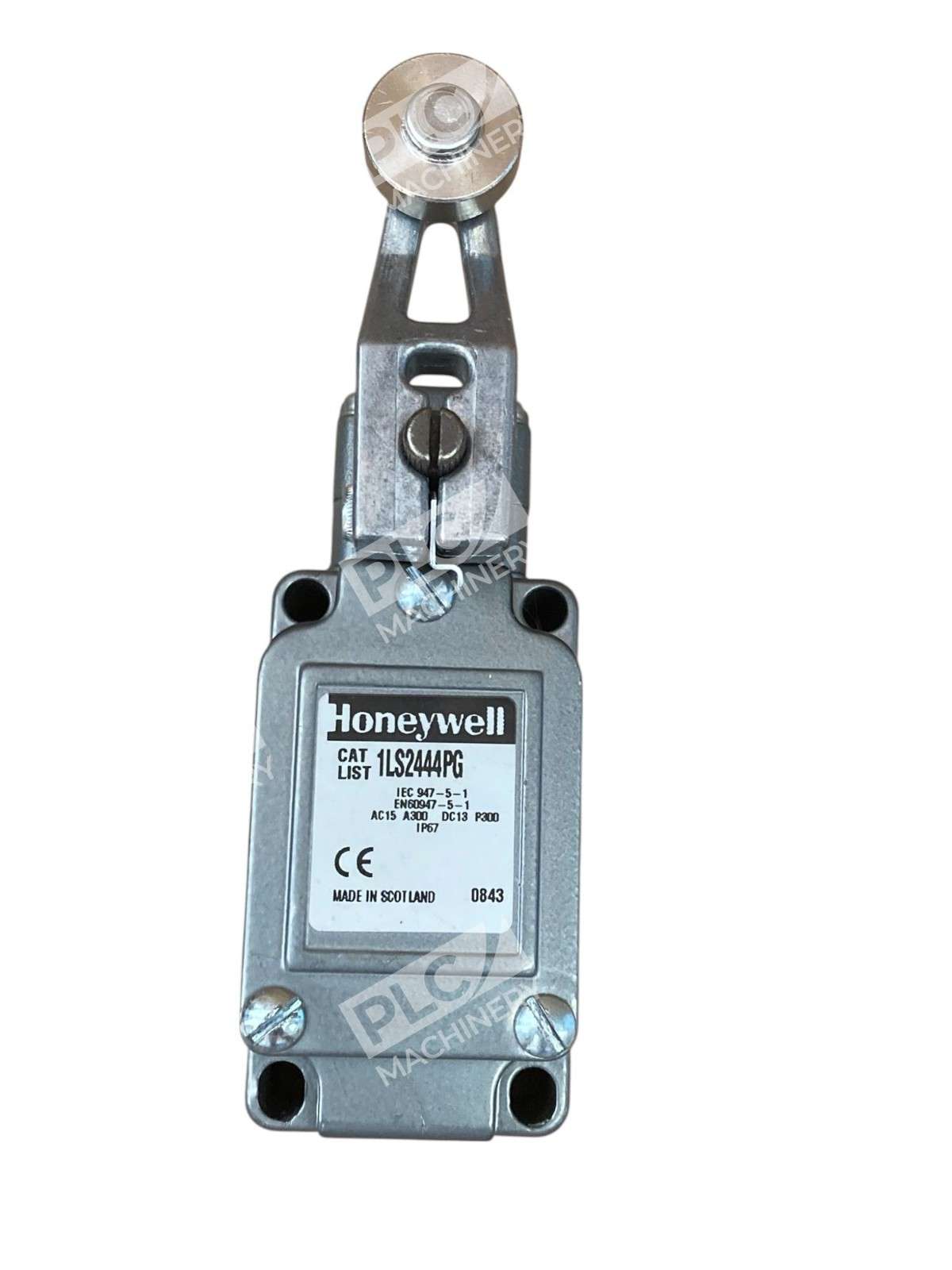

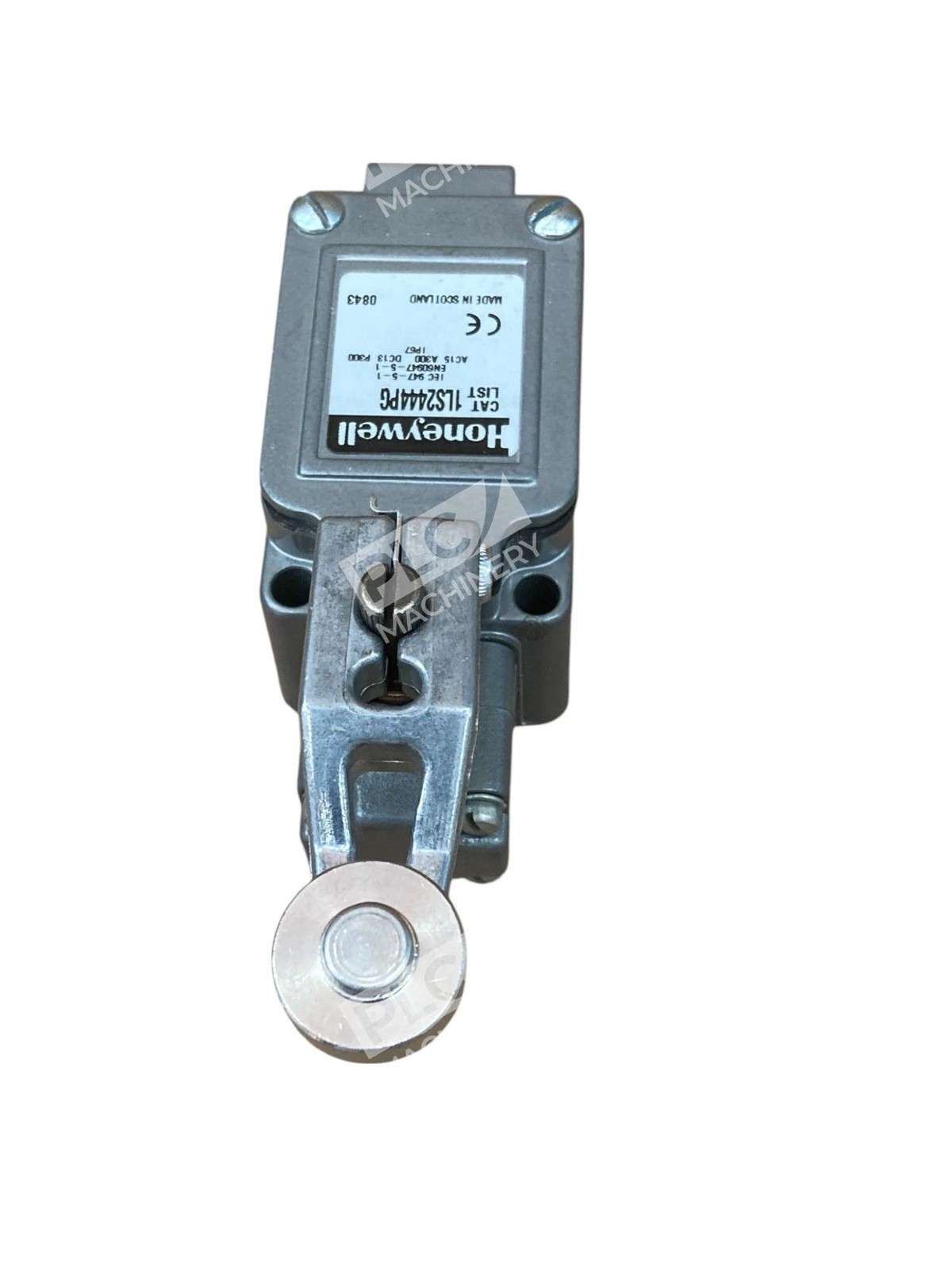

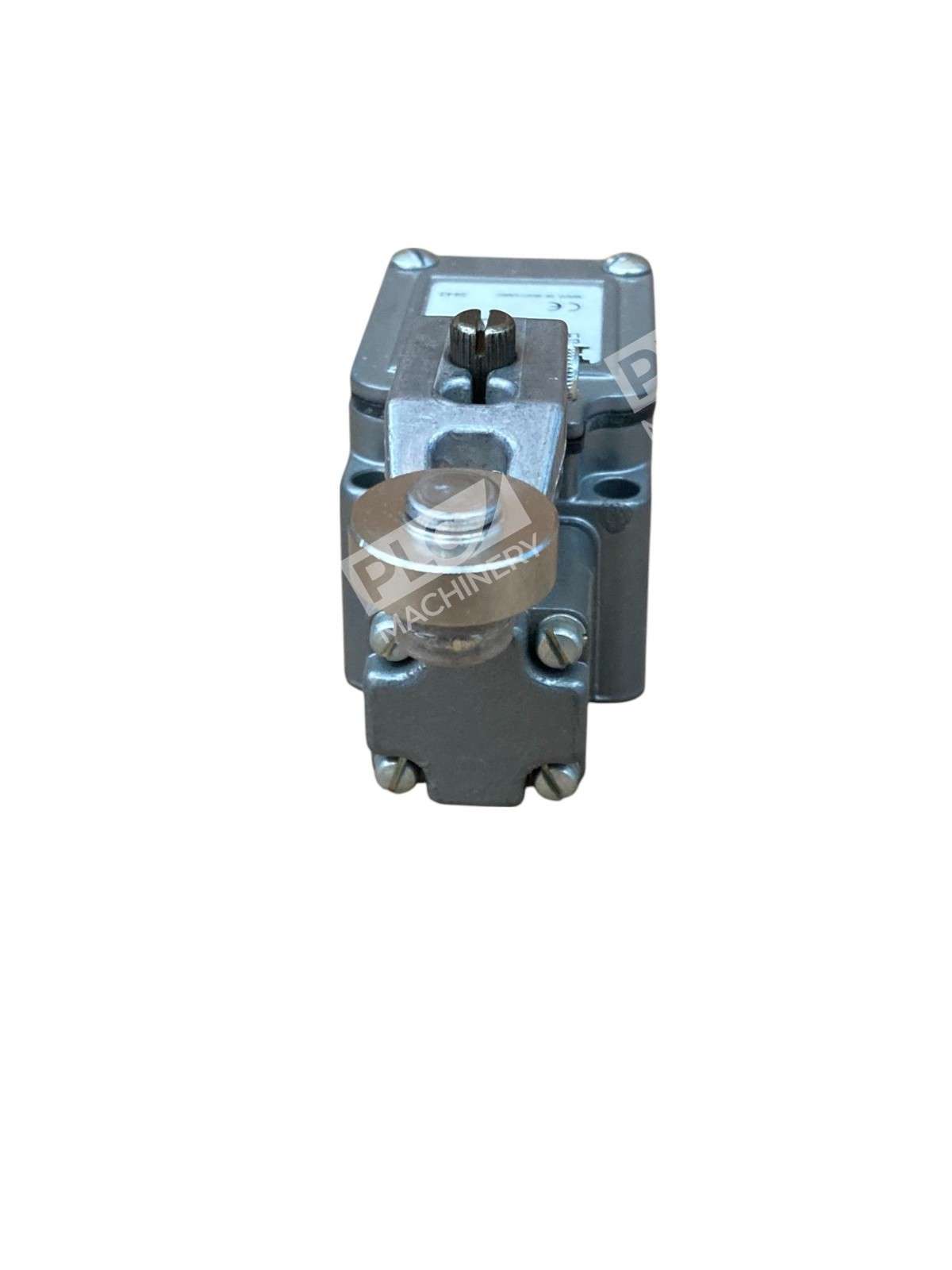

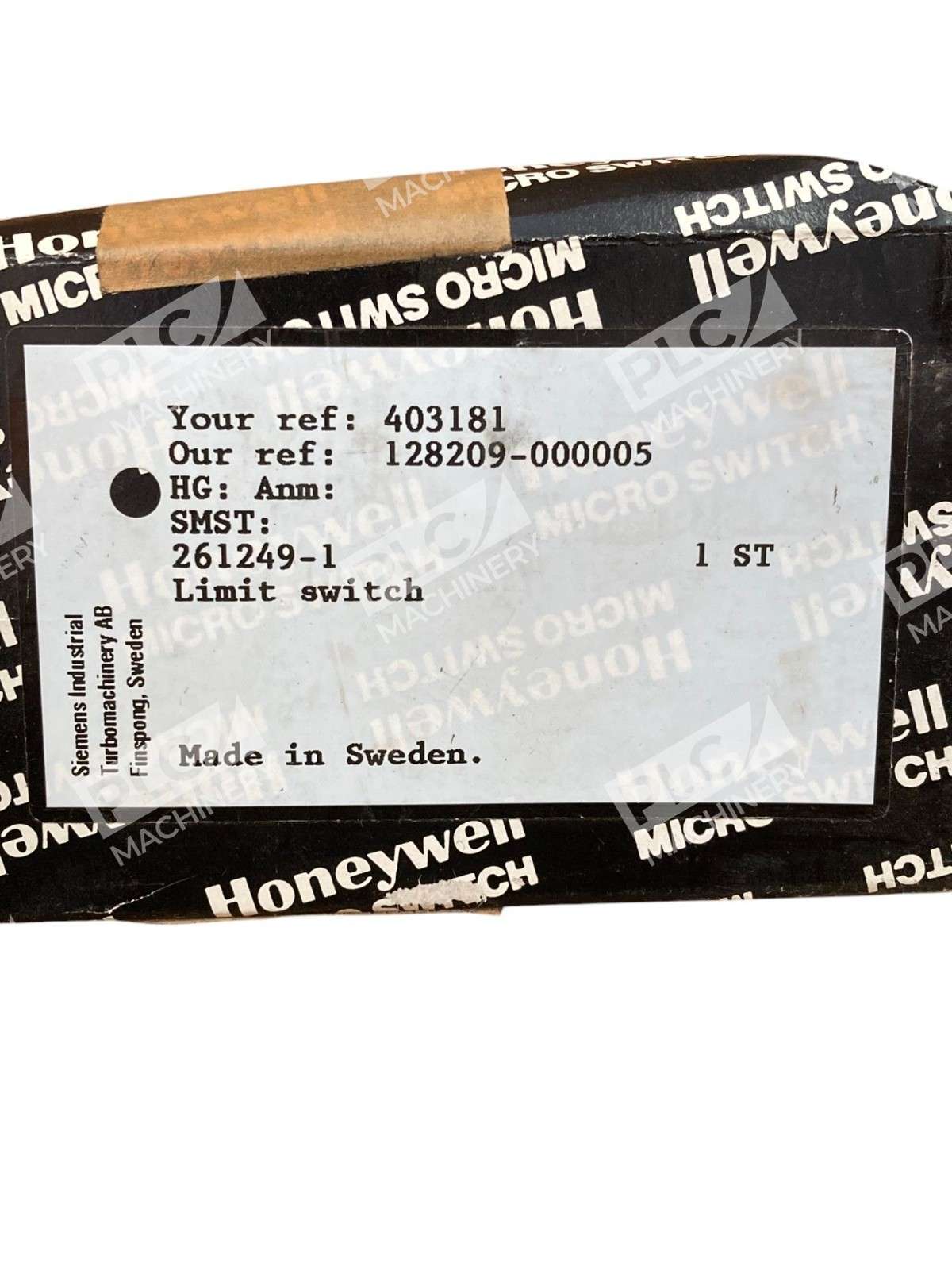

The Honeywell 1LS2444-PG is a precision snap-action limit switch from the Compact LS Series, engineered for reliable presence/absence detection in industrial machinery. This side rotary configuration features a fixed 38.1 mm lever with a steel roller actuator and PG 13.5 conduit termination. The die-cast housing delivers oil-tight, water-tight, and dust-tight IP67 sealing, ensuring extended service life in harsh environments. New in box condition guarantees factory-fresh performance.
Key Features
- Side rotary actuation with 38.1 mm (1.5 in) fixed lever and steel roller
- IP67 sealed die-cast metal housing for industrial durability
- PG 13.5 compact conduit termination
- Snap-action mechanism for precise, repeatable switching
- UL and CSA certified for North American applications
- Oil-tight, water-tight, and dust-tight construction
Technical Specifications
- Contact Configuration: 2NC / 2NO DPDT snap action
- Actuation Style: Side rotary with fixed lever
- Lever Length: 38.1 mm (1.5 in)
- Roller Type: Steel

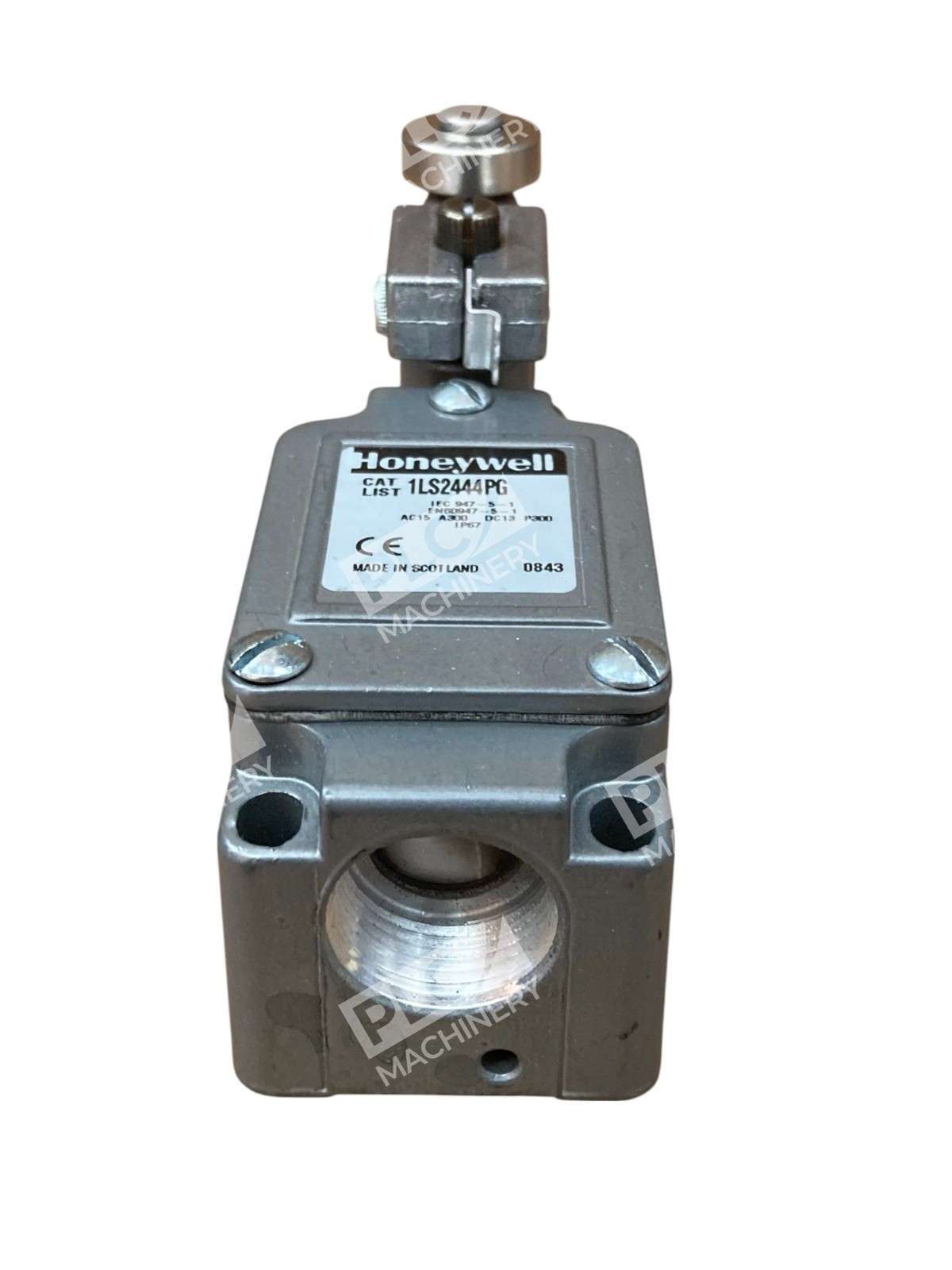

- Conduit: PG 13.5 compact
- Housing: Die-cast metal
- Sealing Rating: IP67
- Mounting Centers: 30 mm x 60 mm
- Certifications: UL, CSA
- Series: MICRO SWITCH LS (Compact General Purpose)
Typical Applications
The Honeywell 1LS2444-PG excels in machinery guarding, position sensing, and limit detection across manufacturing environments. Common applications include:
- Industrial equipment position verification
- Conveyor system end-of-travel detection
- Machinery interlocks and safety circuits
- Part presence confirmation
- Material handling equipment control
Compatibility & Replacements
Compatible With
- Standard 24 VDC control circuits
- 125 VAC, 250 VAC, 480 VAC industrial controls
- PLC and industrial controller I/O modules
- Machine safety control systems
- General-purpose automation networks
Replaces / Drop-In Replacement For
The 1LS2444-PG may serve as a replacement for earlier Honeywell LS series models with equivalent side rotary, fixed-lever configurations. Verify mounting dimensions (30 mm x 60 mm centers) and electrical specifications (2NC/2NO DPDT) with your system integrator before ordering as a direct substitute.
Works With
- Allen-Bradley and Rockwell automation controllers
- Siemens industrial control systems
- Schneider Electric PLCs and drives
- Omron and Mitsubishi automation platforms
- Standard industrial relay logic and hardwired circuits
