Overview
The Honeywell 914CE18-Q is a MICRO SWITCH compact precision limit switch designed for medium-duty industrial applications. This SPDT limit switch features a top plunger actuator with 1NC 1NO snap action contacts. The switch employs zinc die-cast housing and 4-pin DC micro-connector bottom with boot seal termination, making it suitable for harsh factory environments and outdoor equipment.
Key Features
- Fluorocarbon diaphragm sealing providing reliable protection, meeting NEMA 1, 2, 3, 3R, 4, 6, 6P, and 13 as well as IP66, IP67, and IP68 requirements
- Boot seal meets NEMA 12 requirements for dust, falling dirt, and liquid media with solid contaminates
- Epoxy encapsulation of cable/connector and basic switch terminals offering superior resistance in harsh environments
- Available with low temperature seals and lubricant for applications down to -40°C (-40°F)
- Industry standard M12 miniature 4-pin connector available
- Meets UL and CSA standards, as well as European CE requirements
Technical Specifications
- Contact Configuration: SPDT (1NC 1NO)
- Actuator Type: Top Plunger
- Contact Voltage (AC): 250VAC maximum
- Contact Current (AC): 5A maximum
- Switch Terminals: 4-pin DC Micro-Connector with boot seal
- Housing Material: Zinc die-cast
- Sealing: Fluorocarbon diaphragm (standard)
- Operating Temperature Range: -40°C to +60°C (standard); -40°C to +85°C with optional low-temp seal
- IP Rating: IP66, IP67, IP68
- NEMA Rating: NEMA 1, 2, 3, 3R, 4, 6, 6P, 12, 13
- Certifications: UL, CSA, CE marking
- Series: MICRO SWITCH 914CE
- Switching Action: Snap Action
- Operating Force: 22.24N (max)

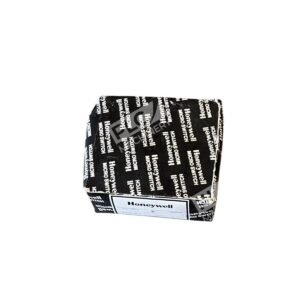

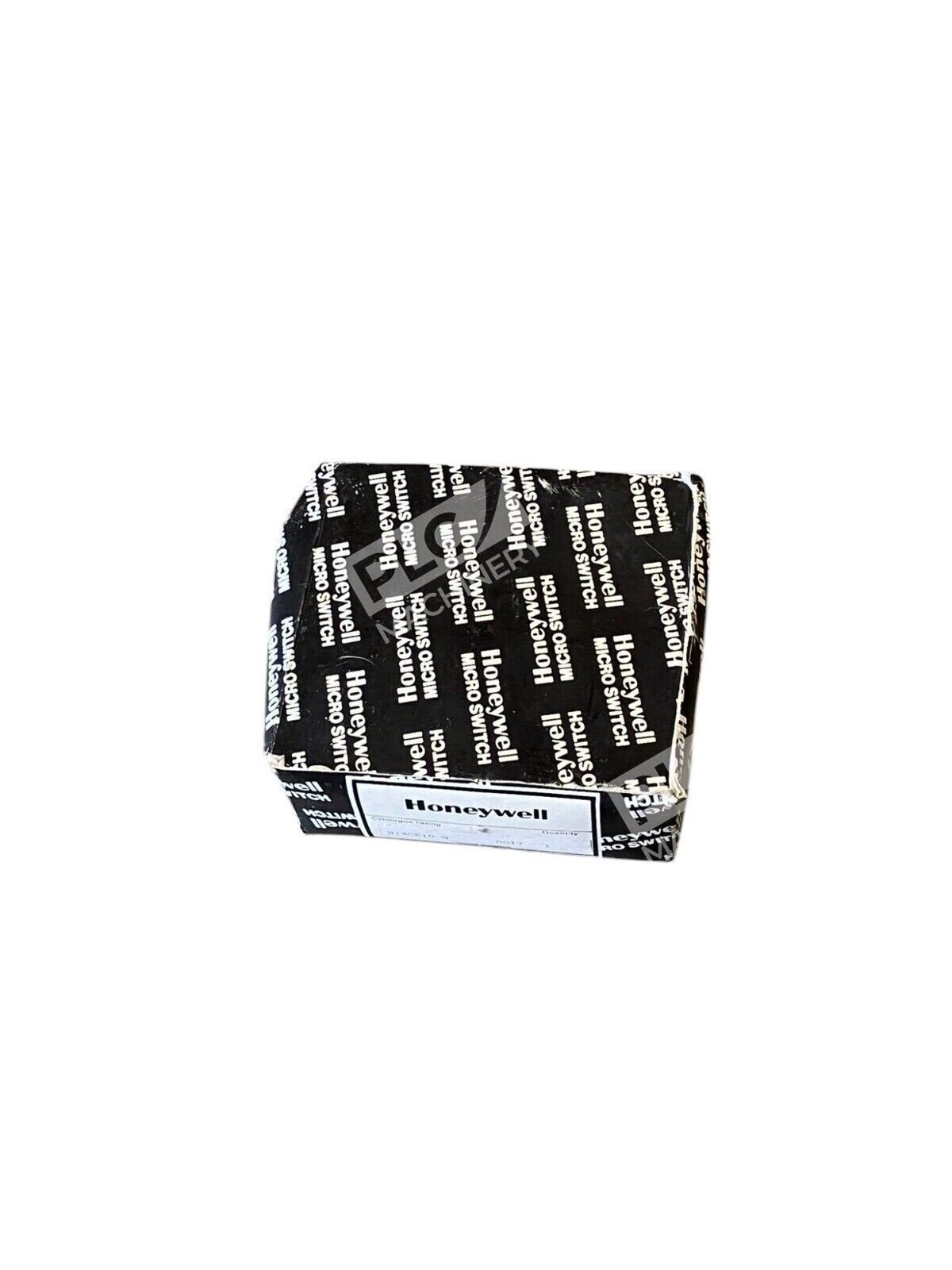

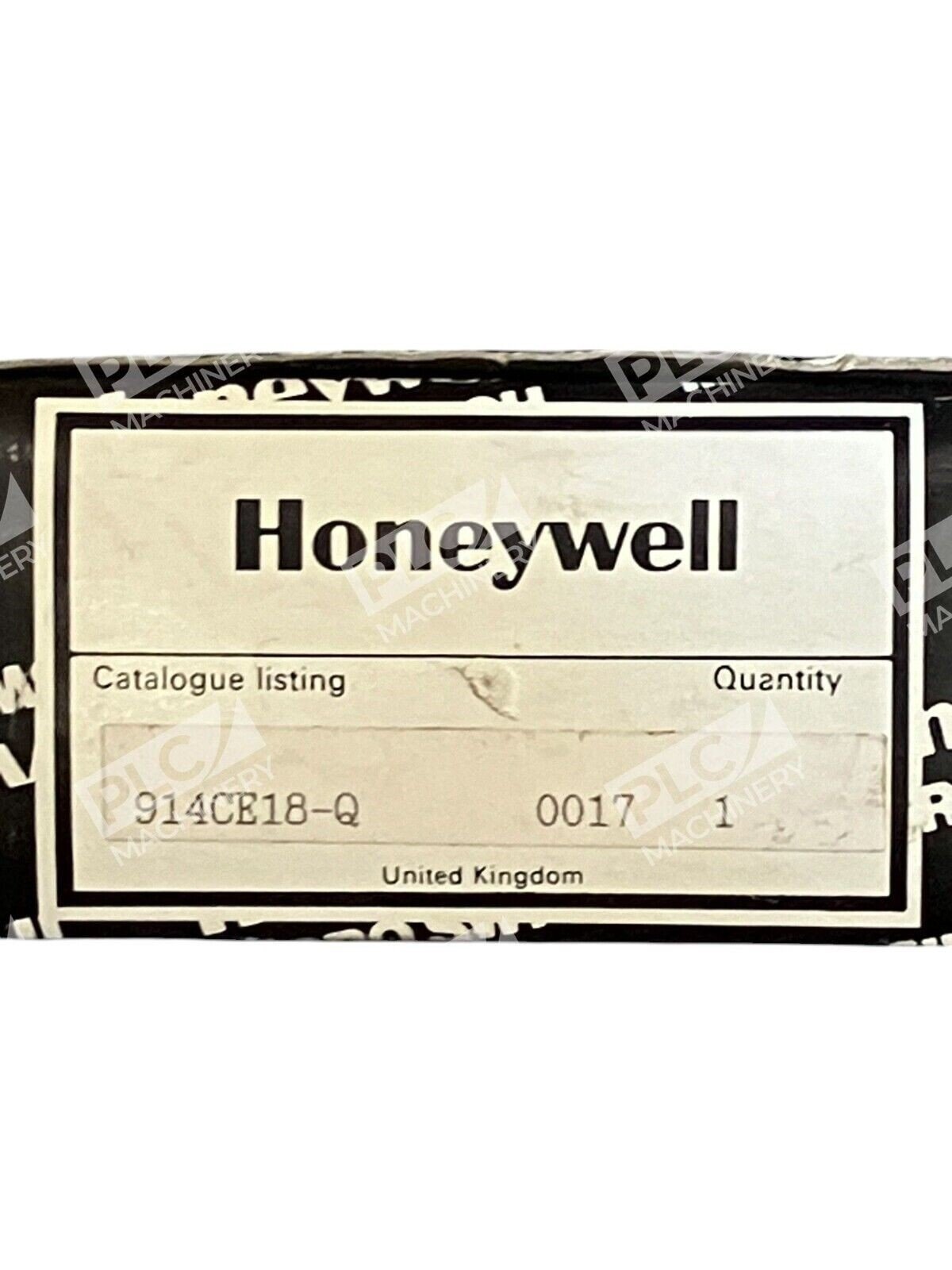

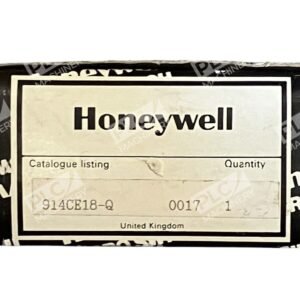

- Condition: New in Box
Typical Applications
The Honeywell 914CE18-Q is ideal for limit and snap action switching in:
- Processing Equipment
- Textile Machinery
- Machine Tools
- Robotics
- Packaging Equipment
- Farm Machinery
- Commercial Laundry Equipment
- Printing Trade Machinery
- Vehicle Control Systems
- Outdoor Equipment in Extreme Temperatures
Compatibility & Replacements
Compatible With
- Industrial machinery and equipment control systems requiring SPDT switching
- Standard 4-pin DC micro-connector systems
- M12 connector-equipped control systems (variant availability)
- NEMA 1-4, 6, 12, 13 rated enclosures
- IP66/IP67/IP68 sealed environments
Replaces / Drop-In Replacement For
The Honeywell 914CE18-Q is a direct replacement for other 914CE18 series plunger-actuated SPDT limit switches with 4-pin DC micro-connector termination. Verify actuator type and connector specification with your system integrator to ensure compatibility.
Works With
- MICRO SWITCH 914CE series plunger, roller, and side rotary actuator variants
- Standard DC control circuits and automation systems
- Gang mounting configurations with compatible 914CE models
- Side and bottom exit cable/connector configurations
- Low-temperature sealing kits for extended operating range
