Overview

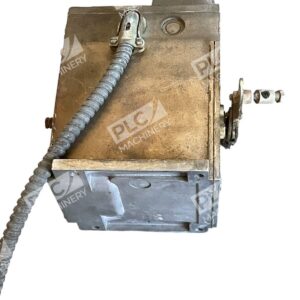

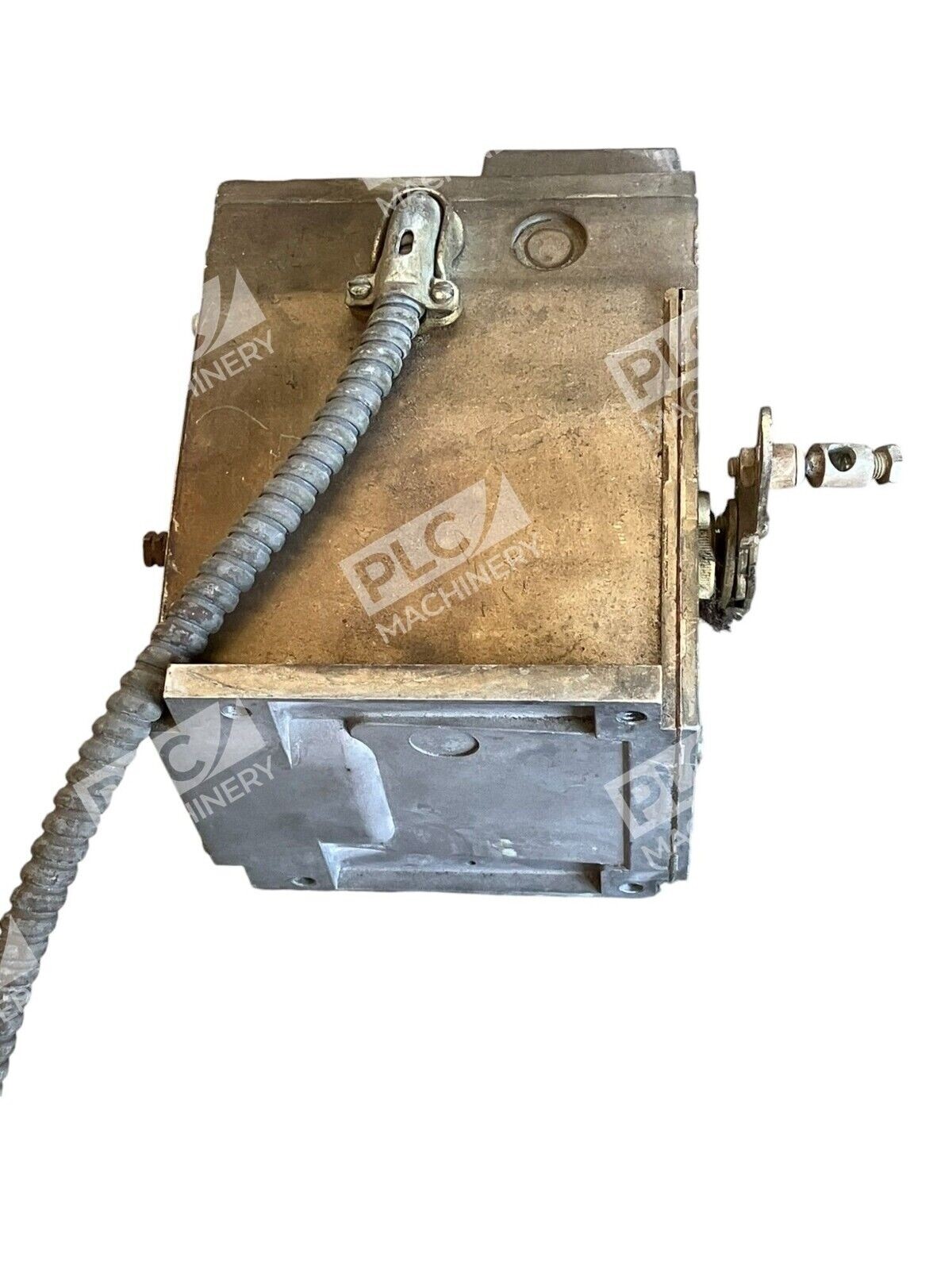

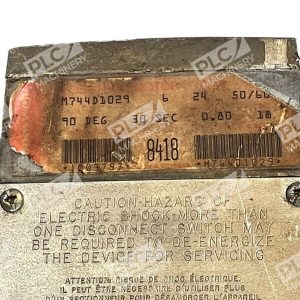

The Honeywell M744D1029 is a rotary Modutrol motor actuator engineered for precision damper and valve positioning in commercial HVAC systems. This 90-degree stroke unit delivers 30-second full actuation timing, making it ideal for proportional control of ductwork airflow and building climate zones. The Honeywell M744D1029 employs modulating control architecture to accept analog signals from pneumatic or electronic controllers.
Key Features
- 90-degree fixed stroke for reliable, repeatable damper positioning
- 30-second full-cycle actuation time for responsive damper modulation
- Modutrol design accepts proportional control signals for smooth airflow adjustment
- Die-cast aluminum housing provides durable construction for indoor/outdoor mounted dampers
- Field-installable auxiliary switches available for end-of-travel indication
- Integral spring-return option available for fail-safe damper positioning
Technical Specifications
Verify operating voltage, current draw, and control signal requirements with the original manufacturer datasheet or system documentation before installation. Contact a Honeywell authorized distributor for complete electrical ratings and certification details specific to your application.
Typical Applications
- Commercial HVAC damper modulation and proportional control
- Building zone control and airflow balancing
- Energy management systems requiring smooth damper positioning
- Retrofit replacements for existing Modutrol-controlled damper systems
- BACnet and pneumatic control loop actuators
Compatibility & Replacements
Compatible With
- Honeywell building management and HVAC control systems
- Proportional damper dampers and modulating flow control valves
- Pneumatic and electronic proportional control signals
- Standard 3/8-inch square shaft mechanical linkages
Replaces / Drop-In Replacement For
Verify replacement compatibility with your controls engineer before ordering. Original equipment manufacturer documentation or system drawings should be consulted to confirm mechanical fit and electrical signal compatibility.
Works With
- Honeywell BMS control software and Building Automation Systems
- Pneumatic proportional control loops
- Electronic proportional signal controllers
- Damper mechanical linkages with 3/8-inch square shaft interface
