<h2>Overview</h2>

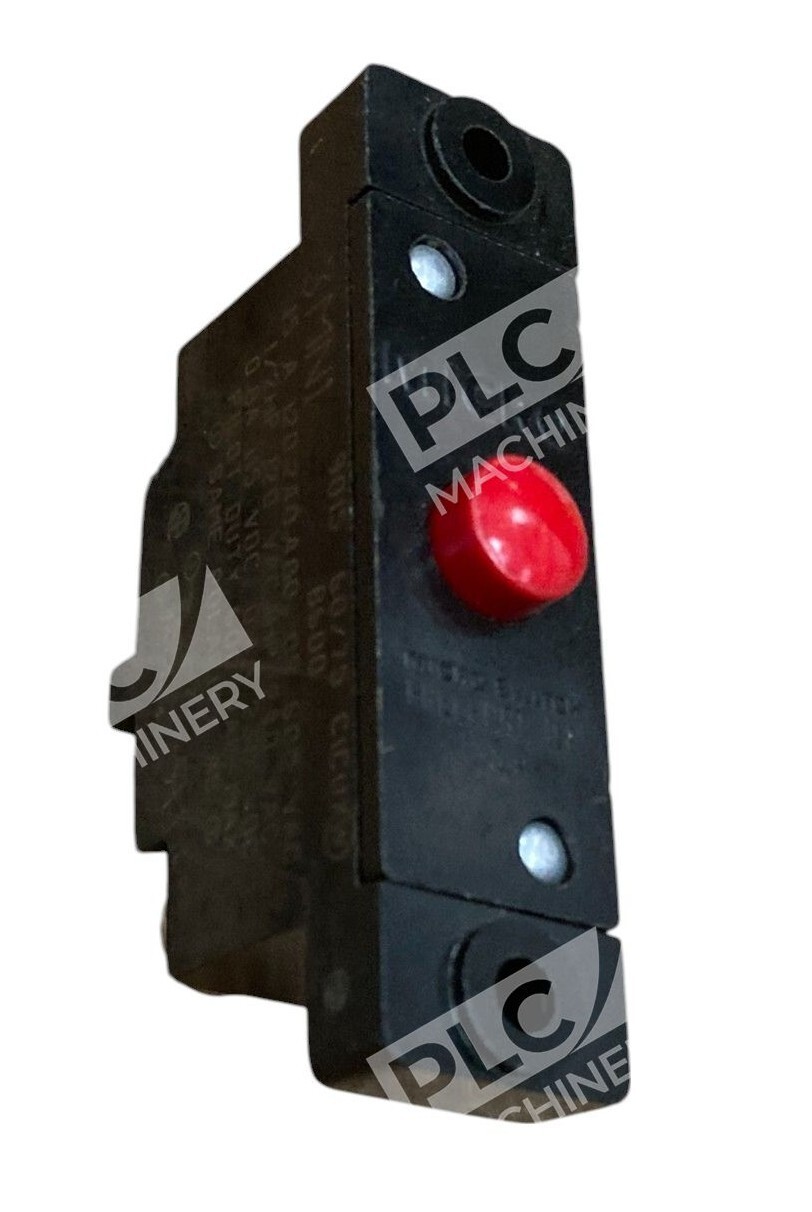

<p>The Honeywell 3MN1 micro switch is a proven double-pole double-throw (DPDT) snap action switch designed for industrial limit and control applications. This used unit delivers reliable contact switching with double-break circuitry for enhanced safety and arc resistance. Rated for 15A @ 600VAC and 1 HP @ 240VAC motor loads, the Honeywell 3MN1 is engineered for long service life in demanding environments like machine tools, presses, and industrial equipment.</p>
<h2>Key Features</h2>
<ul>
<li><strong>Double-Break Circuitry:</strong> Two independent contact sets reduce arc and extend contact life</li>

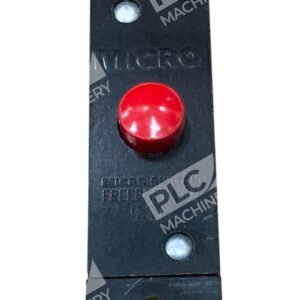

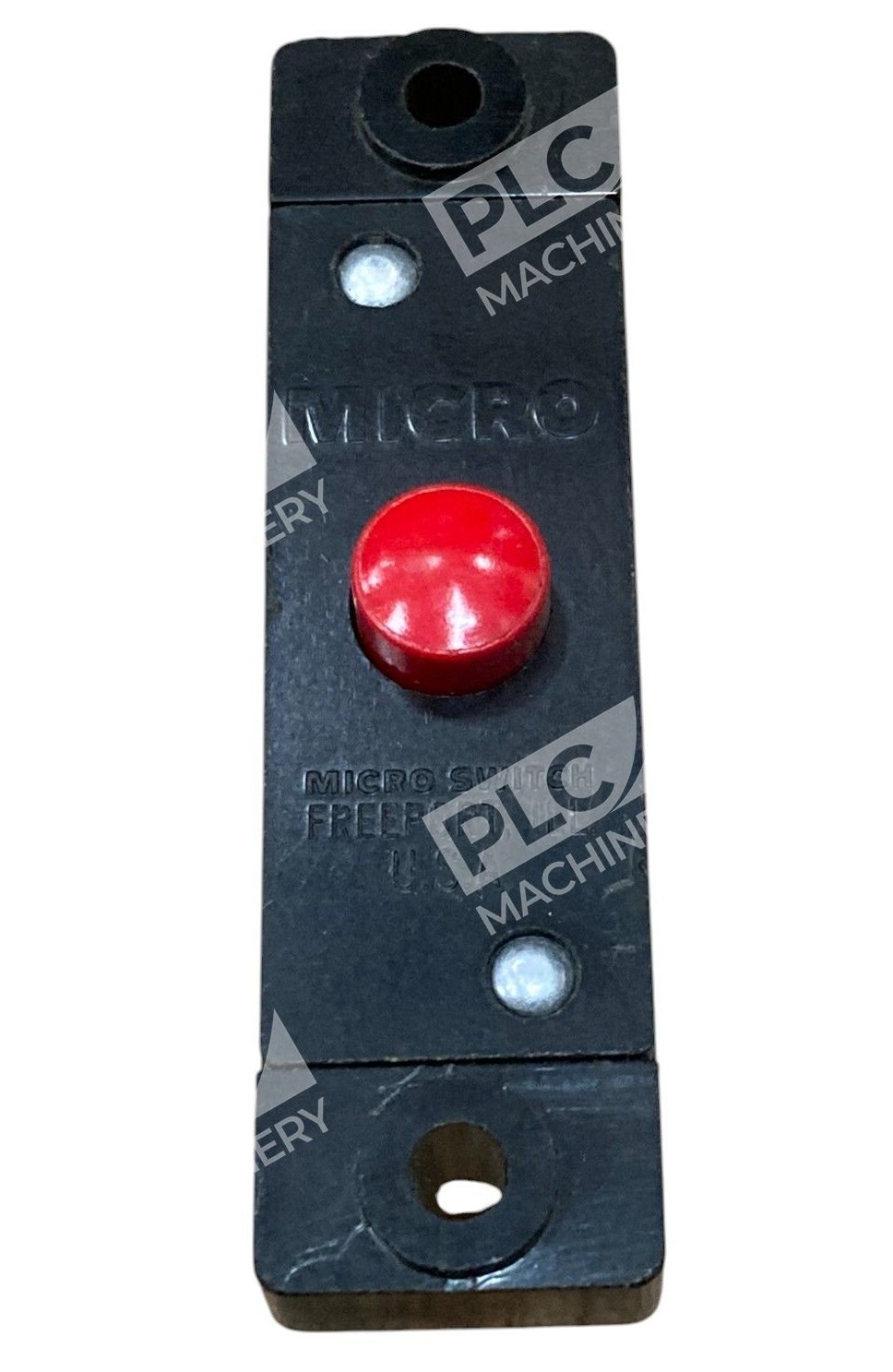

<li><strong>Pin Plunger Actuator:</strong> Direct, responsive engagement for precise limit control</li>
<li><strong>Arc-Resistant Plastic Housing:</strong> Durable, non-conductive construction for safety and reliability</li>
<li><strong>Extended Mechanical Life:</strong> 10,000,000 cycle rating at 95% survival for continuous operation</li>
<li><strong>Screw Termination:</strong> Secure wire connection compatible with standard gauge conductors</li>
<li><strong>UL Listed & CSA Certified:</strong> Meets North American electrical safety standards</li>
</ul>
<h2>Technical Specifications</h2>
<ul>
<li><strong>Contact Configuration:</strong> DPDT (Double Pole Double Throw)</li>

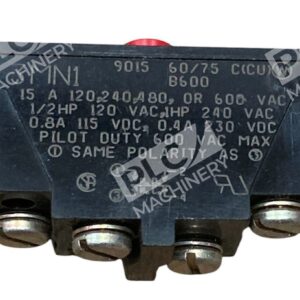

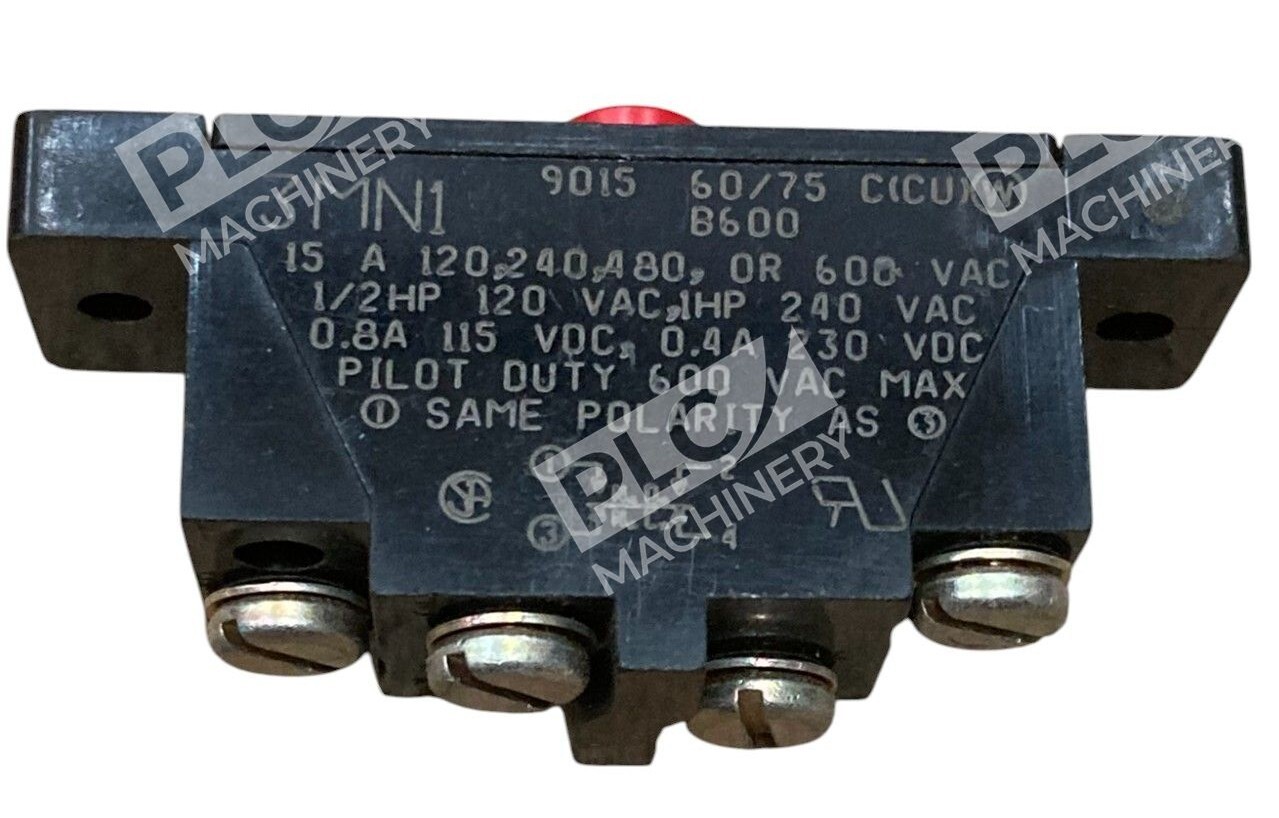

<li><strong>AC Load Rating:</strong> 15A @ 120VAC, 240VAC, 480VAC, or 600VAC</li>
<li><strong>DC Load Rating:</strong> 0.8A @ 115VDC; 0.4A @ 230VDC</li>
<li><strong>Motor Load:</strong> 0.5 HP @ 120VAC; 1 HP @ 240VAC</li>
<li><strong>Operating Force:</strong> 3.34–5.56 N (12–20 oz)</li>
<li><strong>Contact Pretravel:</strong> 0.06 in (1.52 mm) max</li>
<li><strong>Differential Travel:</strong> 0.015–0.025 in (0.38–0.63 mm)</li>
<li><strong>Overtravel:</strong> 0.08 in (2.03 mm) min</li>
<li><strong>Circuitry Type:</strong> Two-circuit double-break</li>
<li><strong>Termination:</strong> Screw terminal</li>
<li><strong>Contact Material:</strong> Silver or gold-plated options</li>
<li><strong>Mechanical Life:</strong> 10,000,000 cycles @ 95% survival</li>
<li><strong>Certifications:</strong> UL Listed (File 22779), CSA Certified</li>
<li><strong>Series:</strong> MN Series Basic Switch</li>
</ul>
<h2>Typical Applications</h2>
<p>The 3MN1 snap action switch excels in industrial automation and machine control:</p>
<ul>
<li>Machine tool limit switches and position sensing</li>
<li>Press and stamping equipment end-of-travel controls</li>
<li>Conveyor and material handling safety interlocks</li>
<li>Industrial equipment door and gate position monitoring</li>
<li>Pump and motor start/stop control circuits</li>
<li>Emergency stop and safety circuit integration</li>
</ul>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>Standard industrial control circuits rated 15A @ 600VAC</li>
<li>Machine tool control panels and PLC input modules</li>
<li>Motor starter and contactor control circuits</li>
<li>Limit switch and interlocking safety systems</li>
<li>Standard electrical enclosures with screw terminal provisions</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<ul>
<li>Honeywell 3MN1 (original specification match)</li>
<li>Verify application-specific compatibility with your system integrator before ordering replacement units.</li>
</ul>
<h3>Works With</h3>
<ul>
<li>Rockwell Automation (Allen-Bradley) control systems and CompactLogix/ControlLogix PLCs</li>
<li>Siemens TIA Portal and S7 series PLC input modules</li>
<li>Mitsubishi Automation systems with standard discrete I/O</li>
<li>Omron and Schneider Electric industrial controls</li>
<li>Standard 120–600VAC industrial wiring and motor control circuits</li>
</ul>
