Overview

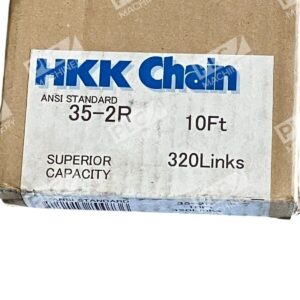

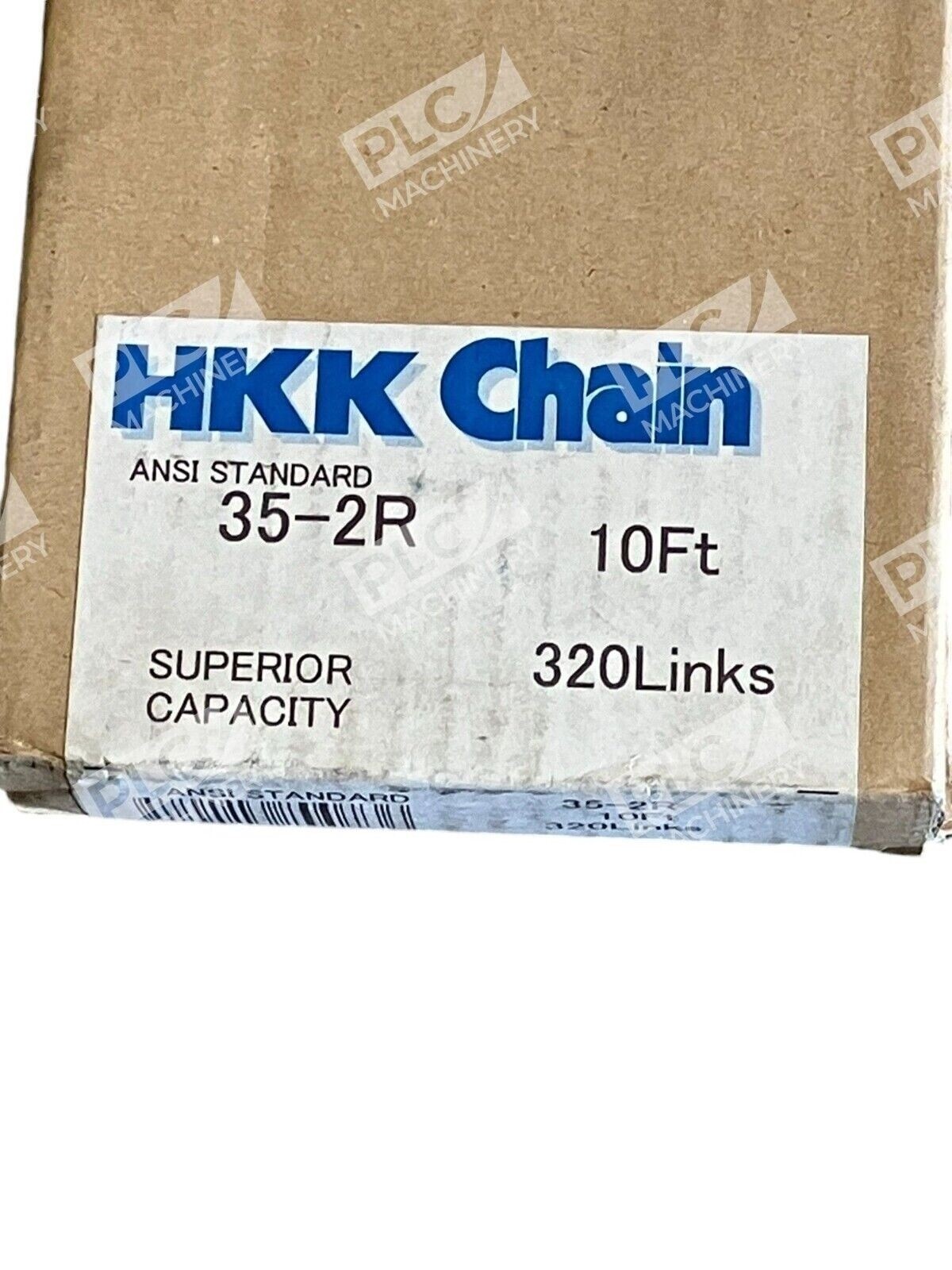

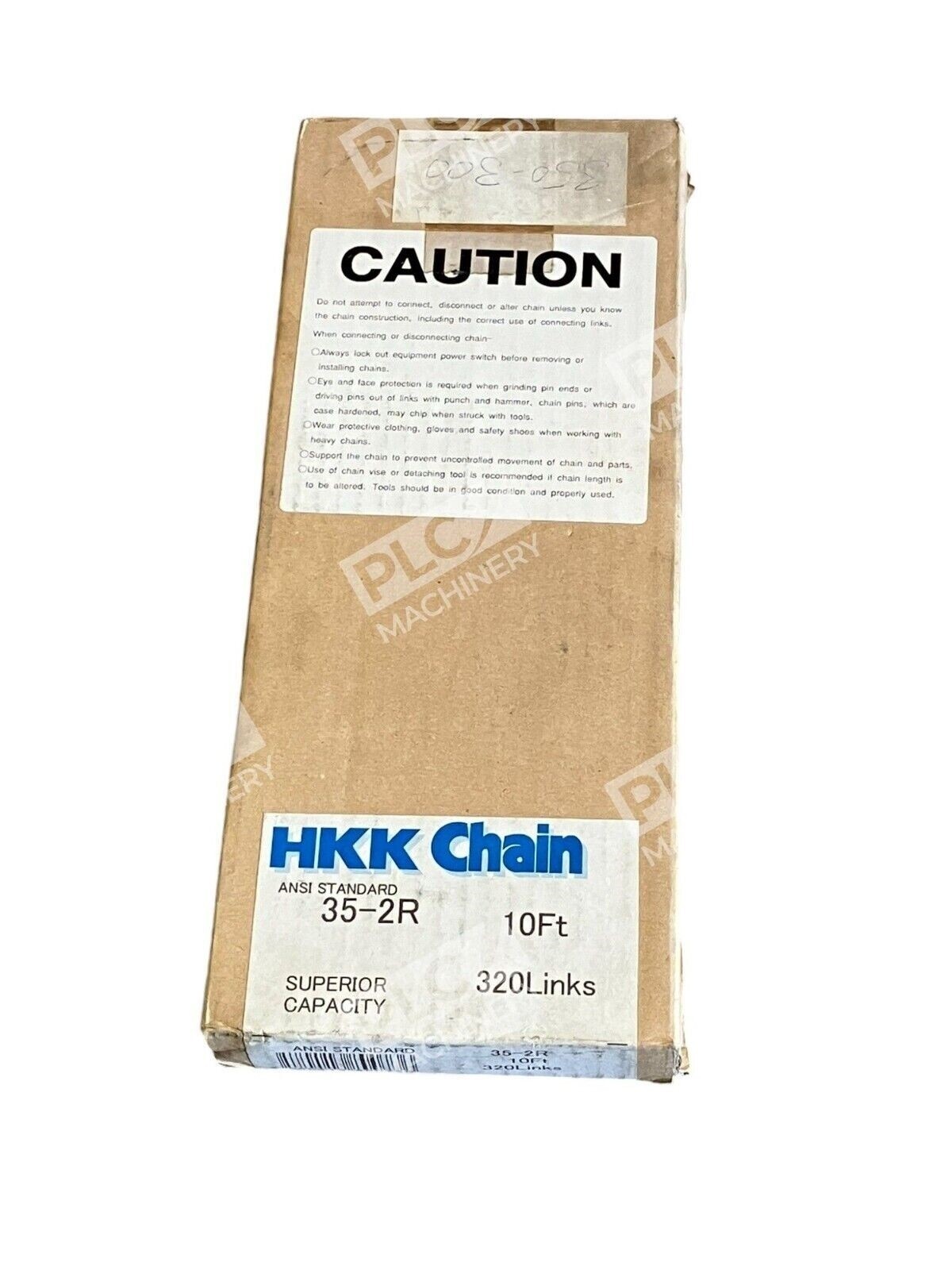

The HKK Chain 35-2R is a premium duplex riveted roller chain engineered for reliable power transmission across industrial machinery and mechanical drives. With 320 links spanning 10 feet, this chain meets ANSI B29.1 standards and delivers the high strength and durability HKK is known for. The 35-2R configuration features a 3/8″ pitch and is manufactured from high-quality carbon steel with cold-forged solid bushings.
Key Features
- Superior Capacity Plus™: 810 lbs maximum allowable working load—30% higher than standard ANSI 35 chains
- High Tensile Strength: 4,800 lbs average ultimate strength for demanding applications
- Duplex (2-Strand) Design: Increased load capacity and power transmission capability
- Cold-Forged Solid Bushings: Minimize elongation and wear, extending chain life
- Heat-Treated Components: Shot-peened link plates, bushings, and specially treated pins for fatigue resistance
- Connecting Link Included: One full-strength connecting link supplied with the 10 ft chain
- Made in Japan: Manufactured to HKK’s rigorous quality standards
Technical Specifications
- Chain Type: Duplex Riveted Roller Chain
- Model/Series: 35-2R
- Pitch: 3/8 inch
- Length: 10 feet
- Link Count: 320 links
- Maximum Allowable Load: 810 lbs
- Average Ultimate Tensile Strength: 4,800 lbs
- Material: High-quality carbon steel
- Bushing Type: Cold-forged solid bushings
- Link Style: Riveted
- Standard Compliance: ANSI B29.1
- Connecting Links: 1 included per 10 ft of chain
- Manufacturing Location: Japan
Typical Applications
HKK 35-2R duplex chains are widely used in:
- Conveyor systems and material handling equipment
- Agricultural machinery and farm equipment
- Industrial gearboxes and power transmission drives
- Mining and quarry equipment
- Paper mill and textile machinery
- General industrial machinery requiring reliable, efficient power transfer
- Equipment operating at moderate to high speeds with consistent load demands
Compatibility & Replacements
Compatible With
- Standard ANSI 35 sprockets and gearbox drives
- Machinery designed for 3/8″ pitch roller chain
- Systems requiring duplex chain for increased load capacity
- Industrial power transmission systems and conveyors
Replaces / Drop-In Replacement For
- Standard ANSI 35-2 roller chains from competitor brands
- Other duplex #35 chains requiring equivalent load capacity
- Direct replacement for HKK 35-2R chains in existing installations
Works With
- All ANSI B29.1 compliant sprockets and gearboxes
- Offset links and roller links (sold separately)
- Standard connecting link hardware (spring clip type standard)
- Existing conveyor and transmission systems using 3/8″ pitch chains
