Overview

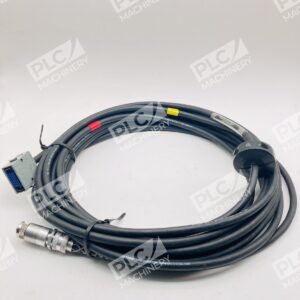

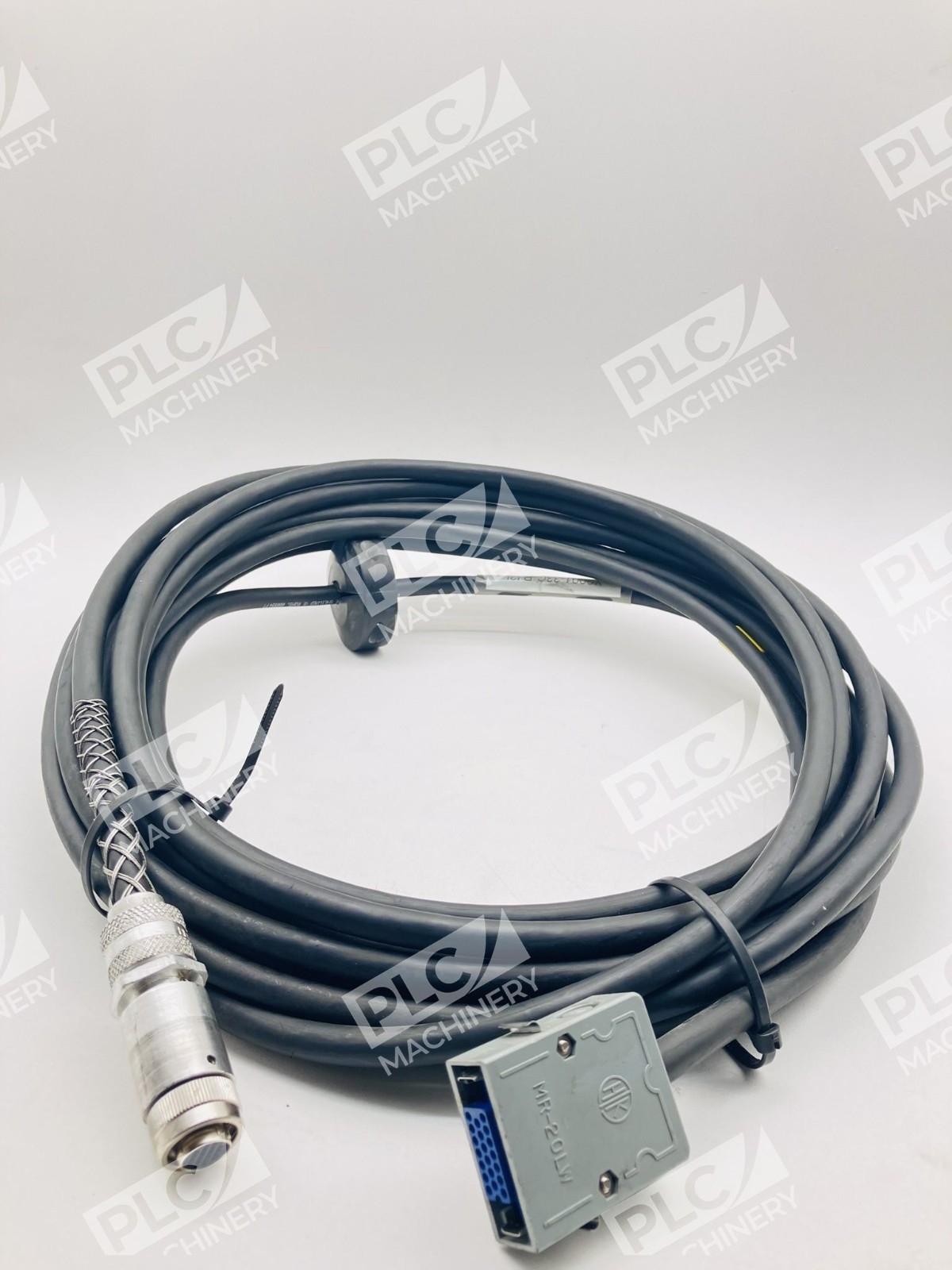

The Honda MR-20LW connector is a proven 20-way connector assembly used extensively in industrial control system applications. This connector family supports connections for a wide range of Japanese CNC and automation equipment manufacturers including Fanuc, Okuma, Hitachi Seiki, and Fuji Electric systems. The MR-20LW is designed with robust construction to handle repeated mating cycles and harsh industrial environments typical of manufacturing facilities.
Key Features
- 20-Way Pin Configuration: Full 20-pin connector setup supports multi-signal transmission for complex control applications
- Crimp Pin Technology: Precision crimp connections ensure reliable signal integrity and minimal contact resistance
- Industrial-Grade Construction: Durable casing and contacts rated for factory floor environments
- Universal CNC Compatibility: Compatible with legacy Fanuc, Okuma, Fuji, and Hitachi control systems
- Proven Field History: Decades of successful deployment in manufacturing automation
Technical Specifications
- Connector Type: 20-way industrial connector
- Manufacturer: Honda
- Part Number: MR-20LW
- Pin Configuration: 20 pins with crimp terminals
- Contact Type: Crimp pins and receptacles
- Connector Family: MR-20L/MR-20LW series
- Gender Options: Male (MR-20M) and Female (MR-20F) versions available
- Applications: CNC controls, servo systems, automation cables
Typical Applications
- Fanuc CNC machine tool control connections
- Okuma turret and servo motor cabling
- Fuji Electric automation system integration
- Hitachi Seiki spindle and axis control
- Servo motor cable assemblies (46″ standard length)
- Pendant cable and control interface connections
- Factory retrofit and equipment upgrades
Compatibility & Replacements
Compatible With
- Fanuc CNC control systems
- Okuma machine tool controllers
- Fuji Electric automation platforms
- Hitachi Seiki control interfaces
- 20-pin servo and motor cable assemblies
- Legacy Japanese industrial automation equipment
Replaces / Drop-In Replacement For
- Original MR-20L connector variants
- MR-20LW series connectors
- OEM factory connectors in Fanuc and Okuma applications
Works With
- Fanuc servo motor cables and pendant cables
- CNC machine tool control wiring
- Multi-conductor industrial control cables
- Crimp-pin terminated cable assemblies
- Standard industrial control cabinet installations
