Overview
The Harting HAN-24-E-F connector is a modular female connector engineered for industrial automation, machinery control, and signal transmission. With 24-pin capacity, it’s widely used in automation, transportation, energy, and manufacturing sectors, supporting power, signal, and data transmission in a single housing. The HAN-24-E-F is part of Harting’s proven Han® modular connector family, designed for consistent performance under heavy electrical and mechanical loads.
Key Features

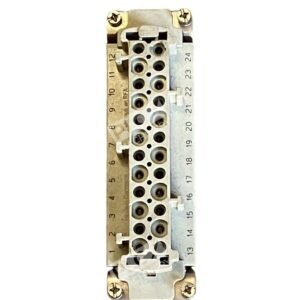

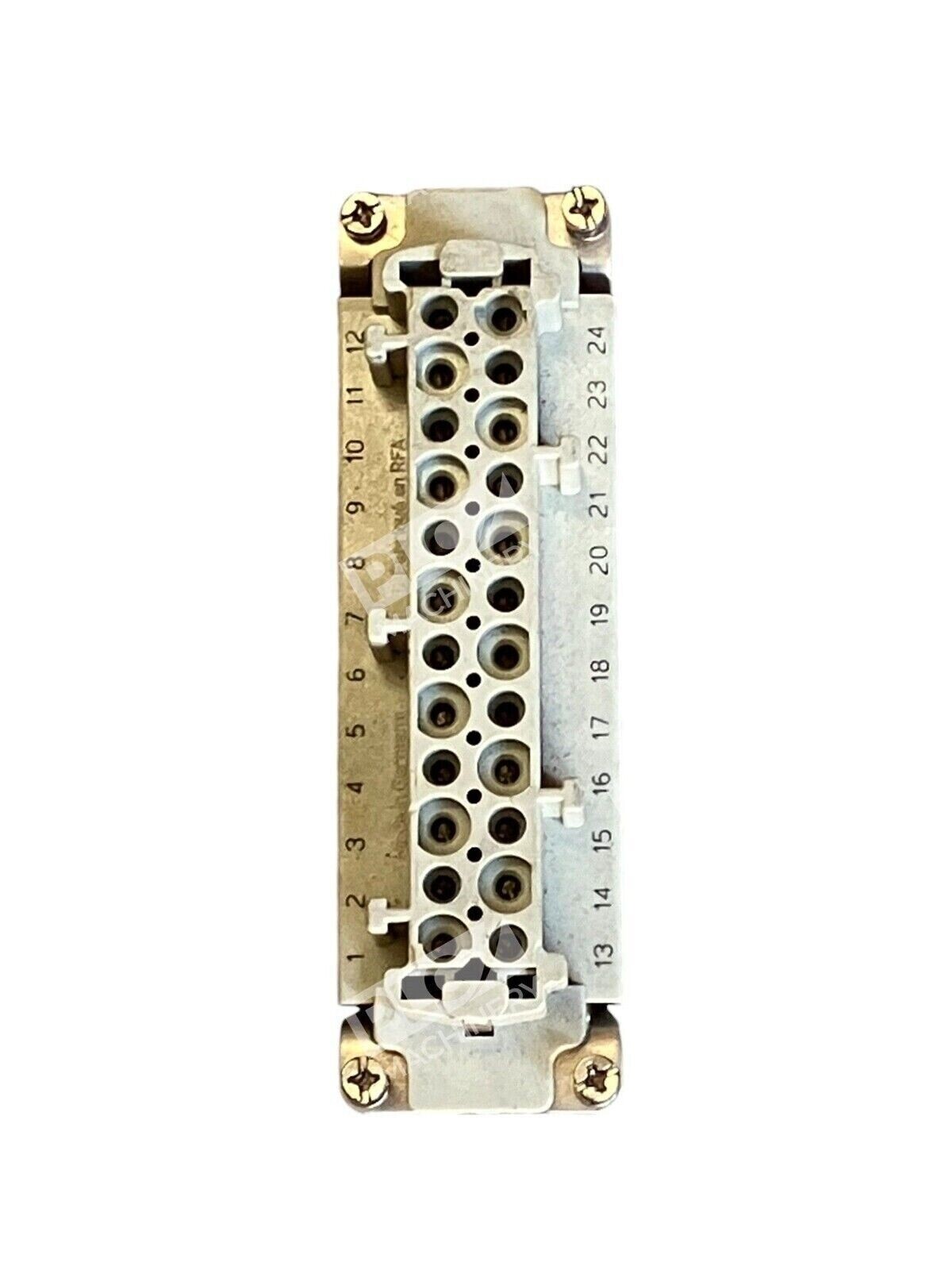

- 24-pin female connector configuration
- Plastic latch housing for secure mating

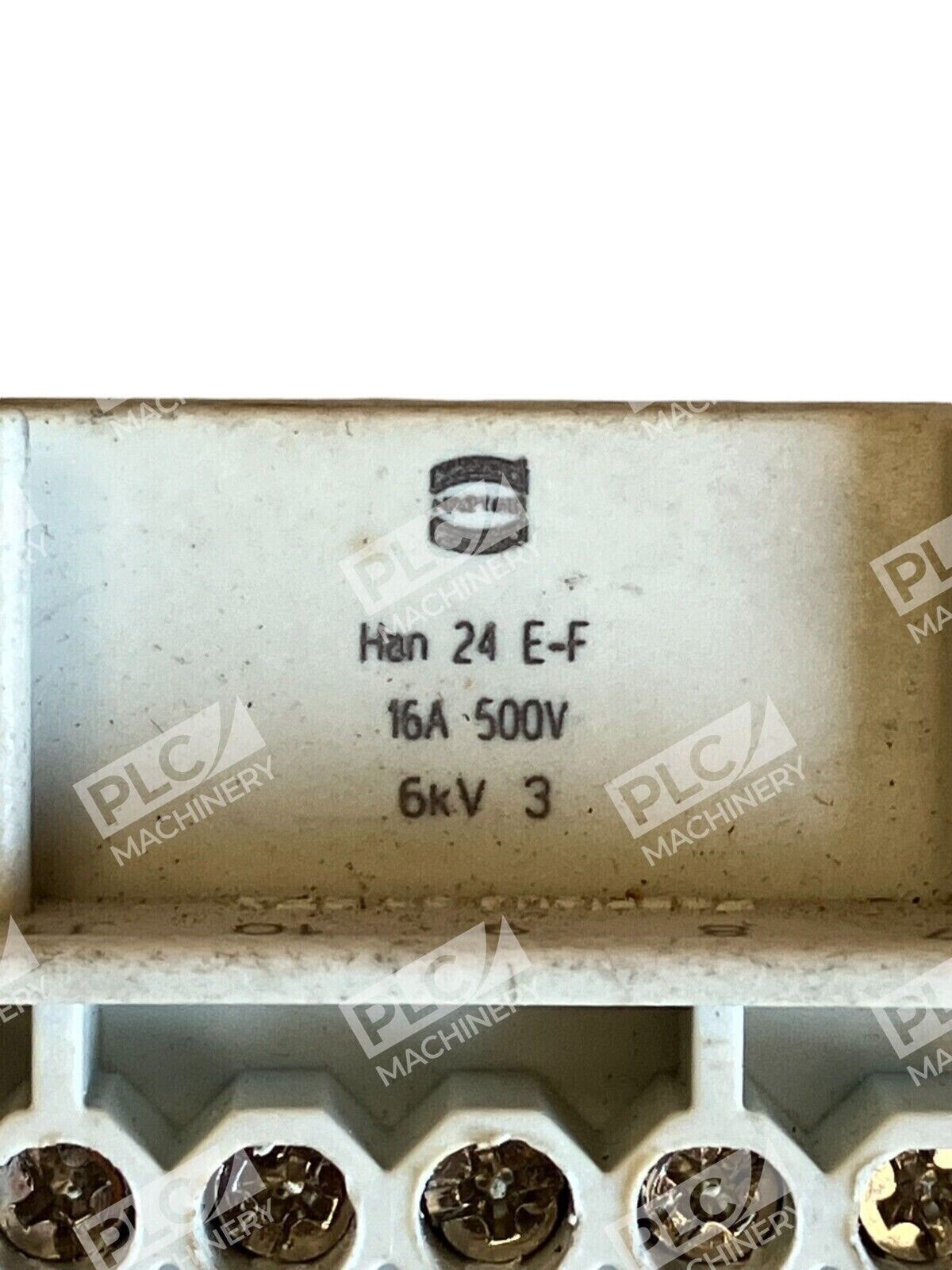

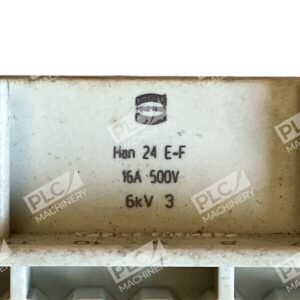

- Rated 500V nominal, 6kV impulse
- 16A current capacity per contact
- Compact, lightweight design for space-constrained installations
- Compatible with standard Han® male connectors and modular systems
Technical Specifications
- Part Number: HAN-24-E-F
- Manufacturer: Harting
- Gender: Female
- Pin Count: 24
- Voltage Rating: 500V nominal
- Impulse Voltage: 6kV
- Current Rating: 16A per contact
- Latch Type: Plastic latch
- Weight: 0.24 lbs
- Mating Cycles: Up to 10,000
Typical Applications
The HAN-24-E-F is ideal for:
- Industrial automation control systems and PLC interfaces
- Motion control and drive systems
- Machine tool and CNC equipment interconnects
- Power distribution in manufacturing environments
- Signal transmission in harsh industrial settings
- Transportation and railway equipment
- Energy and heavy machinery applications
Compatibility & Replacements
Compatible With
- Harting Han® 24-pin male connectors (HAN-24-E-M series)
- Harting Han® modular frame systems
- Harting Han-Easy-Lock® housing variants
- Standard 24-pin Han® interconnect architectures
Replaces / Drop-In Replacement For
- HAN-24-E-F-S (female, sealed variant)
- Harting HAN-24E-F industrial connector assemblies
- Legacy Han® 24-pin female connectors requiring 500V/16A ratings
Works With
- Harting Han® modular connector ecosystems
- Industrial Ethernet and PROFINET networks
- EtherCAT and other real-time protocols
- PLC and motion control systems from all major manufacturers
- 24-pin power and signal distribution modules
