Overview

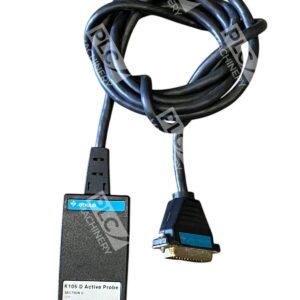

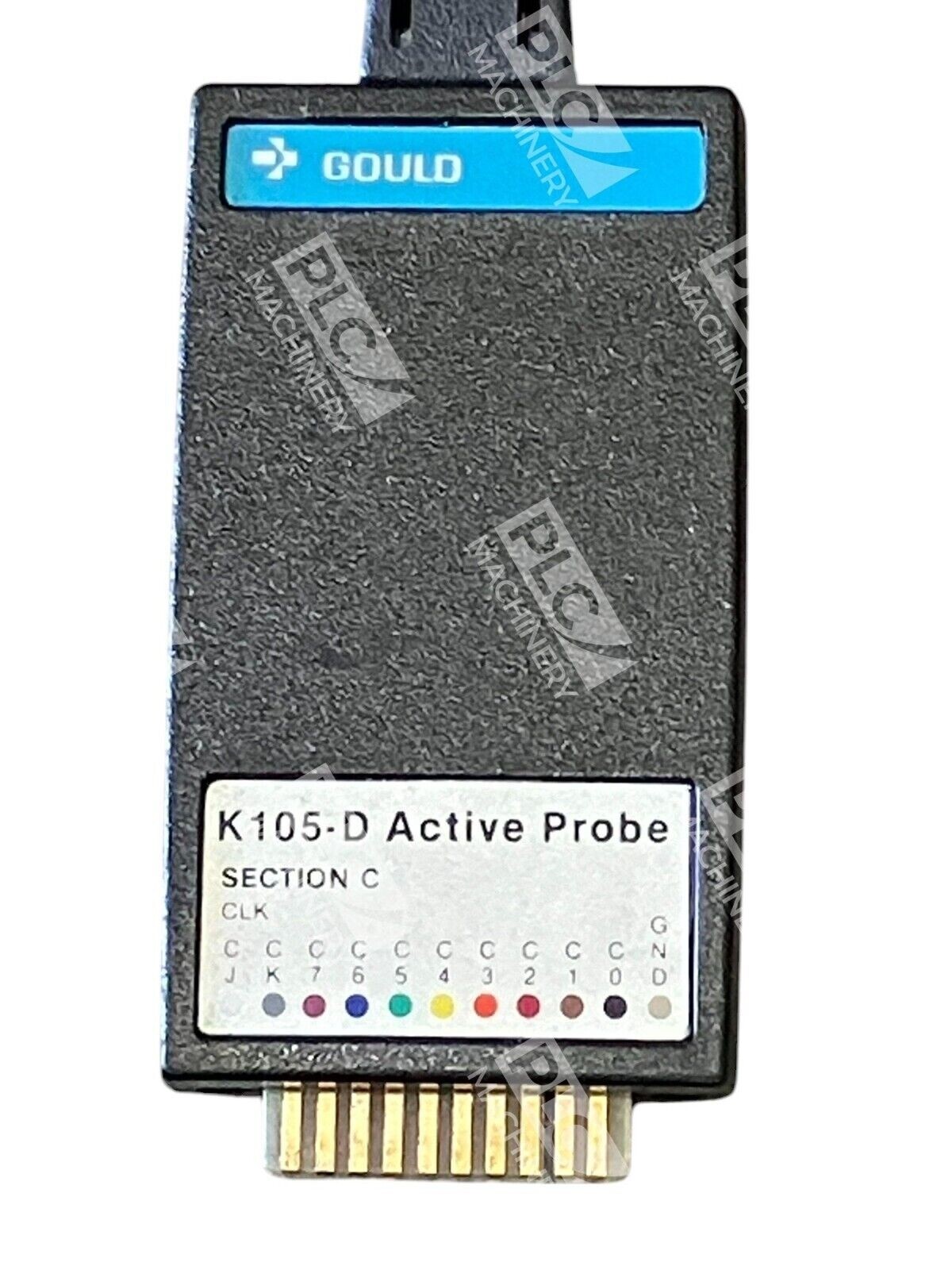

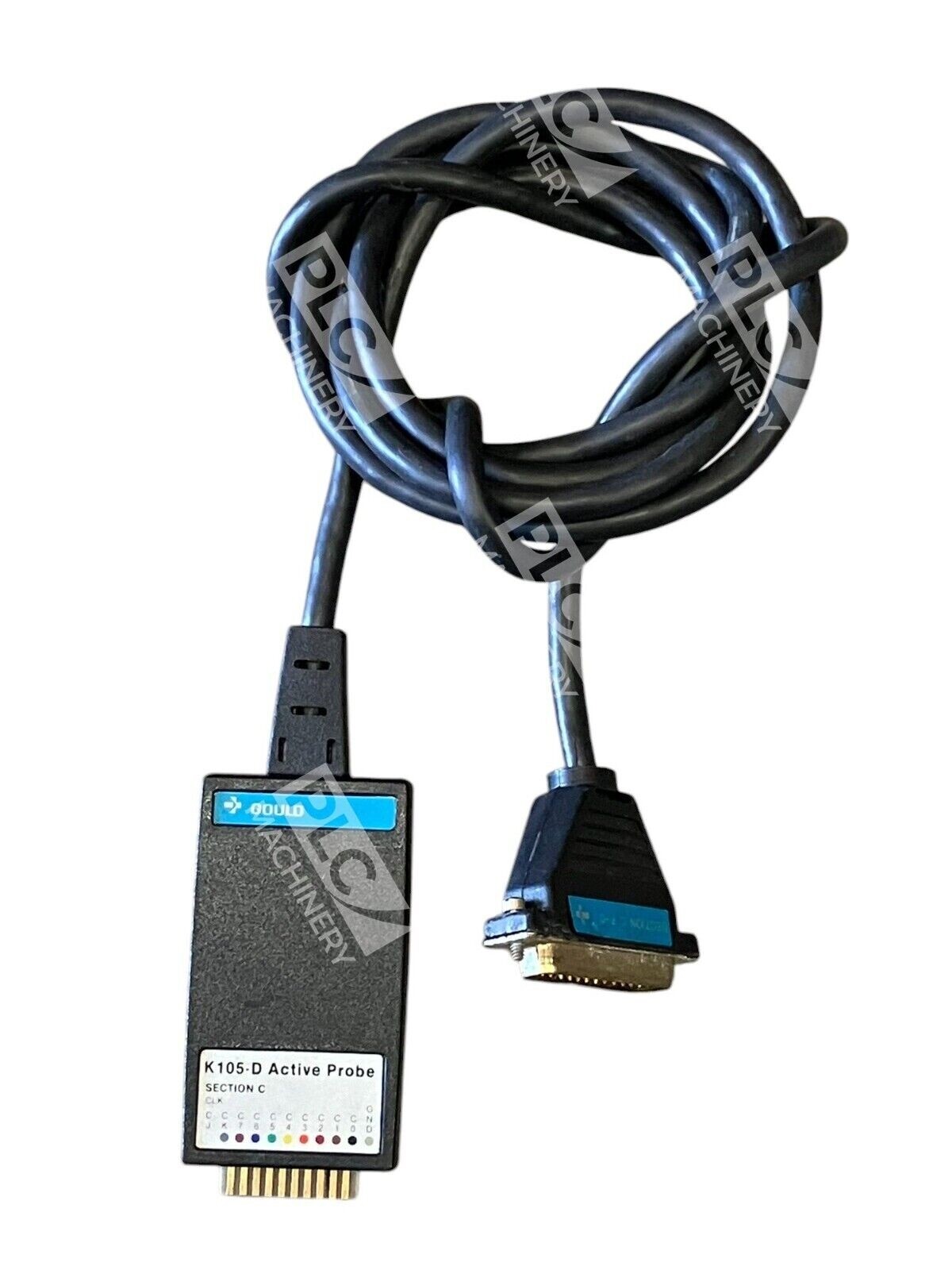

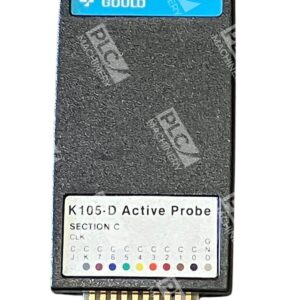

The Gould K105-D active probe is a probe section component designed for use with the Gould K105-D logic analyzer system. This unit functions as part of the K105-D’s probe pod interface, which connects the logic analyzer to external microprocessor-based equipment for signal capture and analysis.
Key Features
- Replacement probe section for K105-D logic analyzer systems
- Supports high-speed logic signal capture from digital circuits
- Part of modular probe architecture (available in sections A, B, C, D, and HS)
- Compatible with 8-bit and 16-bit microprocessor monitoring
- Facilitates address and data signal acquisition
Technical Specifications
- Manufacturer: Gould
- Model: K105-D
- Component Type: Active Probe Section C
- Application: Logic Analyzer Interface
- Supported Input Channels: 32 or 64 Main channels; 8 or 16 High-Speed channels (system-dependent)
- Compatible Systems: Gould K105-D Logic Analyzer
- Condition: Used, fully functional
Typical Applications
- Microprocessor-based equipment development and debugging
- Logic signal monitoring in embedded systems
- Digital circuit analysis and troubleshooting
- Real-time capture of address and data signals in 8-bit and 16-bit systems
- Laboratory and test environments
Compatibility & Replacements
Compatible With
- Gould K105-D Logic Analyzer instrument
- Gould K105-D probe pod interface system
- Microprocessor-based test equipment requiring logic analysis
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Section C probe components are interchangeable within the K105-D modular probe architecture.
Works With
- Gould K105-D Logic Analyzer main unit
- Probe sections A, B, D, and HS within the same system
- External microprocessor-based equipment with logic signals up to system-specified frequency
