Overview

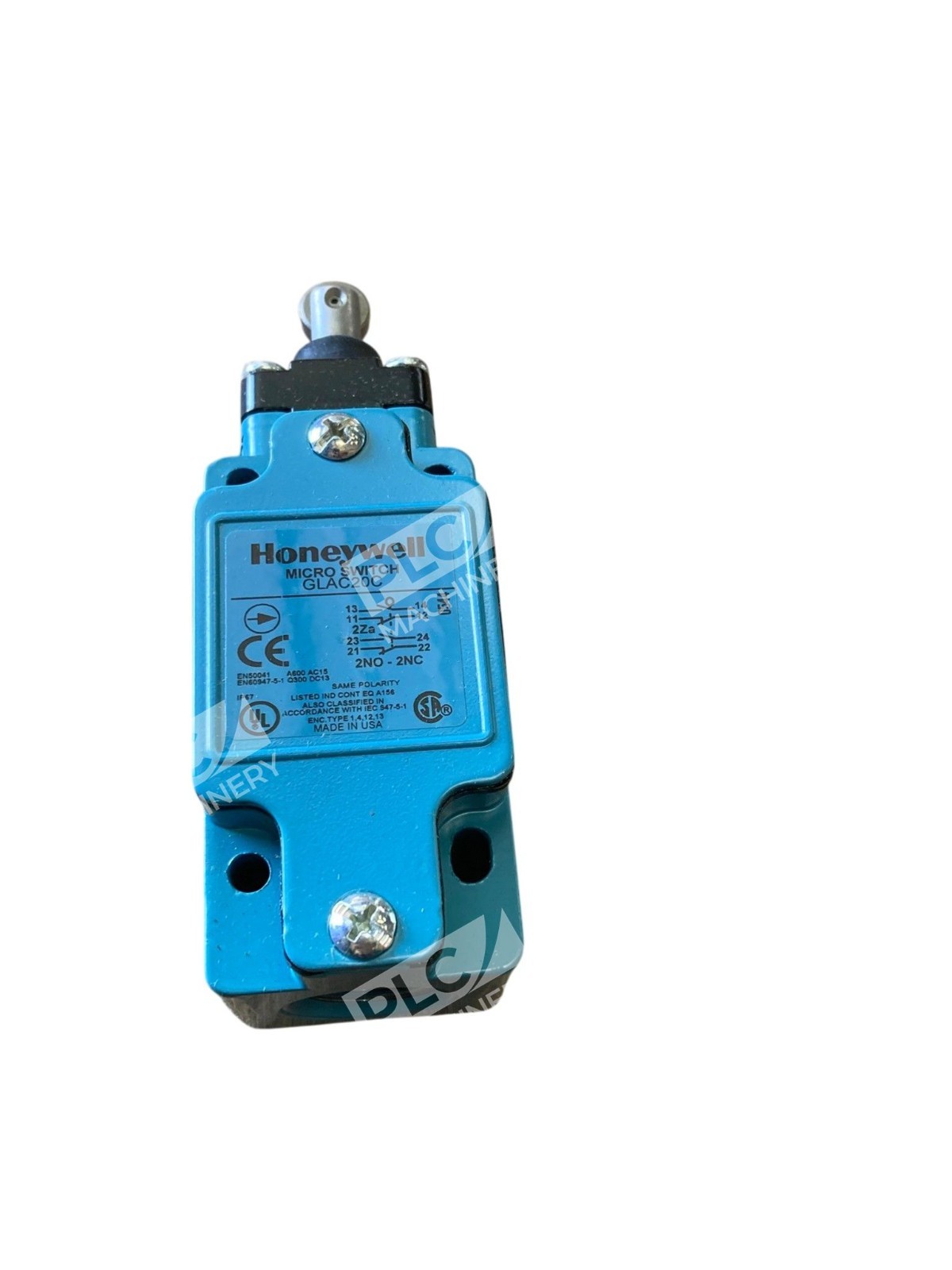

Honeywell GLAC20C is a heavy-duty general-purpose limit switch in the MICRO SWITCH GLA Series, designed to global EN50041 standards and well suited for worldwide applications. The rugged die-cast metal housing of the switch is ideal for indoor and outdoor applications where a degree of IP or NEMA enclosure sealing is required.
Key Features
- DPDT snap action contacts with 2NC 2NO configuration providing dual switching capability
- Top roller plunger actuator for reliable engagement and disengagement
- Modular design with interchangeable heads, actuators, bodies, and contact blocks for rapid customization
- Rugged die-cast metal housing for harsh indoor and outdoor environments
- IP67 sealing protecting against dust and temporary submersion
- UL/CE/CCC certifications for global market compliance
Technical Specifications
The GLAC20C delivers robust electrical performance for general-purpose industrial switching:
- Contact arrangement: 2NC/2NO DPDT

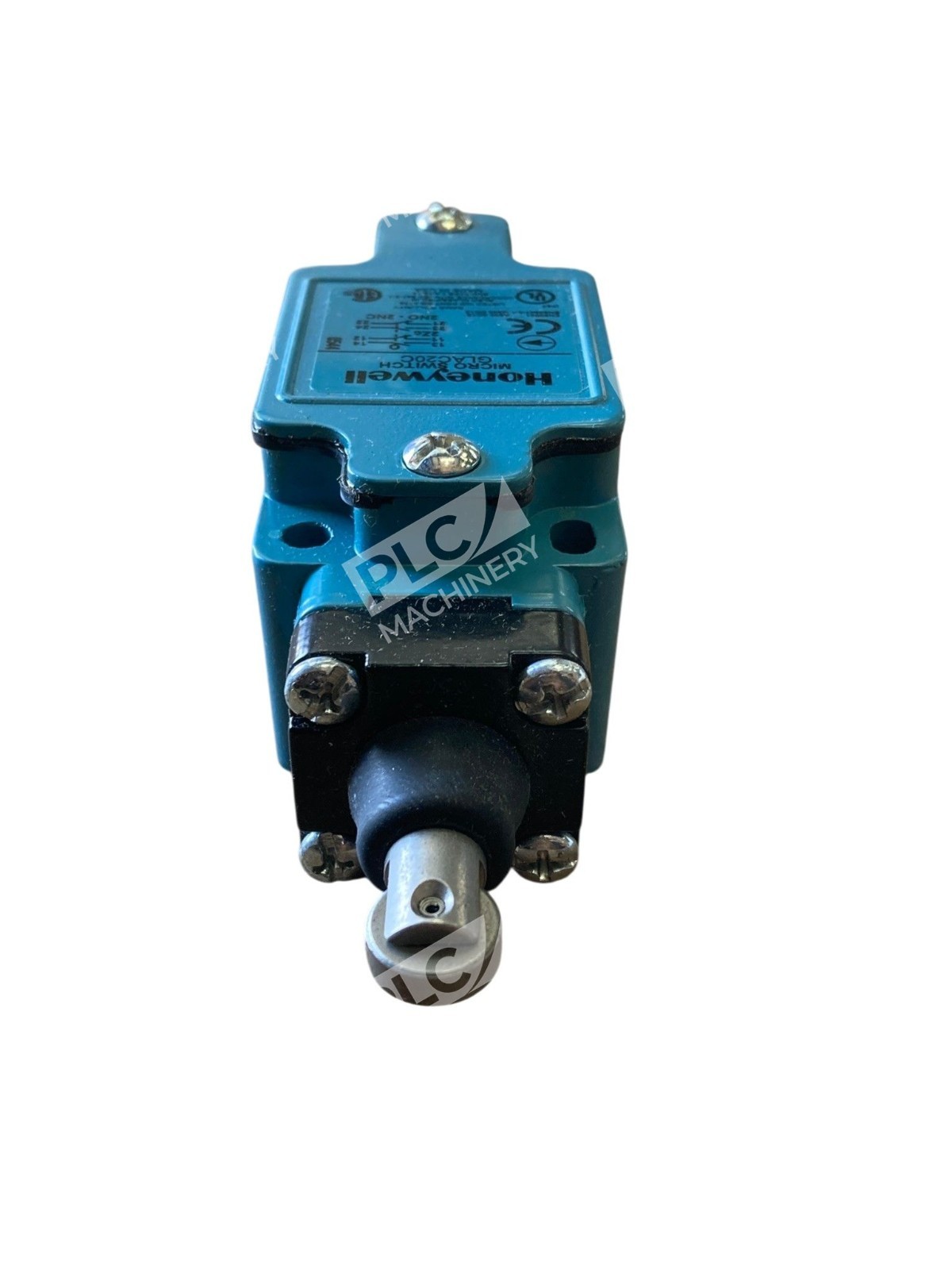

- Actuator: Top roller plunger with 12.4 mm diameter metal roller
- Maximum AC contact current: 10A at 600VAC; contact voltage: 600VAC
- Maximum contact force: 16N operating force
- Mounting: 30×60 mm holes per DIN EN50041 standard
- IP67 sealing rating
- Contact material: Gold-plated snap action contacts
- Normally closed snap-action contacts feature positive opening for fail-safe operation
- Differential travel: 0.9 mm
Typical Applications
The GLAC20C is engineered for demanding position-sensing duties including:
- Conveyor and transfer line limit detection
- Door/gate opening and closing position verification
- Machine guard and safety interlocks
- Valve stroke end-of-travel confirmation
- Equipment homing and reference position sensing
- Indoor and outdoor automation control circuits
Compatibility & Replacements
Compatible With
- Industrial control panels and motor starters requiring 2NC/2NO switching logic
- PLC input modules rated for 24VDC–600VAC contact closure signals
- Safety relay circuits and hardwired control systems
- Mechanical and pneumatic automation systems
- EN50041-compliant machinery and equipment worldwide
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The GLAC20C serves as a direct replacement for earlier Honeywell MICRO SWITCH GLA units with identical 30×60 mm mounting footprint and 2NC/2NO contact arrangement. Related models in the GLA series include GLAA20C (silver-alloy contacts) and GLAC01C (1NC/1NO configuration), though electrical and mechanical specifications may differ.
Works With

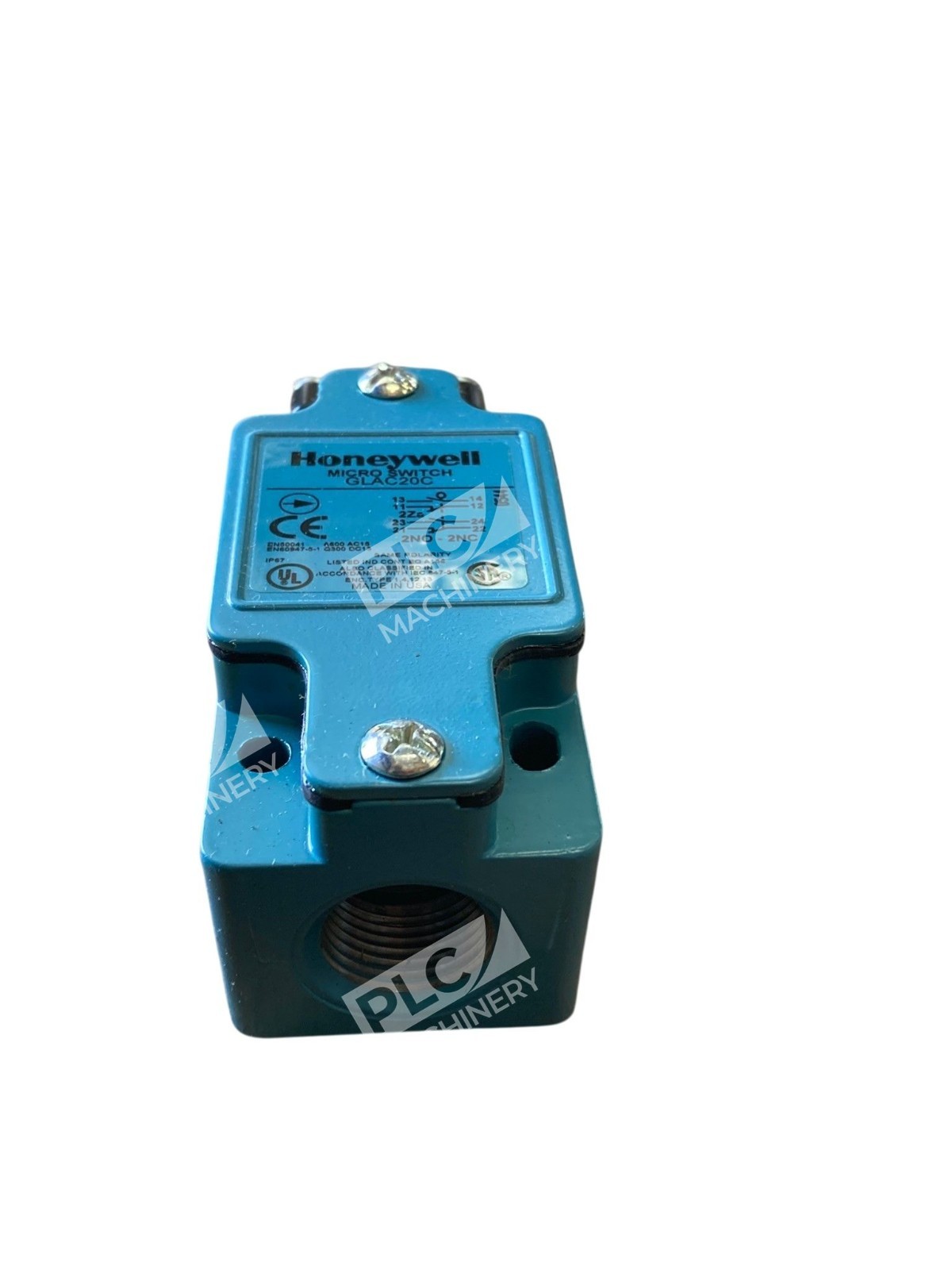

- Screw-terminal and conduit connection options (threaded G1/2 and PG13.5 entries available)
- Industrial control wiring and hardwired automation circuits
- Compact wiring harnesses and panel layouts using standard limit switch connectivity
- Diagnostic LED pilot lights (optional on related GLA series variants)
