Overview
The General Electric 5BCC56ED154 is a compact 1/4 horsepower DC motor built for dependable performance in general-purpose industrial and commercial applications. Rated at 250V input with 1.3A continuous current and 0.222F power factor, this motor delivers consistent torque and speed regulation. As a used unit, it represents excellent value for maintenance professionals and system integrators seeking proven GE quality at a lower cost than new equipment.
Key Features
- Compact Frame Size: 1/4HP rating suited to small machinery, conveyor drives, and auxiliary equipment
- Direct Current (DC) Operation: Provides smooth, controllable speed characteristics ideal for loads requiring variable-speed capability or precise torque control
- GE Manufacturing Heritage: Engineered to the same standards as GE’s full Kinamatic and commercial DC motor line
- Proven Reliability: Field-tested design widely used in industrial, HVAC, and equipment manufacturing sectors
- Used / In-Service Condition: Fully functional unit ready for deployment in replacement or upgrade scenarios
Technical Specifications

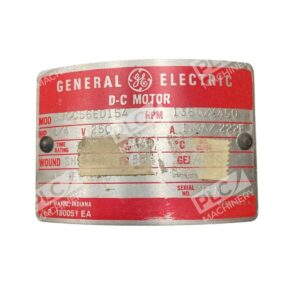

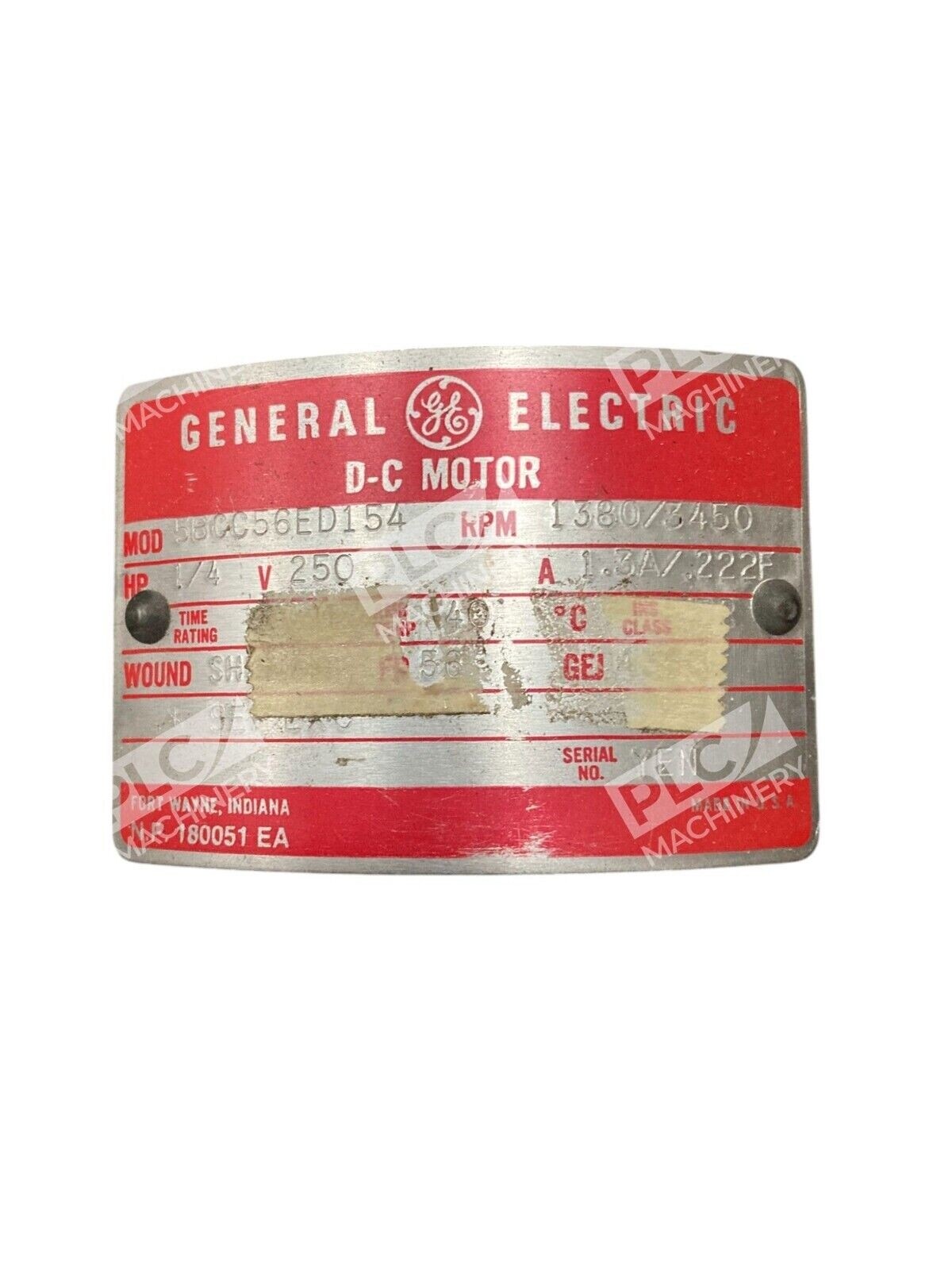

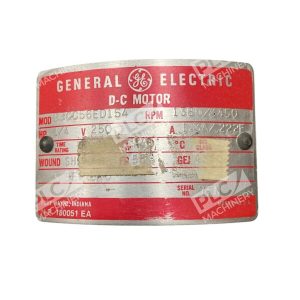

The 5BCC56ED154 integrates standard GE DC motor construction with the following nameplate characteristics:
Typical Applications
- Small conveyor belt drives and material handling equipment
- HVAC fan motors and blower auxiliary drives
- Machine tool spindle and feed drives
- Elevator door operators and auxiliary elevator equipment
- Pump and compressor motor replacements in light industrial duty cycles
- Test stands and laboratory equipment requiring variable-speed DC drives
Compatibility & Replacements
Compatible With
- DC power supplies rated 250V, 2.0A minimum continuous output
- Standard DC contactor and disconnect equipment rated for 1.3A full load current
- Shaft couplings and mechanical mounts designed for 56-frame base dimensions
- Fixed-frequency and variable-speed (rheostat, chopper, or PWM) drive systems
- Industrial control systems and machinery originally equipped with GE 5BCC-series motors
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or equipment OEM documentation before ordering. The 5BCC56ED154 frame designation indicates base dimensions conforming to GE standard mounting specifications. Direct replacement compatibility depends on shaft diameter, rotation direction, and cooling method matching original equipment requirements.
Works With
- DC motor starters and soft-starters rated for ≥1.5A continuous
- Speed control systems including armature resistance, field weakening, and solid-state PWM drives
- Tachometer feedback and encoder systems designed for 56-frame motors
- Protective devices: thermal overloads, fuses, and circuit breakers rated 250V DC
- Mounting brackets and couplings conforming to standard industrial equipment geometry
