Overview

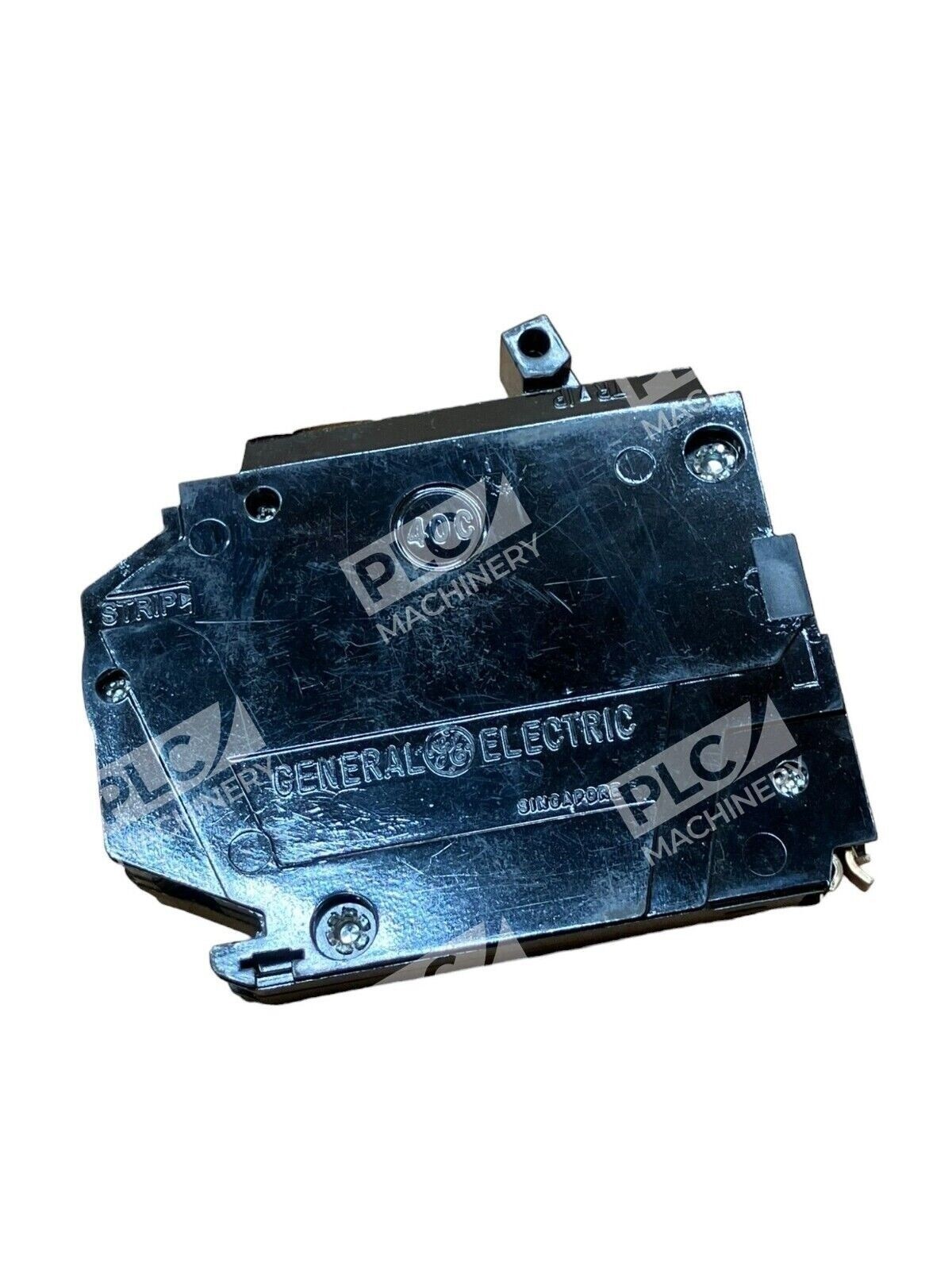

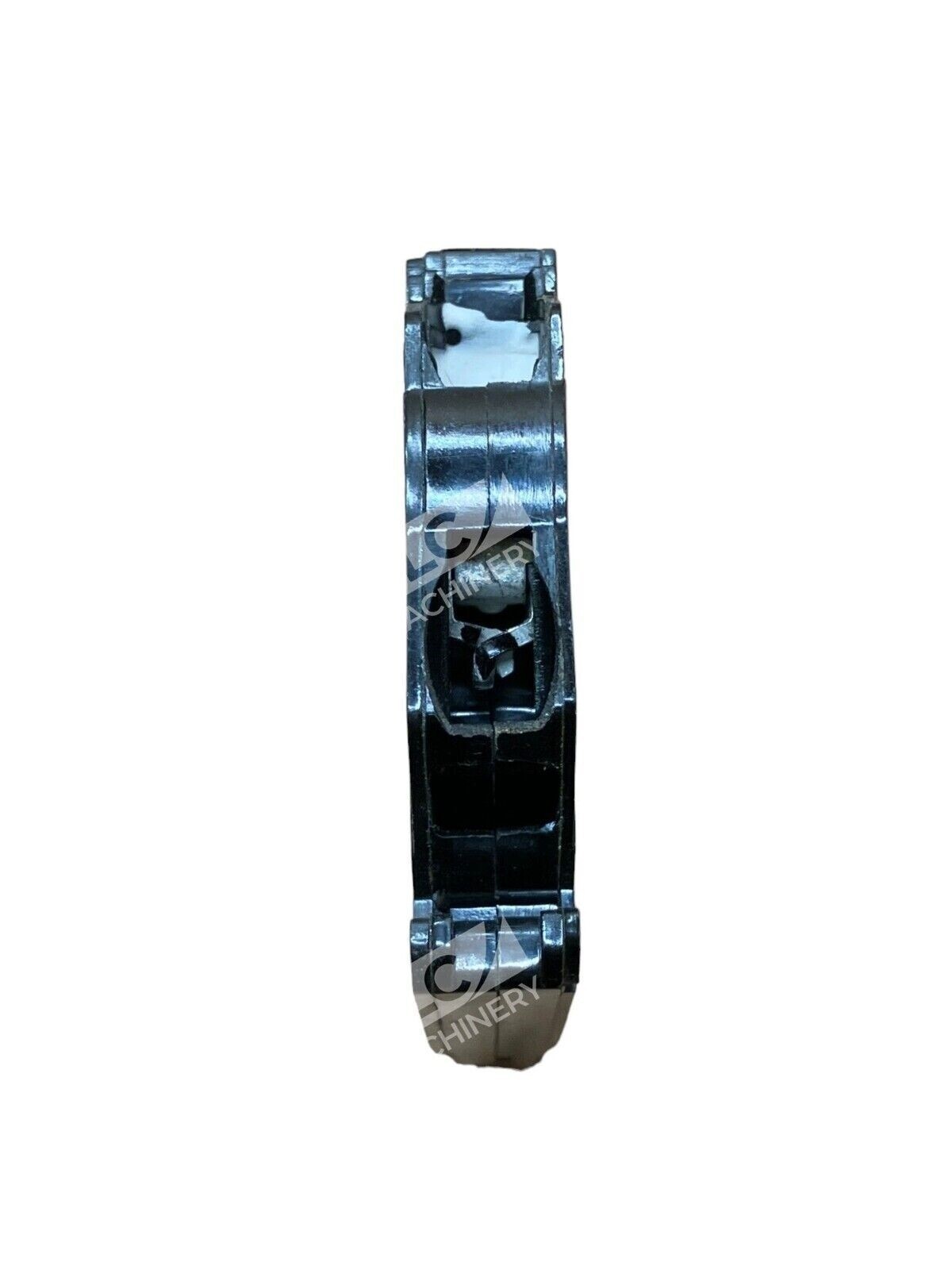

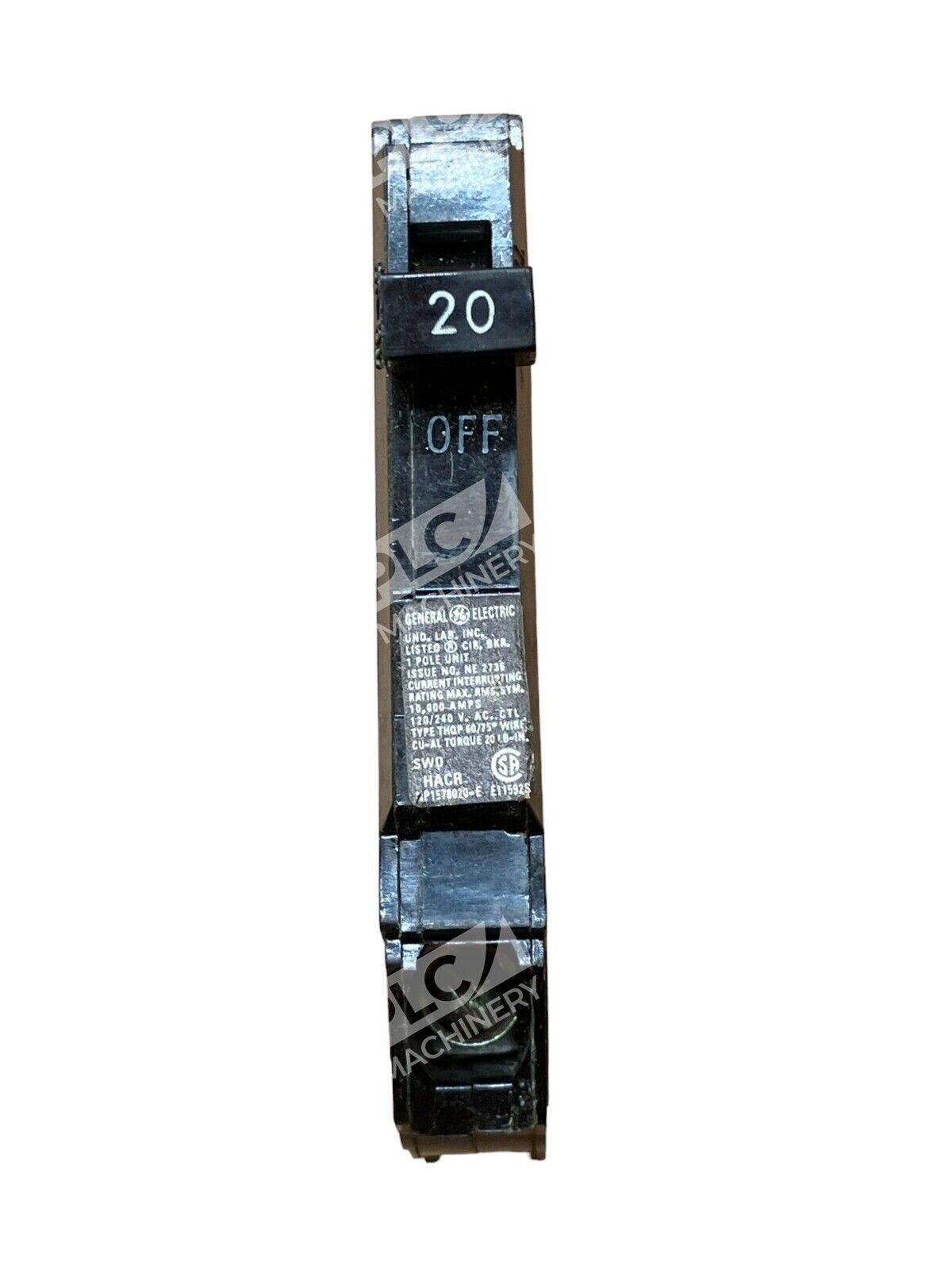

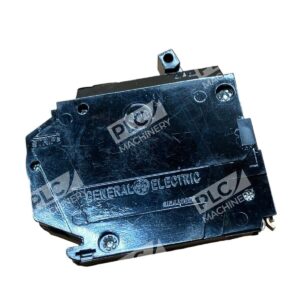

The General Electric E11592S is a proven single-pole branch circuit breaker rated for 20 amperes at 120/240 volts AC. Designed for bolt-on installation in panel frames, this breaker delivers reliable overcurrent protection in industrial, commercial, and residential electrical systems. The NE 2736 frame designation confirms compatibility with standard GE panel enclosures.
Key Features
- 20 ampere rated capacity for branch circuit protection
- Single-pole configuration for 120/240 VAC service
- Bolt-on mounting style for quick installation
- Compact, space-efficient design in panel mounting
- Thermal-magnetic trip mechanism for fast fault clearing
- Standard UL-listed electrical safety compliance
Technical Specifications
- Part Number: E11592S
- Amperage Rating: 20A
- Voltage Rating: 120/240 VAC
- Number of Poles: 1
- Mounting Style: Bolt-On

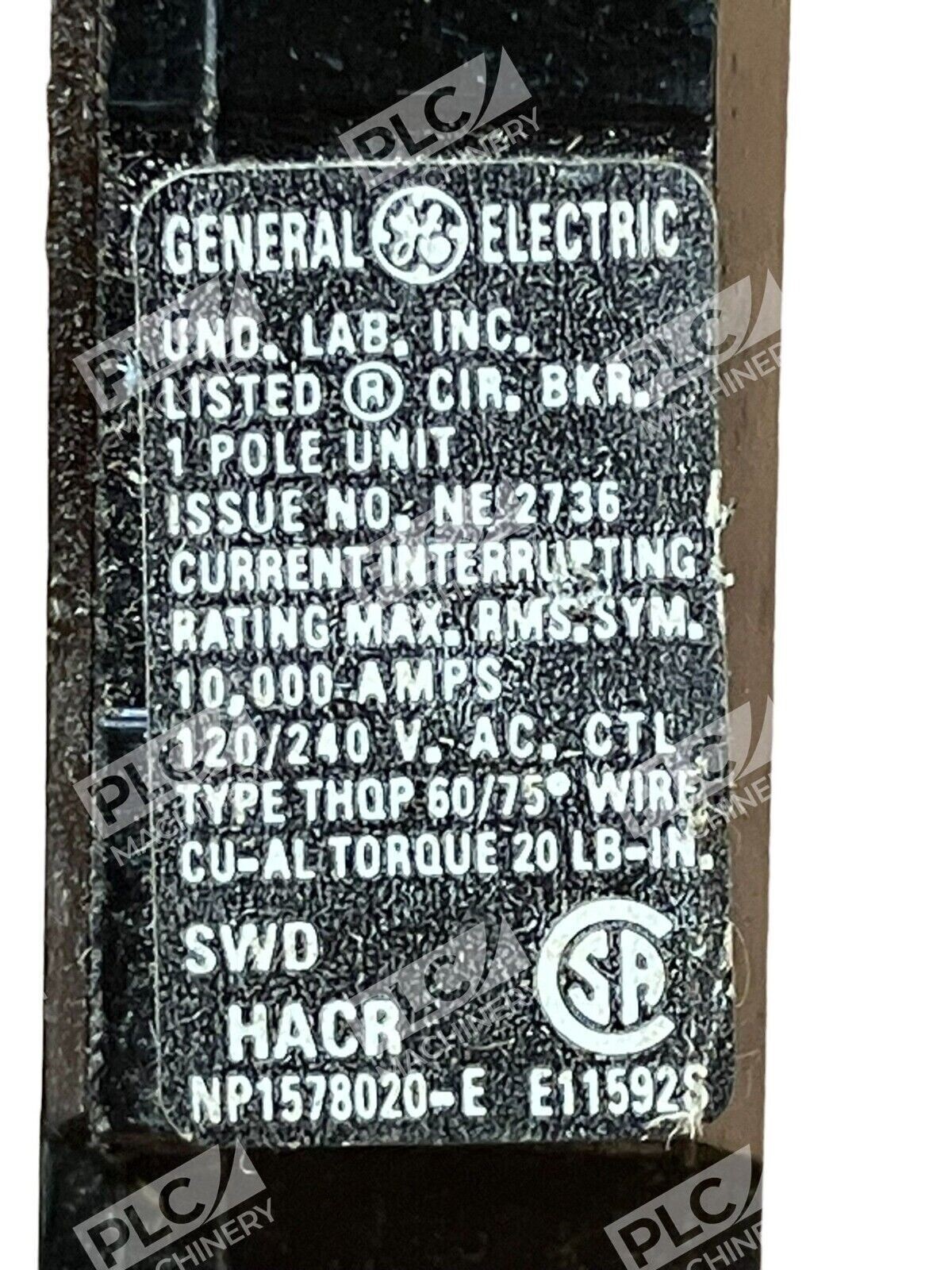

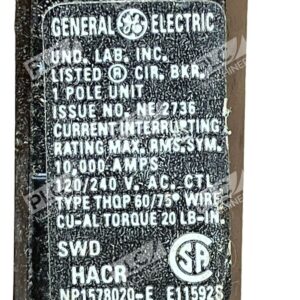

- Frame/Enclosure: NE 2736
- Manufacturer: General Electric
- Manufacturer Series: E11592
- Trip Type: Thermal-Magnetic
Typical Applications
The General Electric E11592S is widely used in:
- Light commercial branch circuits and lighting loads
- Residential panel replacement and upgrades
- Industrial control and motor starter circuits
- General-purpose electrical distribution systems
- Equipment cabinet and enclosure protection
Compatibility & Replacements
Compatible With
- General Electric NE 2736 panel frame and enclosures
- Standard 120/240 VAC single-phase electrical systems
- Bolt-on circuit breaker panel slots
- UL-listed electrical distribution equipment
Replaces / Drop-In Replacement For
The E11592S replaces earlier GE single-pole 20A breakers in legacy panel installations. Verify compatibility with your specific enclosure frame before ordering.
Works With
- General Electric NE frame series panels
- Standard 120/240 VAC panelboards
- Overcurrent protection coordination systems
- Branch circuit and feeder applications
