Overview

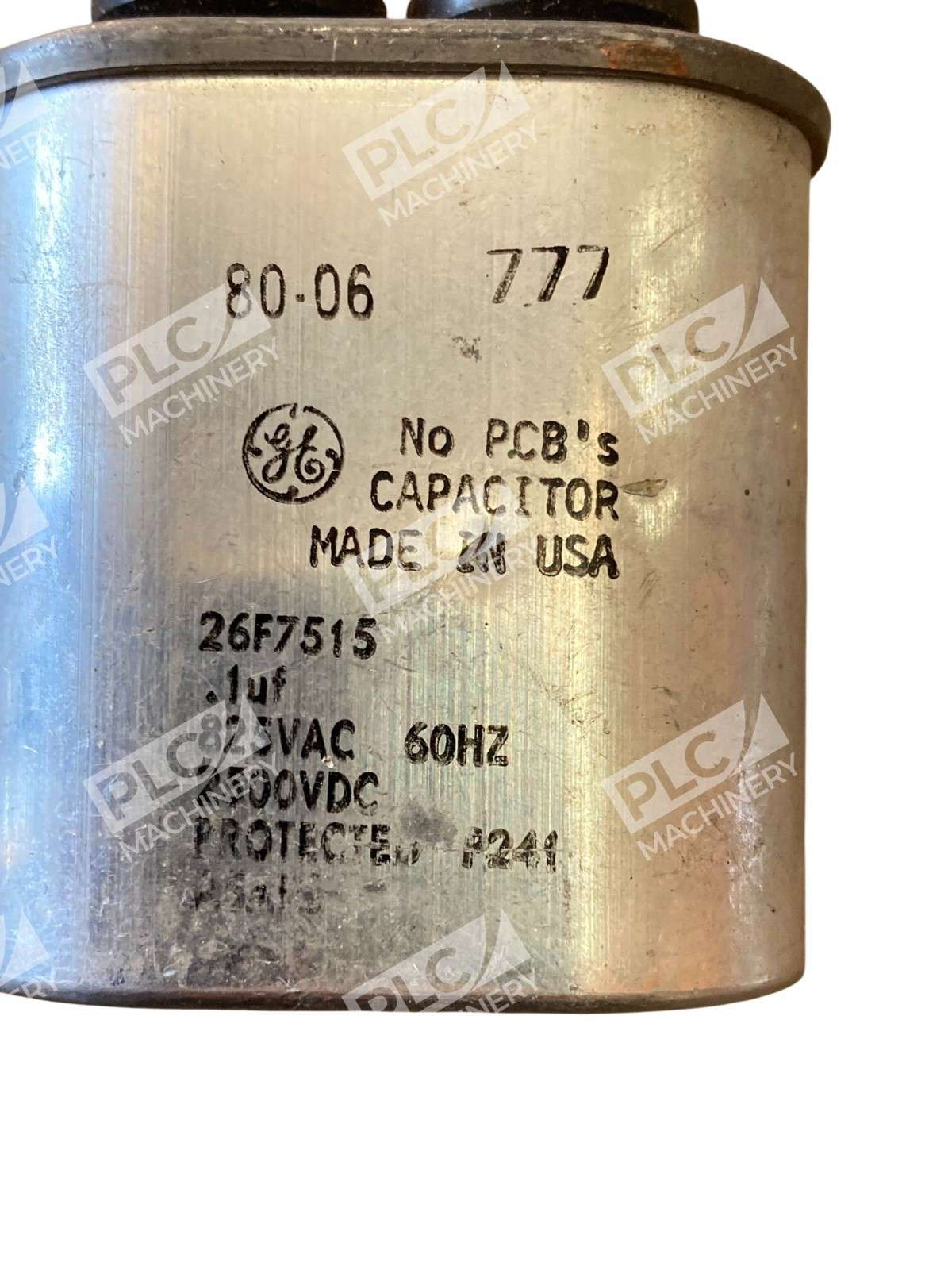

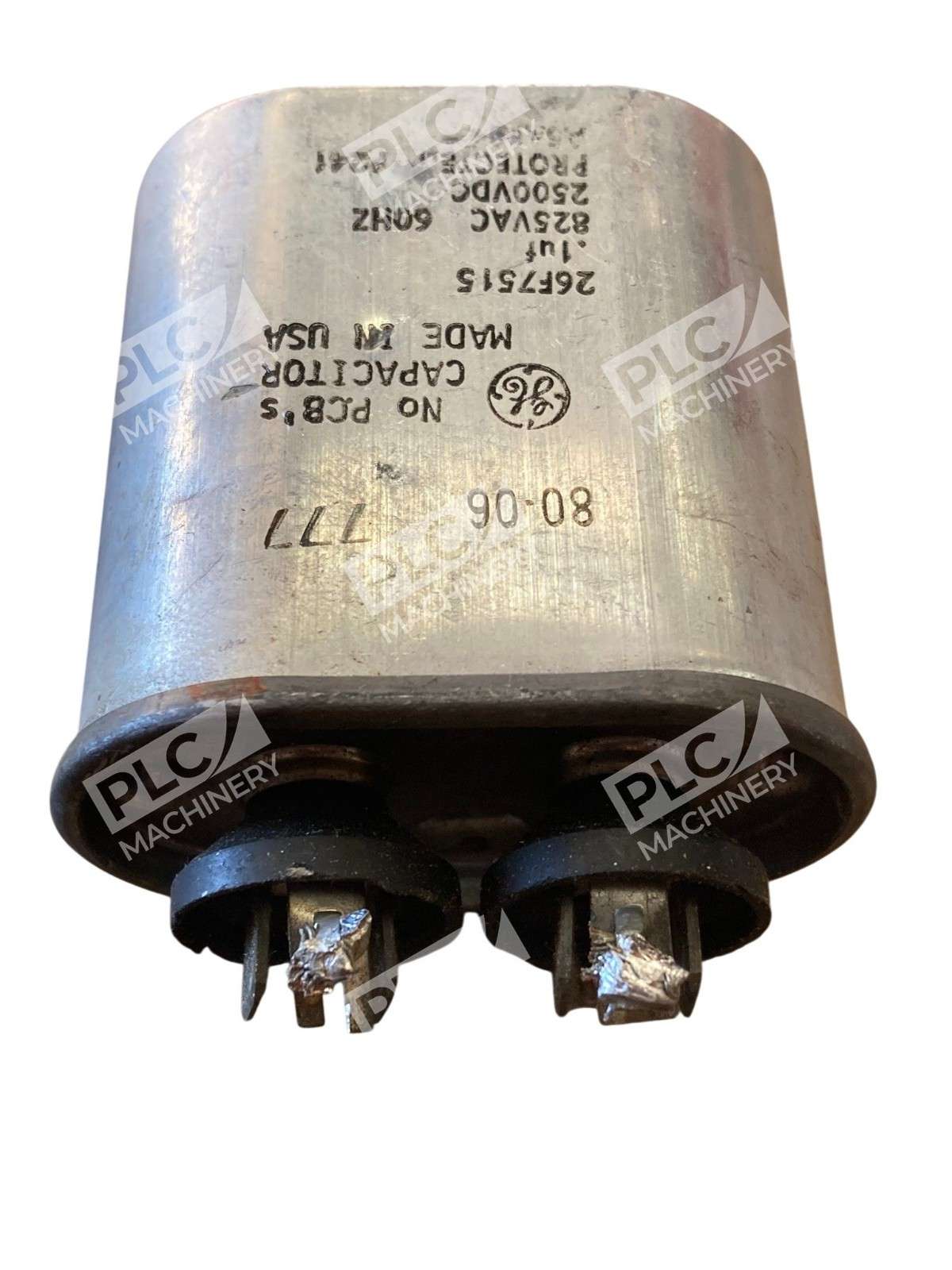

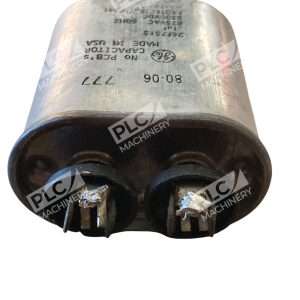

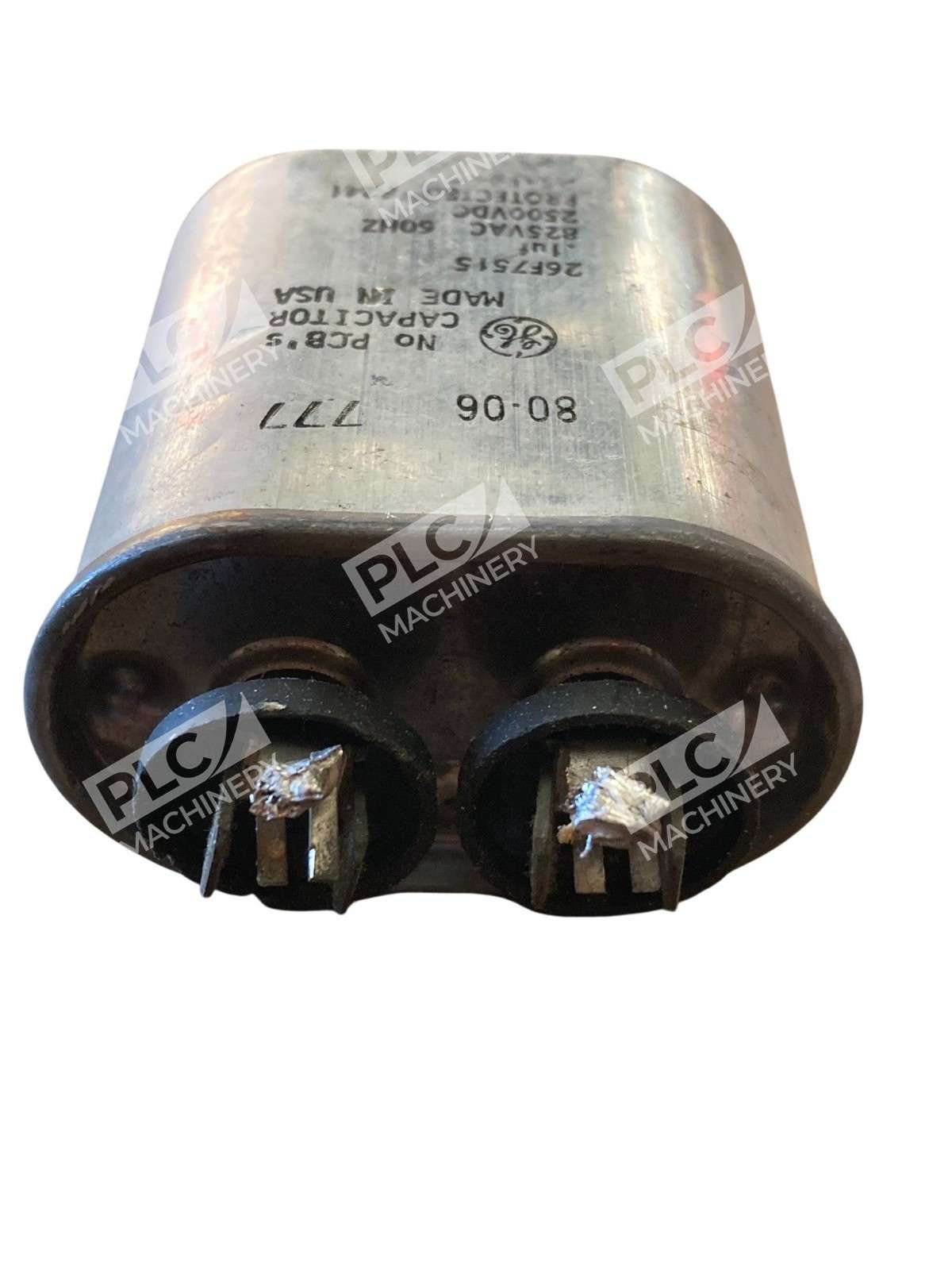

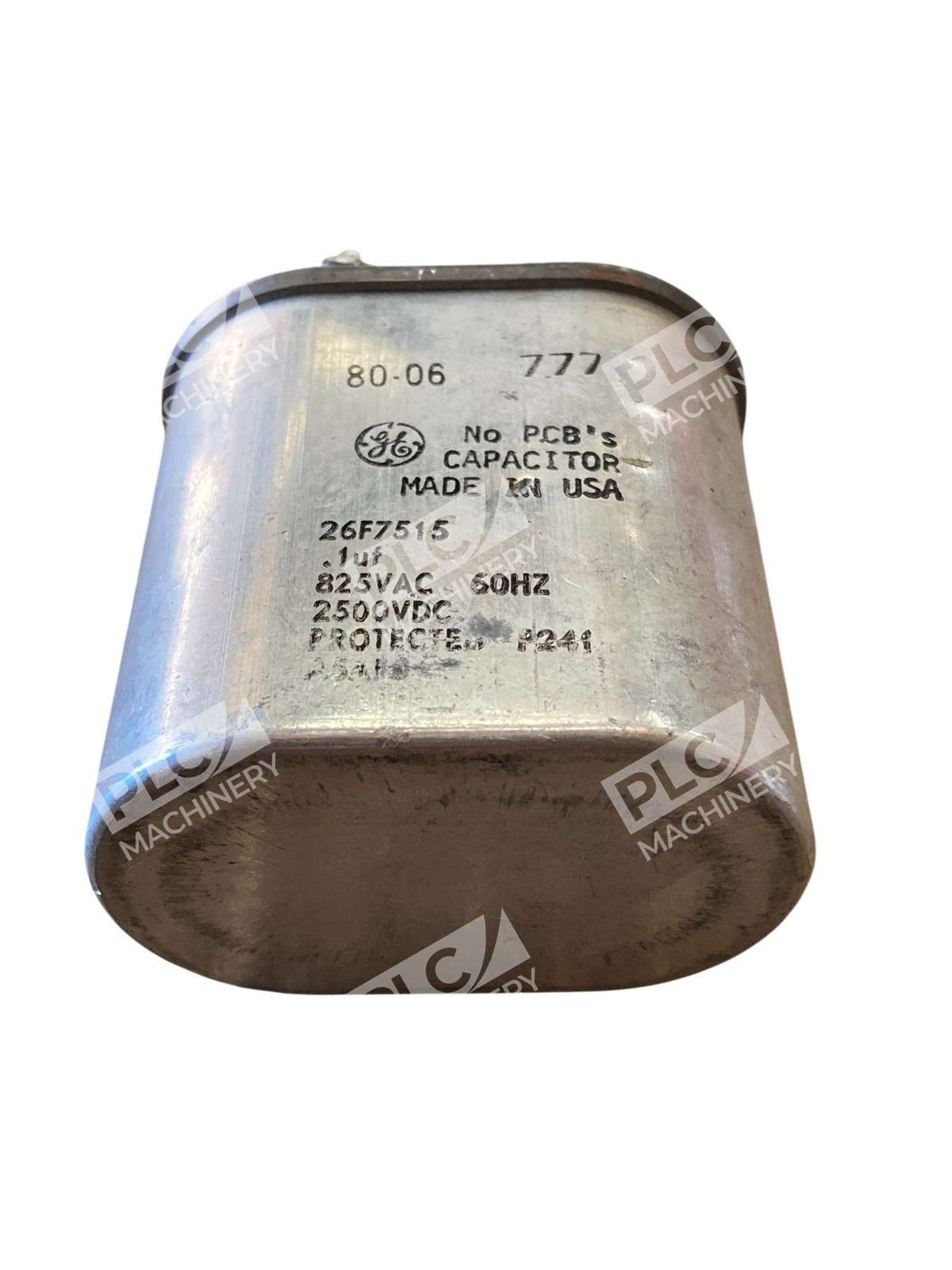

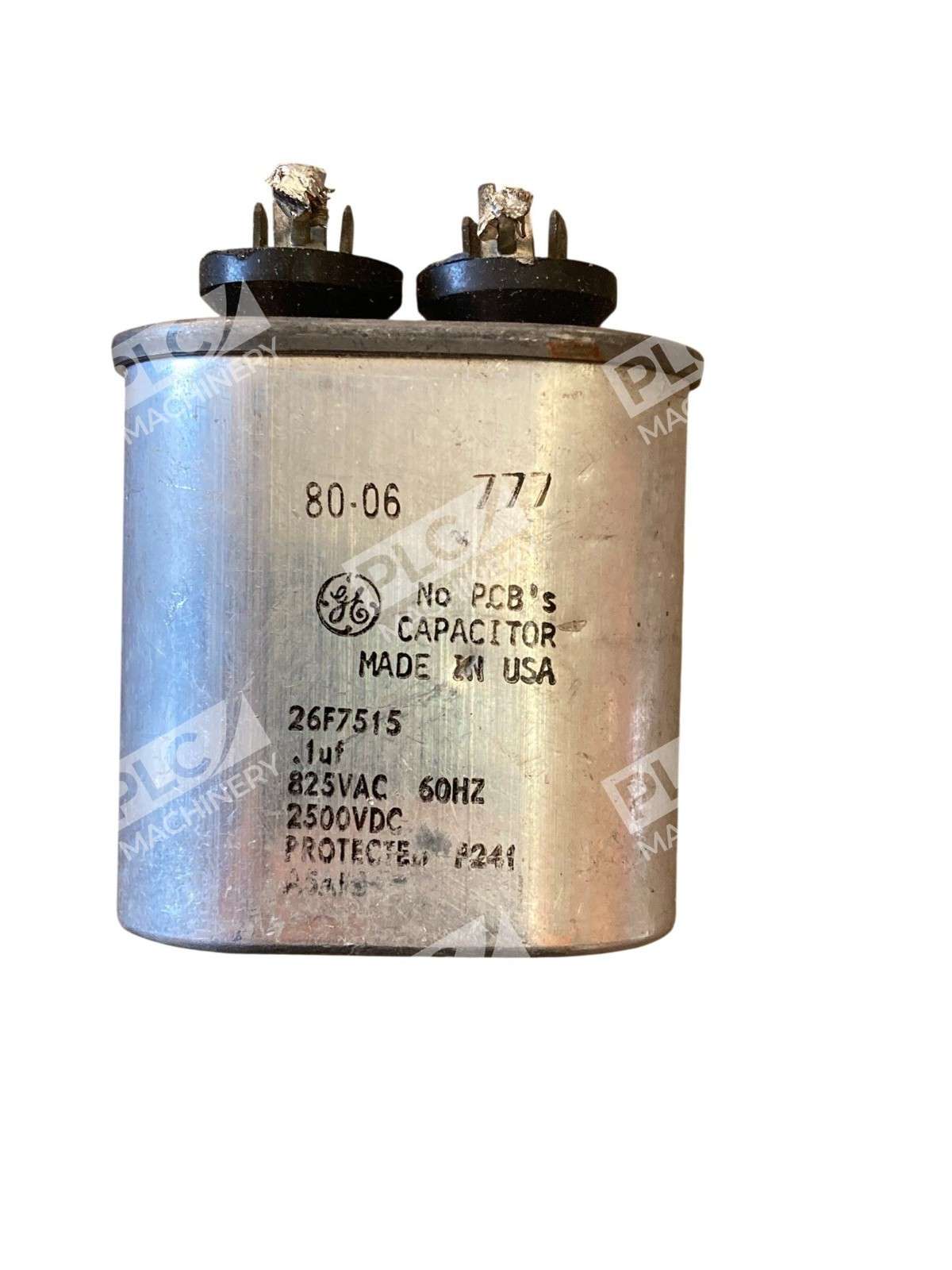

The GE 26F7515 capacitor is an industrial-grade high-voltage film capacitor from GE’s 26F Series. Rated at 1µF capacitance and 825VAC maximum operating voltage, this unit delivers reliable performance in demanding power distribution and equipment applications. The film/foil dielectric design provides robust handling of overvoltage and overcurrent conditions without reducing capacitor life.
Key Features
- Film/foil mixed dielectric construction for durability and overvoltage tolerance
- Radial lead package for flexible mounting and installation
- Hermetically sealed design for long operational life
- EU and China RoHS compliant
- Suitable for industrial power factor correction and filtering circuits
Technical Specifications
The GE 26F7515 capacitor is configured with the following electrical and physical characteristics:
Electrical Ratings
- Capacitance: 1µF (±10% tolerance typical)
- Voltage Rating: 825VAC maximum
- Dielectric Type: Film/Foil Mixed (polypropylene film with paper/foil)
Physical Specifications
- Package: Radial leaded
- Mounting Style: Chassis mount
Typical Applications
The GE 26F7515 is used in industrial electrical systems where high-voltage energy storage and filtering are required, including:
- Power factor correction equipment
- Harmonic filtering circuits
- Industrial power supply circuits
- Three-phase motor circuits and switchgear
- Utility and industrial distribution panels
Compatibility & Replacements
Compatible With
- GE industrial control systems and switchgear
- Three-phase power distribution systems rated for 825VAC or below
- Industrial power factor correction equipment
- AC motor circuits and control panels
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The GE 26F7515 is specific to the 26F Series family. Other GE capacitor part numbers in this series may share mechanical compatibility but differ in electrical ratings.
Works With
- AC power systems operating at 50/60 Hz
- Industrial electrical equipment rated for 825VAC nominal operation
- GE and third-party power conditioning and filtering systems
