Overview

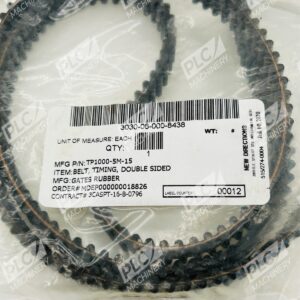

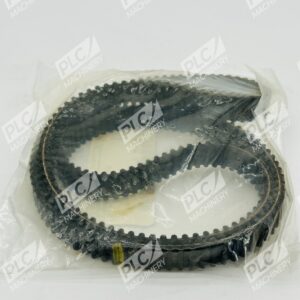

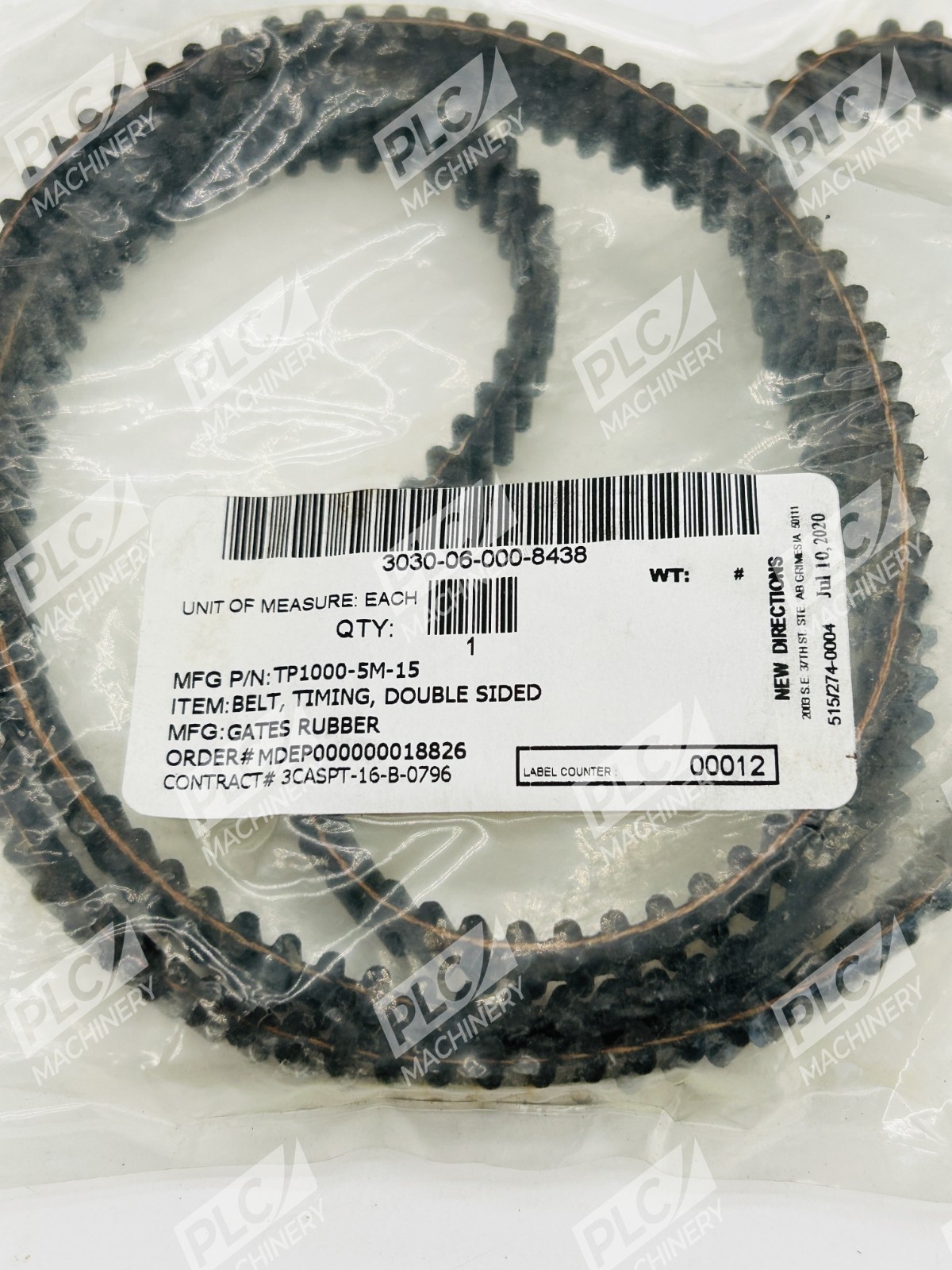

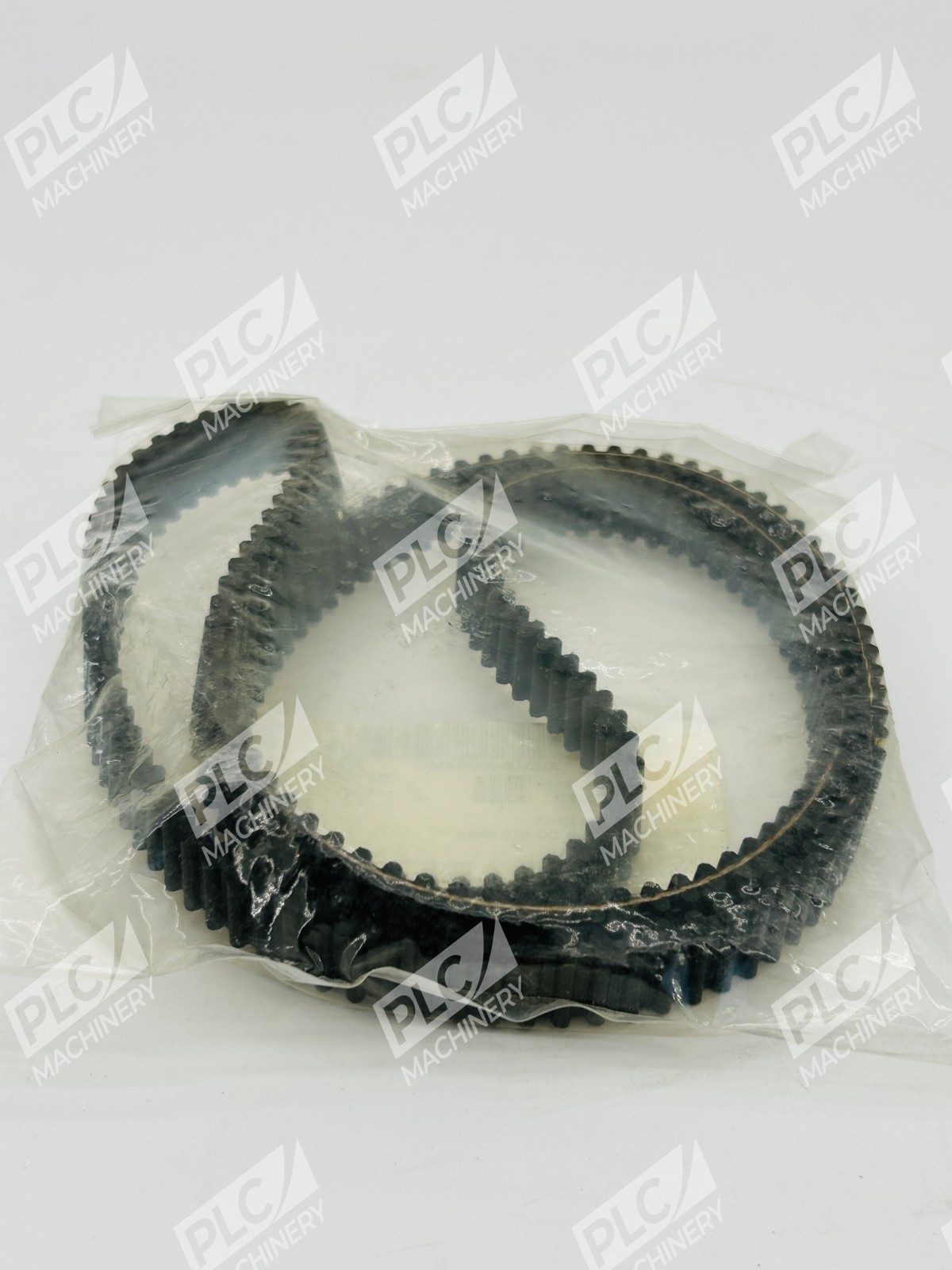

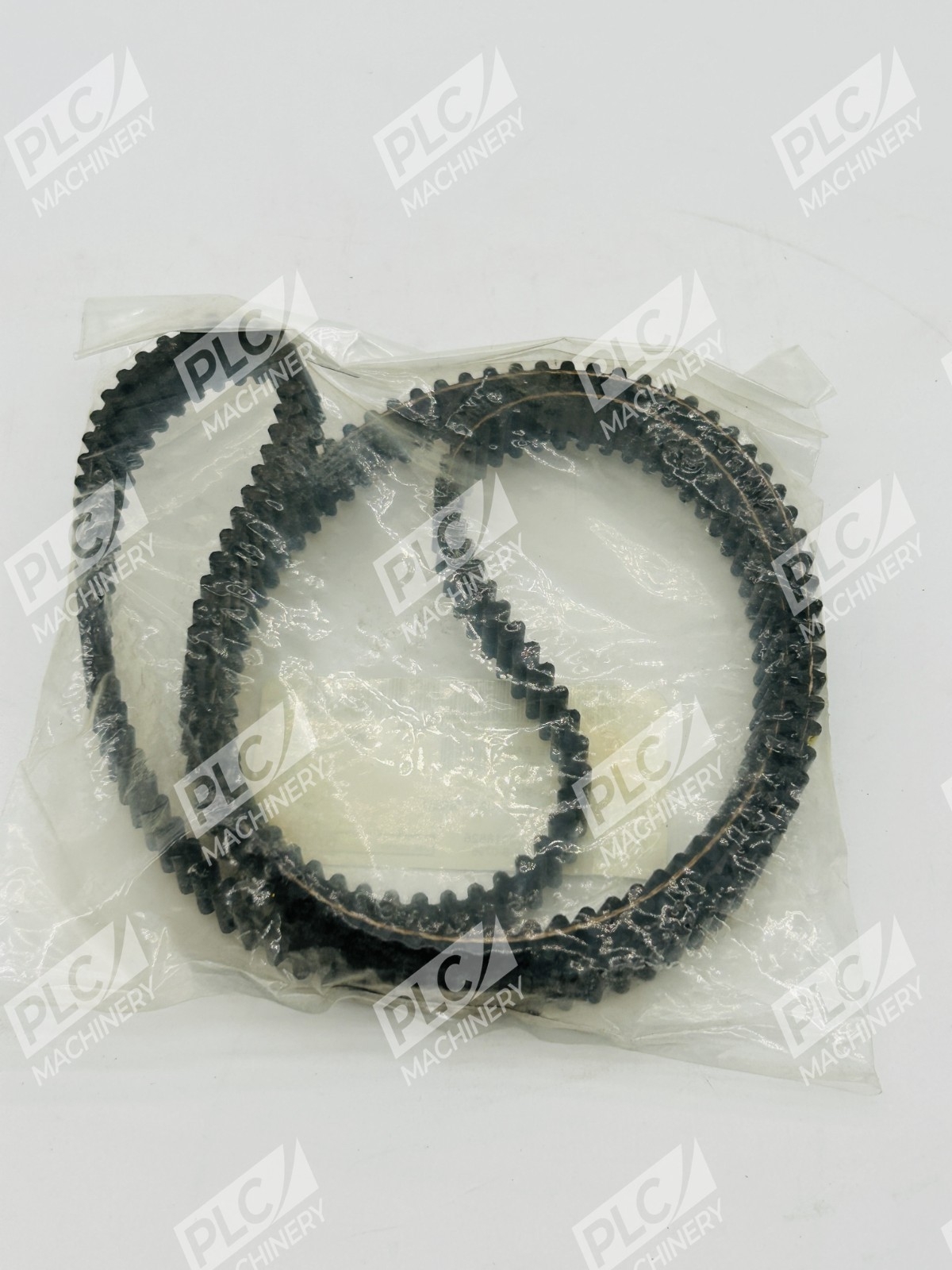

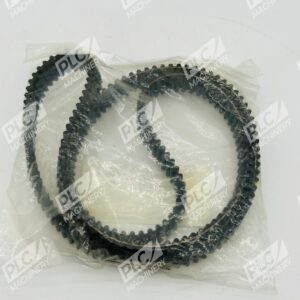

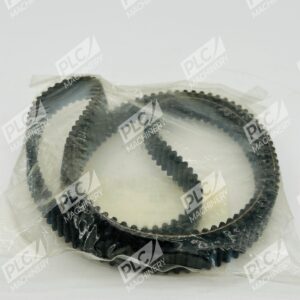

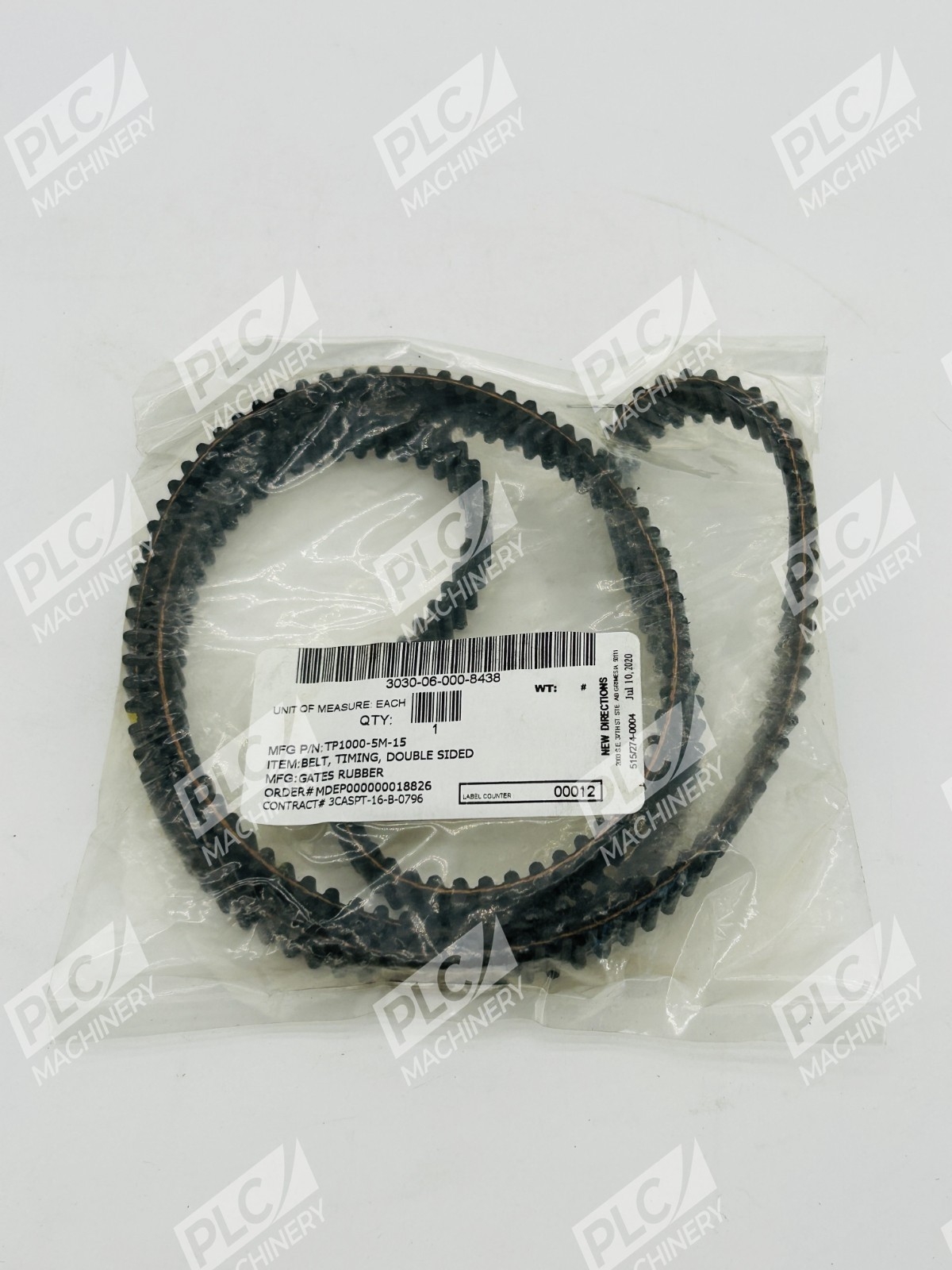

The Gates Rubber TP1000-5M-15 timing belt is a professional-grade PowerGrip HTD synchronous belt engineered for demanding motion control and power transmission applications. Featuring a 5mm pitch, 1000mm length, and 15mm width, this belt delivers precise timing synchronization without slipping. Synchronous timing belts use teeth that fit into matching toothed pulleys for positive grip, making them exceptionally efficient for high-torque applications. The Gates PowerGrip design is built for durability, low maintenance, and long service life in industrial, automation, and equipment manufacturing environments.
Key Features
- Fiberglass tensile cord provides high strength, excellent flex life and high resistance to elongation
- Neoprene body provides protection against grime, grease, oil and moisture
- Nylon tooth facing provides a durable wear surface for long service life
- No lubrication or retensioning required
- Designed to perform at high speeds and in extreme temperatures, with a larger tooth profile for increased performance capacity
- Operates reliably in demanding industrial automation and motion control systems
Technical Specifications
- Manufacturer: Gates Rubber
- Part Number: TP1000-5M-15
- Belt Pitch: 5mm HTD
- Belt Length: 1000mm (approximately 200 teeth)
- Belt Width: 15mm
- Operating Temperature Range: -30°C to +100°C (-22°F to +212°F)
- Tensile Member: Fiberglass cord
- Tooth Profile: HTD (High Torque Drive)
- Belt Body: Neoprene elastomer
- Tooth Facing: Nylon
- Maintenance: Maintenance-free operation
Typical Applications
3M and 5M belts are suitable for domestic appliances, office machines, electric hand tools and for applications in the processing and chemical industry. The Gates Rubber TP1000-5M-15 is also widely used in:
- Automation and robotics systems
- Industrial packaging and conveyor equipment
- Machine tool and OEM equipment drives
- Medical device assembly equipment
- Commercial appliances and HVAC systems
- Precision motion control systems
Compatibility & Replacements
Compatible With
- HTD 5mm pitch pulleys and sprockets
- Industrial motor and gearbox drive systems
- Synchronous belt drive assemblies with 5mm pitch
- OEM equipment requiring 1000mm belt length
- Motion control platforms using standard timing belt configurations
Replaces / Drop-In Replacement For
- Verify compatibility with your system integrator or equipment manufacturer for confirmed interchangeability
Works With
- HTD 5mm pitch pulley systems
- Industrial synchronous belt drive architecture
- Standard belt tensioning and tracking mechanisms
- OEM and aftermarket timing belt assemblies
