Overview

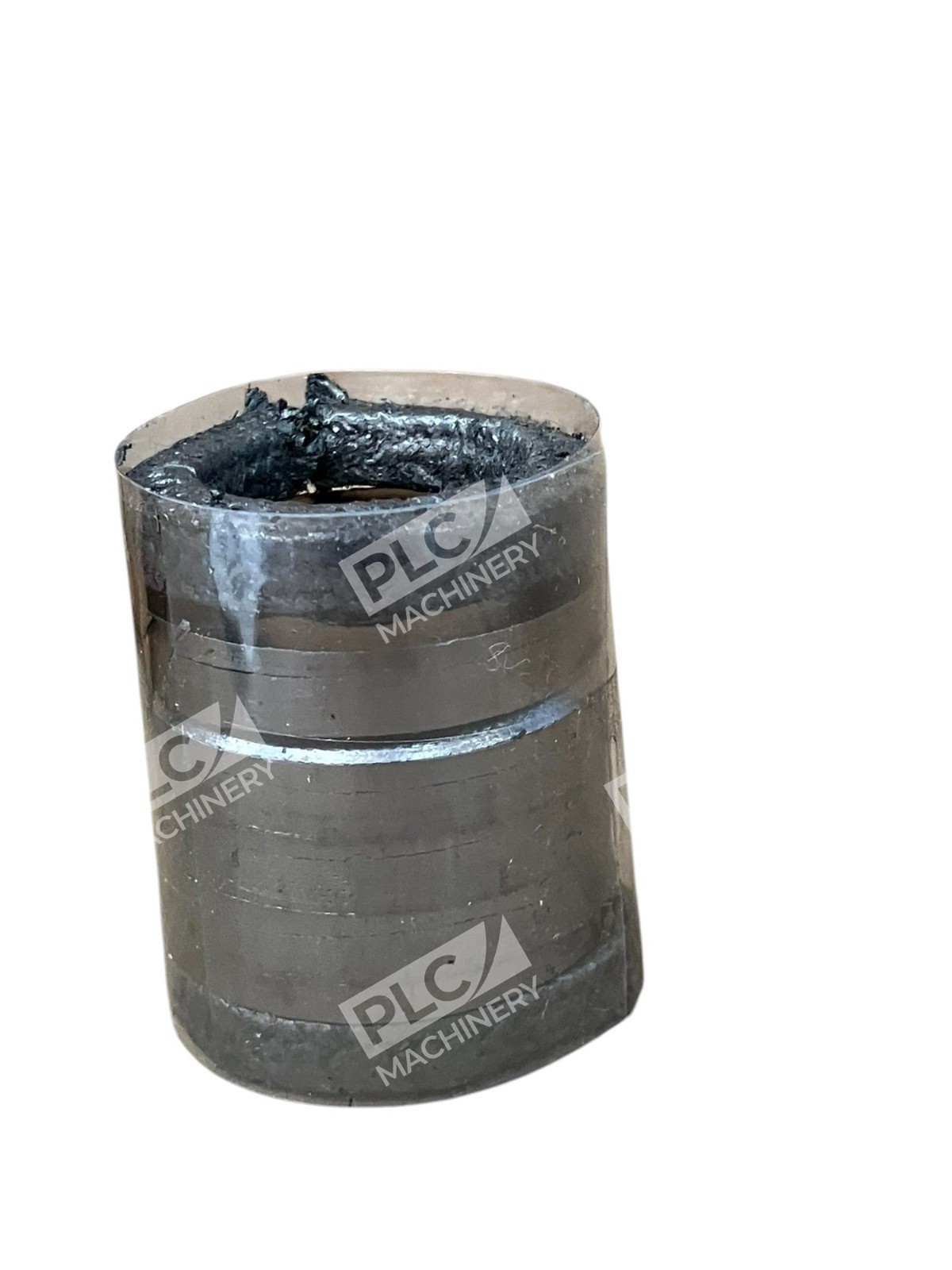

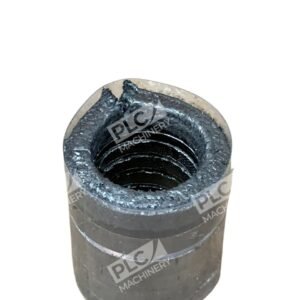

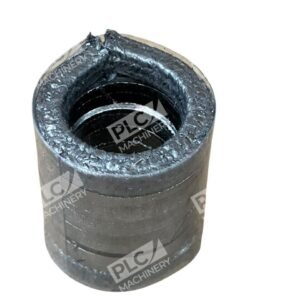

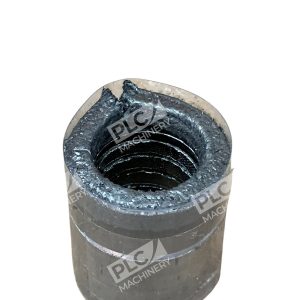

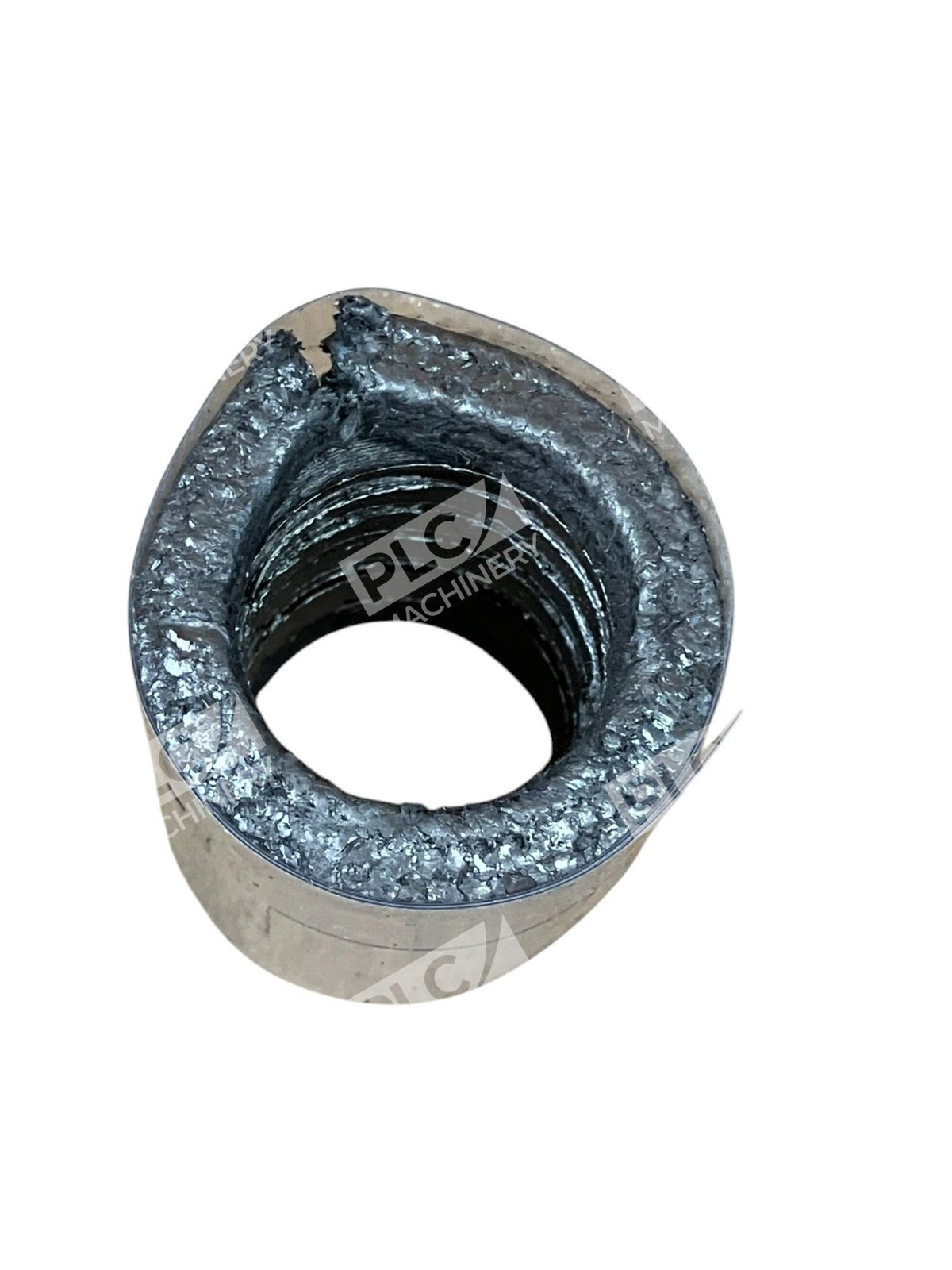

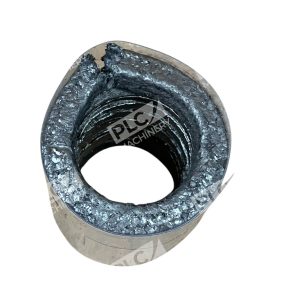

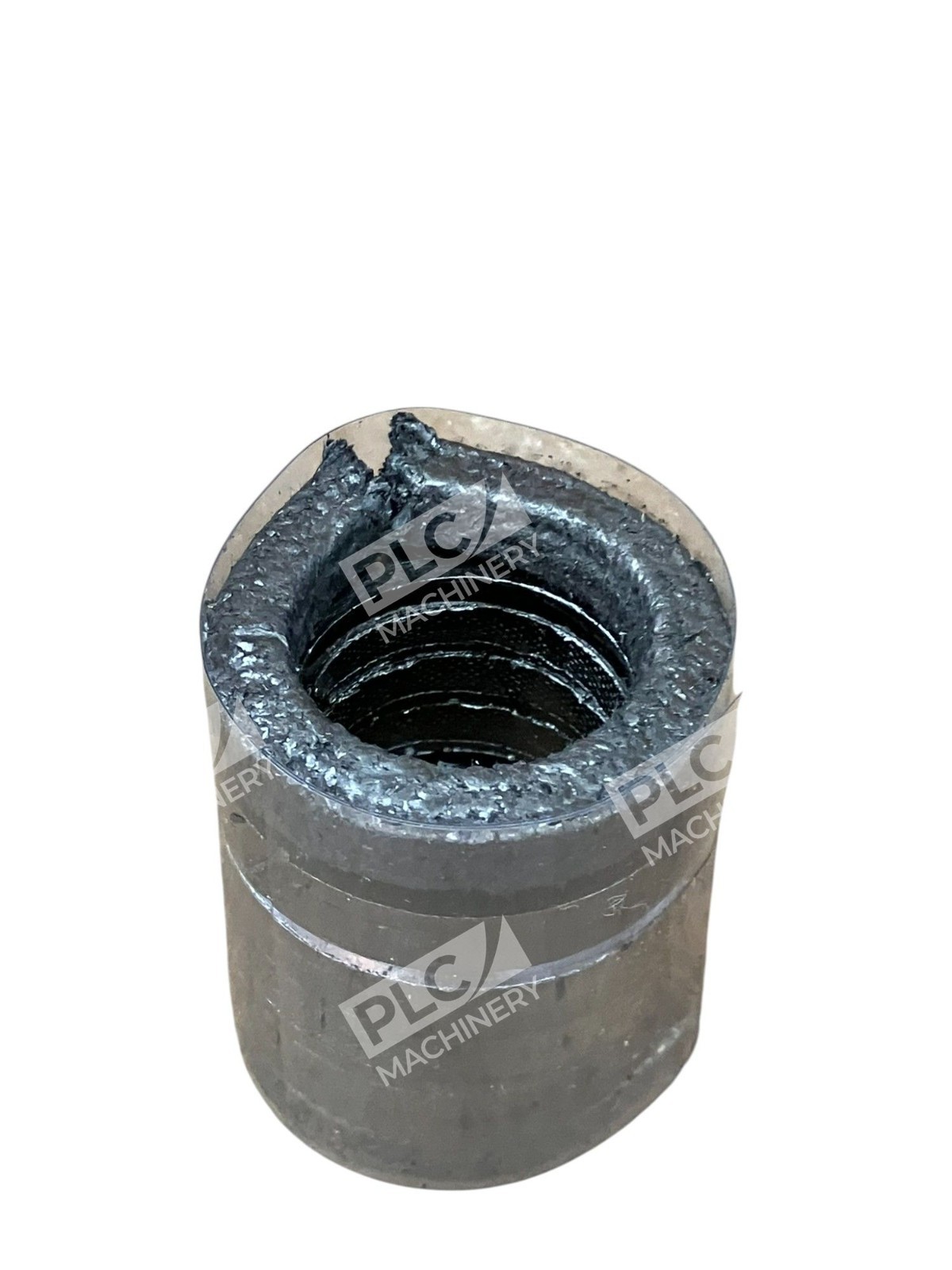

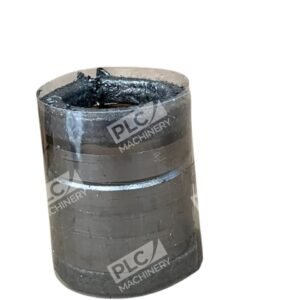

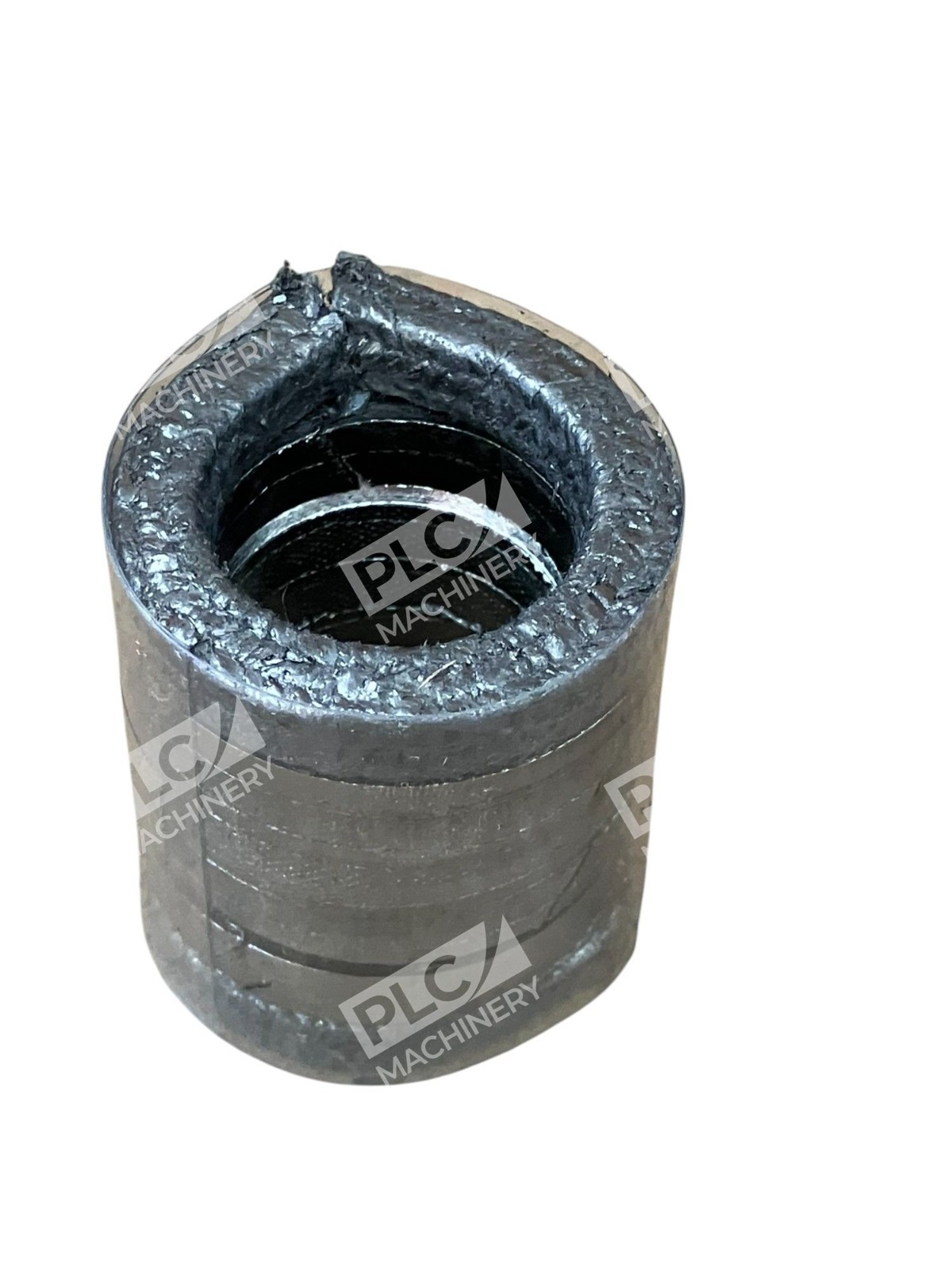

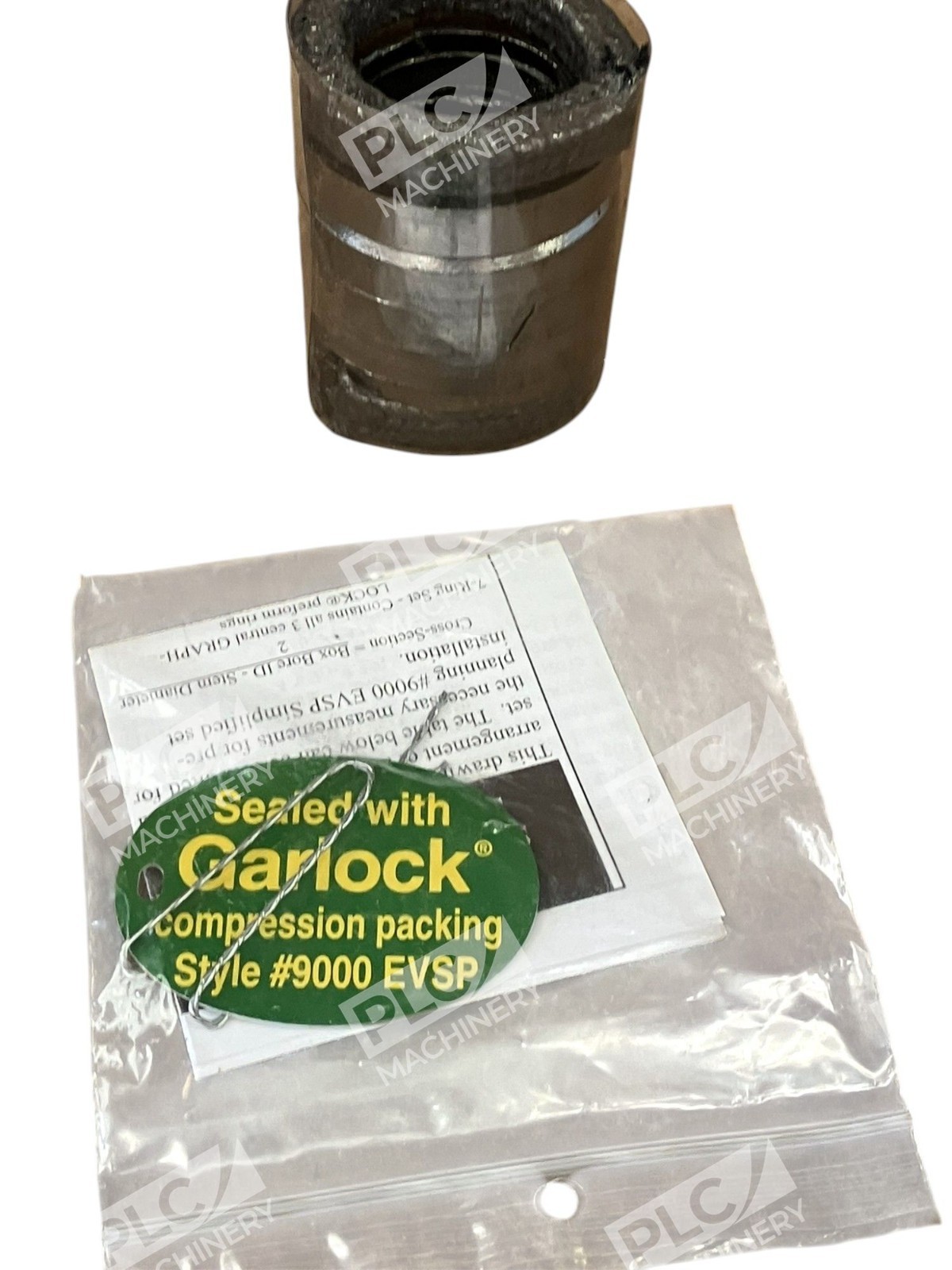

The Garlock 615883 compression packing is a precision valve stem sealing component designed for the 9000-EVSP Simplified packing set. The 9000-EVSP® Simplified set expands radially when the gland is tightened, creating a positive valve stem OD seal as well as stuffing box ID seal. With dimensions of 1.299ID × 1.929OD, this unit is engineered for use in demanding industrial and chemical processing environments where reliable sealing and emission control are critical.
Key Features
- Patented Cup and Cone Design: Patented “cup and cone” design permits selective component compression and controlled radial flow for effective sealing of I.D. and O.D.
- GRAPH-LOCK® Material: GRAPH-LOCK® rings of high-purity diamond texturized graphite tape, in cup and cone configuration
- Wiper Ring Protection: End rings act as wiper rings to restrict graphite particle transfer, prevent extrusion and provide extra resiliency
- Worn Valve Compatibility: The EVSP design permits a controlled radial expansion to create an effective seal against both valve stem and bore. This engineered set can be used to seal older more worn valves.
- Chemical Resistant: This Style is fire safety tested and chemical resistant.
Technical Specifications
- Inner Diameter (ID): 1.299 inches
- Outer Diameter (OD): 1.929 inches
- Part Number: 615883
- Product Series: 9000-EVSP Simplified
- Temperature Range: -328°F / -200°C to 850°F / 455°C. Max. Valve Pressure: 10,000 psi / 689.5 bar
- Primary Material: GRAPH-LOCK® graphite with FEP end rings
- pH Range: 0–14 (except strong oxidizers)
Typical Applications
The Garlock 615883 compression packing is suitable for:
- Chemical processing valve stem sealing
- Pump discharge and suction valve applications
- Fugitive emissions control in industrial valves
- High-temperature and high-pressure valve systems
- Refinery and petrochemical operations
- Any application requiring VOC and VHAP emissions reduction
Compatibility & Replacements
Compatible With
- Garlock 9000-EVSP Simplified valve stem packing set configurations
- Standard valve stuffing boxes with 1.299–1.929 inch dimensions
- Industrial pump and valve systems rated to 10,000 psi
- Chemical, petrochemical, and refinery applications
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or OEM documentation before ordering. The 615883 is a component within Garlock packing sets; confirm part fit and set configuration with your equipment specifications.
Works With
- Garlock Style 98 carbon packing rings
- Standard valve gland assemblies and packing boxes
- Compatible with Garlock 1303-FEP end ring assemblies
- Industrial maintenance and valve repair protocols
