Overview

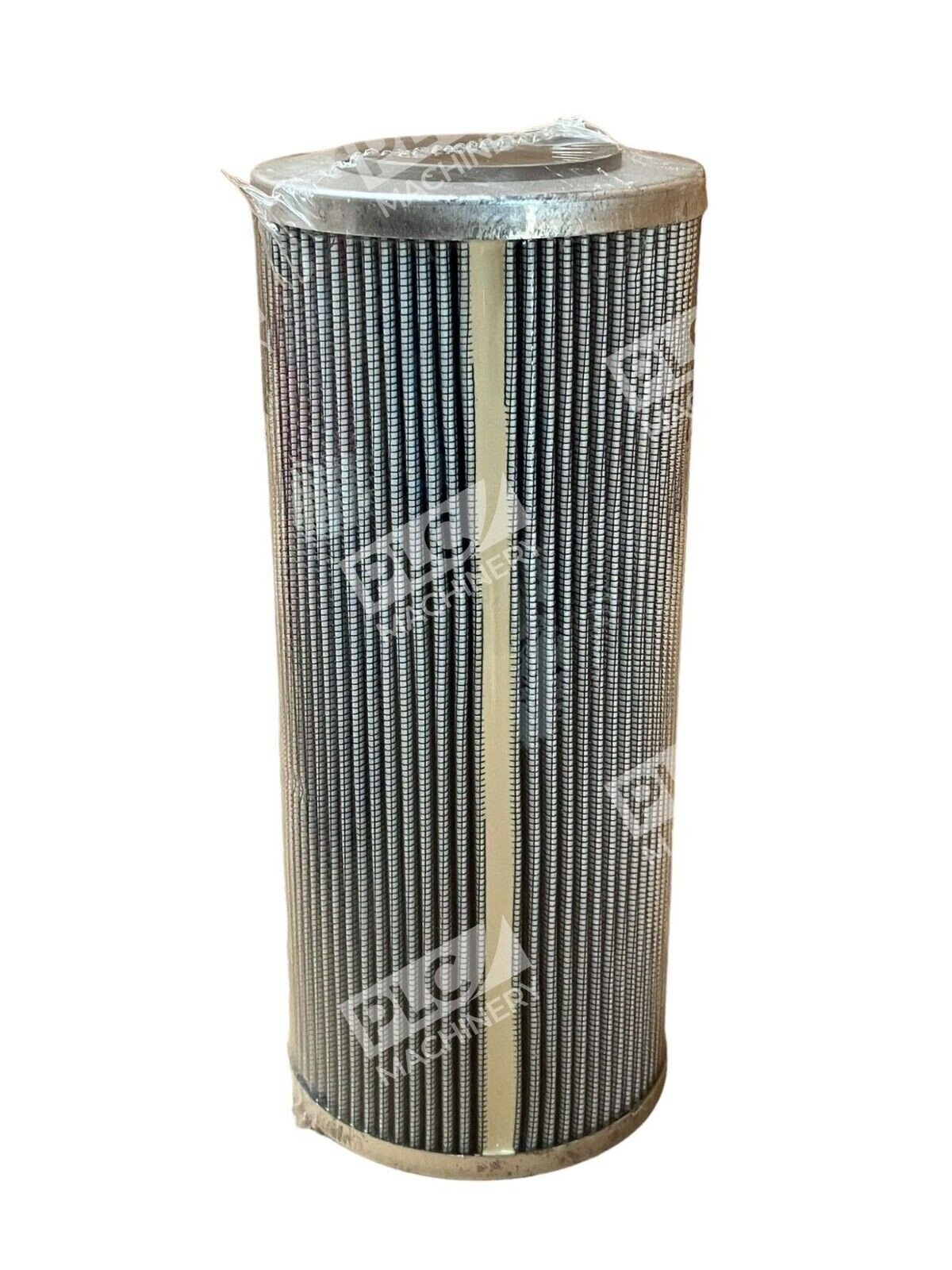

The Fluitek P 039093-3U7B is a premium pleated synthetic hydraulic filter element engineered to deliver superior fluid cleanliness and system protection. Rated at 3 micron Beta 200 filtration, this element removes fine contamination while maintaining high flow capacity of 70 GPM, making it ideal for industrial hydraulic applications requiring reliable performance and extended filter life.
Key Features
- 3 Micron Beta 200 rated filtration—high efficiency particulate capture
- Pleated synthetic media construction for durability and repeatability
- 70 GPM flow capacity at 4.2 PSID pressure drop
- Operating temperature range 15°F to 275°F
- Steel housing with Buna seal for extended service life
- Direct drop-in replacement for multiple OEM filter models
Technical Specifications
- Filtration Rating: 3 Micron Beta 200
- Flow Capacity: 70 GPM
- Pressure Drop: 4.2 PSID at nominal flow
- Operating Temperature: 15°F to 275°F
- Housing Material: Steel
- Seal Material: Buna
- Media Type: Pleated Synthetic Element
- Dimensions: 9.3″ L × 3.9″ W × 1.6″ H
- Weight: 2.2 lbs
- Part Number: P 039093-3U7B
Typical Applications
This filter element is commonly used in industrial hydraulic systems where fluid cleanliness is critical, including machine tools, hydraulic presses, mobile equipment, and industrial manufacturing equipment. The 3 micron rating meets stringent ISO 4406 cleanliness requirements for systems requiring high protection against wear and particulate contamination.
Compatibility & Replacements
Compatible With
- HYDAC hydraulic systems and manifolds
- PTI hydraulic filtration units
- Fleetguard hydraulic filter housings
- Industrial hydraulic circuits rated 70 GPM at 4.2 PSID
- Systems operating 15°F to 275°F
Replaces / Drop-In Replacement For
- HYDAC 2060529
- HYDAC 50309D05BN
- HYDAC HJ005BN
- HYDAC 2060943
- PTI HF4050HFB
- Fleetguard HF7332
- Fleetguard HF0733100
Works With
- ISO VG 32–68 hydraulic fluids
- Mineral oil hydraulic systems
- Systems requiring 3 micron absolute or Beta 200 filtration
- Pressure-fed and return-line filter housings
