Overview

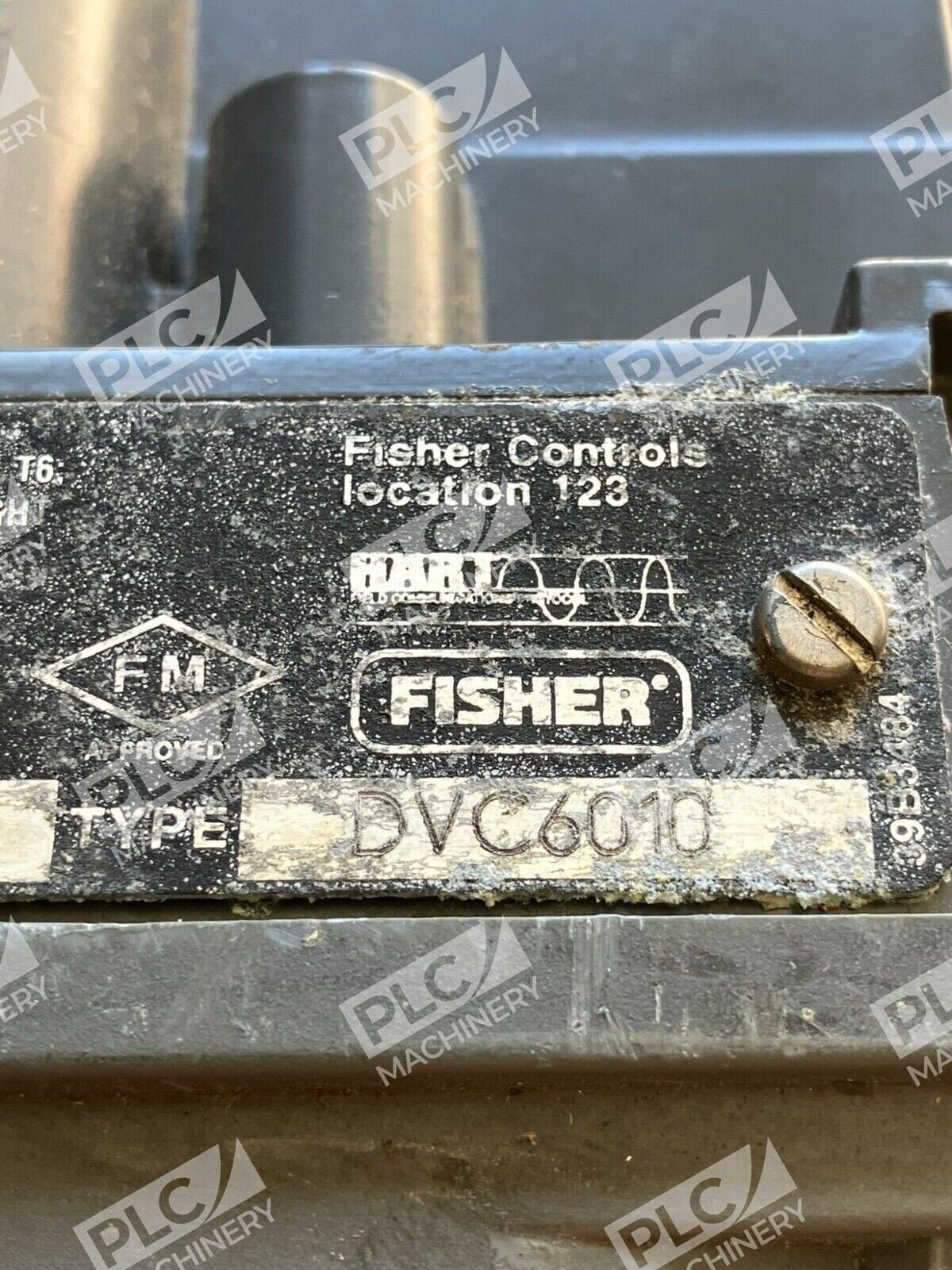

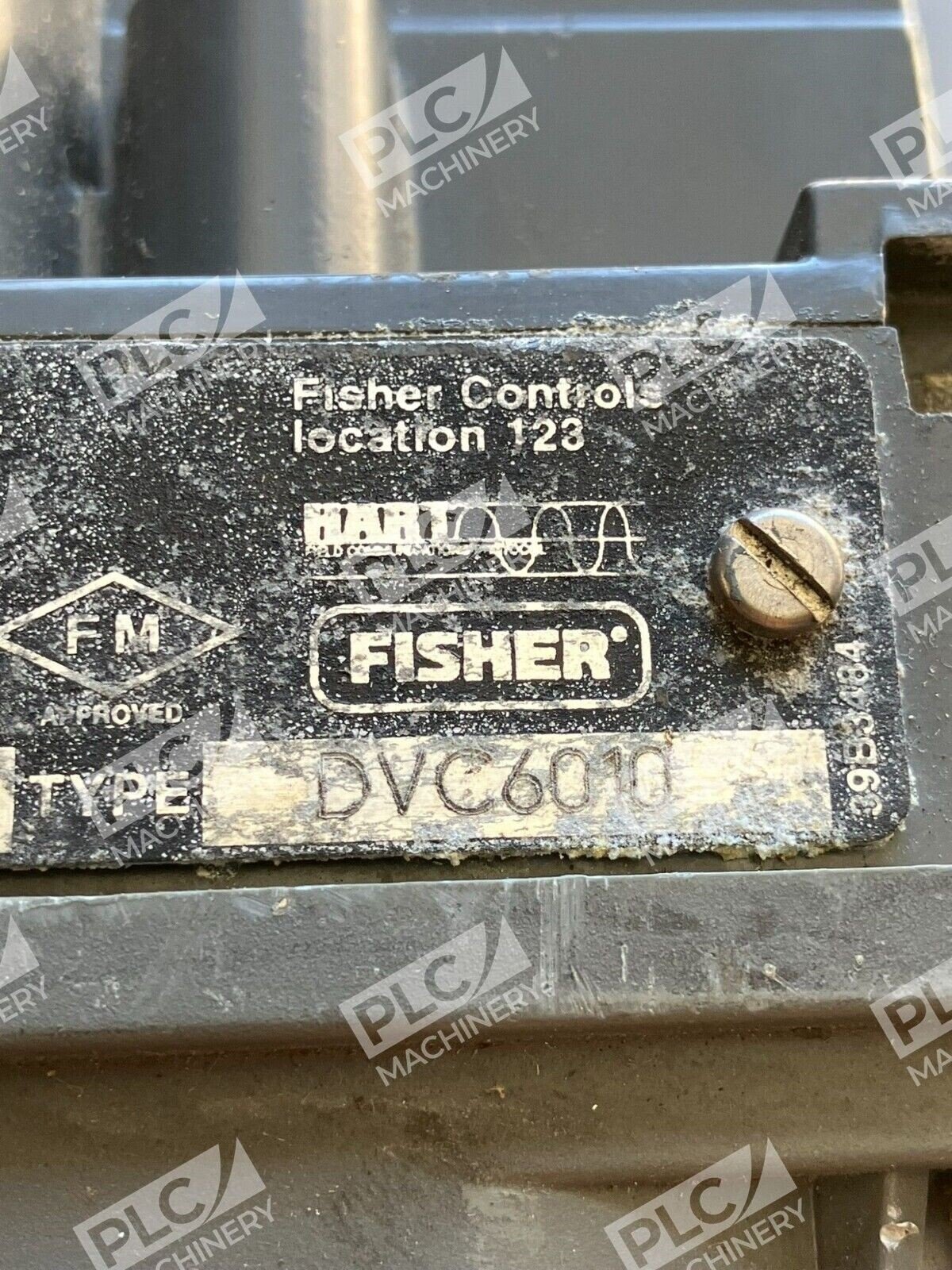

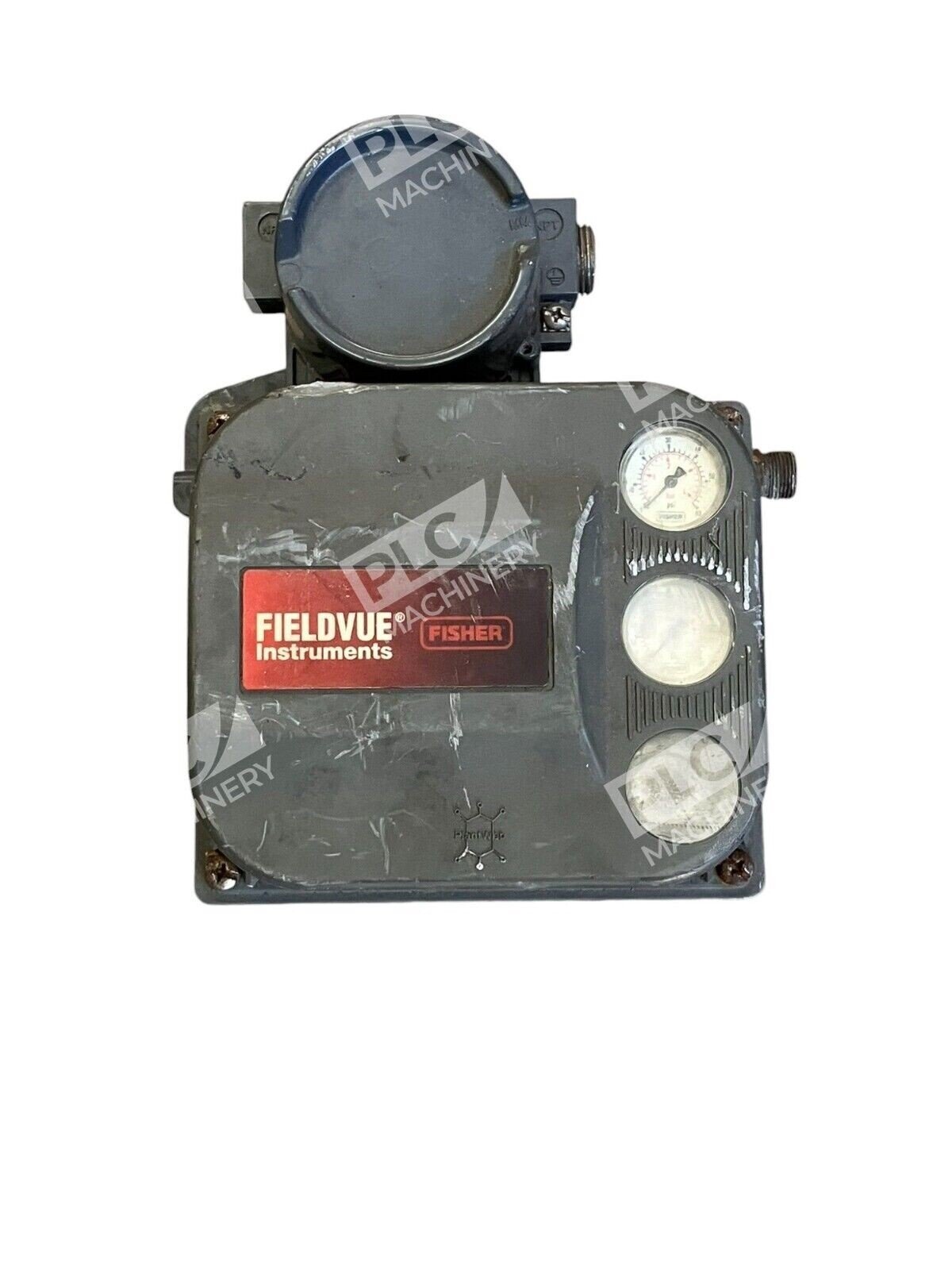

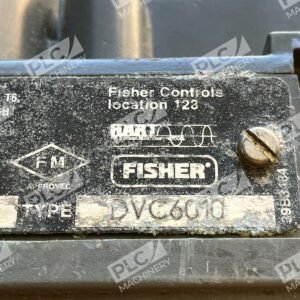

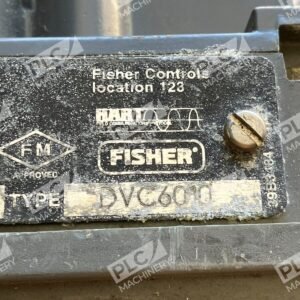

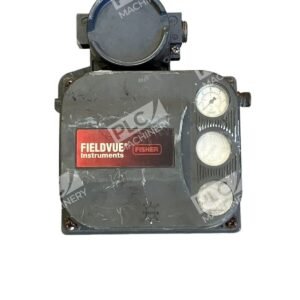

The Fisher DVC6010 is a Fieldvue digital valve controller engineered for precise control of sliding-stem actuators in industrial process applications. This valve positioner accepts 4-20 mA input signals and operates on a 30 VDC power supply. The DVC6010 mounts directly on sliding-stem actuators with up to 102 mm (4 inch) travel, providing integrated feedback and real-time valve position monitoring for accurate process control.
Key Features
- Sliding-Stem Actuation: Mounts on sliding-stem actuators with up to 102 mm (4 inch) travel
- 4-20 mA Input Signal: Accepts 4-20 mA DC input
- Multi-Protocol Communication: Integrates with HART, FOUNDATION Fieldbus, and PROFIBUS PA
- Explosion-Proof Certification: CSA, FM, ATEX, IECEX and SAA certified; intrinsically safe; NEMA 4x, IEC 60529 IP66 enclosure
- Real-Time Diagnostics: Provides real-time valve health information for proactive maintenance
- Extended Temperature Range: Ambient temperature range -40 to 80°C
Technical Specifications
- Input Signal: 4-20 mA DC
- Supply Voltage: 30 VDC
- Actuator Travel Range: Up to 102 mm (4 inches)
- Ambient Temperature: -40 to 80°C (-40 to 176°F)
- Enclosure Rating: NEMA 4x, IP66
- Electrical Connection: 1/2 NPT internal conduit
- Certifications: CSA, FM, ATEX, IECEX, SAA
- Cable Requirement: 3-conductor shielded, 22 AWG minimum
- Maximum Pneumatic Tubing Distance: 15 meters (50 feet) without performance degradation
Typical Applications
The DVC6010 maintains precise control over critical processes, ensuring product quality, safety, and operational efficiency. Common applications include:
- Flow control in process lines
- Pressure regulation systems
- Temperature control via control valves
- Integrated valve position feedback
- Hazardous area valve automation (explosion-proof rated)
Compatibility & Replacements
Compatible With
- Sliding-stem control valves
- Pneumatic actuators (air-to-open and air-to-close)
- HART communication networks
- FOUNDATION Fieldbus systems
- PROFIBUS PA fieldbus
- Process control systems with 4-20 mA input
- Emerson Process Management valve platforms
Replaces / Drop-In Replacement For
The DVC6010 is part of the Fisher Fieldvue DVC6000 series. For specific model replacement information, verify compatibility with your system integrator before ordering. Related models in the series include DVC6005, DVC6020, and DVC6030, each designed for different actuator travel ranges.
Works With
- HART field communicators and protocol
- FOUNDATION Fieldbus networks
- PROFIBUS PA communication
- Emerson ValveLink software
- Field Communicator 475 configuration tools
- Standard 4-20 mA process control loops
