Overview

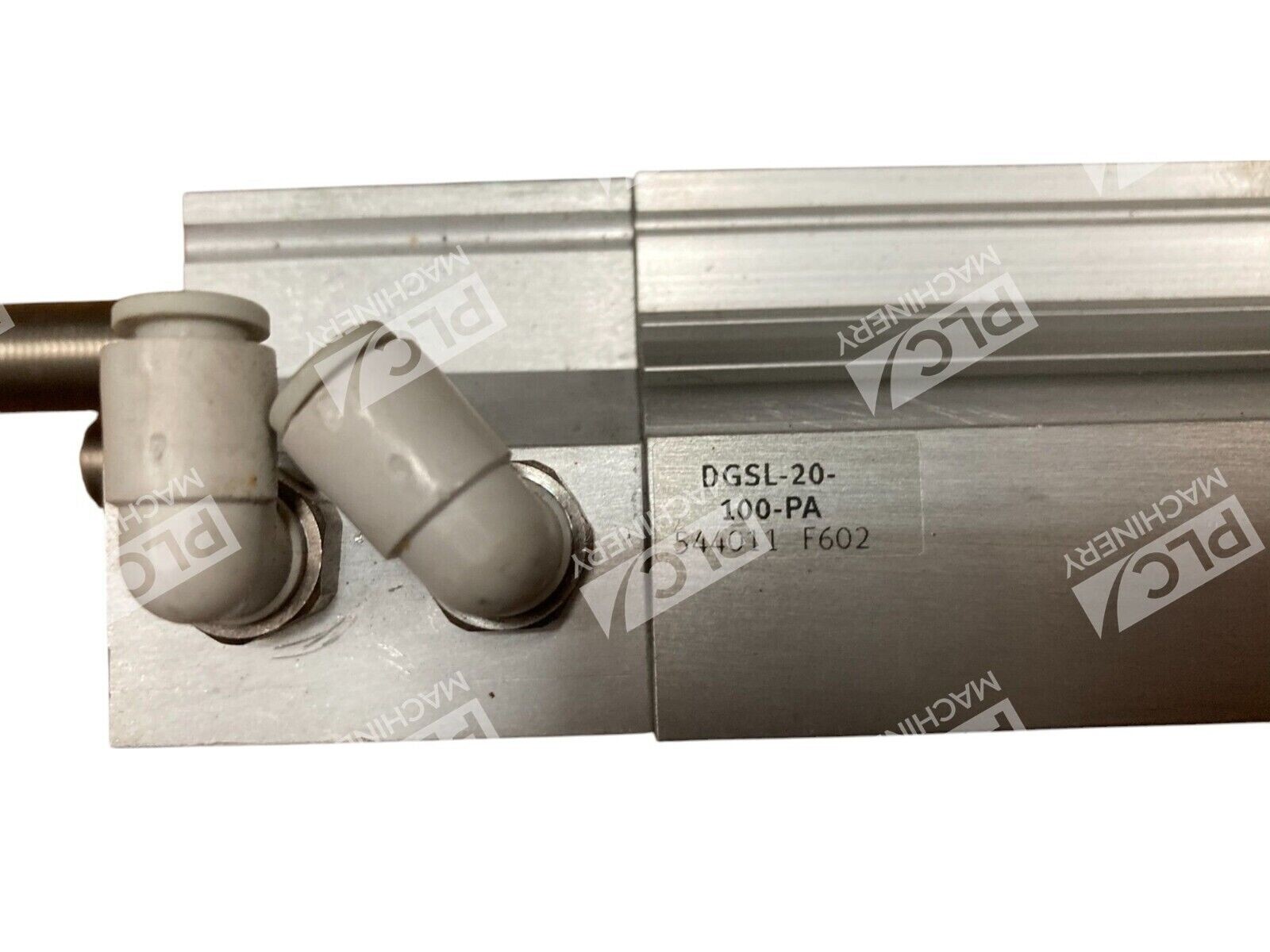

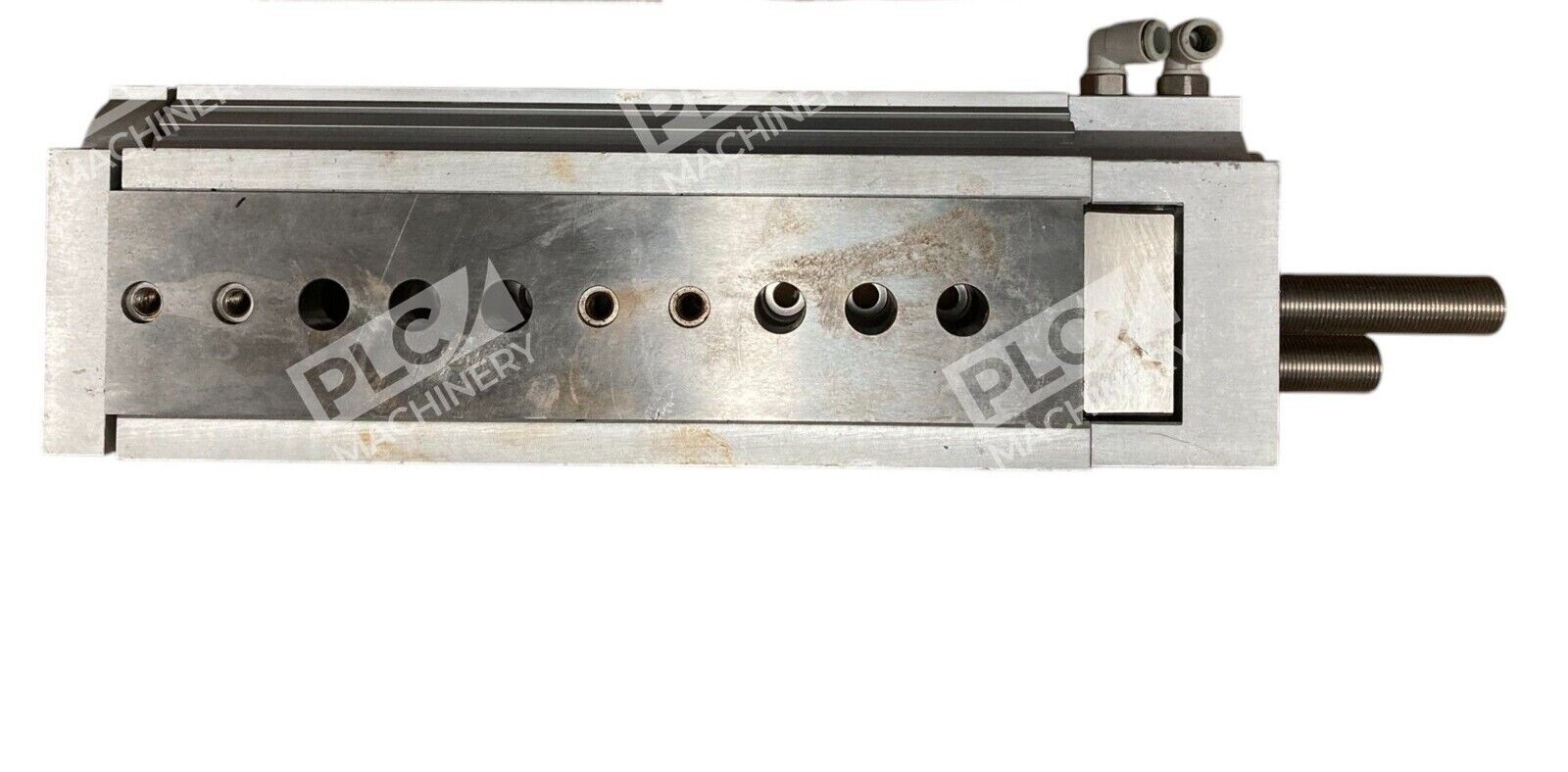

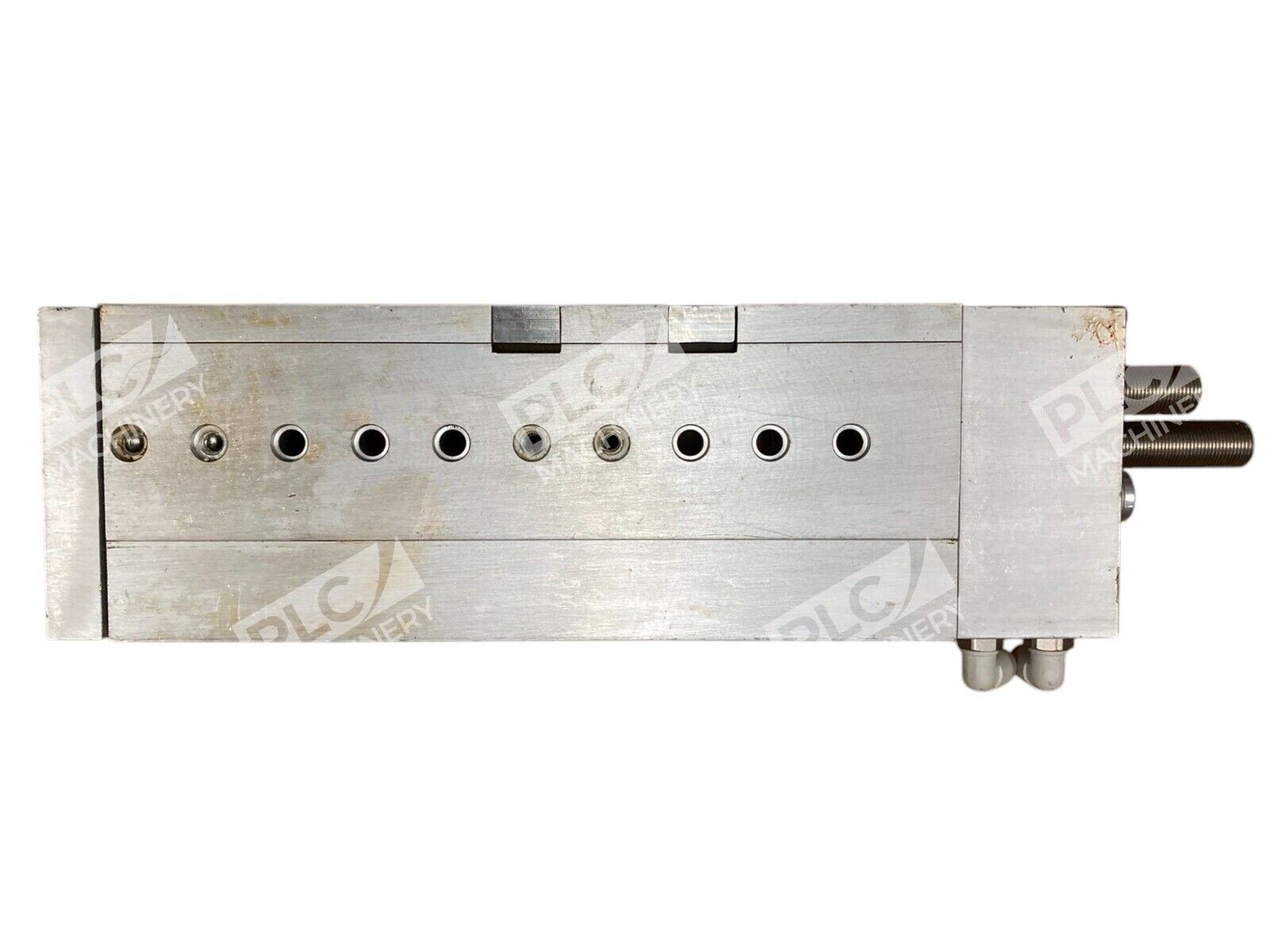

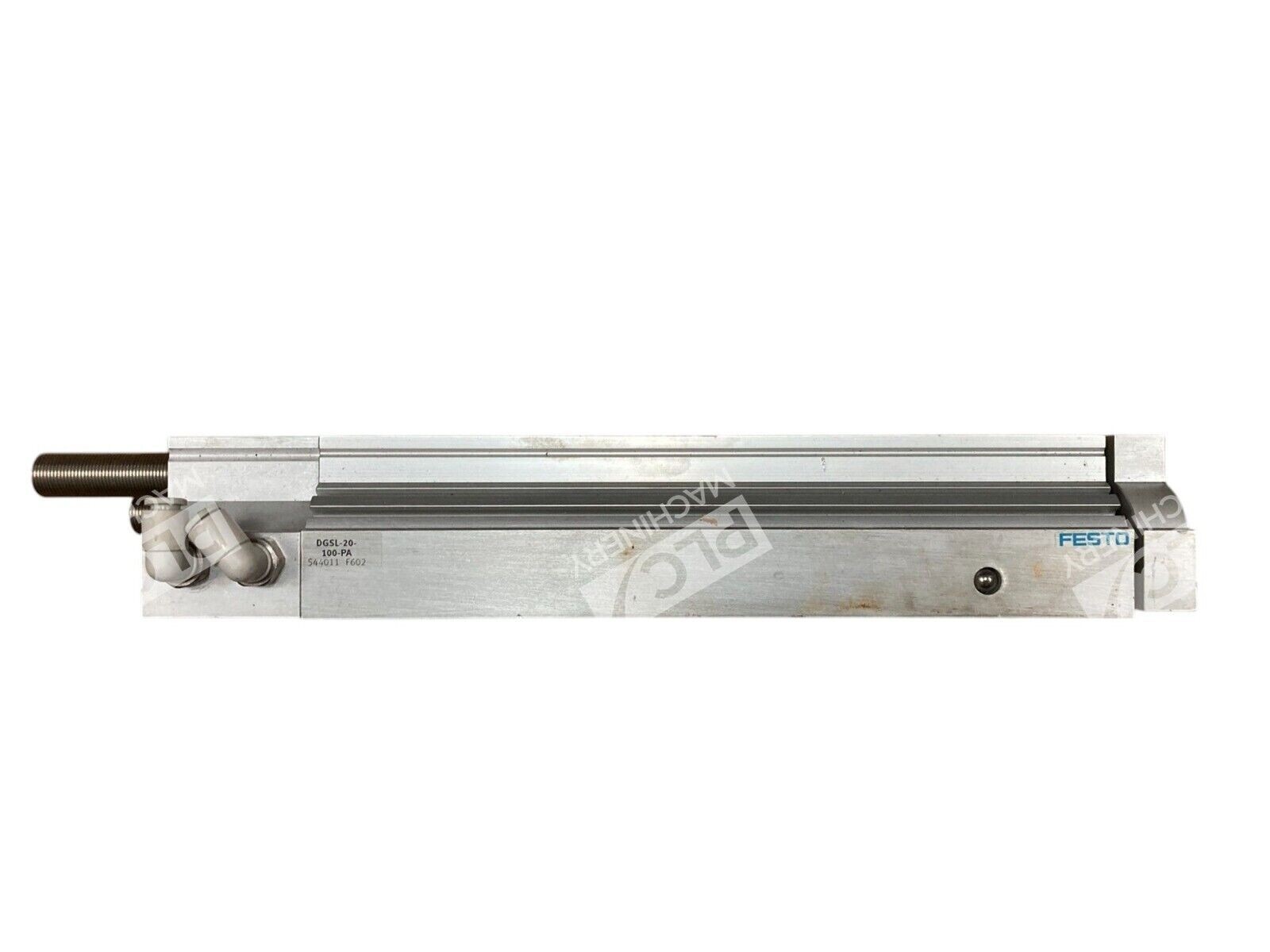

The Festo DGSL-20-100-PA is a double-acting pneumatic slide from the DGSL mini slide series, engineered for reliable linear motion in industrial automation systems. With a 20mm piston and 100mm stroke, this compact actuator delivers smooth, repeatable motion control across a wide range of automation applications. The double-acting design enables both push and pull functions, making it versatile for complex motion sequences.
Key Features
- Resilient cushioning rings and plates reduce shock and extend actuator life
- Compact and lightweight design simplifies integration into existing equipment
- Operates on compressed air for energy-efficient automation
- Standard mounting interfaces enable straightforward installation
- Easy maintenance and serviceability with minimal downtime
Technical Specifications
- Series: DGSL Mini Slide
- Bore Size: 20mm
- Stroke Length: 100mm
- Design: Double-acting, single-ended
- Pneumatic Connection: 1/8″ BSPP / G1/8″ threaded port
- Cushioning: Flexible cushioning plates at both ends
- Housing Material: Wrought aluminum alloy
- Seal Material: Hydrogenated nitrile
- Weight: Approximately 2.0 lbs
- Manufacturer Part Number: 544011
Typical Applications
The DGSL-20-100-PA is designed for industrial automation applications including:
- Pick-and-place and material handling systems
- Assembly and packaging machinery
- Test and inspection equipment
- Production line automation
- Positioning and clamping mechanisms
Compatibility & Replacements
Compatible With
- Standard pneumatic compressed air systems (typically 0–10 bar)
- Pneumatic control circuits with G1/8″ threaded ports
- Proximity sensors for position feedback (optional)
- Industrial PLCs and pneumatic valve controllers
Replaces / Drop-In Replacement For
The Festo DGSL-20-100-PA (part number 544011) is a current production unit. For drop-in replacement compatibility with other Festo mini slide models, verify bore and stroke specifications match your existing application. Other DGSL series models with different stroke lengths (e.g., DGSL-20-20-PA, DGSL-20-50-PA) require port and mounting verification.
Works With
- Festo pneumatic control systems and manifolds
- Standard G1/8″ threaded pneumatic fittings
- Festo proximity sensors for position sensing (optional A suffix)
- Industrial compressed air networks at rated working pressures
