Overview

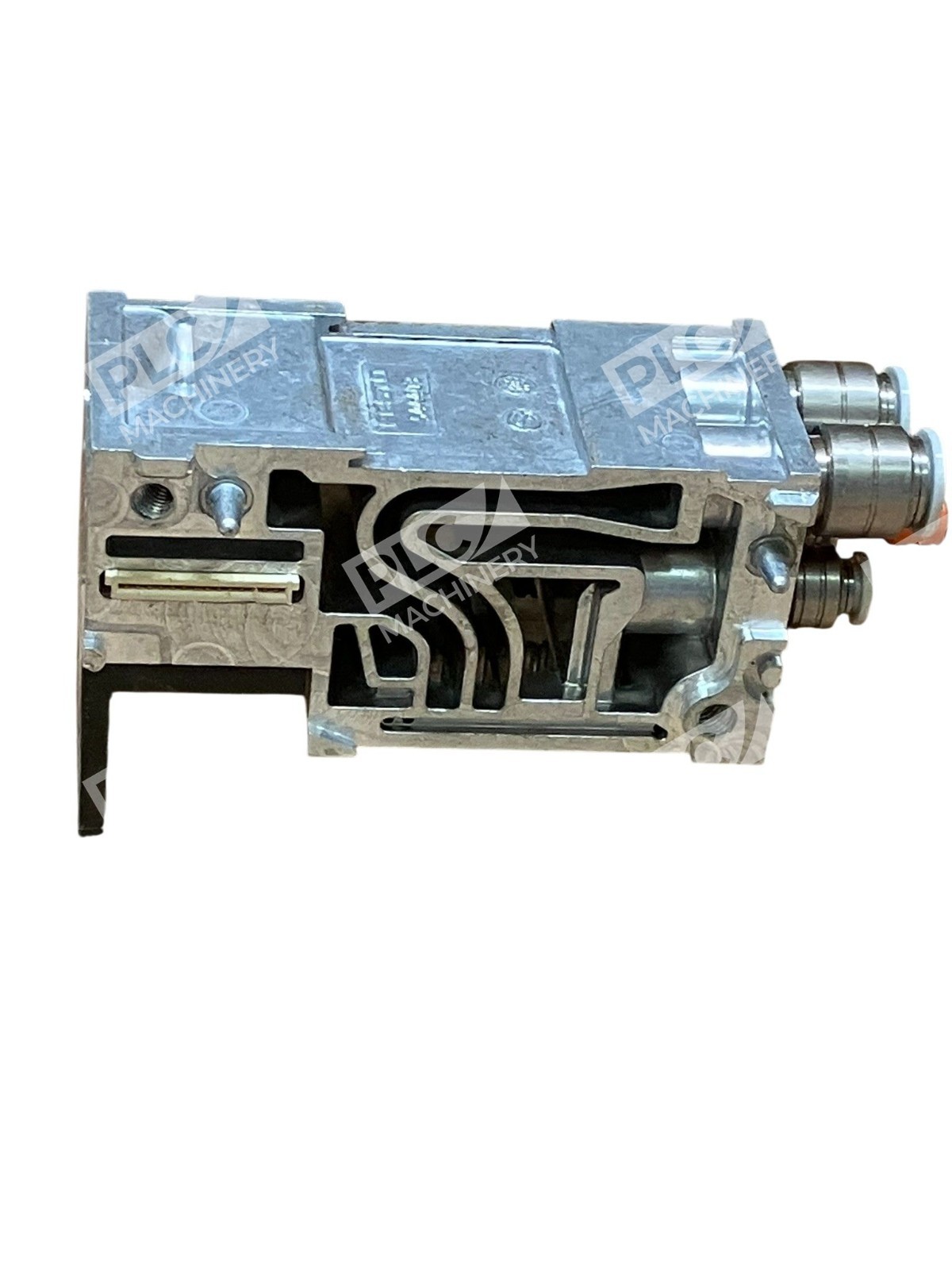

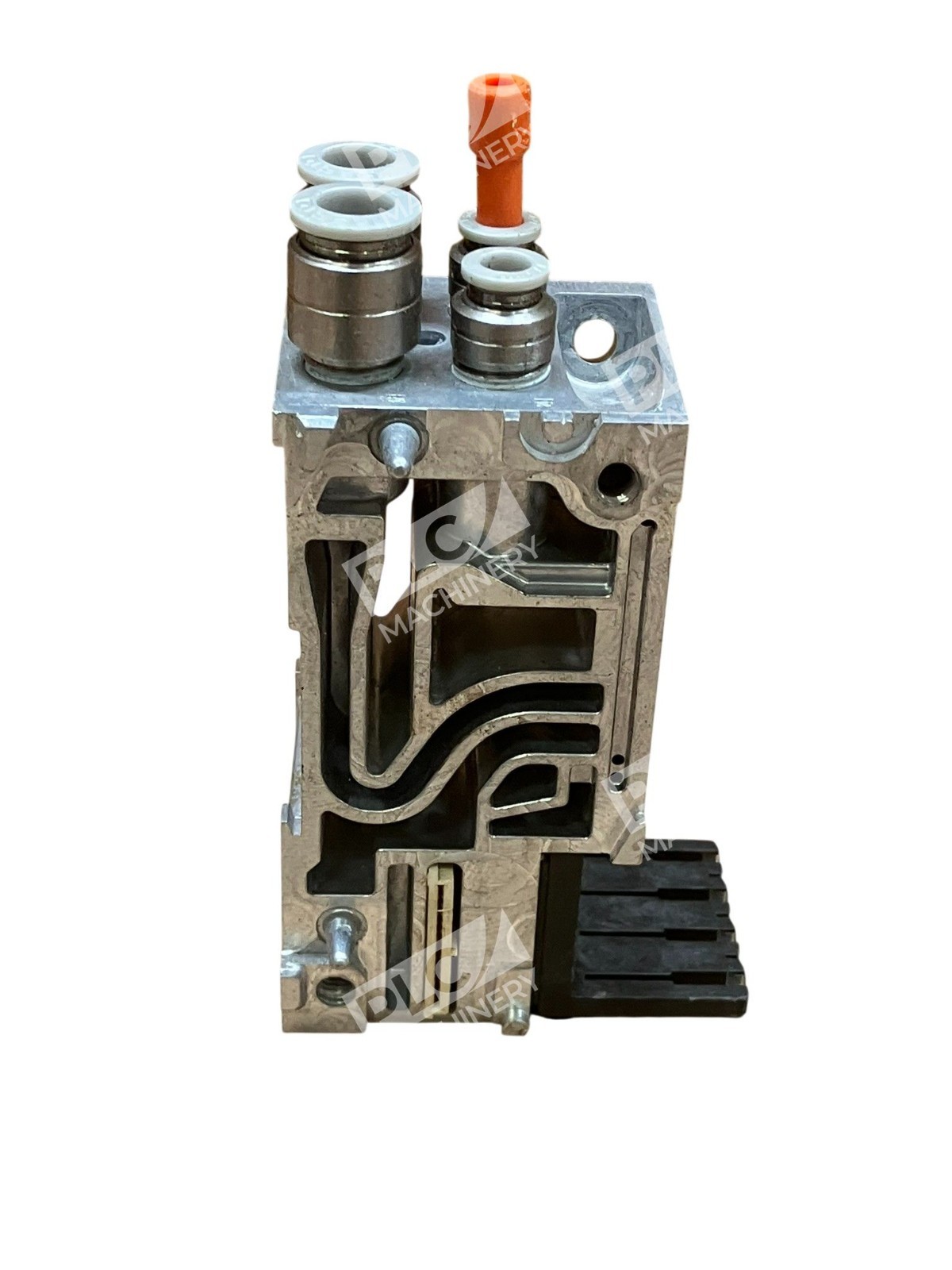

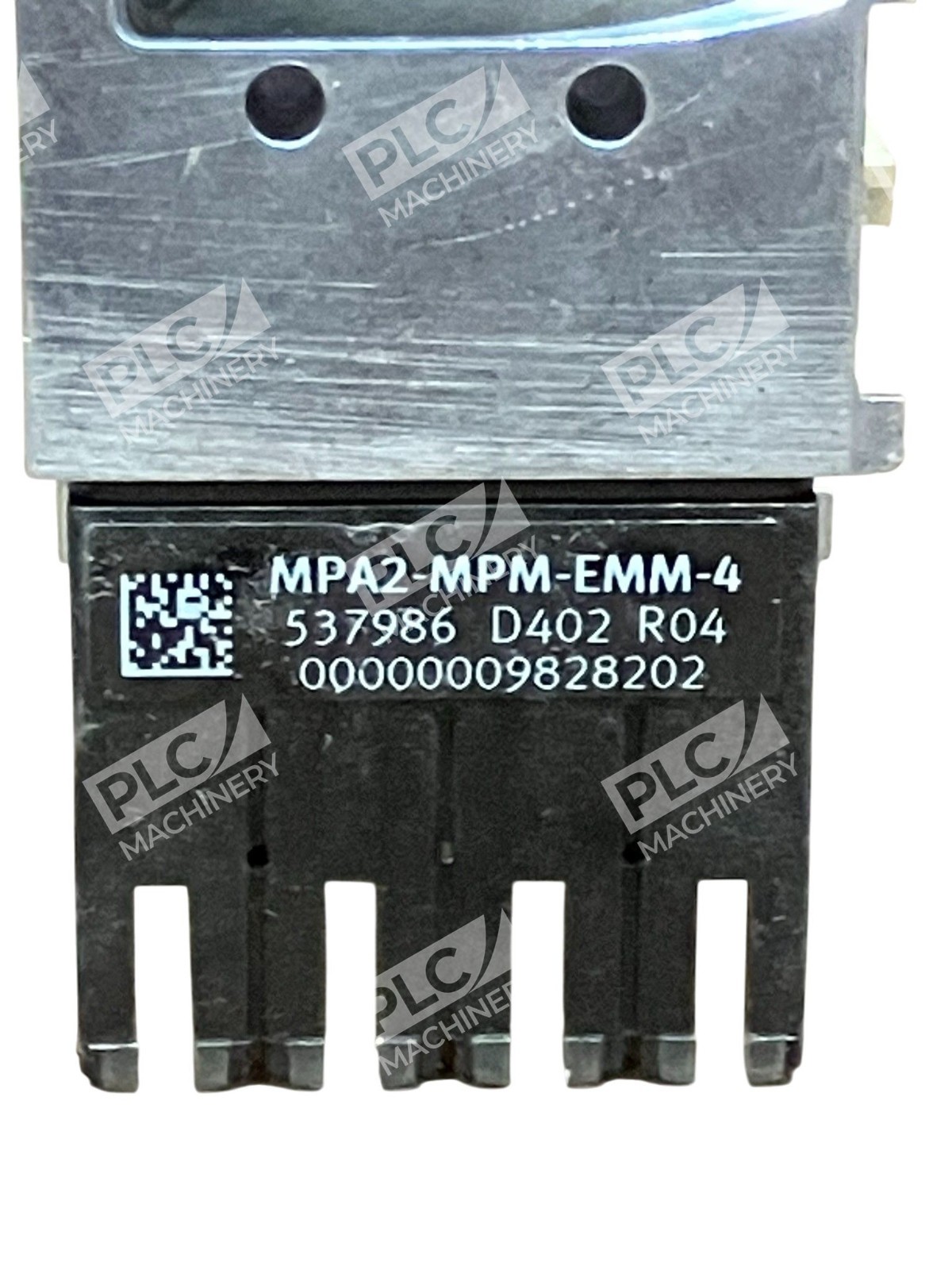

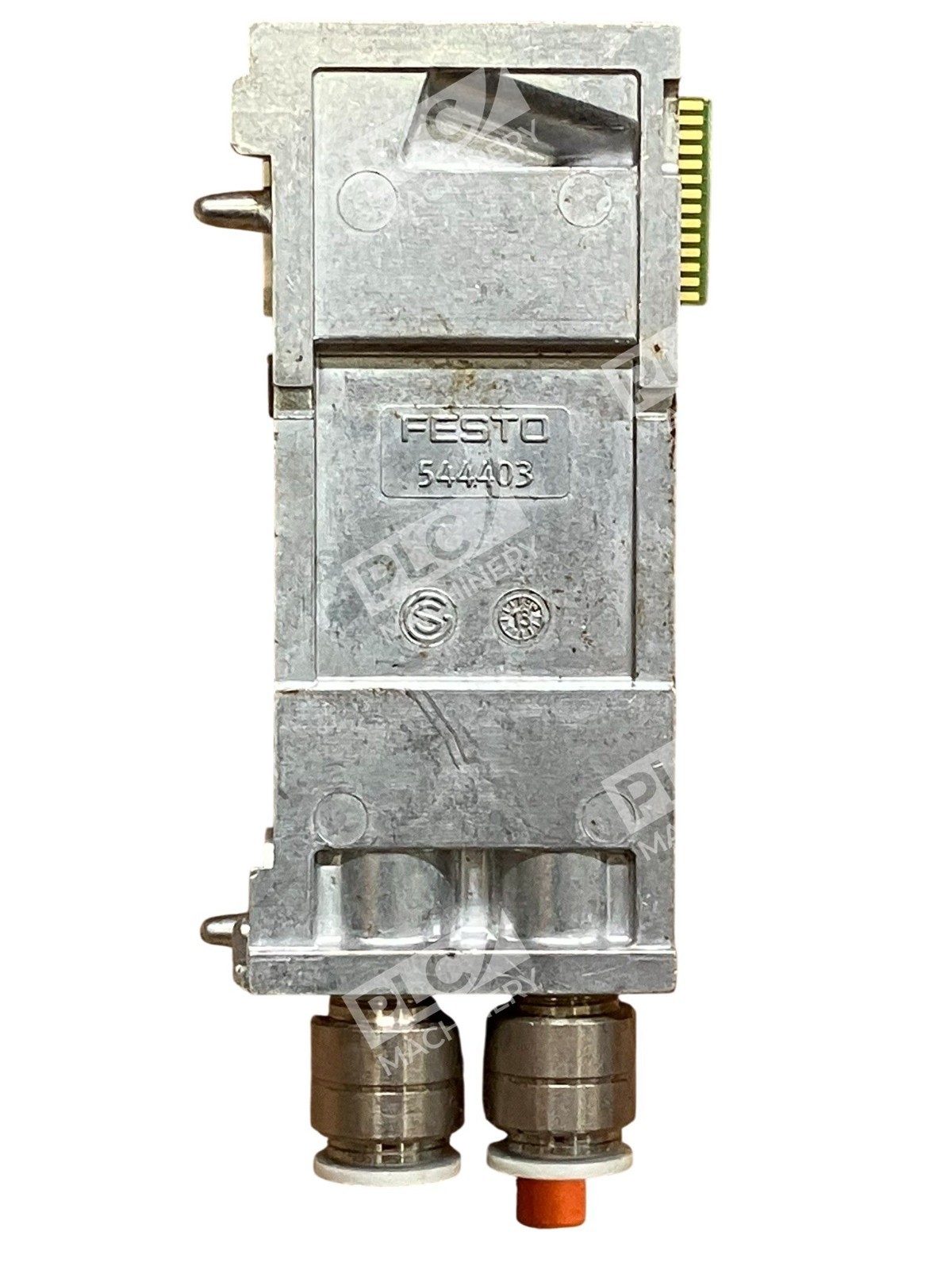

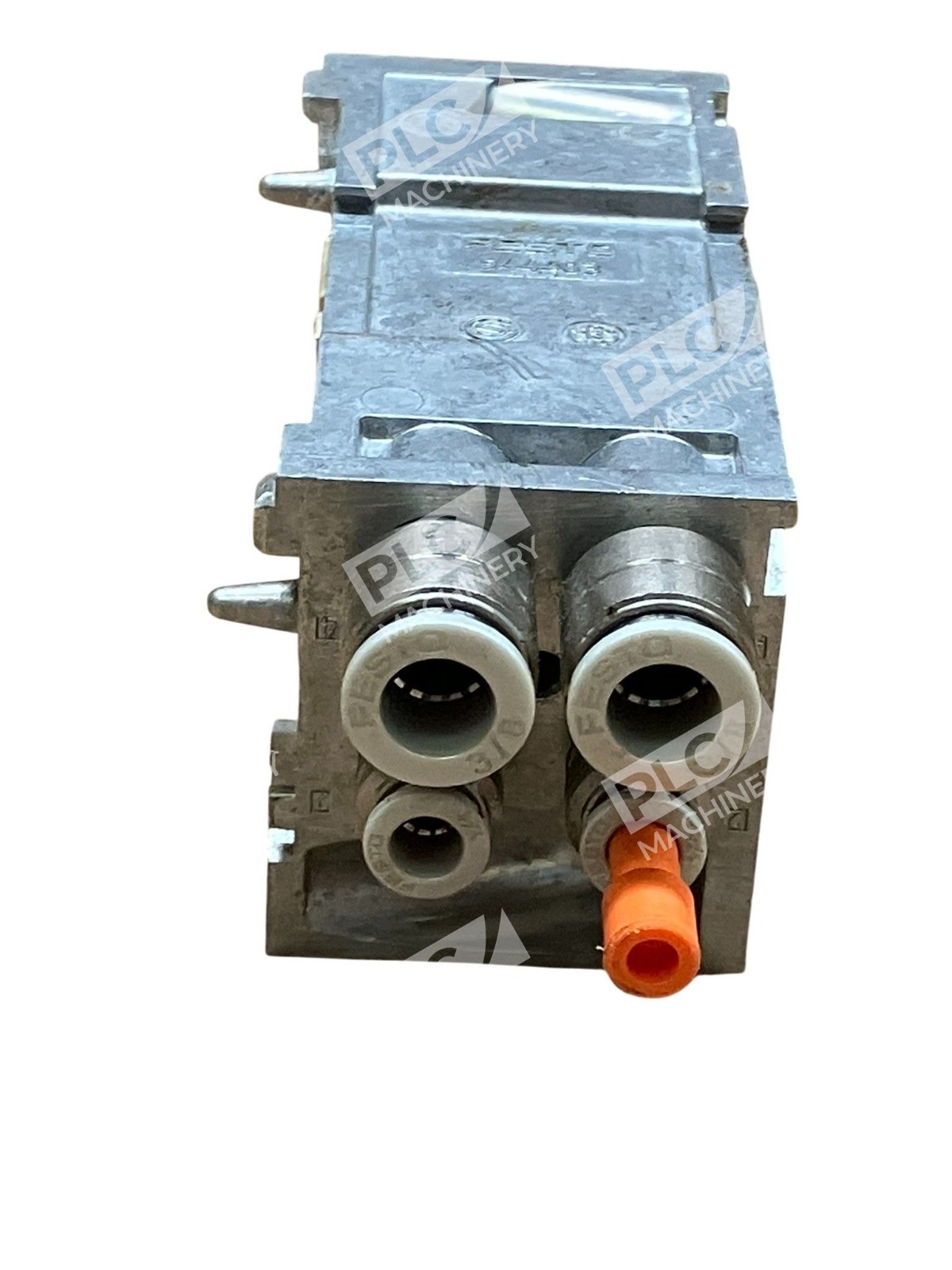

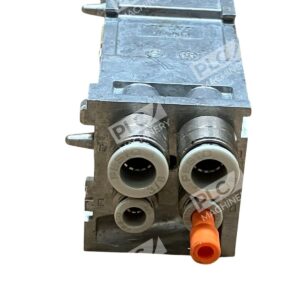

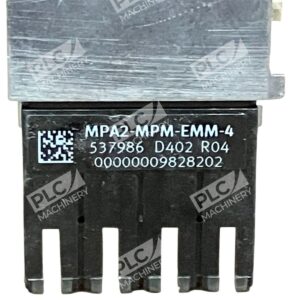

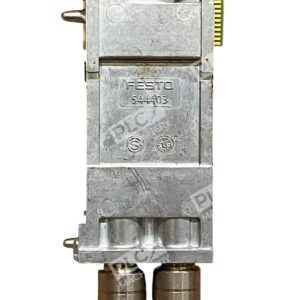

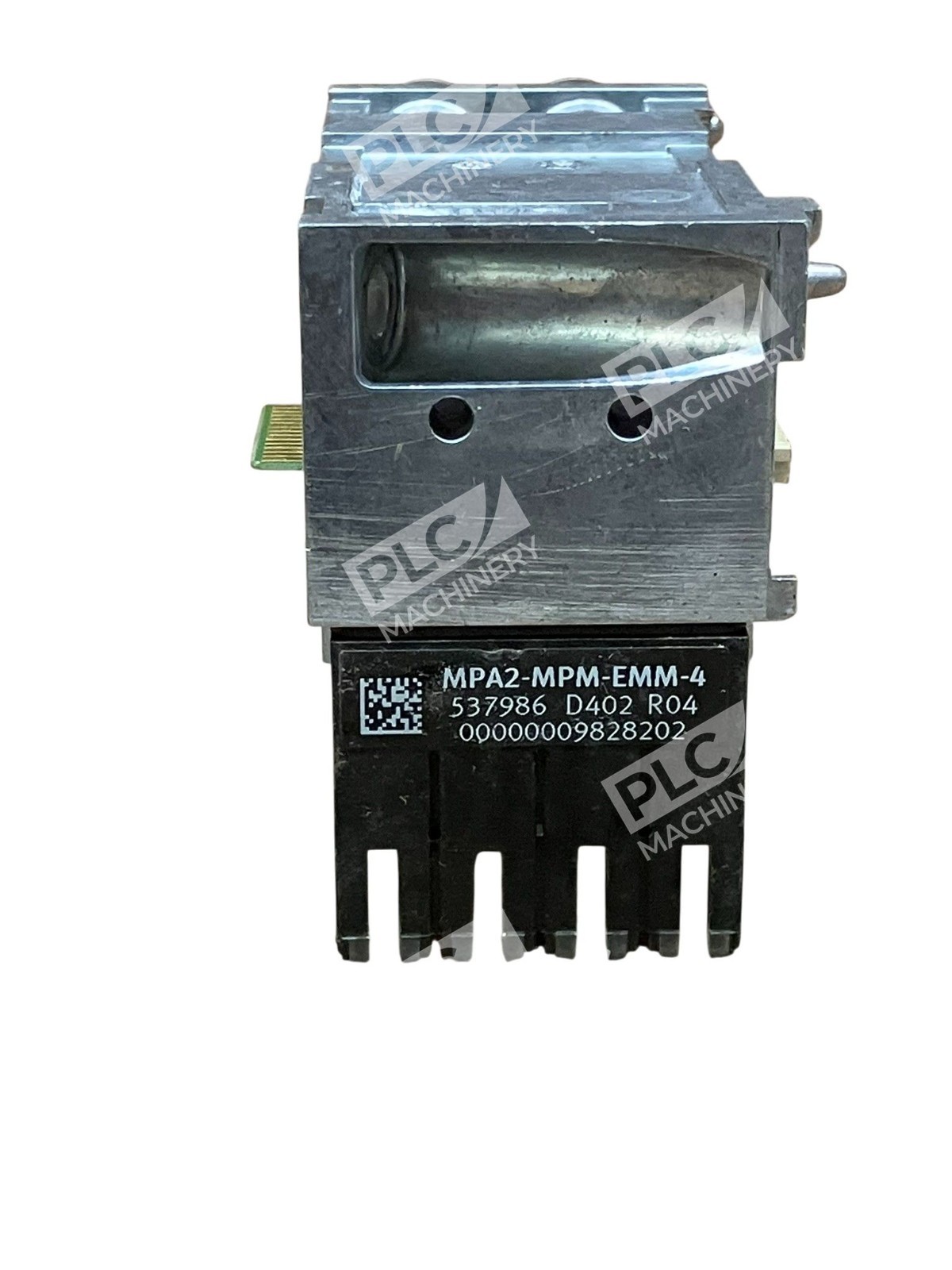

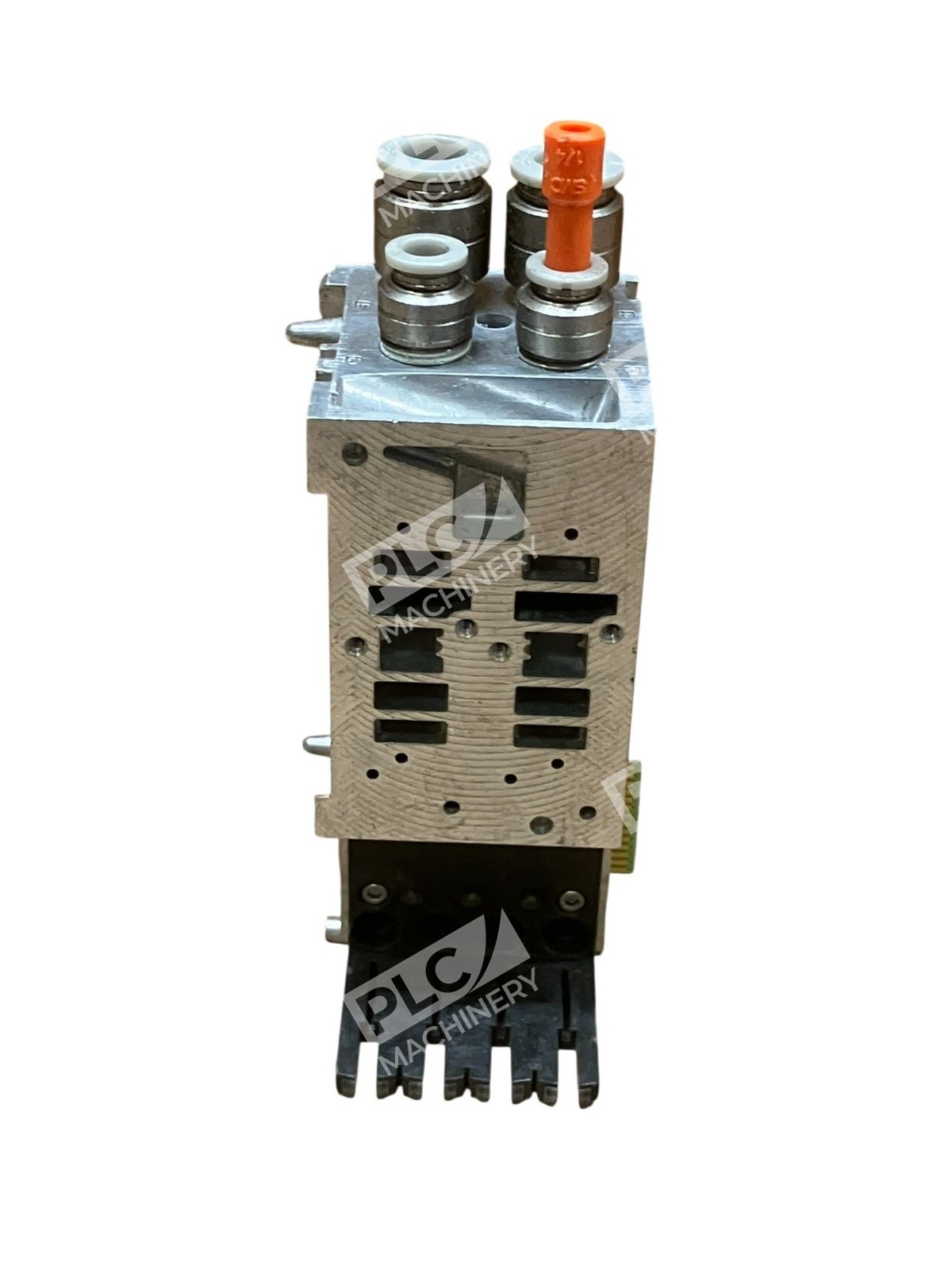

The Festo 537986 VMPA2-MPM-EMM-4 is an electrical module designed specifically for use with MPA-S proportional and directional control valve manifolds. This electronics module enables multi-coil solenoid control for complex pneumatic automation sequences. The module supports 4 solenoid coils configured for 2-valve positions, making it suitable for applications requiring dual-valve directional control or proportional valve operation.
Key Features
- 4 Solenoid Coil Configuration — Supports simultaneous control of multiple solenoid valves with individual coil management
- 2-Valve Position Support — Enables dual-directional valve control within a single manifold assembly
- Multipin Connector Interface — Standardized electrical connection for seamless integration with MPA-S manifold systems
- Compact Electronics Package — Lightweight design minimizing mounting footprint on manifold systems
- Industrial-Grade Reliability — Built to withstand pneumatic automation environments with proven Festo quality standards
Technical Specifications
| Part Number | 537986 |
| Model | VMPA2-MPM-EMM-4 |
| Solenoid Coils | 4 (100 mA initial, 20 mA holding) |
| Valve Positions Supported | 2 |
| Connection Type | Multipin connector |
| Weight | 20 grams |
| Manufacturer | Festo AG & Co. KG |
| Category | Pneumatic Electronics Module |
Typical Applications
- Multi-axis industrial automation control systems requiring proportional or directional valve switching
- Manufacturing equipment with complex pneumatic sequences needing centralized valve management
- Packaging machinery and material handling systems with dual-valve directional control
- Custom pneumatic test benches and laboratory automation setups
- OEM integration into larger pneumatic manifold assemblies
Compatibility & Replacements
Compatible With
- Festo MPA-S proportional and directional control valve manifolds
- Festo VMPA2 modular valve system architectures
- Standard 24 VDC solenoid coil systems (verify coil voltage with manifold specifications)
- Industrial PLC and motion controller outputs supporting solenoid valve circuits
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or Festo technical support before ordering, as replacement electronics modules must match manifold revision and coil configuration specifications exactly.
Works With
- Festo VMPA2 proportional valve manifold systems
- Standard industrial PLC platforms (Siemens S7-1200/1500, Allen-Bradley CompactLogix/ControlLogix, Mitsubishi, Omron)
- 24 VDC industrial control circuits and solenoid valve drivers
- PROFINET and EtherNet/IP networked automation systems (via appropriate I/O modules)
