Overview

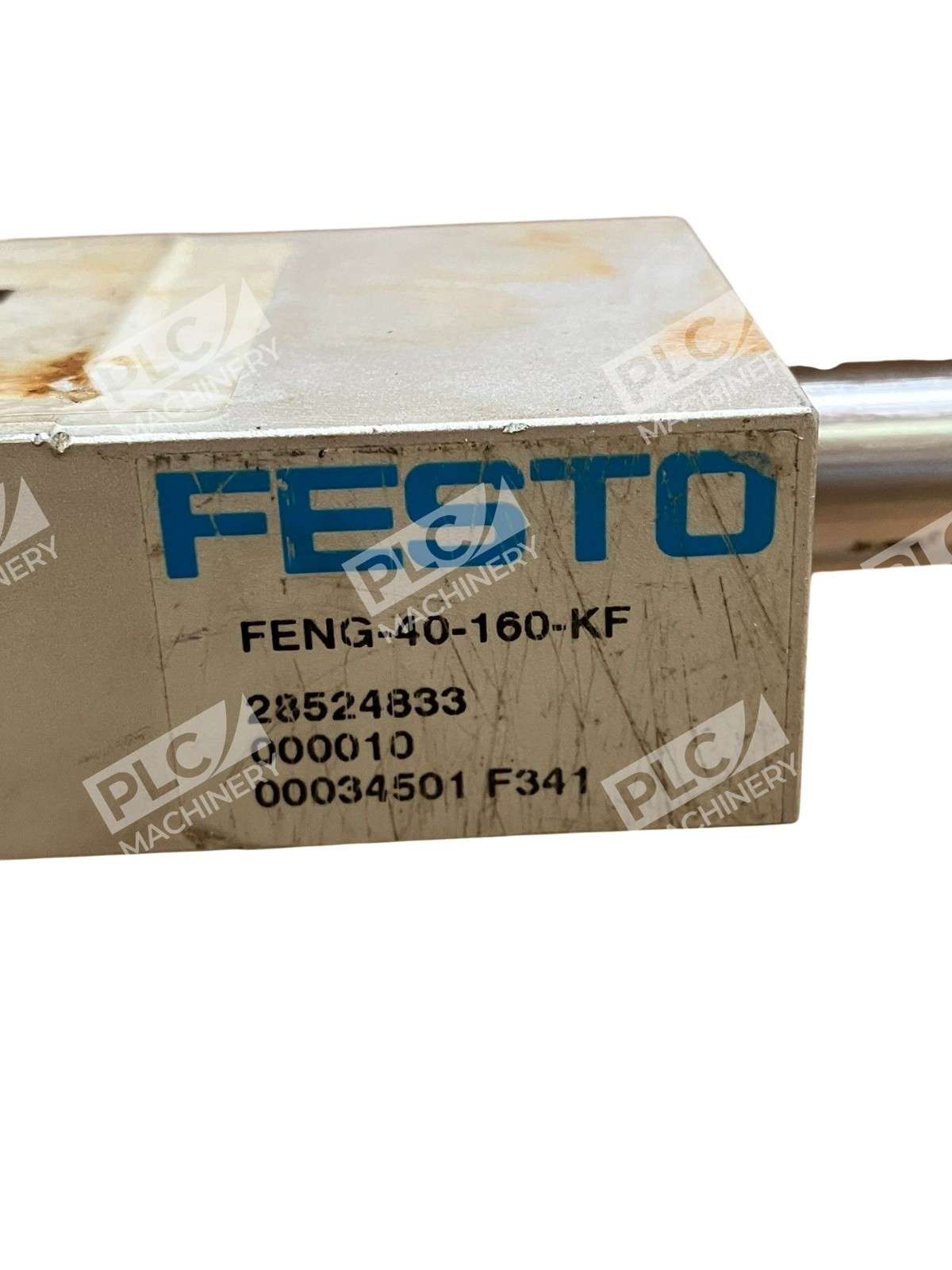

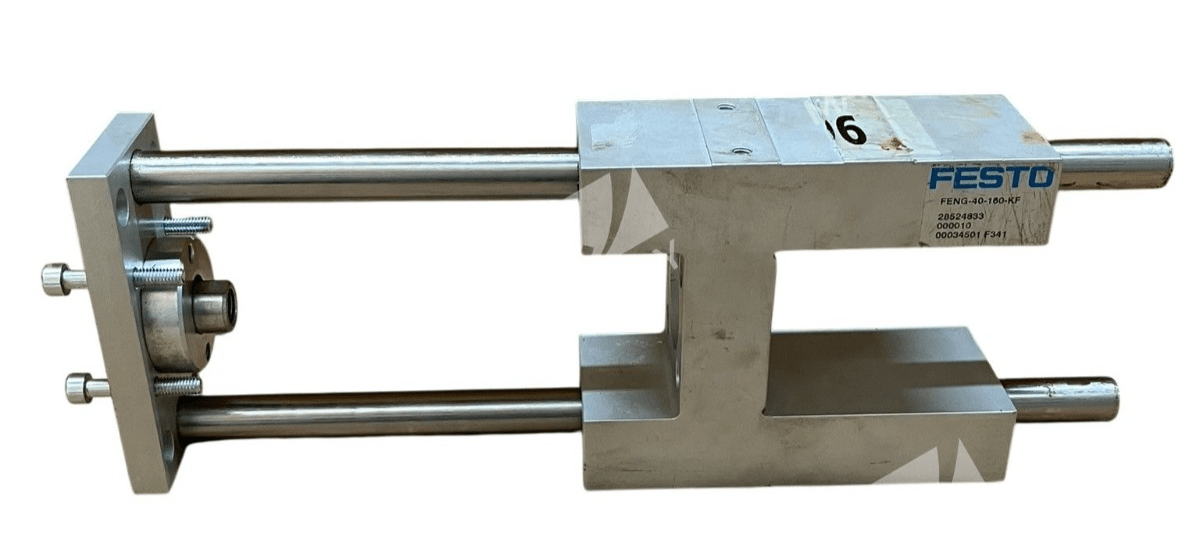

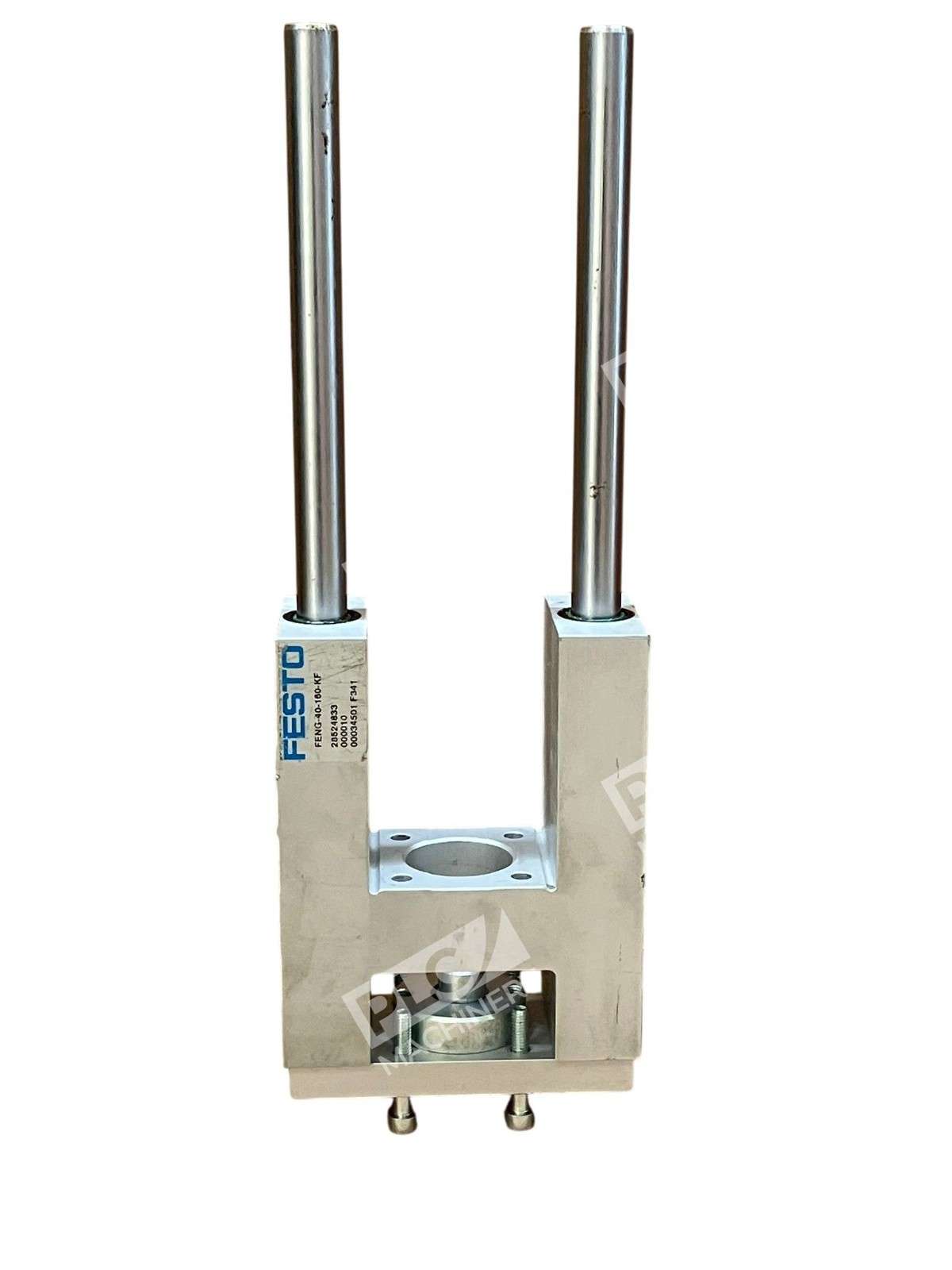

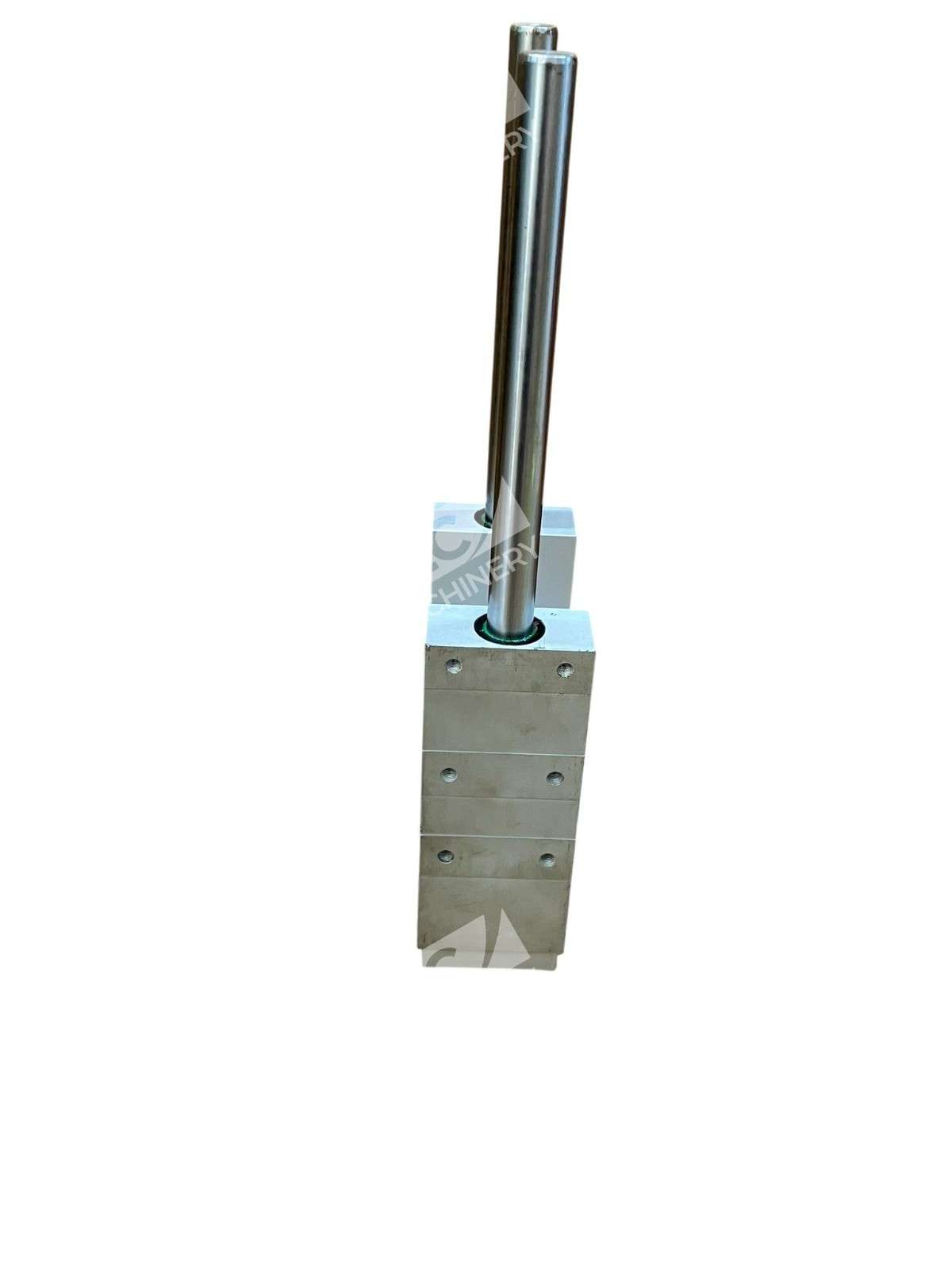

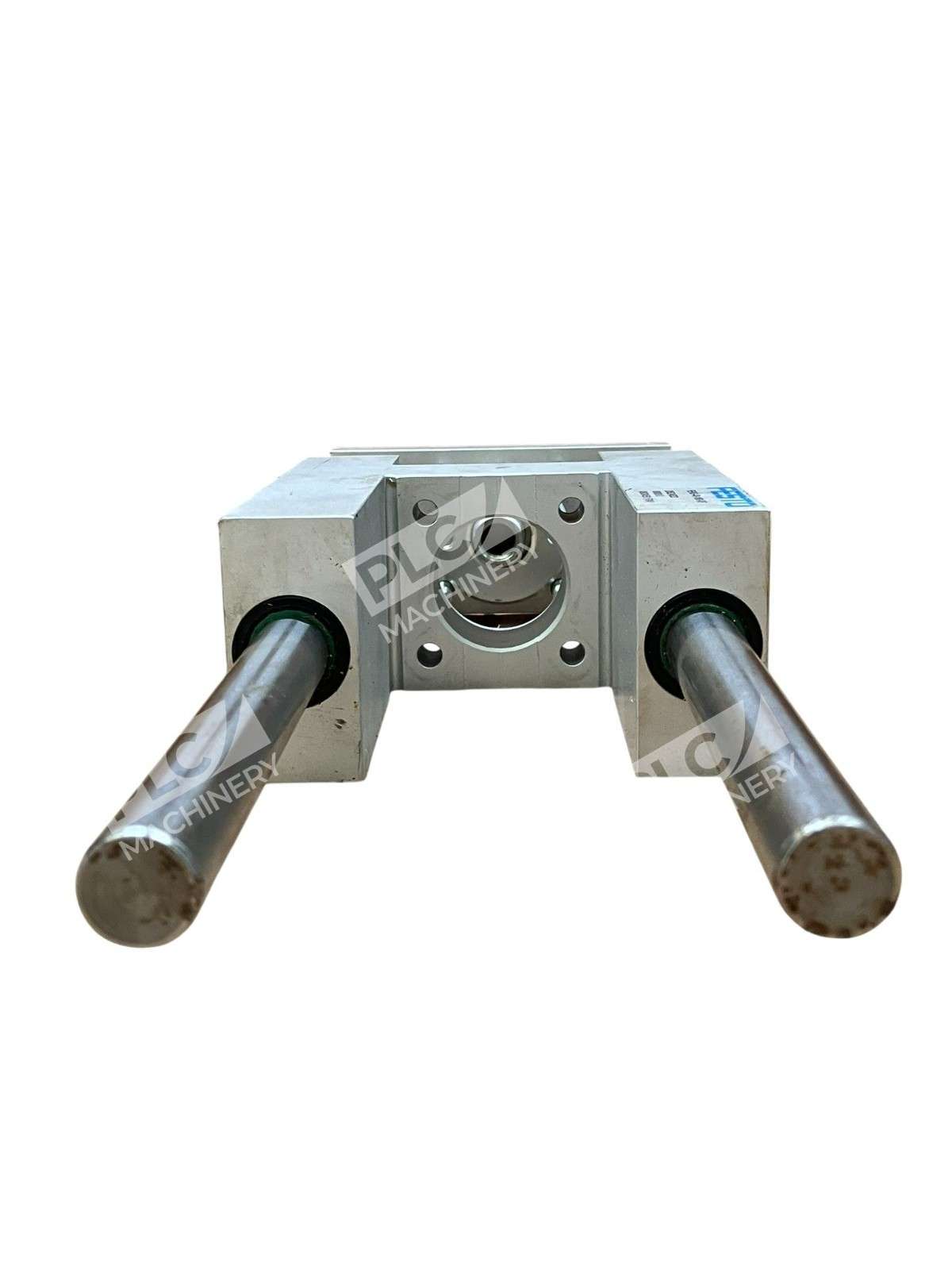

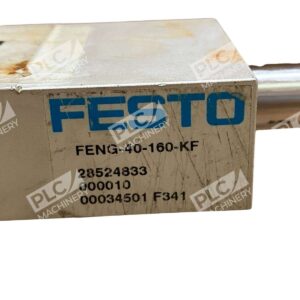

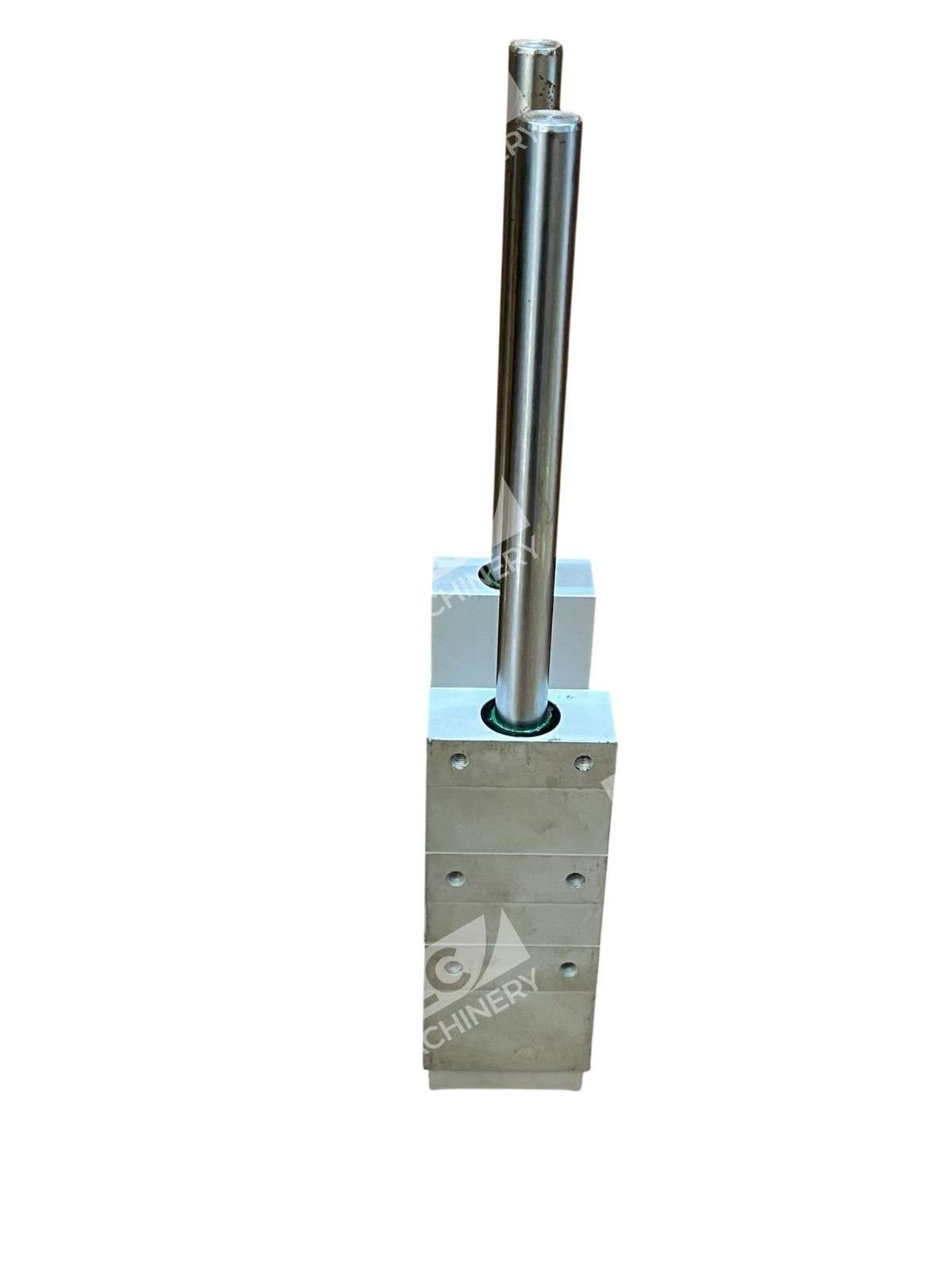

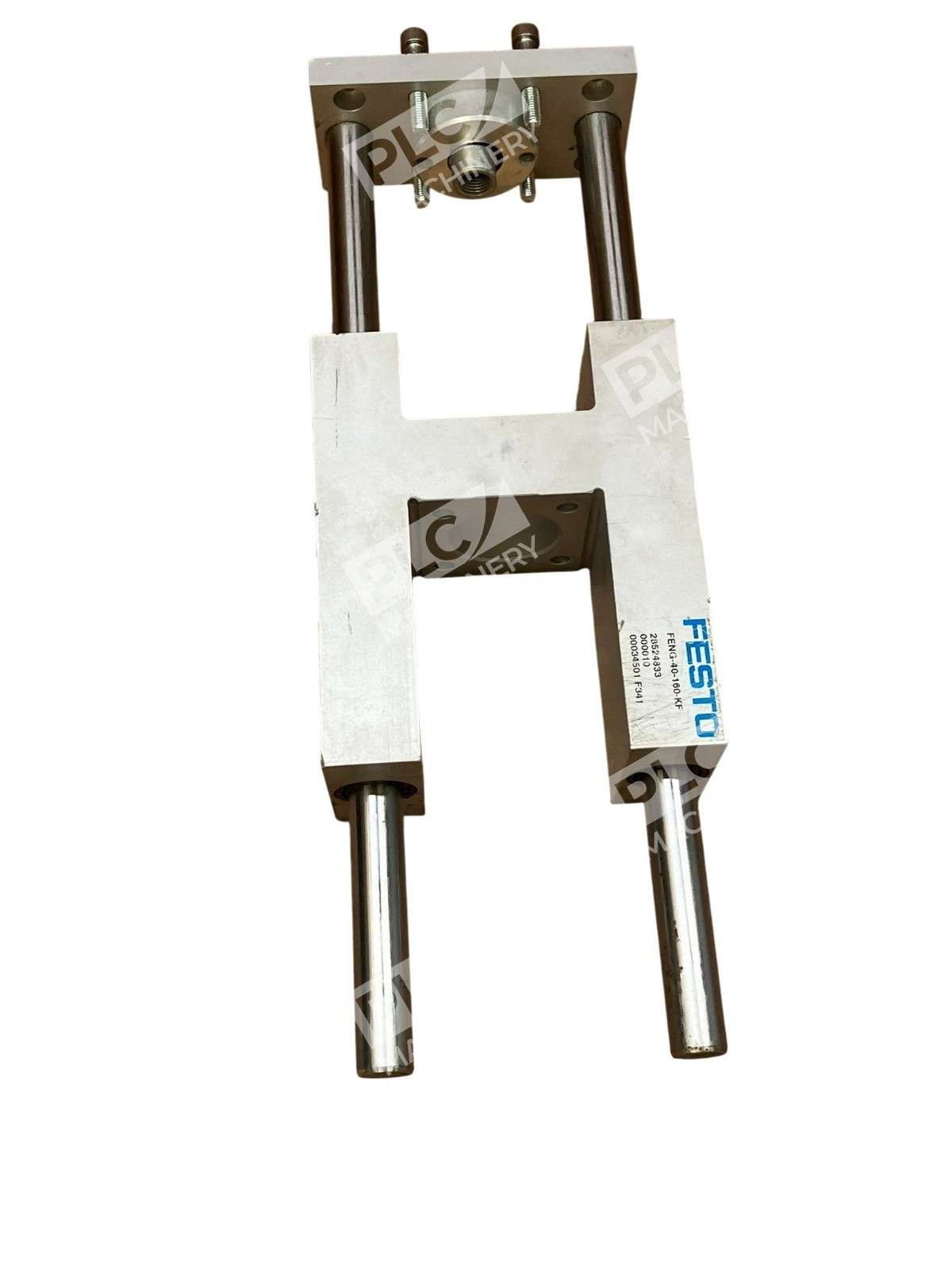

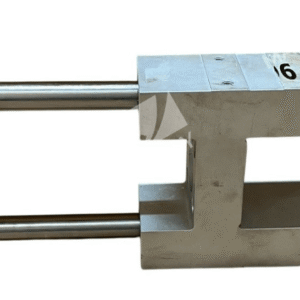

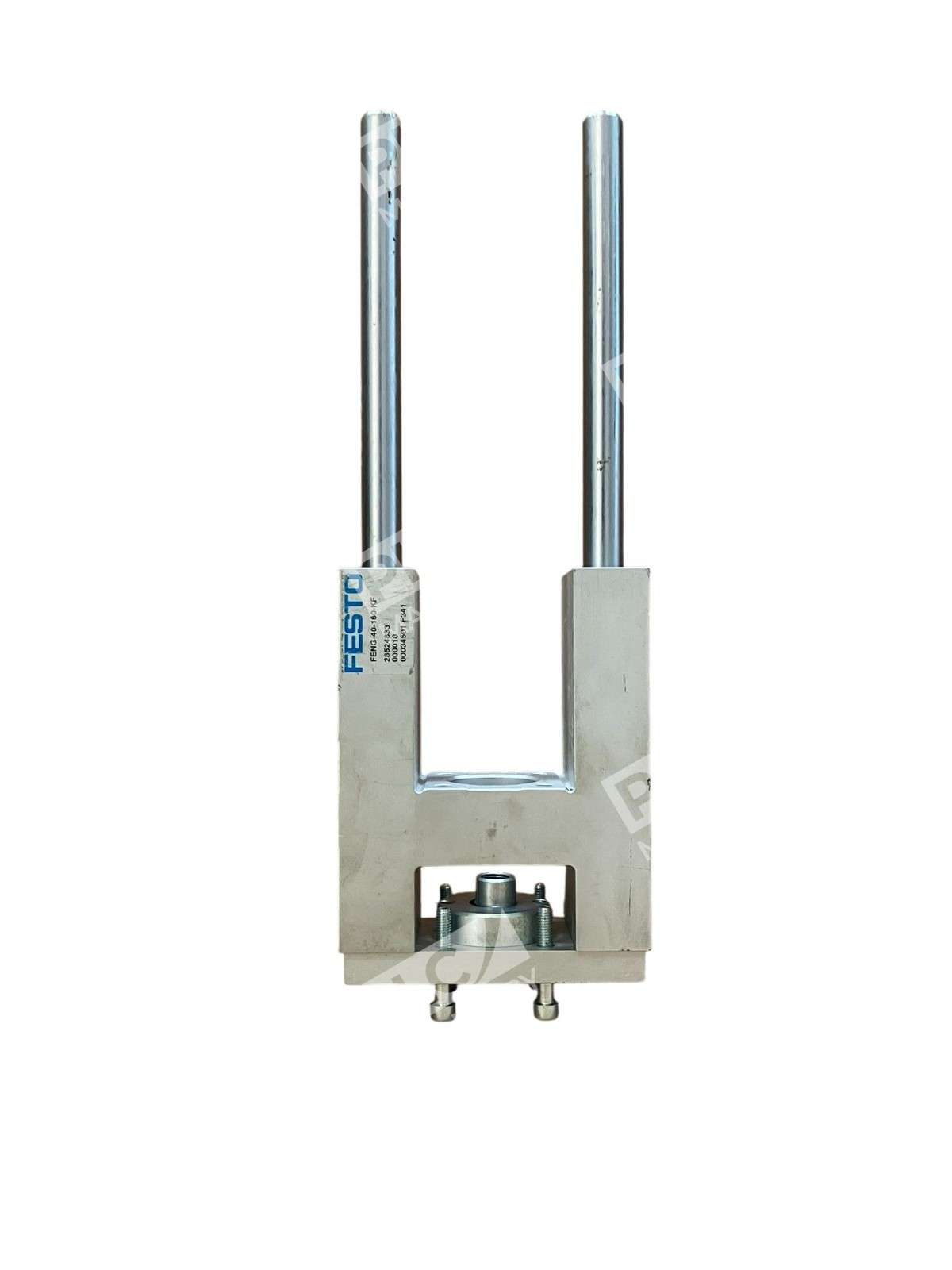

The Festo FENG-40-160-KF (Part No. 34501) is a precision guide unit engineered for standards-based ISO cylinders. This accessory mount protects cylinders from unwanted torsion while delivering repeatable, accurate stroke guidance under dynamic and static loads. With a 40 mm piston diameter and 160 mm fixed stroke, it is ideal for compact installations requiring high-precision linear motion with lateral load capacity.
Key Features
- Recirculating ball bearing guide for smooth, low-friction stroke guidance
- Torsion protection for ISO standard cylinders (DNC, DSBC, DSBG series)
- Fixed 160 mm stroke design with 40 mm bore compatibility
- Arbitrary installation position allows flexible mounting orientation
- Service life load-dependent; payload and torque ratings available per datasheet
Technical Specifications
- Piston Diameter: 40 mm
- Stroke: 160 mm
- Guide Type: Recirculating ball bearing (KF designation)
- Installation Position: Arbitrary
- Ambient Temperature Range: –20 to +80 °C
- Compatible Cylinder Series: DNC, DSBC, DSBG (ISO 15552)
- Material: Steel/Aluminum construction
- Certifications: ISO 15552 compliance
Typical Applications
- Precision assembly and handling systems requiring anti-rotation guidance
- Industrial press and stamping automation with lateral load control
- Automated test stands and inspection machines
- Conveyor and material handling equipment in high-torque scenarios
- Machine tool spindle and workholding accessories
Compatibility & Replacements
Compatible With
- Festo DNC series ISO cylinders
- Festo DSBC series compact cylinders
- Festo DSBG series guide cylinders
- ISO 15552 standard-based cylinders (third-party manufacturers)
- Festo pneumatic and hydraulic control systems
Replaces / Drop-In Replacement For
- Direct replacement for part number 28524833
- Alternative to FENG-40-160-GF (plain bearing version) where ball bearing guidance is preferred
Works With
- ISO standard pneumatic cylinders DNC/DSBC/DSBG
- Festo proportional and servo control systems
- Modular pneumatic system components (DGCI, DGPL, DGPI manifolds)
- Standard cylinder mounting plates and SAE/ISO ports
