Overview

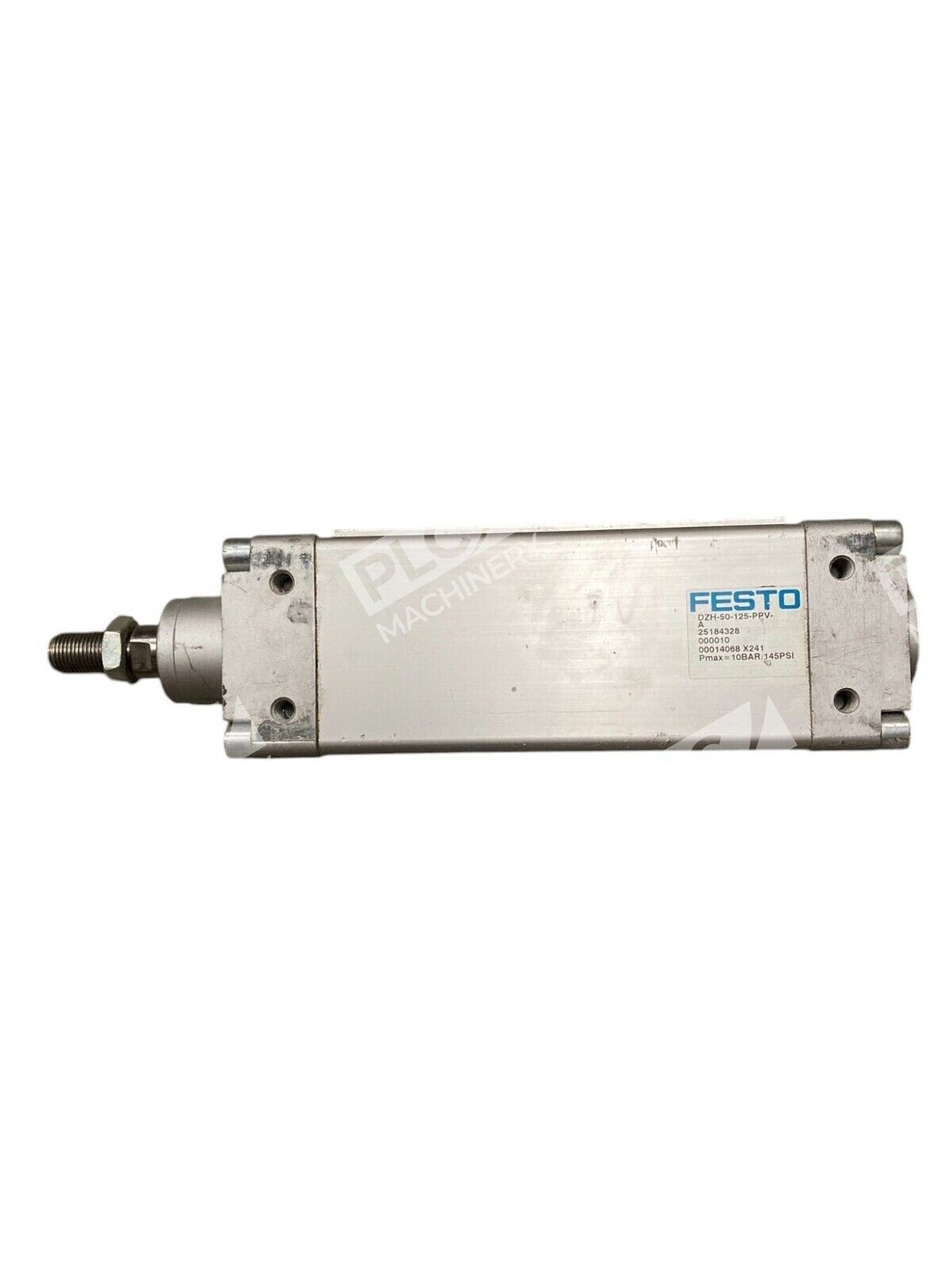

The Festo DZH-50-125-PPV-A is a compact, double-acting flat cylinder designed for space-constrained pneumatic applications. With a 50mm piston diameter and 125mm stroke length, this unit delivers reliable actuation at standard industrial pressures. The flat profile and non-rotating design make it ideal for precision positioning, clamping, and assembly tasks where rotation must be prevented. This is a used, tested unit in fully functional condition.
Key Features
- Compact flat cylinder design—optimized for tight mounting spaces and block assembly integration
- Non-rotating piston with special oval shape—prevents unwanted torque and rotation
- Adjustable pneumatic cushioning (PPV) at both ends—smooth deceleration, adjustable end-of-stroke dampening
- Built-in magnetic piston—compatible with proximity sensors for position feedback without external switches
- Multiple mounting options—flexible port and rod thread configurations for custom integration
- Operating range −20 to +80 °C—suitable for most industrial and workshop environments
Technical Specifications
Detailed performance data for the Festo DZH-50-125-PPV-A:
- Piston Diameter: 50 mm
- Stroke Length: 125 mm
- Series: DZH (Flat Cylinder, Double-Acting)
- Cushioning: PPV — Pneumatic, adjustable at both ends
- Port Type: Metric thread
- Position Sensing: Yes, magnetic piston for inductive proximity switch
- Max. Operating Pressure: 10 bar (145 psi)
- Temperature Range: −20 to +80 °C (standard seals); −0 to +120 °C (heat-resistant seals available)
- Design: Non-rotating, single-ended piston rod
- Mounting: Any position; base, trunnion, and other options available
- Condition: Used, tested, fully functional
Typical Applications
- Precision clamping and holding in machine tools and assembly fixtures
- Component positioning and transfer in manufacturing cells
- Load control in compact hydraulic/pneumatic systems with space constraints
- Automation and packaging equipment where flat profile is essential
- Industrial robots and collaborative automation arms requiring torque-free actuation
Compatibility & Replacements
Compatible With
- Standard pneumatic control systems operating at 4–10 bar (58–145 psi)
- Pneumatic valve blocks and manifold assemblies with metric ports
- PLC/discrete control systems with proximity sensor input (12 VDC typical)
- ISO 4401 solenoid directional valves and proportional controls
- Festo CETOP and standard metric port interfaces
Replaces / Drop-In Replacement For
The DZH-50-125-PPV-A is a standard catalog item. Verify compatibility with your system integrator before ordering if replacing an older or non-standard cylinder variant.
Works With
- Festo pneumatic control systems (CPX, VUVG, DHPS, etc.)
- Standard industrial PLC I/O modules (24 VDC proximity sensor inputs)
- Proportional pressure regulators and flow control valves
- Inductive proximity switches (PNOZ, MPS, CMS series compatible)
- Pneumatic tubing and hose systems with metric adapters
