Overview

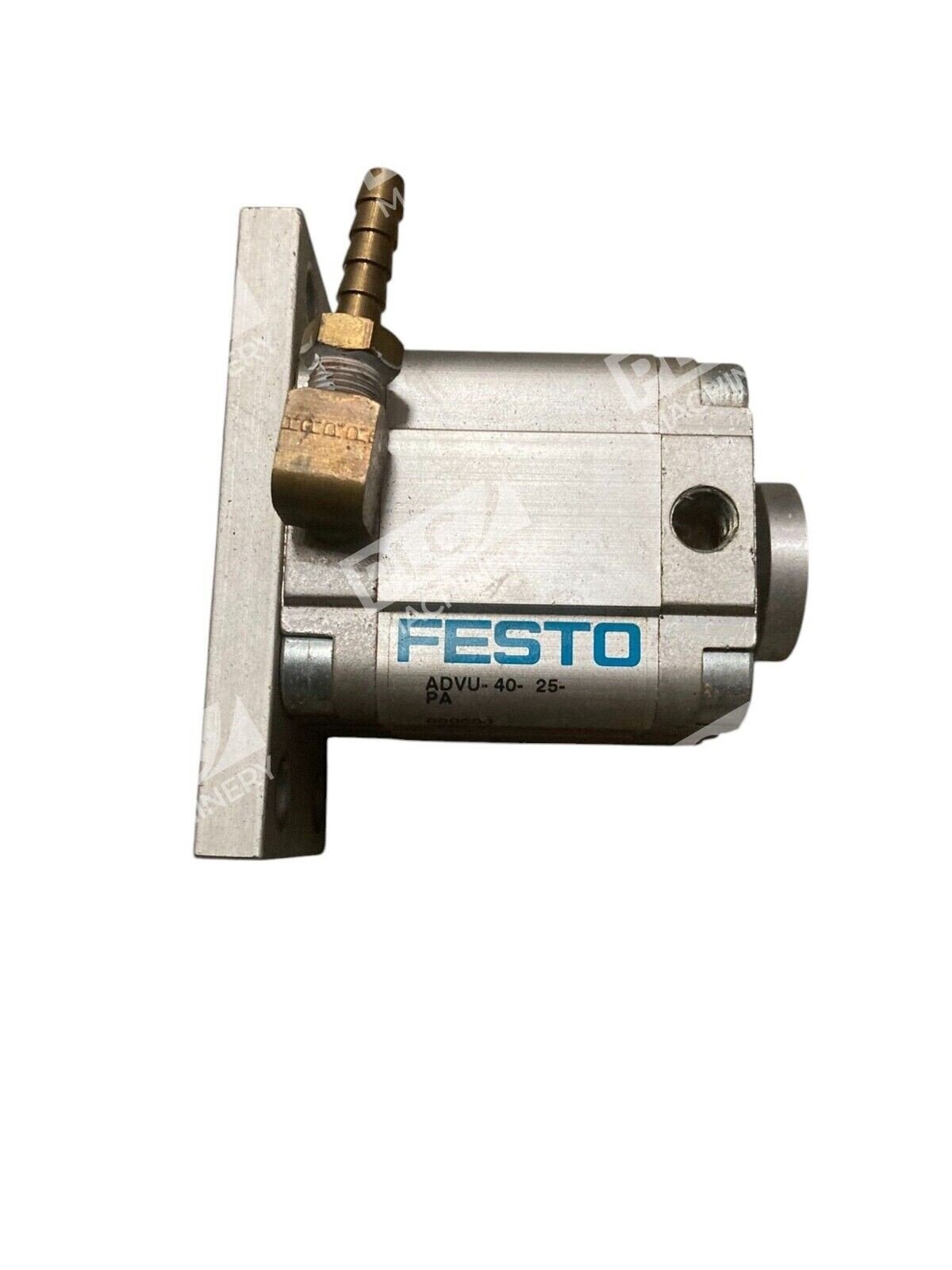

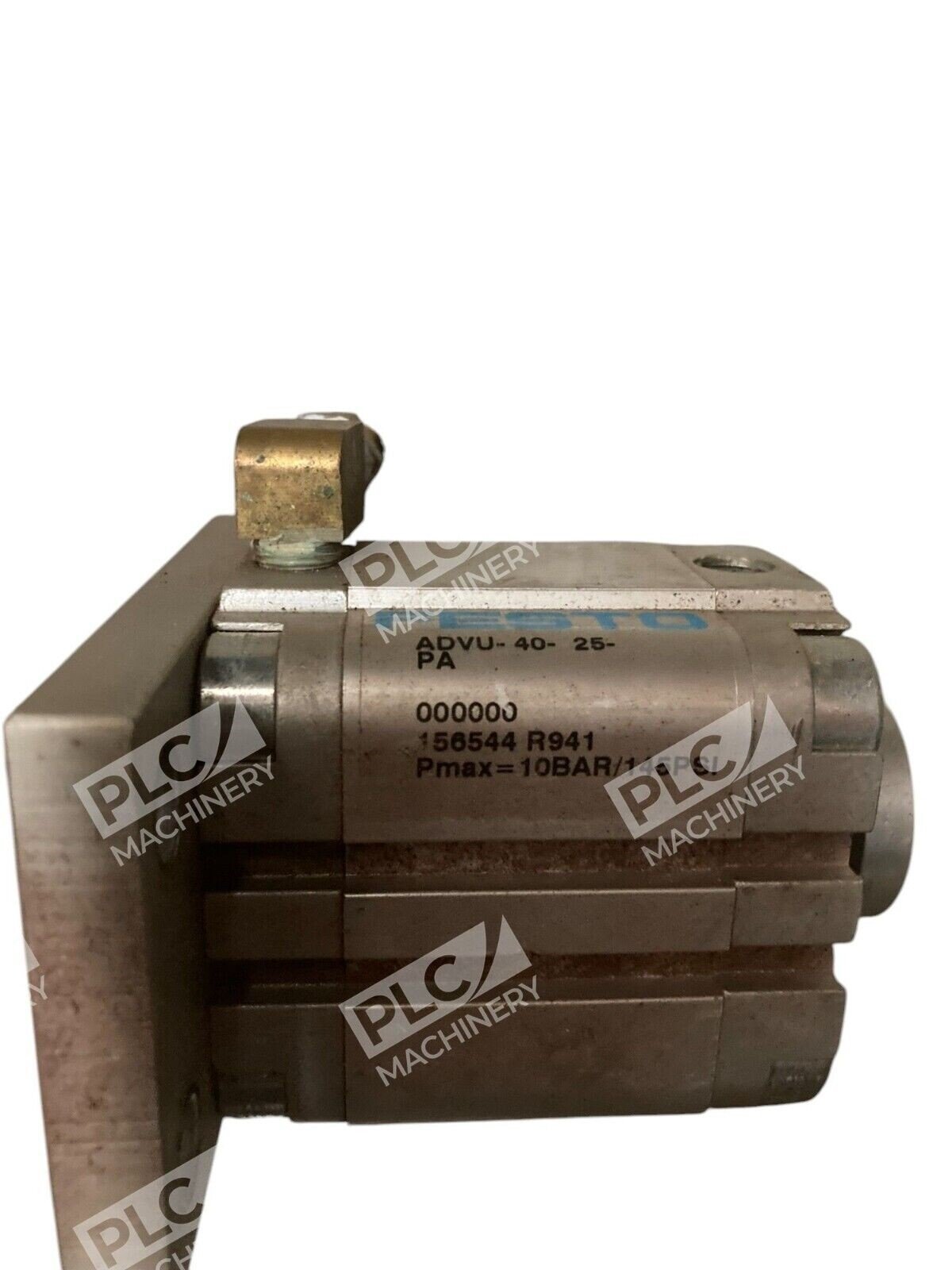

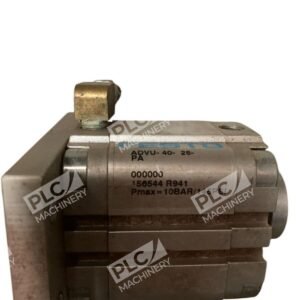

The Festo ADVU-40-25-PA is a versatile compact pneumatic cylinder engineered for demanding industrial automation applications. With a 40mm bore and 25mm stroke, this double-acting cylinder delivers consistent force output across its rated pressure range of 10 BAR (145 PSI). Built with aluminum construction and high-alloy steel components, the ADVU-40-25-PA provides reliable performance in assembly lines, material handling, and precision positioning tasks.
Key Features
- Double-acting pneumatic cylinder with compact form factor
- Elastic cushioning rings/plates at both ends reduce impact shock
- Female thread piston-rod end (M6) for versatile mounting configurations
- Built-in magnet for position sensing via proximity sensor
- Aluminum alloy barrel and cover with galvanized steel flange construction
- Operates on compressed air per ISO 8573-1:2010 [7:4:4] standard
- Oil-lubricated operation supported (continuous lubrication required if used)
Technical Specifications
- Bore Diameter: 40 mm (1.57 inch)
- Stroke Length: 25 mm (0.9843 inch)
- Maximum Operating Pressure: 10 BAR (145 PSI)
- Minimum Operating Pressure: 0.08 BAR (1.16 PSI)
- Rated Force (advance): 169 lbs (76.87 kg)
- Operating Temperature Range: -20 to 80°C (-4 to 176°F)
- Cylinder Action: Double-acting
- Piston Rod Design: Female thread end
- Pneumatic Connection: G1/8 port
- Body Material: Aluminum (barrel and cover), Galvanized steel flange
- Piston Rod Material: High-alloy steel
- Dynamic Seals: Nitrile rubber (NBR) / Thermoplastic polyurethane (TPE-U/PU)
- Cushioning: Elastic cushioning rings/plates at both ends
- Manufacturer Part Number: 156544
Typical Applications
- Automation assembly lines requiring compact linear actuation
- Material handling and transfer systems
- Precision positioning and clamping fixtures
- Industrial press and stamping equipment
- Conveyor gate and damping control applications
- Machine tool mounting and workholding
Compatibility & Replacements
Compatible With
- ISO 4401 (CETOP-05) pneumatic circuit configurations
- Standard G1/8 compressed air supply lines and fittings
- Festo proximity sensor systems (magnet-compatible)
- Industrial pneumatic valve manifolds with G1/8 ports
- PLC and automation controller feedback systems
Replaces / Drop-In Replacement For
- Verify with system integrator for existing installation compatibility
- Direct interchange with other ADVU-40-25-PA units (Festo part 156544)
- May substitute other compact 40mm bore cylinders with 25mm stroke and G1/8 connection after pressure/force verification
Works With
- Festo automated design systems and CAD libraries
- Standard ISO 4401 solenoid valve controls
- Manual directional control valves and proportional valve systems
- Pneumatic logic circuits and shuttle valve assemblies
- Position detection via proximity sensors and LVDT transducers
