Overview

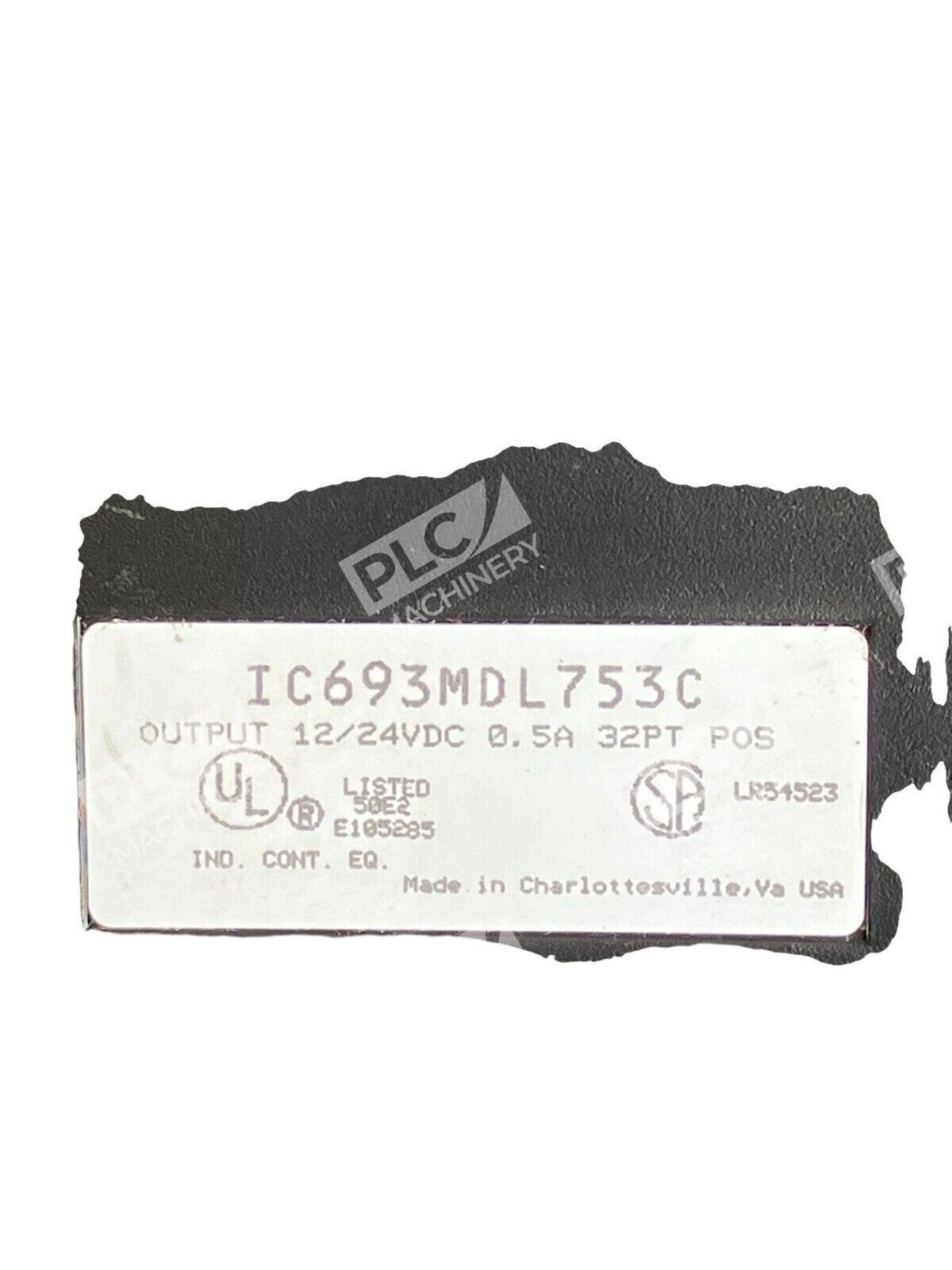

Fanuc IC693MDL753C is a discrete output module engineered for the Series 90-30 Programmable Logic Controller platform. This 12/24 volt DC, 0.5A positive logic output module is designed for the Series 90-30 PLC and is equipped with 32 discrete outputs. The module features opto-couplers that provide backplane isolation between the field side and logic side. It is a reliable interface module for controlling industrial equipment and field devices in manufacturing and process automation environments.
Key Features
- 32 discrete outputs arranged in four separate isolated groups of eight, with each group having its own dedicated common
- Sourcing-type outputs that switch loads on the positive side of the power supply with capability to switch loads from +12 through +24 VDC and source current to a maximum of 0.5 amps per point

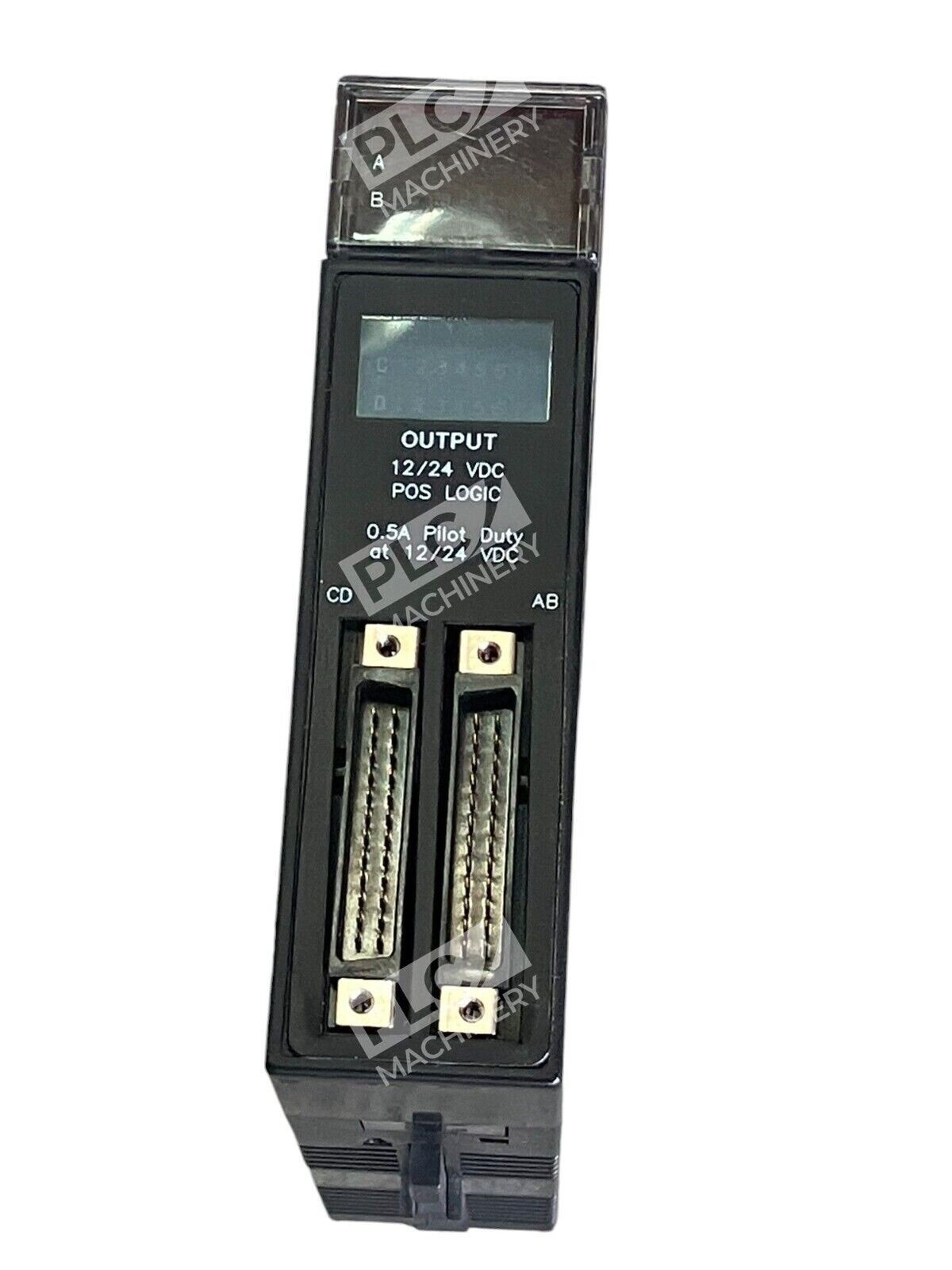

- Two male 24-pin connectors on the front module; output groups A and B use the right connector, while groups C and D use the left connector
- Output current rating of 0.5 Amperes per point with 4 Amperes maximum per group and 3 Amperes maximum per common pin
- 250 Volts isolation and 100 Volts optical isolation between field side and logic side
- Positive logic control—high voltage = ON state; low voltage = OFF state
Technical Specifications
- Output Voltage Range: +12 through +24 VDC (+20%, –15%)
- Output Current per Point: 0.5 Amperes maximum
- Current per Output Group: 4 Amperes maximum
- Common Pin Current Rating: 3 Amperes maximum per group common pin
- Output Points: 32 discrete channels in 4 groups of 8 channels
- Connectors: Two male 24-pin connectors
- Backplane Isolation: 250 VAC group isolation; 100 VAC optical isolation
- Response Time: 0.5 ms for both signal transitions
- Backplane Current Draw: 260 mA at 5VDC
- Logic Type: Positive Logic
Typical Applications
GE Fanuc IC693MDL discrete I/O modules provide the interface between the PLC and external output devices such as contactors, interposing relays, BCD displays, and indicator lamps. Common applications include:
- Machine tool and CNC equipment control
- Factory automation and discrete manufacturing
- HVAC and building systems control
- Process control and environmental monitoring
- Conveyor and material handling systems
- Solenoid valve and motor starter control
Compatibility & Replacements
Compatible With
- Series 90-30 PLC system
- Any I/O slot of the Series 90-30 baseplate
- Series 90-30 CPU modules and backplanes
- Standard Series 90-30 wiring and terminal blocks
- Compatible cable assembly: IC693CBL315
Replaces / Drop-In Replacement For
The IC693MDL753C is the standard discrete 32-point positive logic output module for Series 90-30 systems. Direct replacement part numbers and equivalent modules should be verified through GE Fanuc/Emerson documentation or your authorized distributor to ensure compatibility with your specific baseplate revision.
Works With
- Series 90-30 Programmable Logic Controller (PLC) platform
- GE Fanuc PACSystems software and programming tools
- SRTP (Series 90-30 Remote Terminal Protocol) networks
- Standard 12/24VDC field devices (relays, contactors, solenoids, lamps)
