Overview

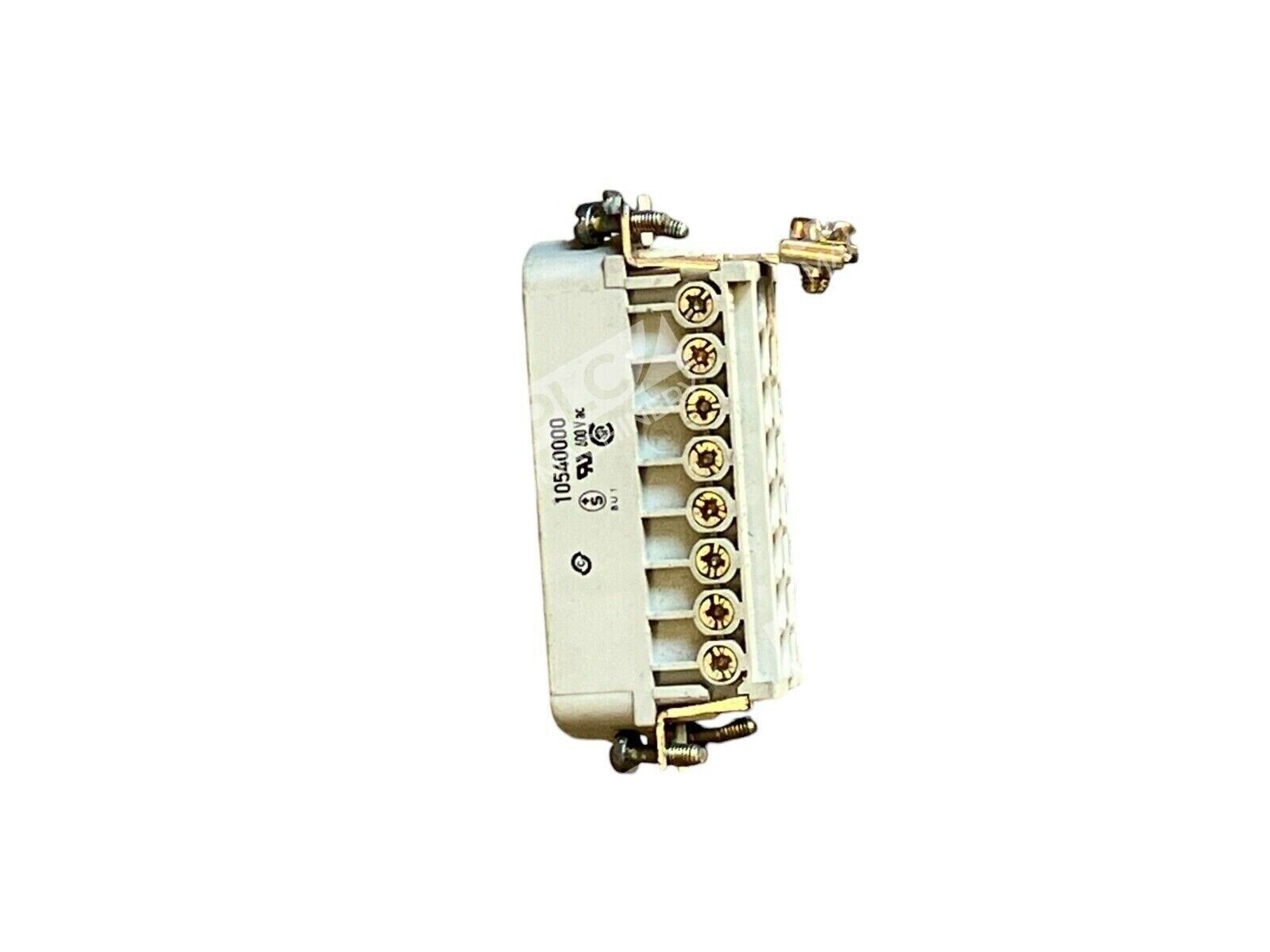

The Lapp Epic 10540000 is an industrial-grade rectangular connector plug insert designed for reliable power and control signal transmission. As part of the proven EPIC H-A 16 series, this connector combines durability with proven performance in machine automation, control cabinets, and drive technology applications. The screw termination design allows secure wire connections without special tooling, making it suitable for both new installations and retrofit applications.
Key Features
- 16+PE Conductor Configuration: Provides 16 contact positions plus protective earth (PE) for complete signal and power transmission
- Screw Termination: Tool-free, field-friendly connection method suitable for 14–20 AWG wire
- Hard Silver-Plated Contacts: Corrosion-resistant copper alloy contacts rated 1.5–4 milliohms for low-loss, reliable connections
- Multiple Voltage Standards: UL/CSA rated at 600V; IEC rated at 250V, supporting international applications
- Wide Temperature Range: Rated –40°C to +100°C, suitable for diverse industrial environments
- Certified and Compliant: RU Listed, CSA Certified, RoHS compliant, and VDE registered for machine and apparatus construction
Technical Specifications

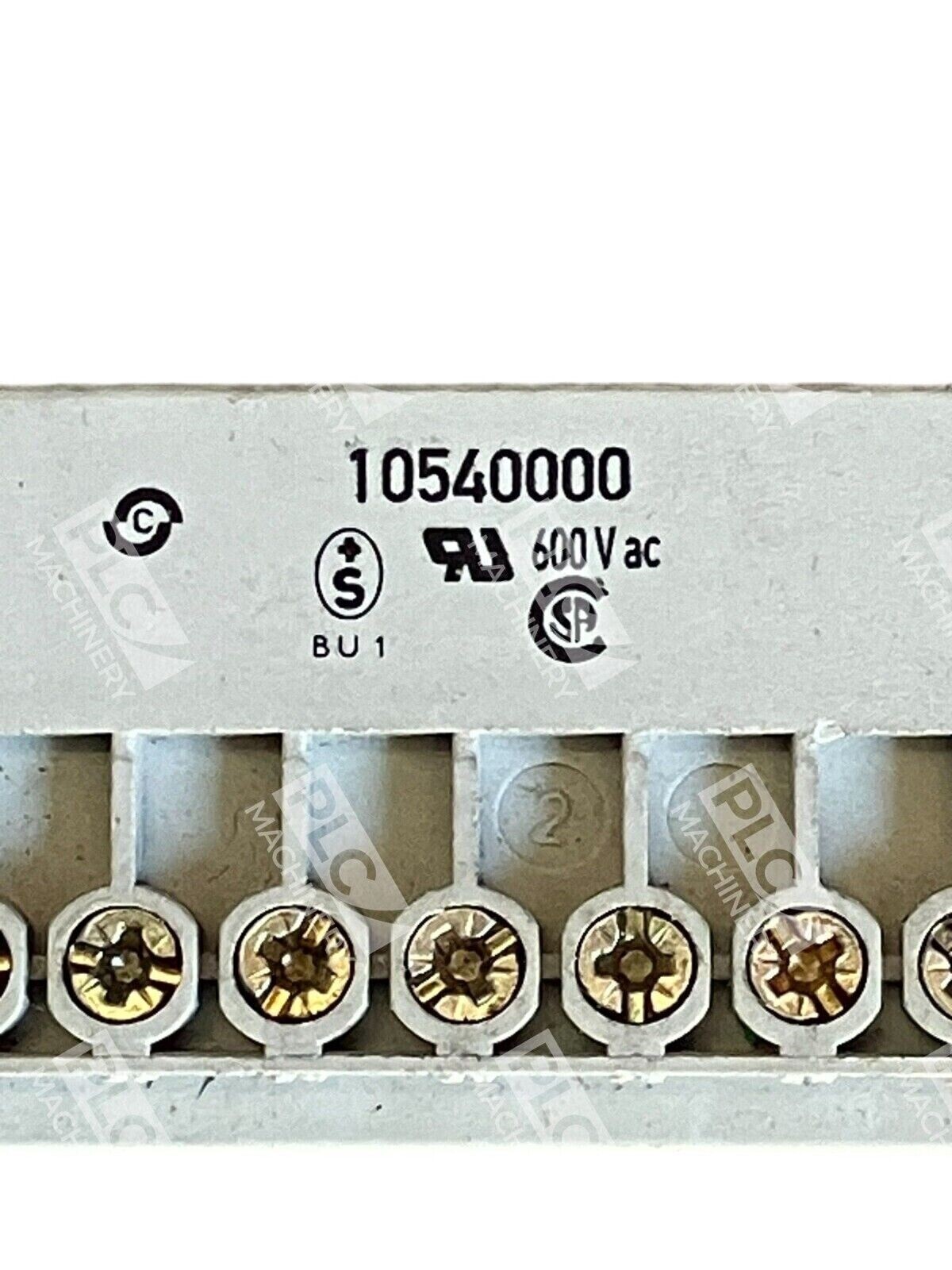

| Specification | Value |
| Manufacturer | Lapp USA |
| Part Number | 10540000 |
| Series | EPIC H-A 16 |
| Connector Type | Rectangular Plug Insert (Male) |
| Number of Conductors | 16+PE (17–32 available via pairing) |
| Connection Method | Screw Termination |
| Wire Gauge | 20–14 AWG (0.5–2.5 mm²) |
| Voltage Rating (UL/CSA) | 600 V |
| Voltage Rating (IEC) | 250 V |
| Amperage Rating (UL) | 14 A |
| Amperage Rating (CSA) | 16 A |
| Amperage Rating (IEC) | 16 A |
| Operating Temperature | –40°C to +100°C |
| Contact Material | Hard Silver-Plated Copper Alloy |
| Contact Resistance | 1.5–4 milliohms |
| Mechanical Durability | 100 mating cycles |
| Impulse Rating | 4 kV |
| Environmental Protection | IP 65, 67, 68 available (housing dependent) |
| Certifications | RU Listed, CSA Certified, RoHS Compliant, VDE 437 |
Typical Applications
- Machine building and automation control systems
- Industrial drive technology and power distribution
- Control cabinet interconnection and signal transmission
- Plant engineering and process control systems
- Measurement, testing, and monitoring equipment
- DIN-compliant rectangular connector replacement in legacy systems
Compatibility & Replacements
Compatible With
- Lapp EPIC H-A rectangular connector housings (16-way models)
- Lapp EPIC frame systems and modular insert assemblies
- Standard DIN-type rectangular connectors (intermateable)
- Industrial control systems requiring 16–32 conductor capacity
- Machines and apparatus built to VDE and international standards
Replaces / Drop-In Replacement For
- Legacy EPIC H-A 16 inserts requiring conductor upgrade or maintenance replacement
- Equivalent DIN-type rectangular connector inserts (contact Lapp technical support for specific part cross-references)
Works With
- Lapp EPIC rectangular connector systems (Standard and ULTRA series)
- Standard industrial control software and HMI platforms (connector-agnostic)
- Modular EPIC configurations for data, signal, power, and pneumatic modules
- Pin and sleeve power connector systems (where integrated into cabinet designs)
