Overview

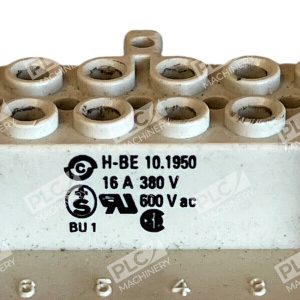

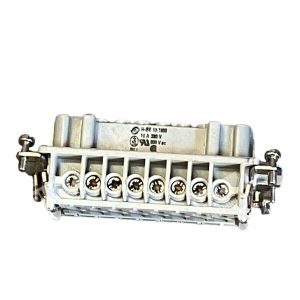

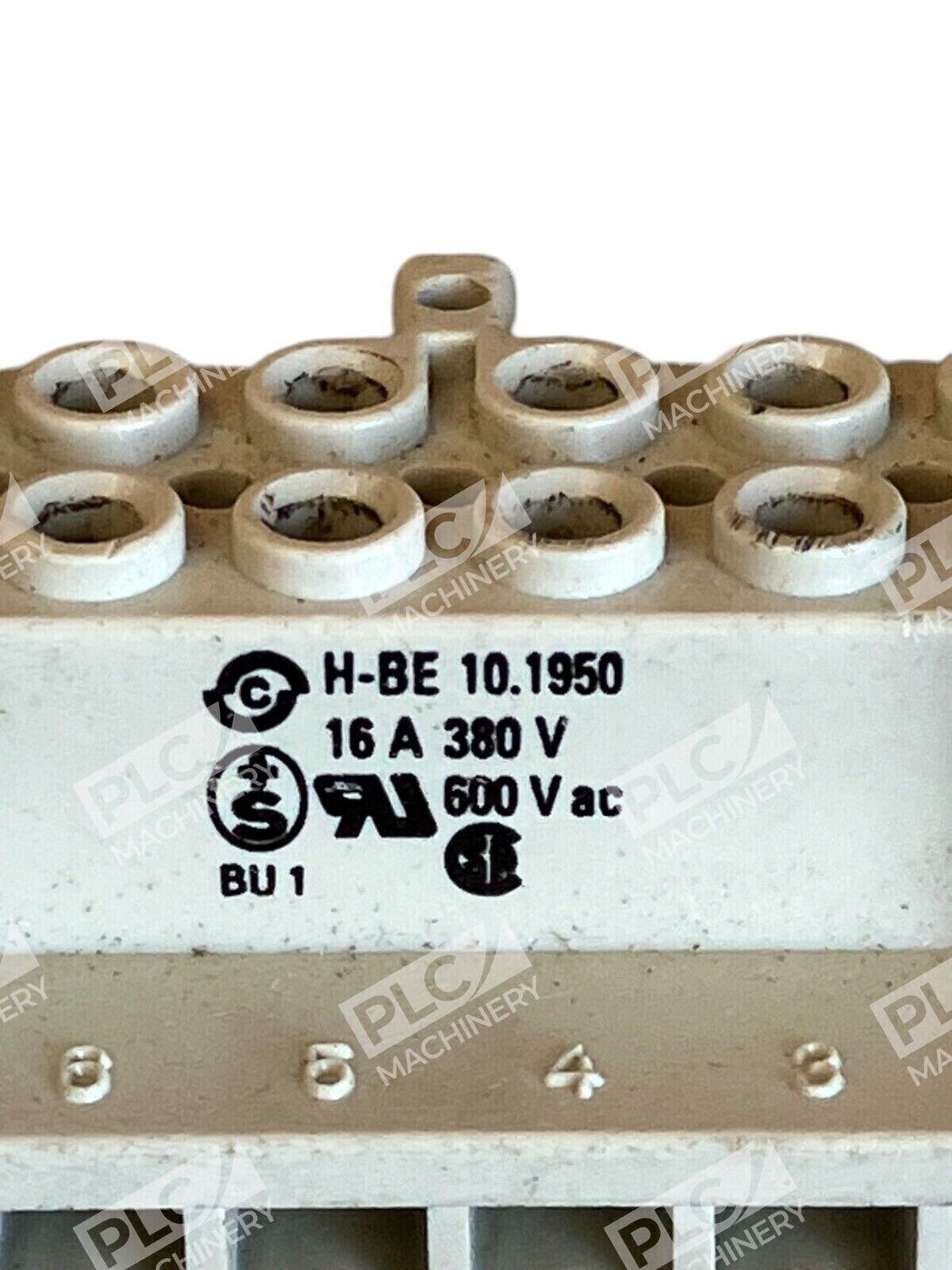

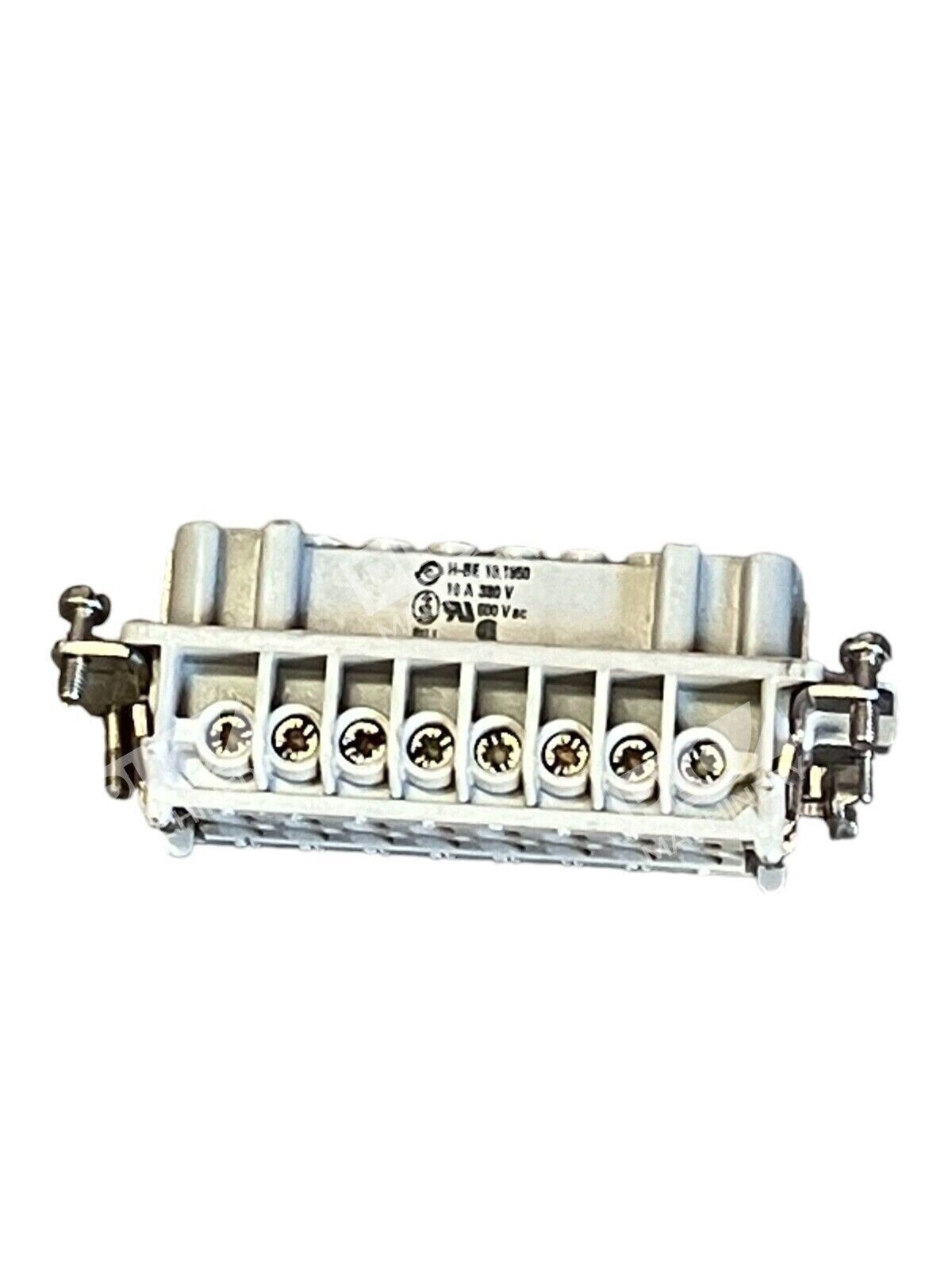

The Epic H-BE10.1950 is a 16-contact standard insert connector designed for demanding industrial applications requiring reliable high-voltage and high-current connections. The insert features screw termination and female hard silver plated copper alloy contacts. This connector is part of the EPIC® H-BE series, a proven standard for harsh environments, control cabinets, and railway applications.
Key Features
- 16 contacts, screw-terminated for secure wire connection
- Hard silver-plated copper contacts for reliability and conductivity
- Rated 600V / 16A across 380V DC typical industrial supply
- UL tested for control cabinet application per UL 508 / UL 2237
- Compatible with EPIC H-BE series rectangular housings and hoods
- Flammability rating: UL94 V-0 plastic construction
Technical Specifications
- Voltage Rating: 600V / 380V DC
- Current Rating: 16A per contact
- Number of Contacts: 16 (16+PE standard)
- Contact Type: Female, screw termination
- Contact Material: Hard silver-plated copper alloy
- Insert Type: Standard Insert
- Mounting: Panel-mount with corresponding H-BE housing
- Certifications: UL 508, UL 2237, VDE-REG, EN 45545-2 (railway)
- Flammability: UL94 V-0
Typical Applications
- Control cabinet power distribution and signal routing
- Railway systems with fire protection requirements (EN 45545-2 R22/R23, HL1-HL3)
- Industrial motor control and high-current switching
- Power automation and panel-mount installations
- Heavy equipment and machinery electrical integration
- Any application requiring secure 16-point connections at 600V/16A or less
Compatibility & Replacements
Compatible With
- EPIC H-BE rectangular connector housings (all sizes)
- EPIC H-BE 10-contact hood assemblies
- Panel-mount and surface-mount H-BE housing bases
- Standard 2mm test probe sockets for signal testing
- Wire gauges: 16 AWG–1 AWG (per insert specifications)
Replaces / Drop-In Replacement For
- LAPP USA Epic H-BE 10.1950 (all variants)
- Contact Connectors H-BE10.1950
- Other 16-contact, 600V, 16A screw-terminal inserts within H-BE footprint
Works With
- EPIC H-BE series housing kits and assemblies
- Standard rectangular connector hoods with integrated locking levers
- Control cabinet wiring and terminal block integration
- Railway-grade applications per EN 45545-2 and UL 508 standards
