Overview

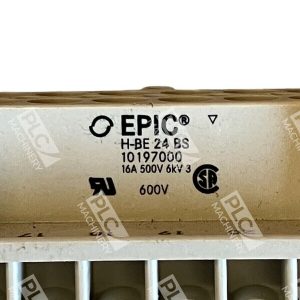

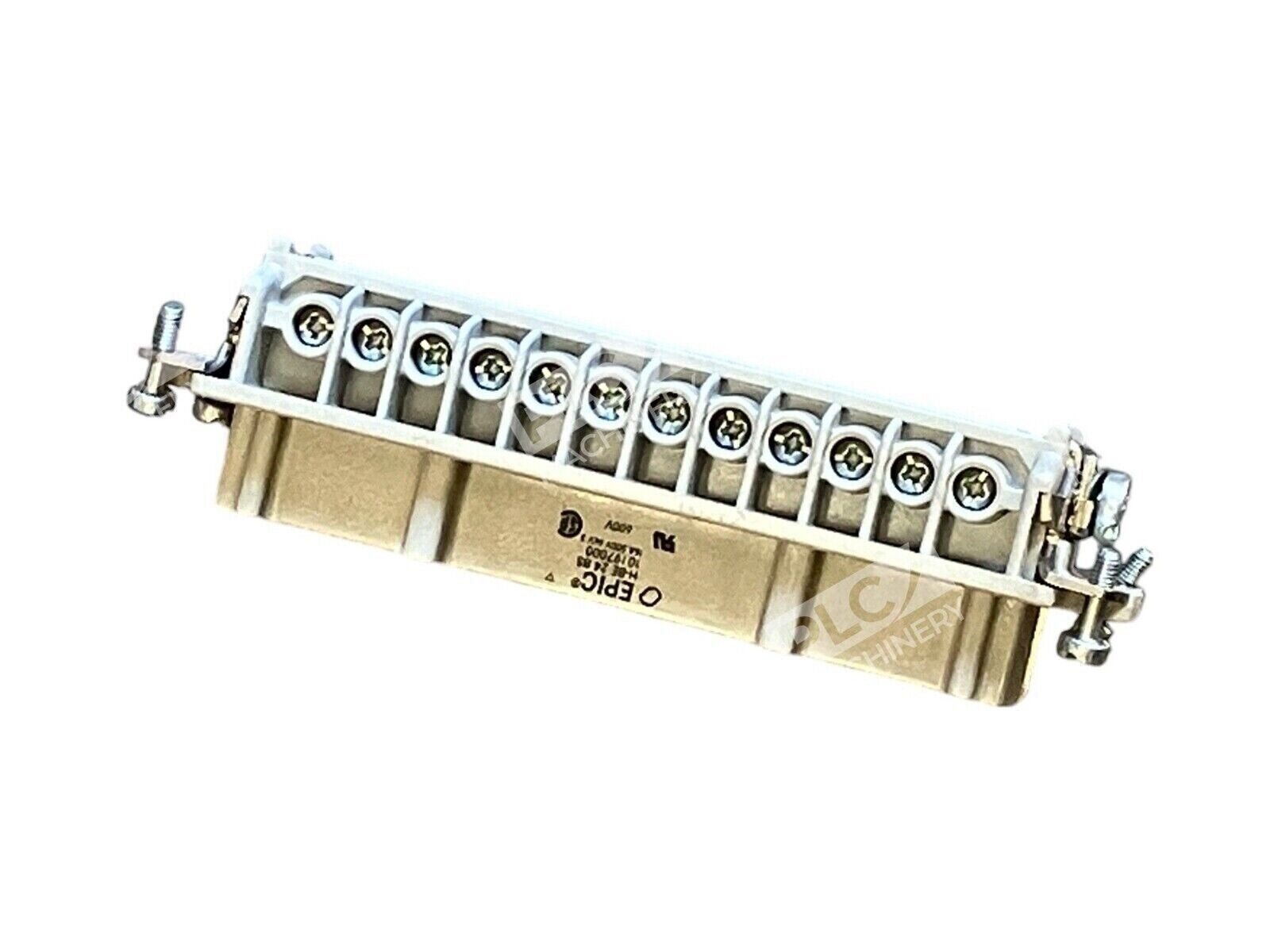

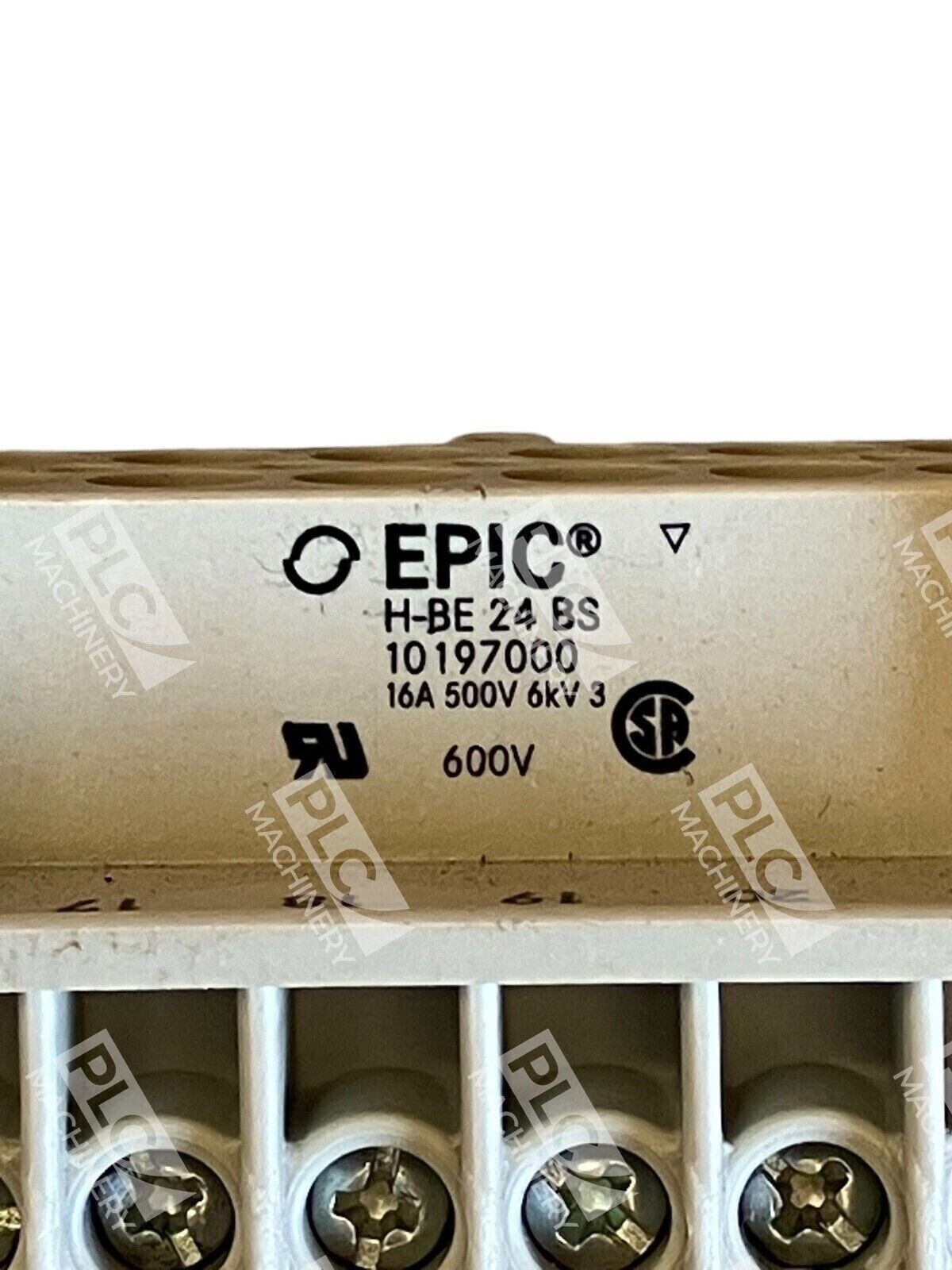

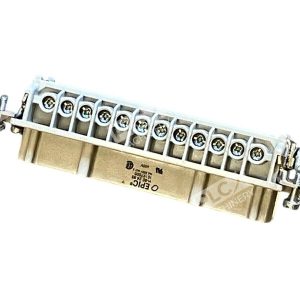

The Epic H-BE 24 BS DR 10197000 is a rectangular connector insert designed for high-reliability industrial applications requiring secure multi-conductor connections. This 24-way female receptacle insert features screw-type wire termination and hard silver-plated copper alloy contacts, making it ideal for machinery, control panels, and automation systems.
Key Features
- 24 Conducting Ways Plus PE Ground — supports complex multi-signal and power distribution requirements
- Screw Termination — secure, field-serviceable wire connections without crimping tools
- Hard Silver-Plated Contacts — exceeds 2 milliohm contact resistance specification for low-loss signal integrity
- 6 kV Impulse Rating — transient overvoltage protection for sensitive applications
- Industrial Temperature Range — rated -40 to +100°C for harsh factory environments
- Certified & Compliant — UL listed, CSA certified, VDE approved, RoHS compliant
Technical Specifications
- Amperage Rating: 16A (UL, CSA, IEC)
- Voltage Rating: 500V AC/DC (IEC) / 600V AC/DC (UL, CSA)
- Impulse Voltage: 6 kV (3 consecutive impulses)
- Number of Conductors: 24 + PE (protective earth)
- Contact Type: Hard silver-plated copper alloy
- Contact Resistance: <2 milliohm (specified)
- Termination Method: Screw
- Material: Polycarbonate housing
- Mechanical Cycles: 100 operations rated
- Operating Temperature: -40 to +100°C (sustained); +125°C (short duration)
- Dimensions: 111 mm (W) × 34 mm (D) × 31.2 mm (H)
- Pollution Degree: 3
- Standards: UL/CSA/VDE certified
Typical Applications
The Epic H-BE 24 BS DR connector insert is commonly deployed in:
- Industrial machinery control and interface cabinets
- Automated production line interconnects
- High-voltage equipment enclosures requiring sealed connectors
- Plastics processing and molding equipment
- Manufacturing systems with multi-signal bundling requirements
- Test and measurement panel interfaces
Compatibility & Replacements
Compatible With
- Epic H-BE series plug and housing assemblies (male counterparts)
- PG21 threaded entry enclosure openings
- Industrial control systems requiring 24-way connectivity
- Standard 35 mm DIN-rail mounted terminal blocks (via panel interface)
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The Epic H-BE 24 BS DR (10197000) insert is a female receptacle designed to mate with male H-BE 24-way plugs of the same voltage and amperage class. Check your existing connector housing and plug assembly part numbers to confirm fit.
Works With
- Epic H-BE 24-way male connector inserts (plug side)
- LAPP Epic rectangular connector housings and hoods
- Standard industrial cable glands and sealing systems
- Automation and machinery panel designs using EPIC modular connector systems
