Overview

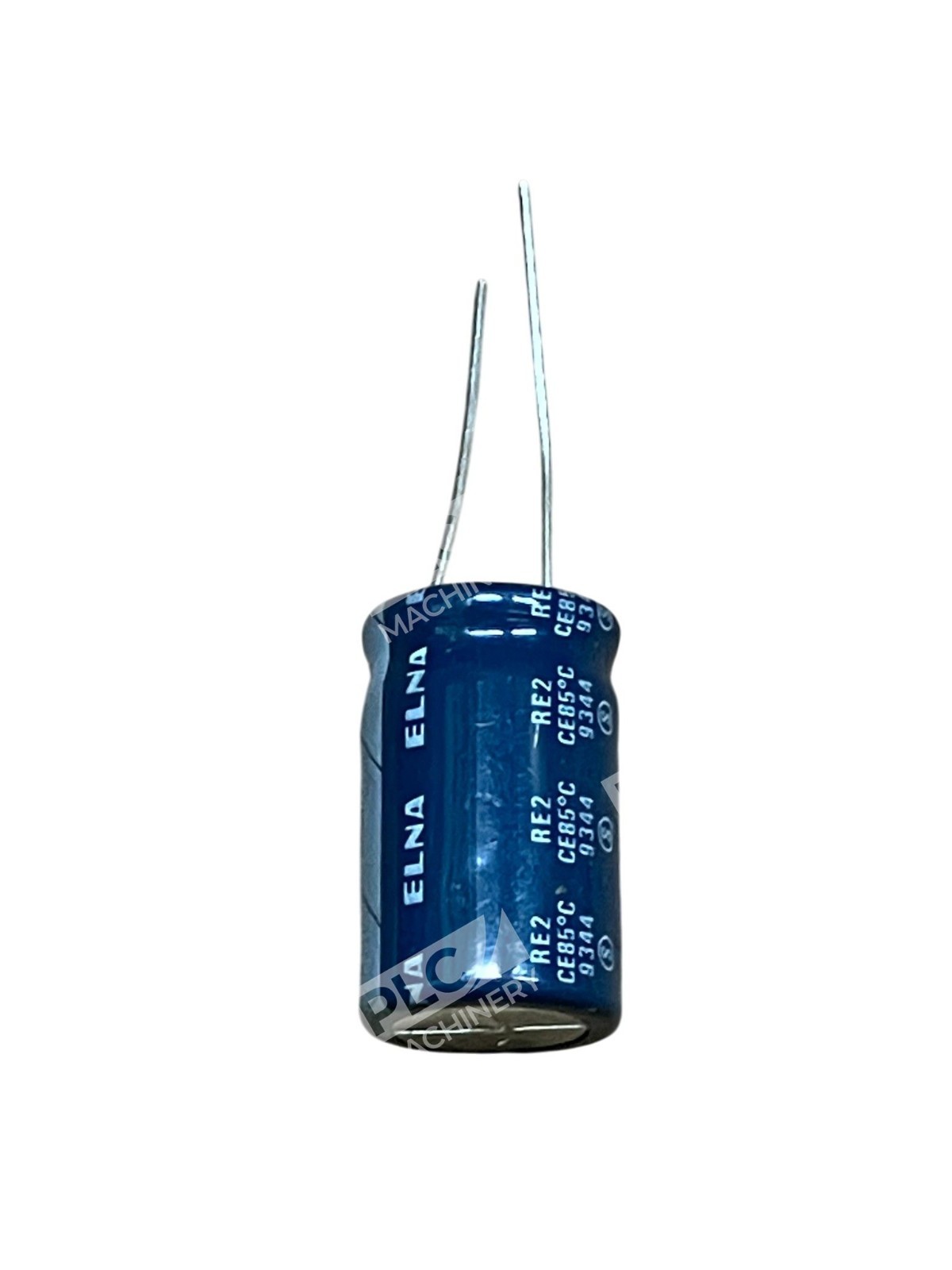

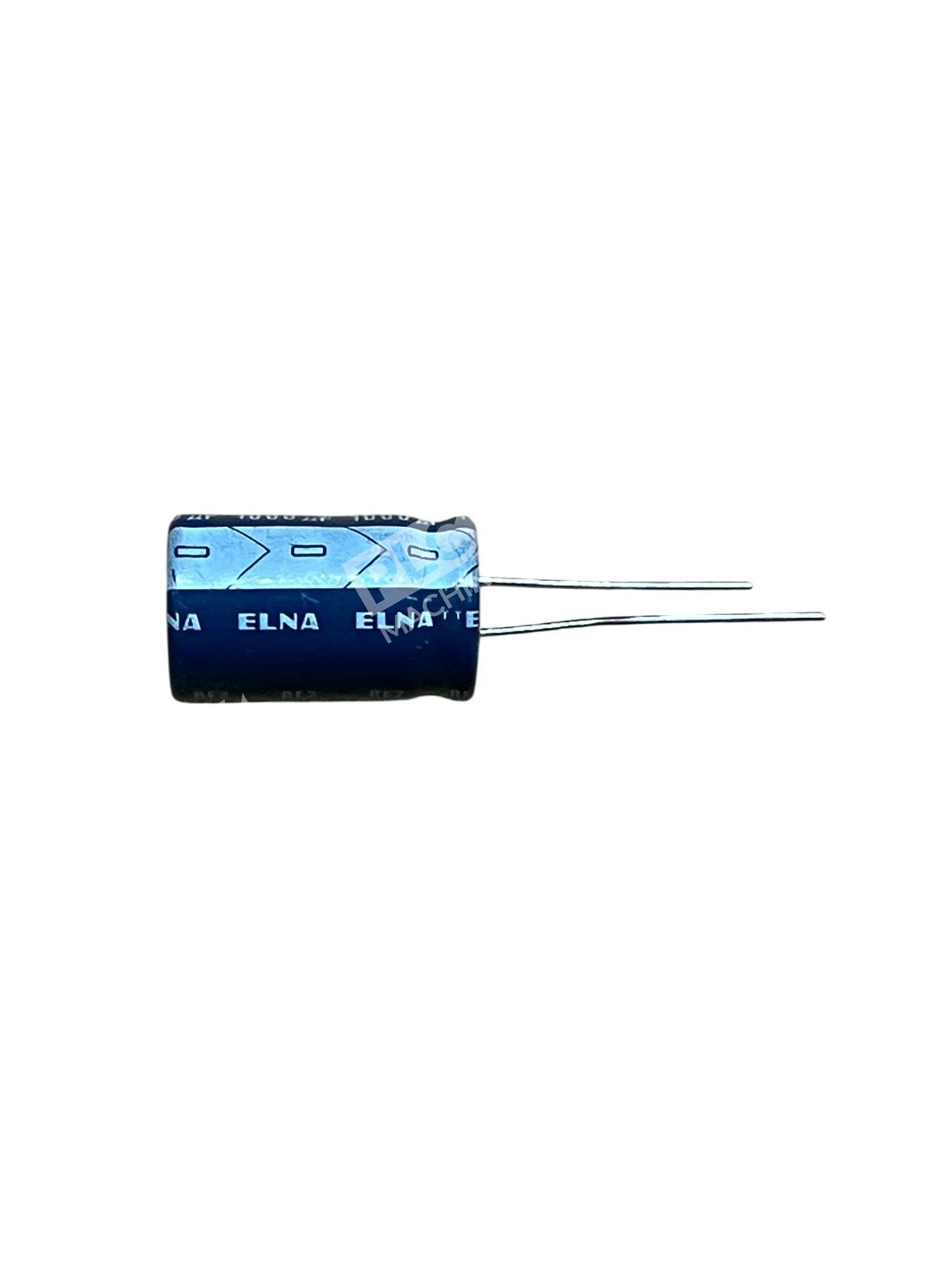

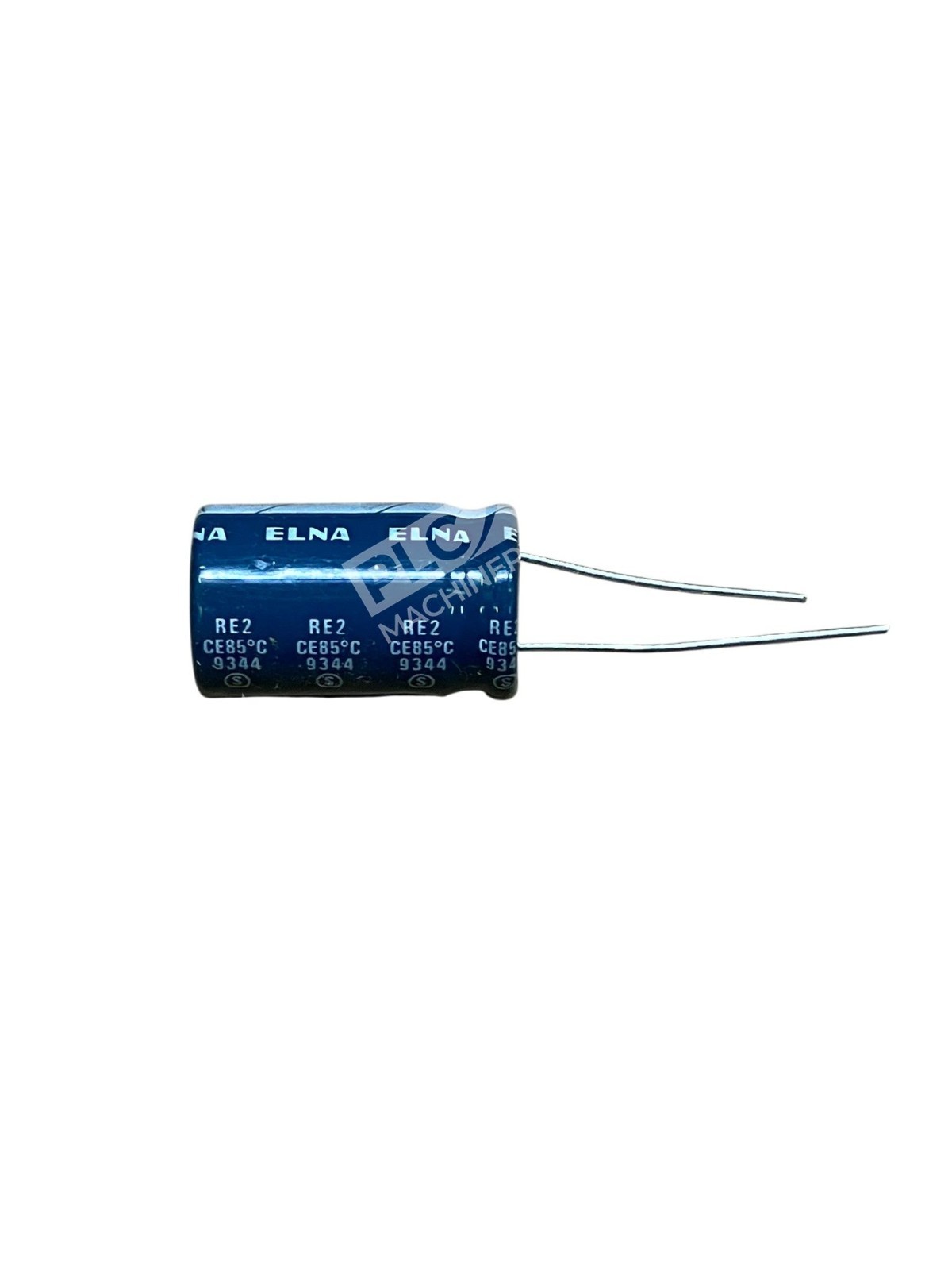

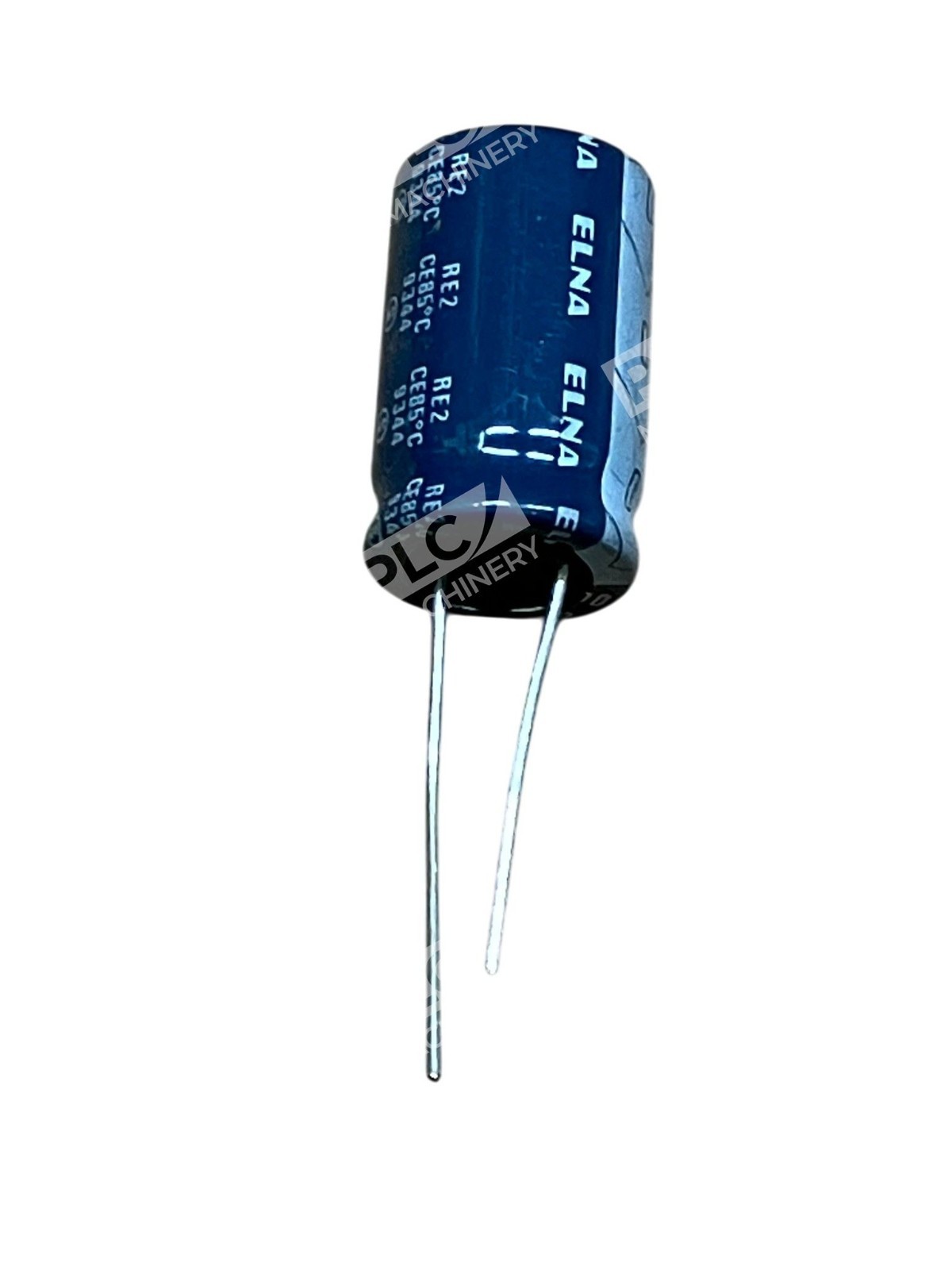

The Elna RE2 CE 85C 1000uF capacitor is a standard aluminum electrolytic capacitor designed for reliable operation in power supply filtering, energy storage, and AC/DC circuit applications. Built by Elna, a respected manufacturer of capacitor technology, this 1000uF unit delivers consistent electrical performance across industrial and consumer applications.
Key Features
- 1000µF capacitance with standard 20% tolerance
- 85°C operating temperature rating for stable thermal performance
- Lead/radial mount configuration for board-level integration
- Aluminum electrolytic construction for cost-effective filtering
- Suitable for power supply, audio, and motor control circuits
Technical Specifications
- Capacitance: 1000µF
- Temperature Rating: 85°C
- Type: Aluminum Electrolytic, Polarized
- Mount Style: Lead/Radial
- Tolerance: ±20%
- Series: RE2
Typical Applications
This capacitor is commonly used in:
- Industrial power supplies and rectifier circuits
- Audio amplifier output filtering
- Motor control and motor soft-start circuits
- Consumer electronics and appliance power sections
- DC ripple filtering in switched-mode supplies
Compatibility & Replacements
Compatible With
- Standard PCB footprints for 1000uF radial lead components
- Industrial and commercial power supply circuits
- Audio amplifier designs
- Motor soft-start and speed control applications
Replaces / Drop-In Replacement For
This Elna RE2 unit is a direct replacement for other 1000uF, 85°C aluminum electrolytic capacitors with matching lead pitch and voltage rating. Consult the specific circuit voltage requirement before substitution.
Works With
- Standard PCB assembly and soldering processes
- Through-hole insertion equipment
- Automated assembly lines
- Manual board-level rework and repair
