Overview

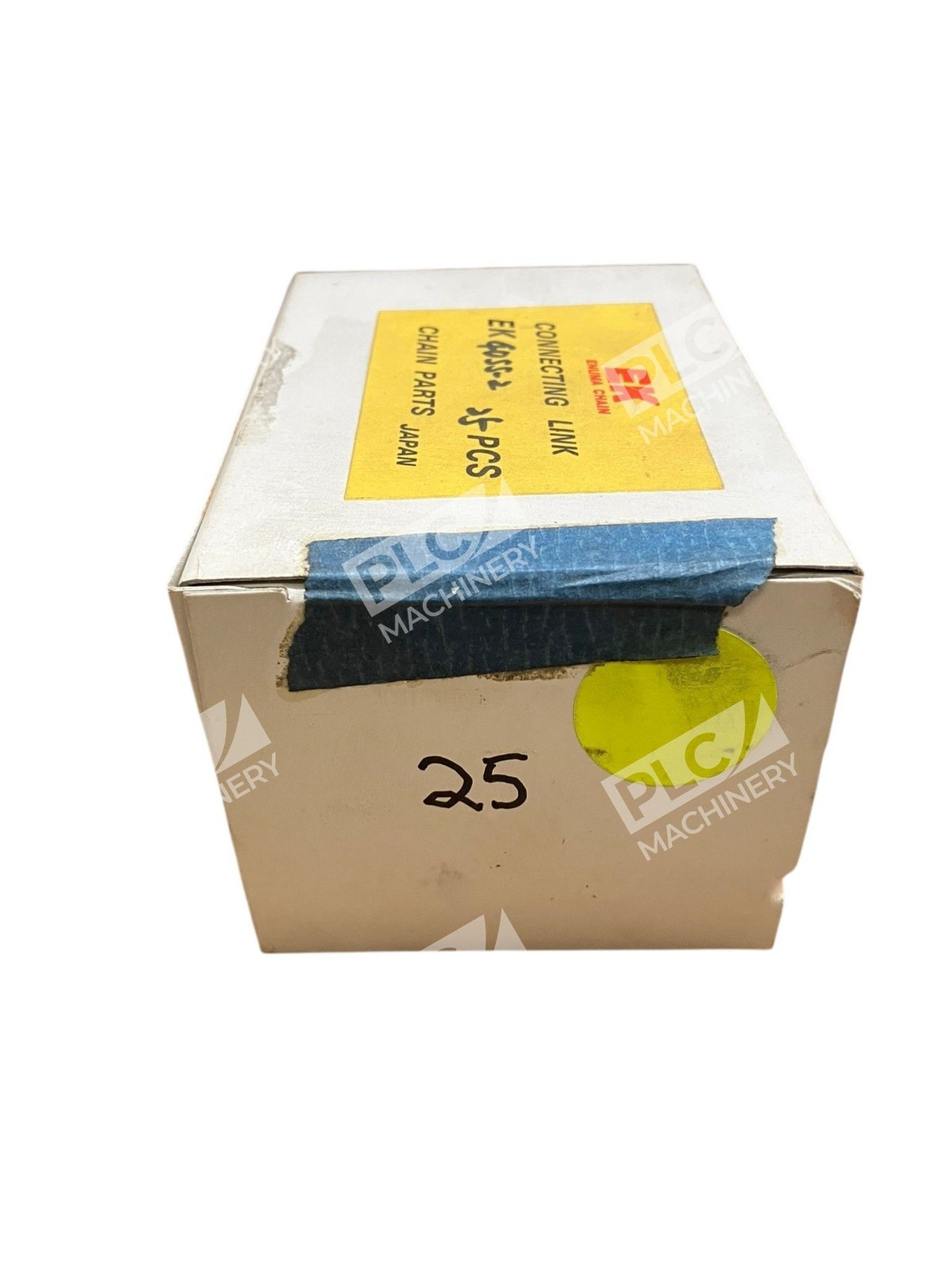

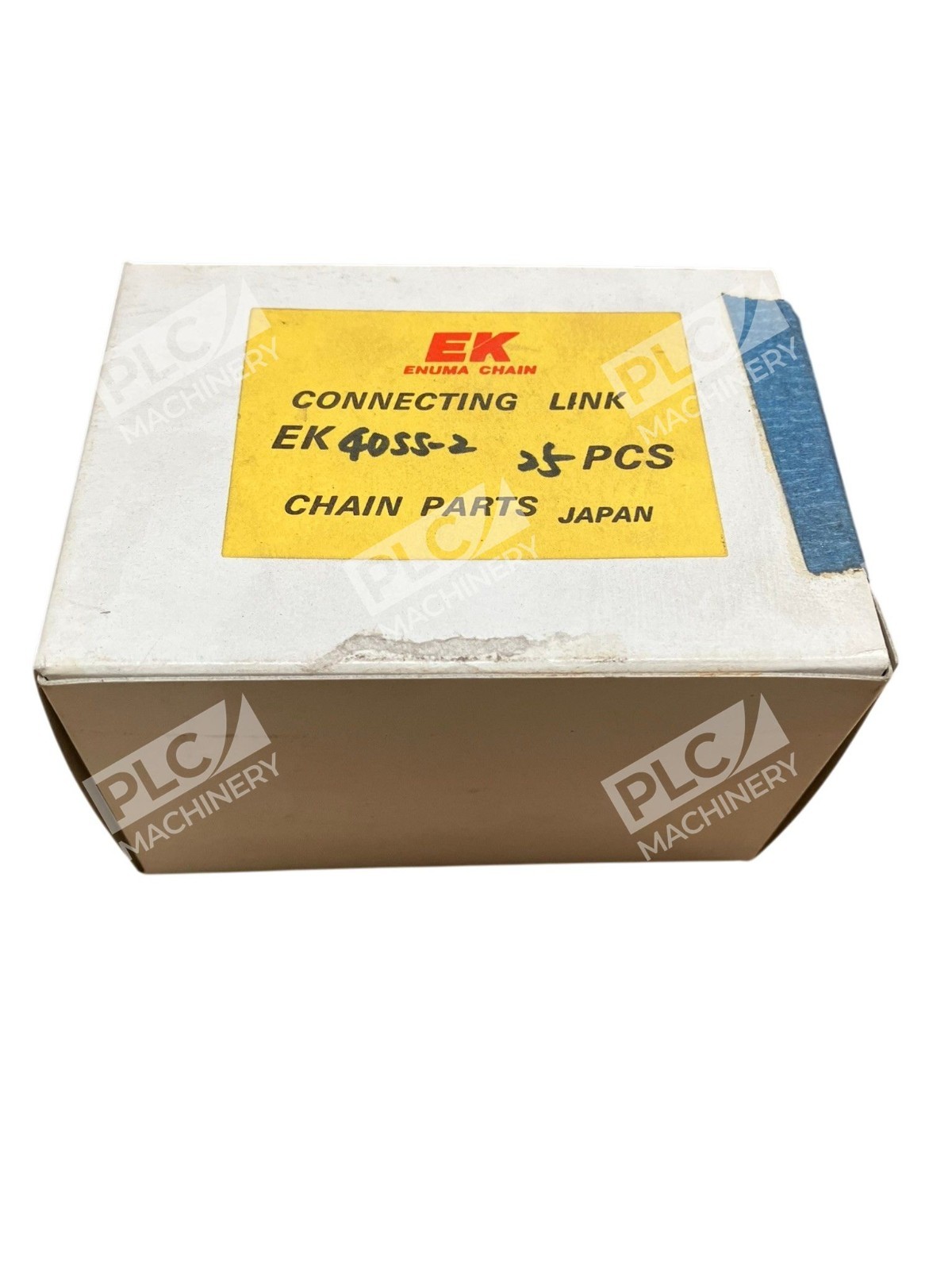

The EK 40SS-2 is a stainless steel #40 duplex connecting link (master link) designed to join two ends of #40SS-2 roller chain together. These links are manufactured from 304-grade stainless steel, making them ideal for corrosive and harsh operating environments. Each box contains 25 connecting links, providing adequate inventory for maintenance and chain repairs. The links comply with ANSI standards and deliver reliable chain continuity in industrial automation, food processing, and conveyor systems.
Key Features
- 304-grade stainless steel construction for superior corrosion resistance
- ANSI-compliant duplex (double-strand) design
- Direct replacement for standard #40SS-2 master links
- Spring clip installation with proper orientation support
- Box quantity of 25 units for inventory and maintenance stock
- Suitable for industrial automation, food processing, and conveyor applications
Technical Specifications
- Chain Size: ANSI #40 (Duplex)
- Material: 304-Grade Stainless Steel
- Pitch Size (p): 0.500 inch (12.7 mm)
- Pin Diameter (d2 max): 0.156 inch (3.96 mm)
- Pin Length (L max): 0.654 inch (16.60 mm)
- Pin Length with Cotter (Lc max): 0.701 inch (17.80 mm)
- Roller Diameter (d1 max): 0.313 inch (7.95 mm)
- Width Between Inner Plates (b1 min): 0.310 inch (7.85 mm)
- Inner Plate Depth (h2 max): 0.472 inch (12.0 mm)
- Plate Thickness (T max): 0.059 inch (1.50 mm)
- Average Tensile Strength: 4,000 lbs
- Ultimate Tensile Strength: 14.10 kN / 3,205 lbs
- Quantity per Box: 25 Units
Typical Applications
- Industrial automation drive chains
- Food and beverage processing equipment
- Conveyor systems (wash-down environments)
- Marine and coastal equipment
- Chemical handling systems
- Chain repairs and maintenance spare parts
Compatibility & Replacements
Compatible With
- ANSI #40SS-2 stainless steel roller chain (duplex)
- Any equipment using standard #40 duplex chain
- Conveyors, timing systems, and power transmission lines
- Industrial automation drives and controls
- Moisture-prone and corrosive environments
Replaces / Drop-In Replacement For
- Standard #40SS-2 duplex connecting links
- Other manufacturer #40 stainless steel master links (ANSI-compliant)
- Damaged or worn #40SS-2 connecting links
Works With
- ANSI #40SS-2 roller chain (duplex configuration)
- Spring clip fastening systems
- Cotter pin retention methods
- Standard roller chain tensioners and sprockets
