Overview

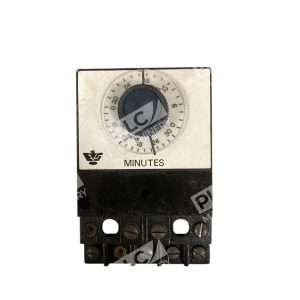

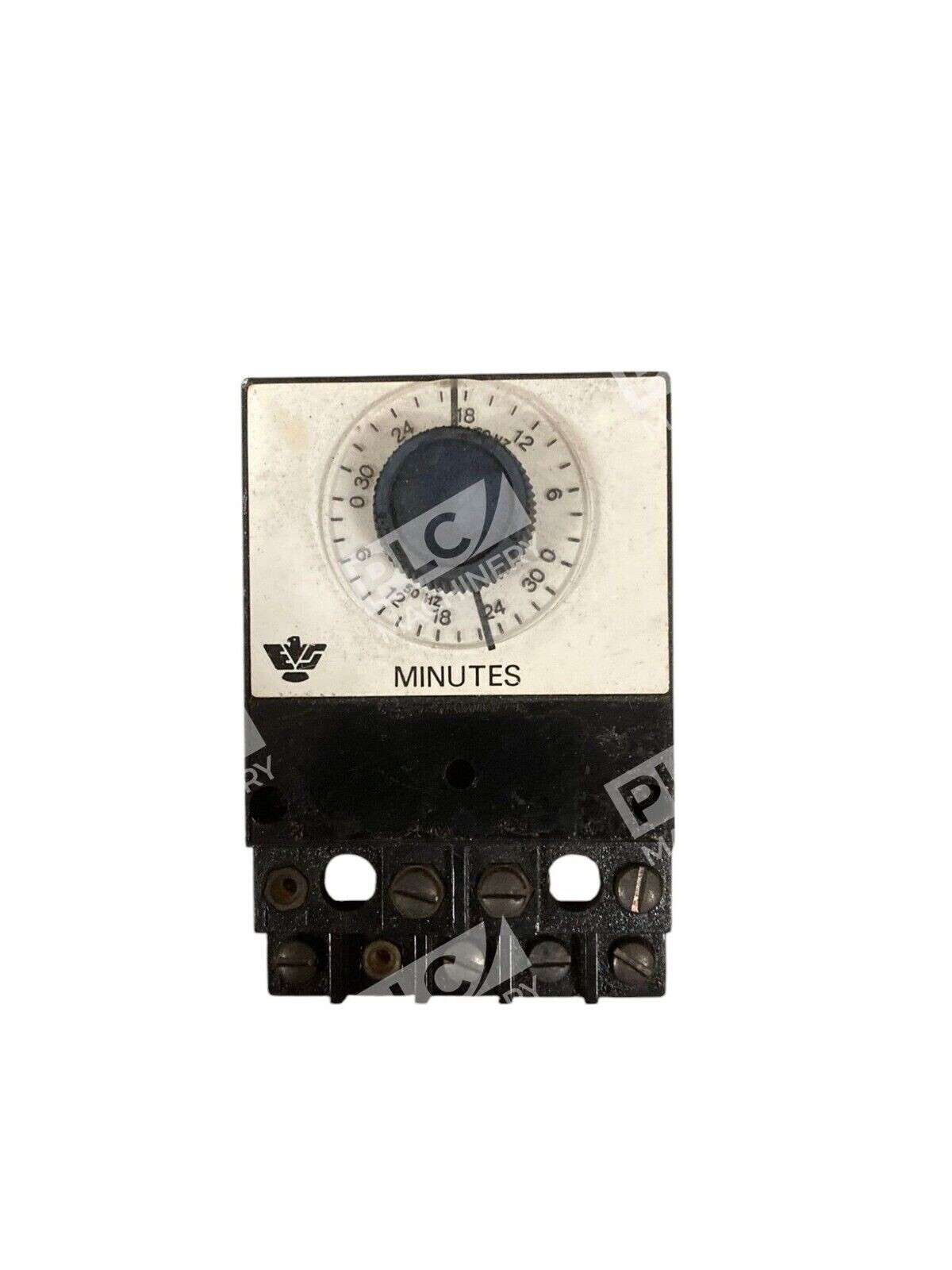

The Eagle Signal MOO4 time delay module is designed for industrial applications requiring precise timing control. Operating on 120VAC at 3W with 60Hz frequency, this relay timer module provides adjustable time delay in minutes, making it suitable for machinery sequencing, process control, and automation circuits. Eagle Signal has manufactured reliable timing and relay products for decades, serving maintenance technicians and controls engineers across manufacturing, HVAC, and process automation industries.
Key Features
- 120VAC 60Hz operation — standard North American industrial power
- 3W power consumption — low-power design for simple control circuits
- Minutes time range — ideal for process delays typically under one hour
- Plug-in or surface-mount compatible — flexible installation options
- Compact form factor — fits into tight panel spaces
- Used condition, fully functional — cost-effective replacement or spare
Technical Specifications
- Input Voltage: 120VAC
- Frequency: 60Hz
- Power Consumption: 3W
- Time Delay Range: Minutes (adjustable)
- Mounting: Plug-in or surface mount
- Manufacturer: Eagle Signal Controls
- Condition: Used, tested and functional
- Certifications: UL rated (standard for Eagle Signal timers)
Typical Applications
The MOO4 time delay module is commonly used in:
- HVAC equipment sequencing and safety shutdown delays
- Motor soft-start and unloader delay circuits
- Compressor and pump run-time safety interlocks
- General industrial process timing and synchronization
- Conveyor and packaging equipment control
- Lighting and alarm activation delays
Compatibility & Replacements
Compatible With
- 120VAC industrial control circuits
- Relay logic panels and hardwired automation systems
- OEM equipment with time-delay requirements
- General-purpose industrial machinery
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. MOO4 pinout and mounting configuration should match your existing installation to ensure proper operation.
Works With
- 120VAC control transformers and power supplies
- Relay sockets (pin configuration dependent)
- Hardwired control circuits and ladder logic designs
- Industrial timers and electromechanical relay systems
