Overview

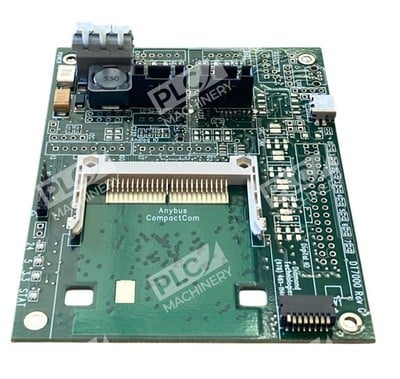

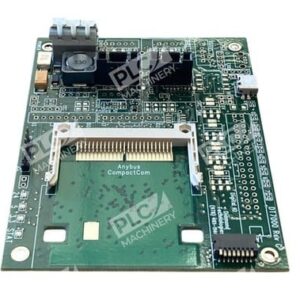

Diamond Technologies DT7000 is an embedded industrial network gateway designed to provide seamless integration between legacy serial devices and modern fieldbus networks. This communication I/O gateway combines digital inputs/outputs, analog I/O channels, multiple serial ports, and Ethernet connectivity in a compact module. The DT7000 enables OEM equipment suppliers to bridge multiple serial devices into a machine’s fieldbus network and easily add additional I/O to fieldbus systems without redesigning control architecture.
Key Features
- Supports full C programming, allowing the module to act as a controller running user-programmed logic
- Embedded logic controller capability for standalone or networked operation
- RJ45 Ethernet port with 10/100 Mbit autosensing for fast network connectivity
- Remote diagnostics and control via embedded web server functionality
- Configurable serial ports for Modbus Master or Slave or generic serial operation
- RoHS compliant design
Technical Specifications
- Input Voltage: 9–40 VDC (24 VDC Nominal)
- Input Current: 300 mA max, 100 mA typ
- Operating Temperature: 0°C to 70°C
- Baud Rate: 9600 to 384000, configurable
- Protocol Support: MODBUS RTU (Master/Slave), MODBUS-TCP (Master/Slave)
- Serial Interfaces: Multiple configurable channels
- Mating Connectors: Molex latching connectors for serial/analog; 26-pin header for digital I/O
Typical Applications
Applications include semiconductor equipment, automatic guided vehicles, high reliability power systems, packaging machines, industrial measurement and weighing equipment, and assembly machines. The DT7000 also functions as a bridge between legacy serial devices and modern industrial networks, enabling retrofit integration and equipment upgrades without complete system redesign.
Compatibility & Replacements
Compatible With
- EtherCAT, CANopen, Modbus TCP/IP, Ethernet IP, Profibus, Profinet, DeviceNet, ControlNet, Modbus RTU, BACNet, Powerlink, Sercos, CC-Link fieldbus networks
- TCP/IP and industrial Ethernet systems
- Modbus serial devices and networks
- Multi-protocol industrial control systems
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The DT7000 is typically used as a new-build component or retrofit module rather than a direct replacement for specific models.
Works With
- C Programming environment (embedded application development)
- Terminal emulation software (HyperTerminal, Tera Term) for diagnostics and configuration
- MODBUS Master/Slave communication protocols
- Industrial Ethernet and fieldbus gateway ecosystems
- Embedded web server for remote machine monitoring
