Overview

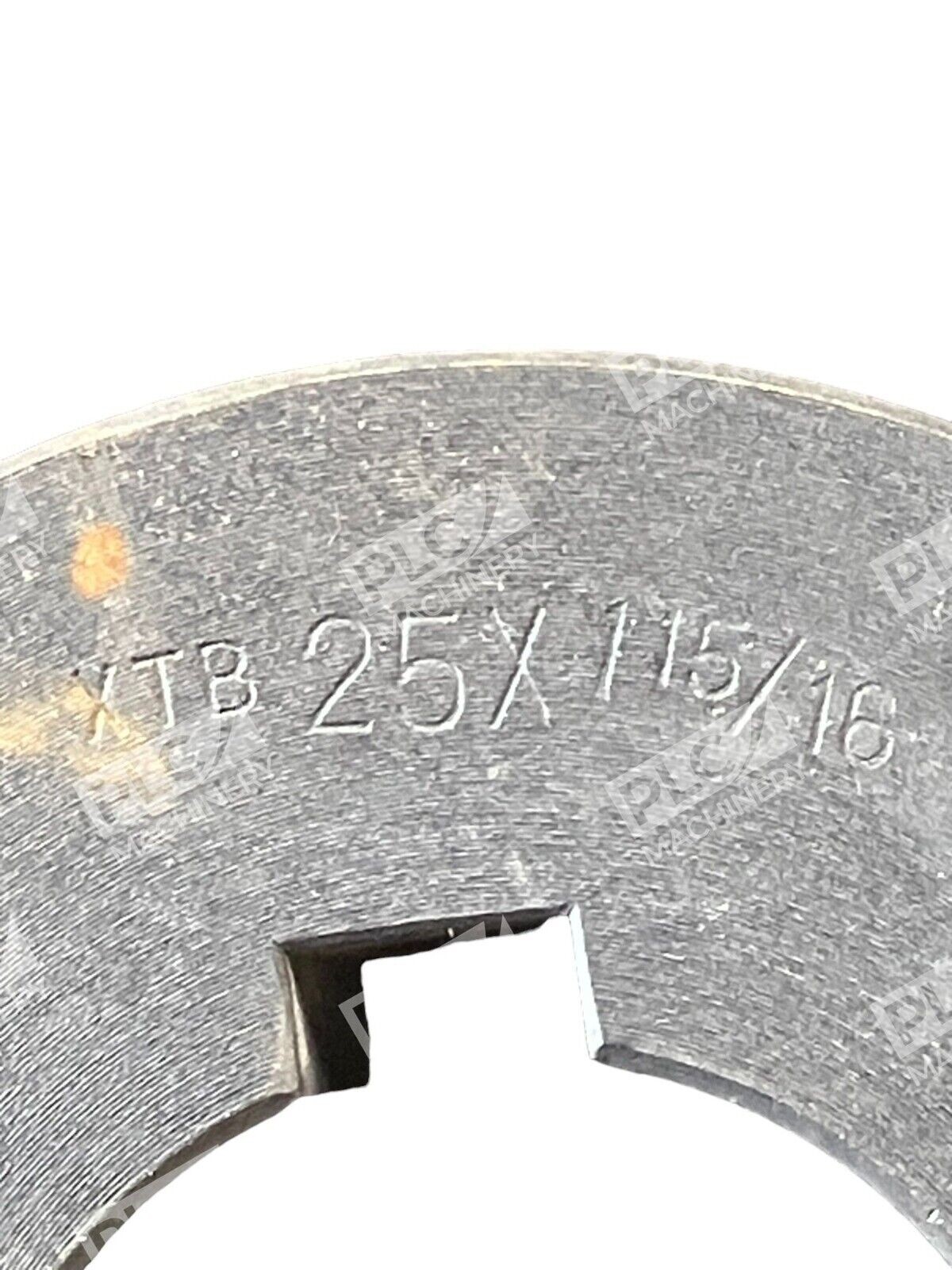

The Dodge XTB25X1-15/16 is a heavy-duty XT Series conveyor pulley bushing engineered for industrial drive and conveyor applications. This 1-15/16″ bore bushing is part of Dodge’s XTB25 series, which delivers proven performance in demanding equipment where shaft alignment flexibility and easy installation are essential. The XT design enables quick-change capability without removing the pulley from the system.
Key Features
- XT Series Split Design: Allows installation and removal without disturbing pulleys or adjacent components
- 1-15/16″ Bore Diameter: Accommodates 1-15/16″ shaft diameter
- 1/2″ × 1/4″ Keyway: Includes 1/2 x 1/4 in keyway for positive torque transmission

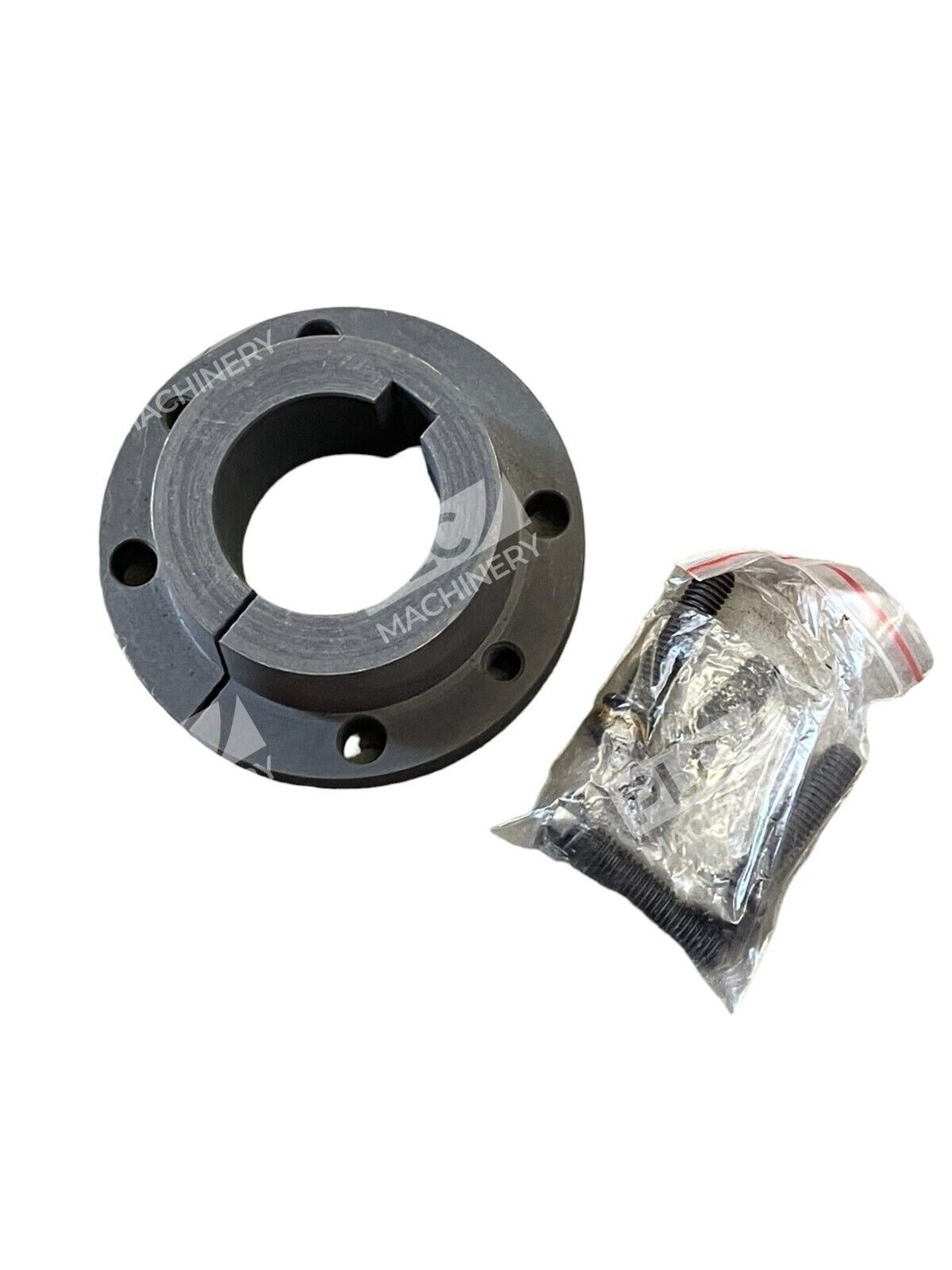

- Cap Screw Assembly: Four cap screws with 3/8-16 threading and 29.2 lb-ft recommended torque
- Heavy-Duty Construction: XTB25 series for heavy-duty applications
- New Condition: Supplied new in box, ready for immediate deployment
Technical Specifications
- Bore Diameter: 1-15/16″ shaft diameter
- Series: XTB25 for heavy-duty applications
- Bushing Type: XT series conveyor pulley bushing
- Keyway Size: 1/2 x 1/4 in keyway
- Cap Screws: 4 cap screws, 3/8-16
- Recommended Torque: 29.2 ft-lbs
- Flange O.D.: 4.4375″
- Material: Steel or gray cast iron
- Manufacturer Part Number: 226854
Typical Applications
- Conveyor pulley drive systems
- Heavy-duty industrial conveyor lines requiring shaft speed or alignment adjustment
- Equipment where minimal downtime for maintenance is required
- Applications requiring reliable shaft-to-hub power transmission in pulley systems
Compatibility & Replacements
Compatible With
- Dodge XTB25 series bushing hubs and pulleys
- Industrial conveyor pulley assemblies rated for XT-style bushings
- Standard 1-15/16″ shaft conveyor drive systems
- Any application requiring 1-15/16″ bore bushing with split-wedge design
Replaces / Drop-In Replacement For
- Dodge 226854 (OEM equivalent)
- Other manufacturers’ equivalent 1-15/16″ XT conveyor bushings with matching bore and keyway specifications
Works With
- Dodge pulley hub assemblies compatible with XTB25 bushings
- Standard 1/2″ × 1/4″ keystock and standard shaft fastening methods
- Industrial conveyor drive assemblies utilizing XT wedge-split bushing design
