Overview

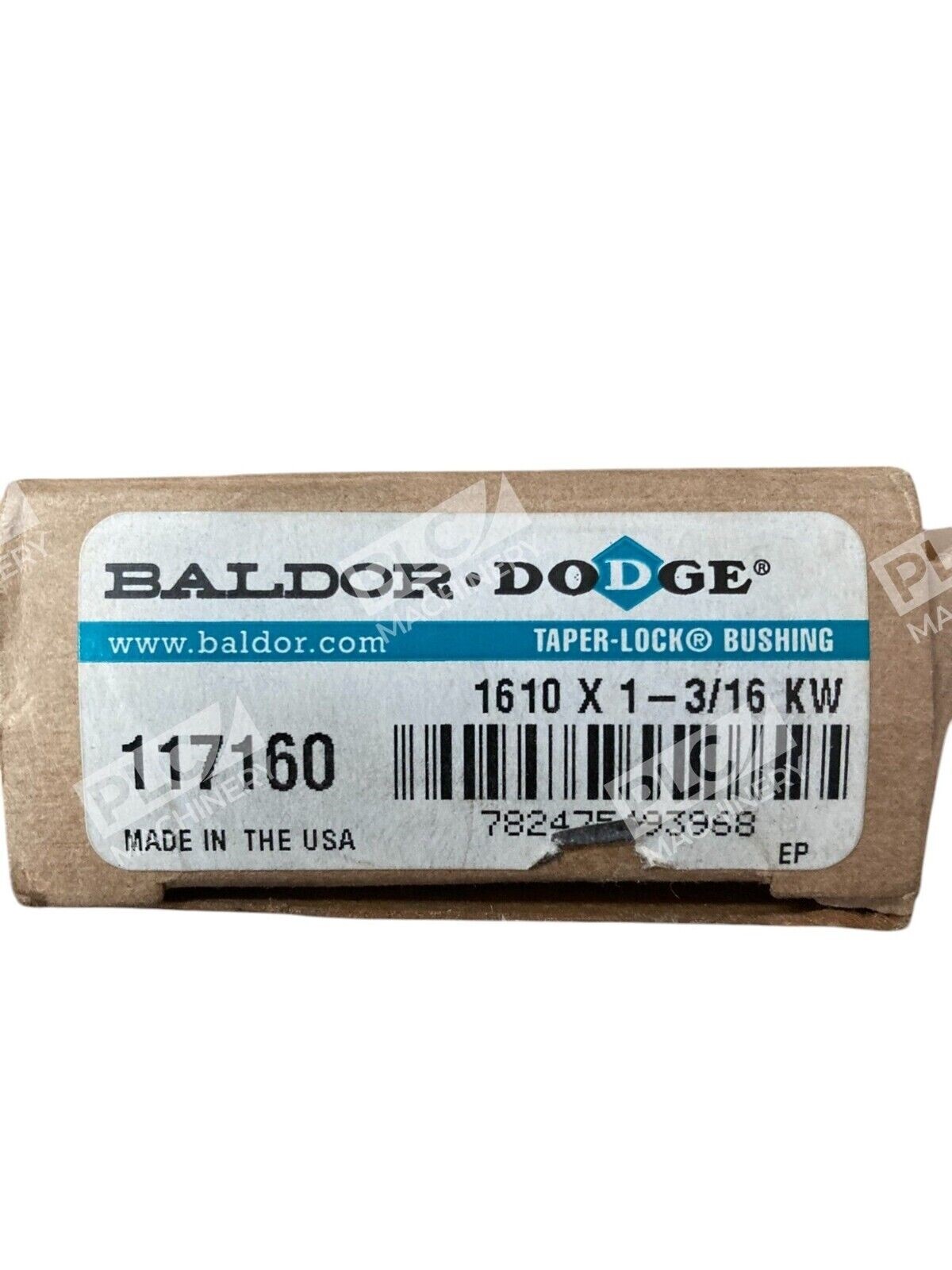

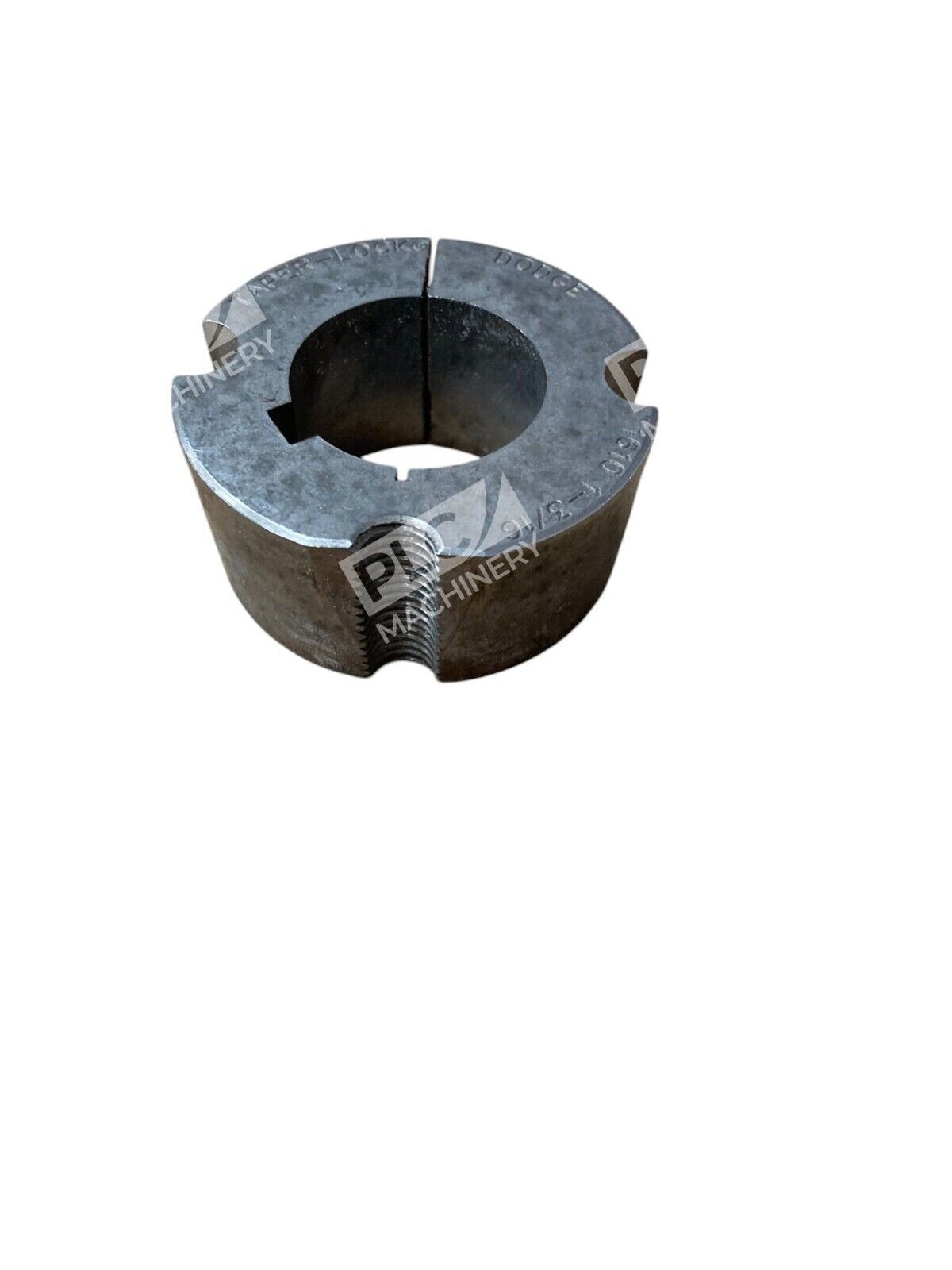

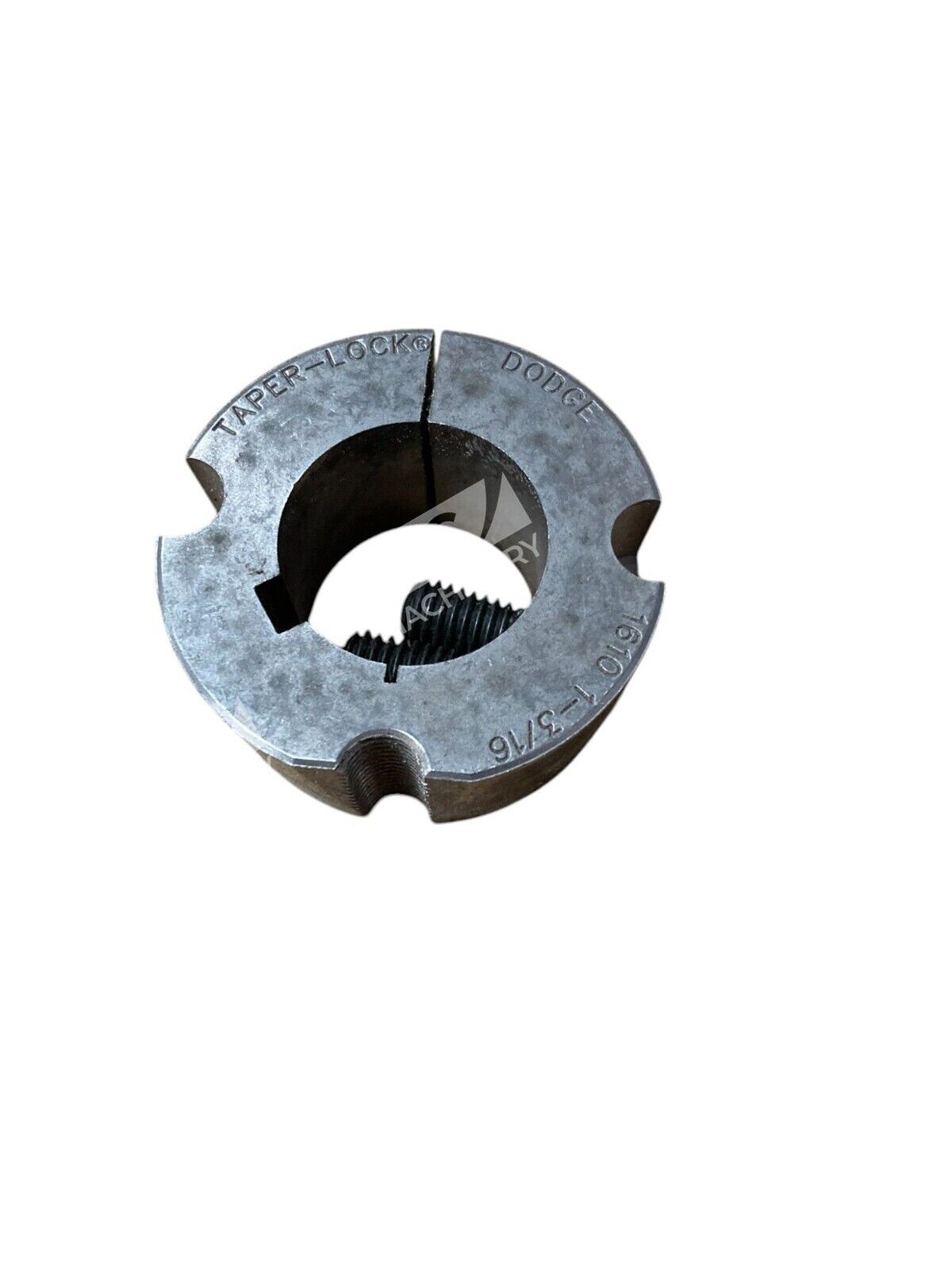

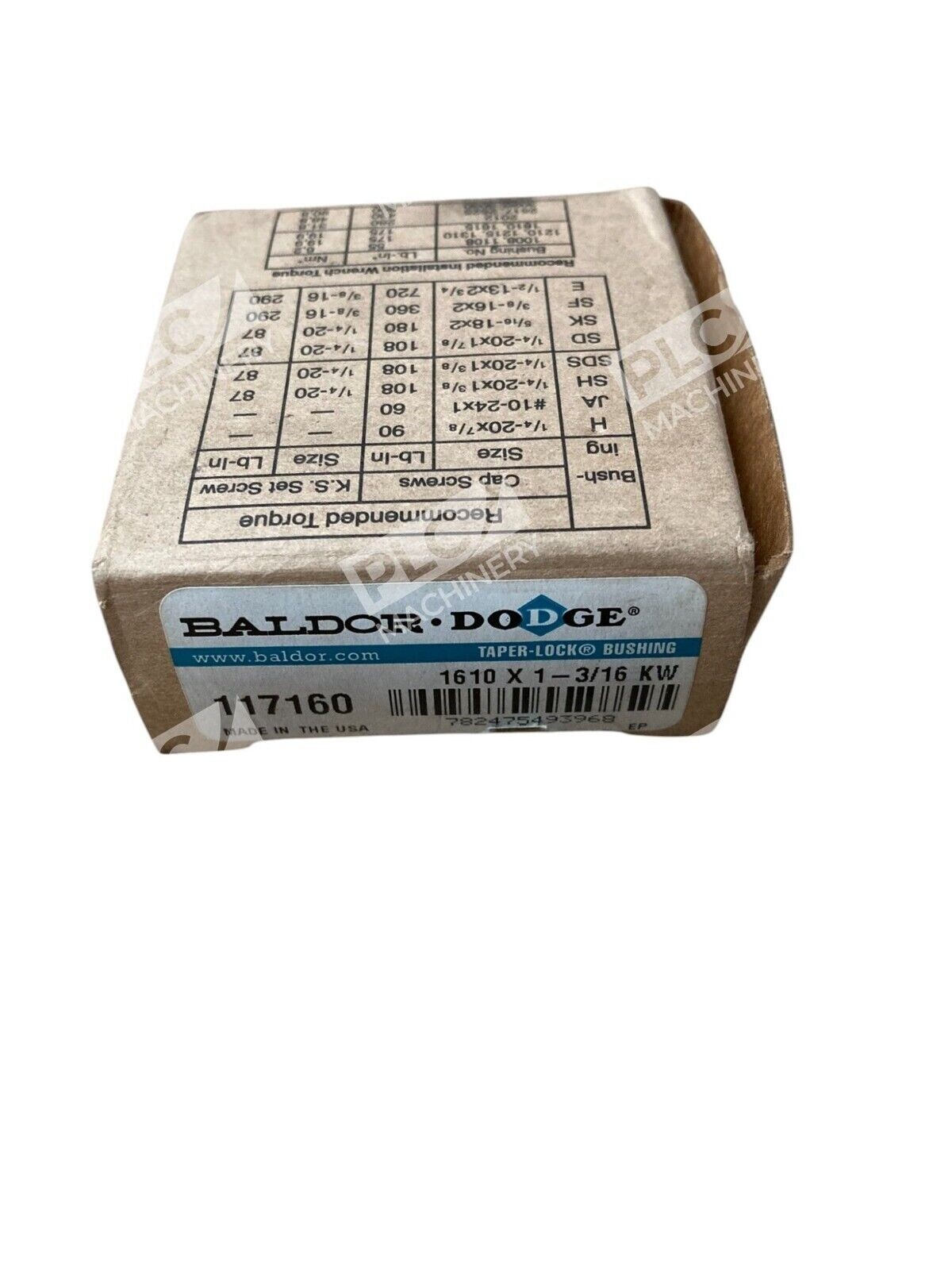

The Dodge 117160 is a Type 1610 taper-lock bushing engineered for reliable shaft-coupling applications in industrial machinery. Built with sintered steel construction and an 8-degree taper design, this bushing provides secure, repeatable locking without axial movement. The flush-mounted, flangeless profile suits confined mounting spaces where compact dimensions matter.
Key Features
- 8-degree taper grips tight and eliminates runout and wobble
- Flangeless, flush-mounting design for clean, compact installations
- Easy on/off operation without special tools
- Sintered steel construction for durability and corrosion resistance
- Stock bore (1-3/16″ diameter) ready for standard shaft sizes
Technical Specifications
The Dodge 117160 delivers robust torque transmission with field-proven reliability:
- Series: 1610
- Bore Diameter: 1-3/16 inches
- Barrel Diameter: 2-1/4 inches
- Hub Diameter: 3-1/4 inches
- Overall Length: 1 inch
- Taper Angle: 8 degrees
- Torque Capacity: 4,300 in-lb
- Bolt Circle: 2.13 inches
- Mounting Holes: 2
- Fastener: 3/8 × 5/8 inch screw
- Keyway: 1/4 × 1/8 inch
- Material: Sintered steel
Typical Applications
Taper-lock bushings like the Dodge 117160 are found in:
- Conveyor and belt drive systems
- Pump and fan couplings
- Gearbox input/output shafts
- Motor-to-driven-equipment connections in general industrial machinery
- Equipment where vibration damping and secure locking are critical
Compatibility & Replacements
Compatible With
- Standard ANSI-flange mounted electric motors
- Industrial gearboxes and reducers with matching bore diameters
- Flexible and rigid shaft couplings
- Belt and chain drive pulleys and sprockets with 1-3/16″ bore
- Direct-coupled pump and fan assemblies
Replaces / Drop-In Replacement For
- Original equipment Dodge 1610 Type bushings with 1-3/16″ bore
- Previous-generation taper-lock designs in this bore size
- Verify compatibility with your system integrator before ordering if sourcing a replacement for legacy equipment
Works With
- Dodge Industrial mechanical drive component systems
- Baldor electric motors and standard NEMA-frame equipment
- Industry-standard shaft-coupling and power-transmission assemblies
- Maintenance programs requiring standardized Dodge taper-lock inventory
