Overview

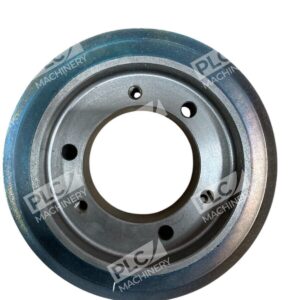

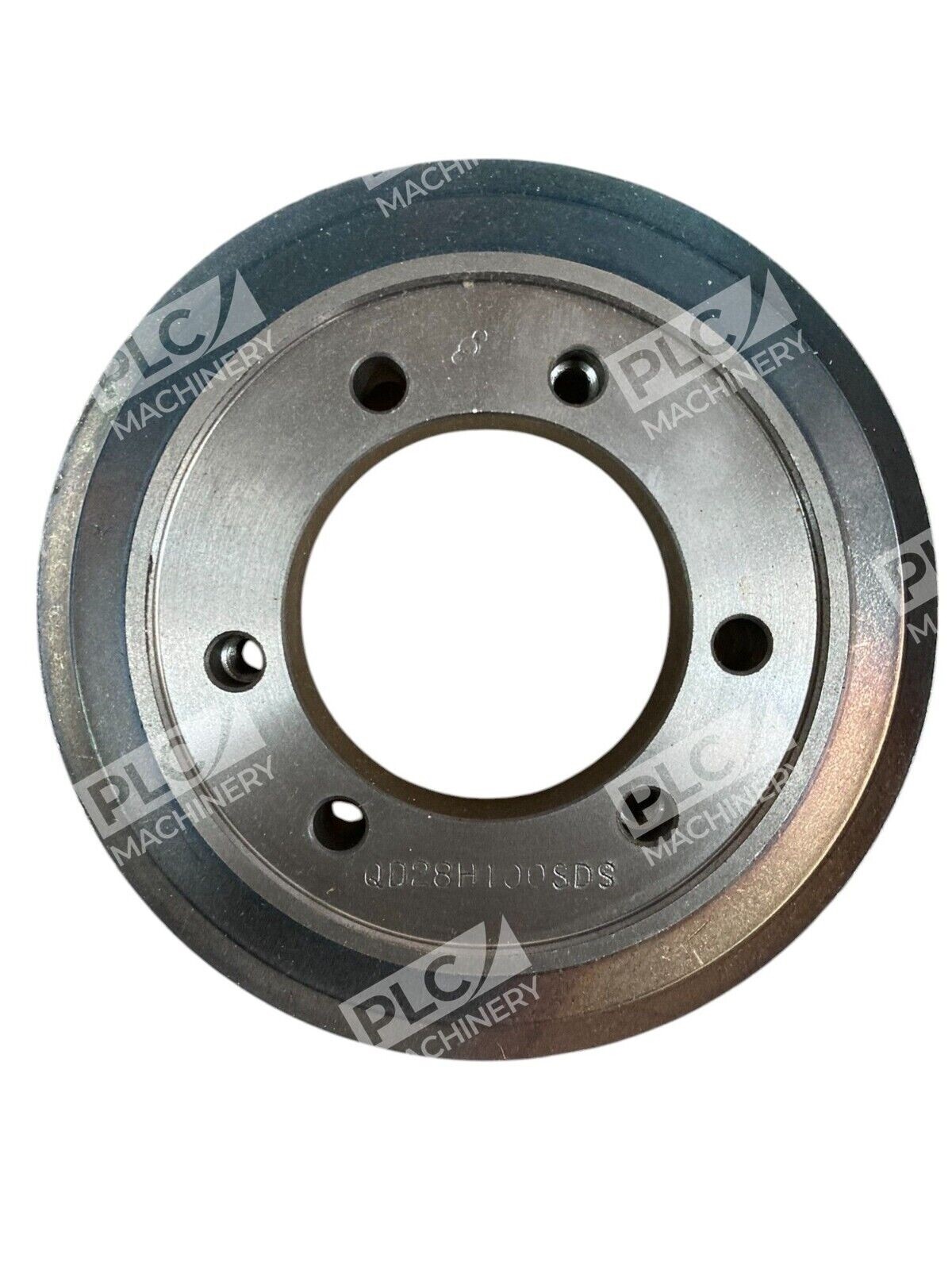

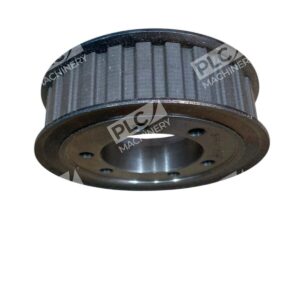

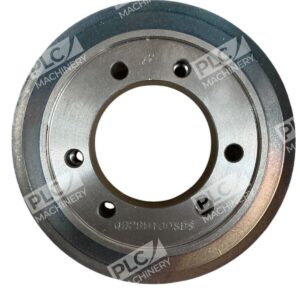

The Toronto Gear QD28H100 is an Imperial-pitch timing pulley engineered for synchronous belt drive systems requiring a 28-tooth configuration with SDS quick-disconnect bushing mounting. Toronto Gear Works manufactures this component to ISO standards for OEM and MRO applications across packaging machinery, automation, CNC, robotics, and industrial drive systems. The H-profile designation indicates HTD (Synchronous) tooth geometry designed to work with 1-inch-wide timing belts. The SDS bushing interface provides tool-free installation and removal, reducing downtime during maintenance or replacement cycles.
Key Features
- 28-tooth H-profile design for precise synchronous belt engagement
- SDS quick-disconnect bushing for rapid assembly and field replacement
- 1″ belt width capacity for moderate load transmission
- ISO certified manufacturing for dimensional accuracy and durability
- Imperial pitch pulley suitable for North American drive systems
- Compact bore design compatible with standard shaft sizes via bushing adapters
Technical Specifications
- Tooth Count: 28
- Pitch Profile: H (HTD, Imperial)
- Belt Width: 1 inch
- Bushing Type: SDS (Quick Disconnect)
- Pitch Diameter: Calculated per HTD pitch (approx. 2.8″)
- Material: Ductile iron or sintered steel (standard Toronto Gear)
- ISO Certification: Yes
- Manufacturing Standard: Toronto Gear Works precision machining
Typical Applications
- Packaging machinery and conveyor drive systems
- Automation equipment synchronous belt drives
- CNC machinery spindle belt transmission
- Robotics and precision motion control
- Industrial pump and fan drive systems
- Medical device and dental instrument manufacturing equipment
Compatibility & Replacements
Compatible With
- H-profile (HTD) synchronous timing belts, 1″ wide
- SDS quick-disconnect bushing adapters
- Standard motor and gearbox shafts (via SDS bushing)
- Synchronous belt drive systems rated for 28-tooth pulleys
- Toronto Gear and B&B Manufacturing ecosystem
Replaces / Drop-In Replacement For
Verify exact replacement compatibility with your system integrator or original equipment manufacturer documentation before ordering. The QD28H100 is a standard catalog part; cross-reference your existing pulley tooth count, belt width, and bushing type to confirm direct fit.
Works With
- H-profile (HTD) timing belts and synchronous belt drives
- SDS bushing quick-disconnect system for rapid maintenance
- Motor couplings and shaft adapters compatible with SDS interface
- Industrial machinery control systems requiring synchronized power transmission
