Overview

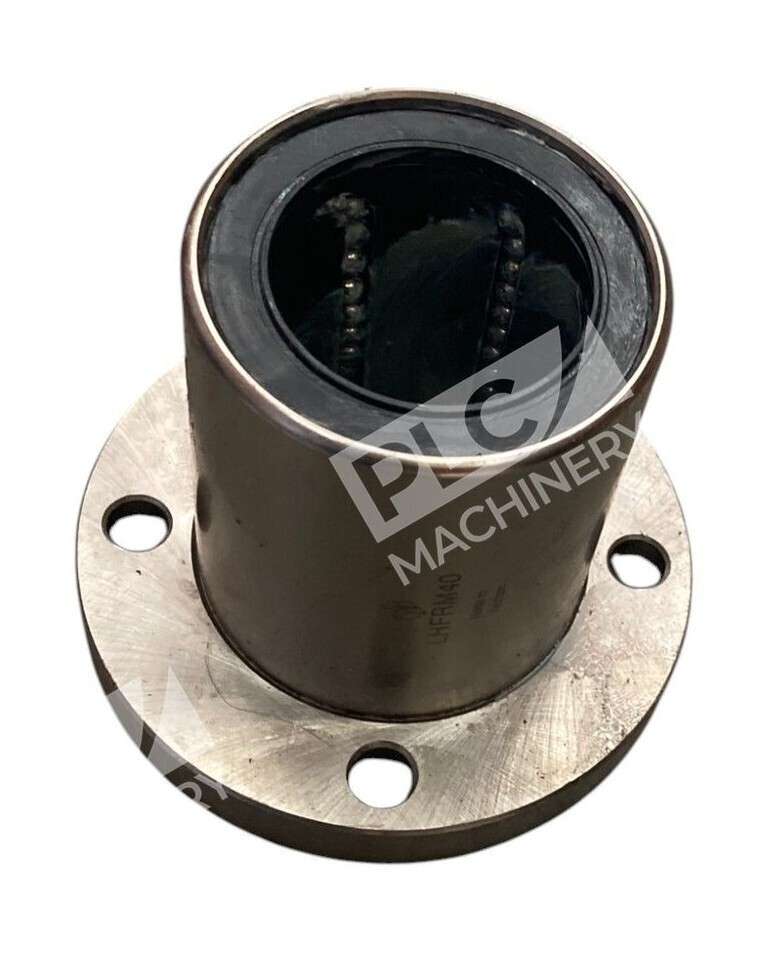

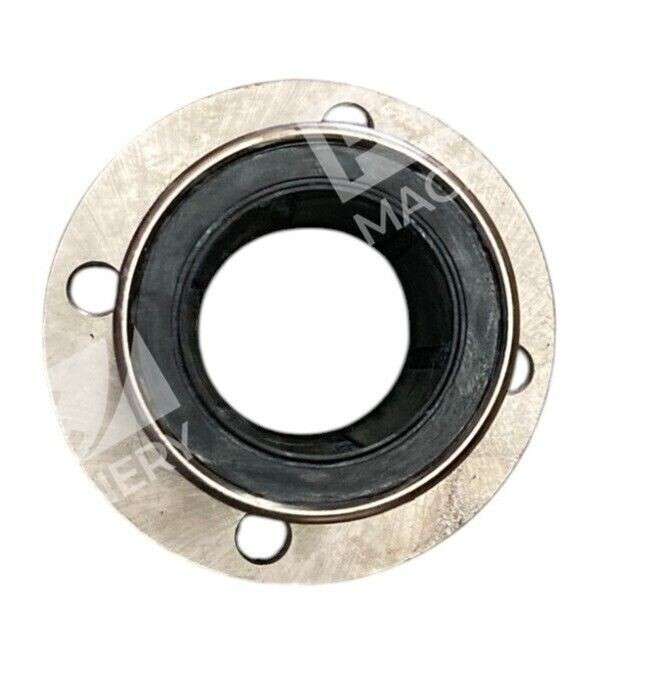

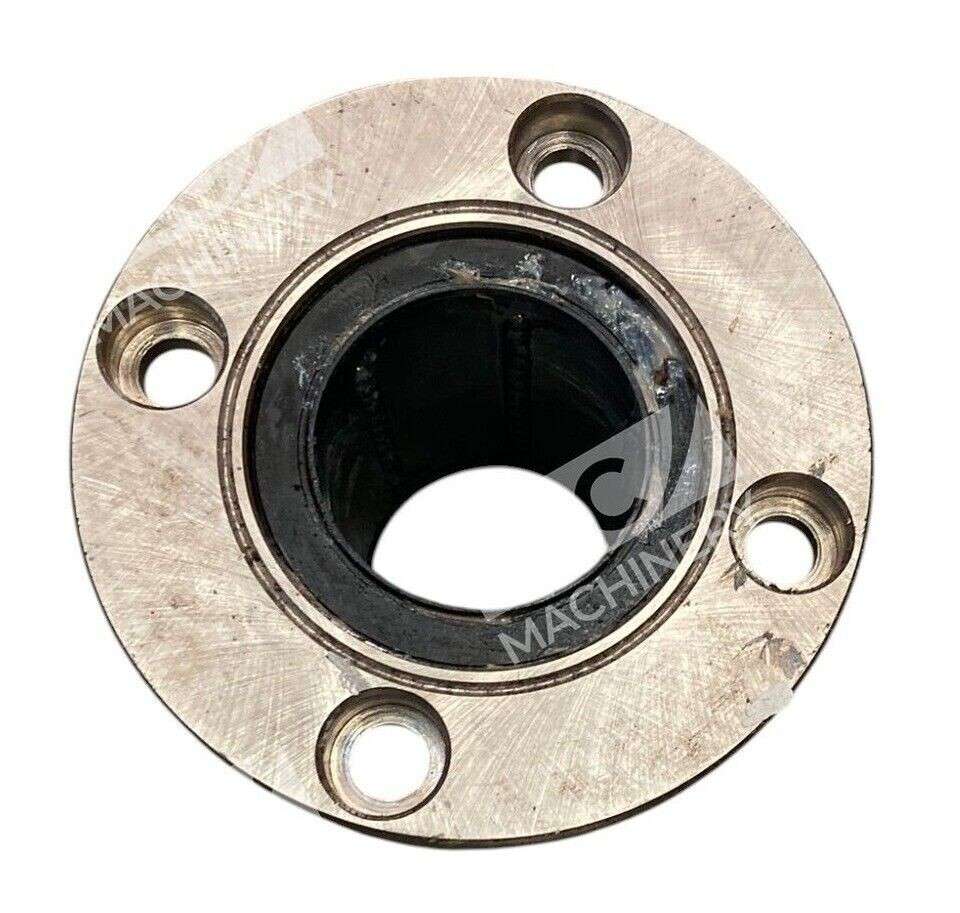

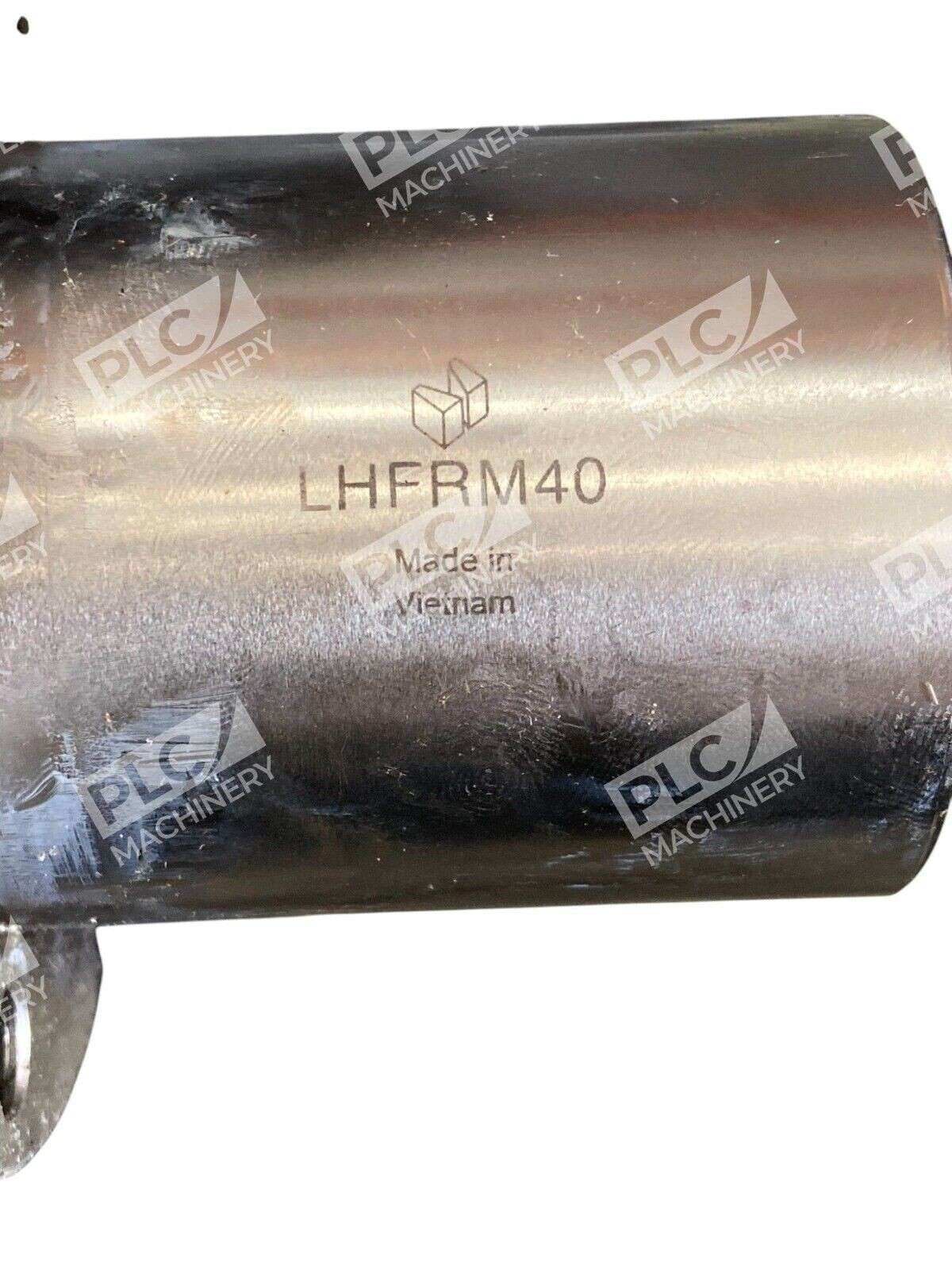

The Misumi LHFRM40 is a flanged linear ball bearing engineered to support and guide loads along a specified linear path. This single-bushing design delivers smooth, accurate linear motion for applications where precision and reliability are critical. The bushing features steel ball elements with hardened steel or stainless steel construction, making it suitable for various industrial automation and machinery applications.
Key Features
- RoHS10 compliant; medium-precision linear bushing with relaxed tolerances on outer diameter and length dimensions
- Multiple flange options: round flange, square flange, and compact flange configurations
- Shaft diameter support range from 6 mm to 40 mm (dr dimensions)
- Sealed design with optional lubrication; lithium soap-based grease recommended for optimal performance
- Anti-rust oil pre-applied at delivery to protect against corrosion
- Designed for low moment-load applications; double or multiple bushings recommended for offset loads
Technical Specifications
Specifications vary by configuration. Common parameters include:
- Bushing Type: Single flanged linear ball bearing
- Material – Outer Cylinder: SUJ2 equivalent or SUS440C stainless steel equivalent
- Material – Ball Elements: SUJ2 equivalent or SUS440C stainless steel equivalent
- Shaft Diameter Range: 6–40 mm (dr) depending on configuration
- Temperature Range: -20°C to +80°C (standard); -20°C to +120°C with electroless nickel plating
- Seal Type: Optional; plastic or nitrile rubber available
- Compliance: RoHS10 compliant
Typical Applications
The Misumi LHFRM40 is widely used in:
- Conveyor systems requiring smooth linear motion
- Packaging machinery for precise alignment and movement
- Robotic equipment and automation systems
- Industrial machinery requiring guided linear motion with low to moderate loads
- Motion control systems in manufacturing and assembly equipment
Compatibility & Replacements
Compatible With
- Misumi linear motion systems and rail assemblies
- Standard precision shafts within the 6–40 mm diameter range
- Misumi height-adjusting spacers for flanged bushings
- Industrial machinery using flange-mounted linear bushings
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The LHFRM40 may replace similar single flanged linear bushings from compatible shaft-diameter series.
Works With
- Lithium soap-based grease (Alvania Grease S2 or equivalent) for lubrication
- Misumi configuration tools for part customization and CAD downloads
- Standard mounting hole patterns for round, square, and compact flanges
