Overview

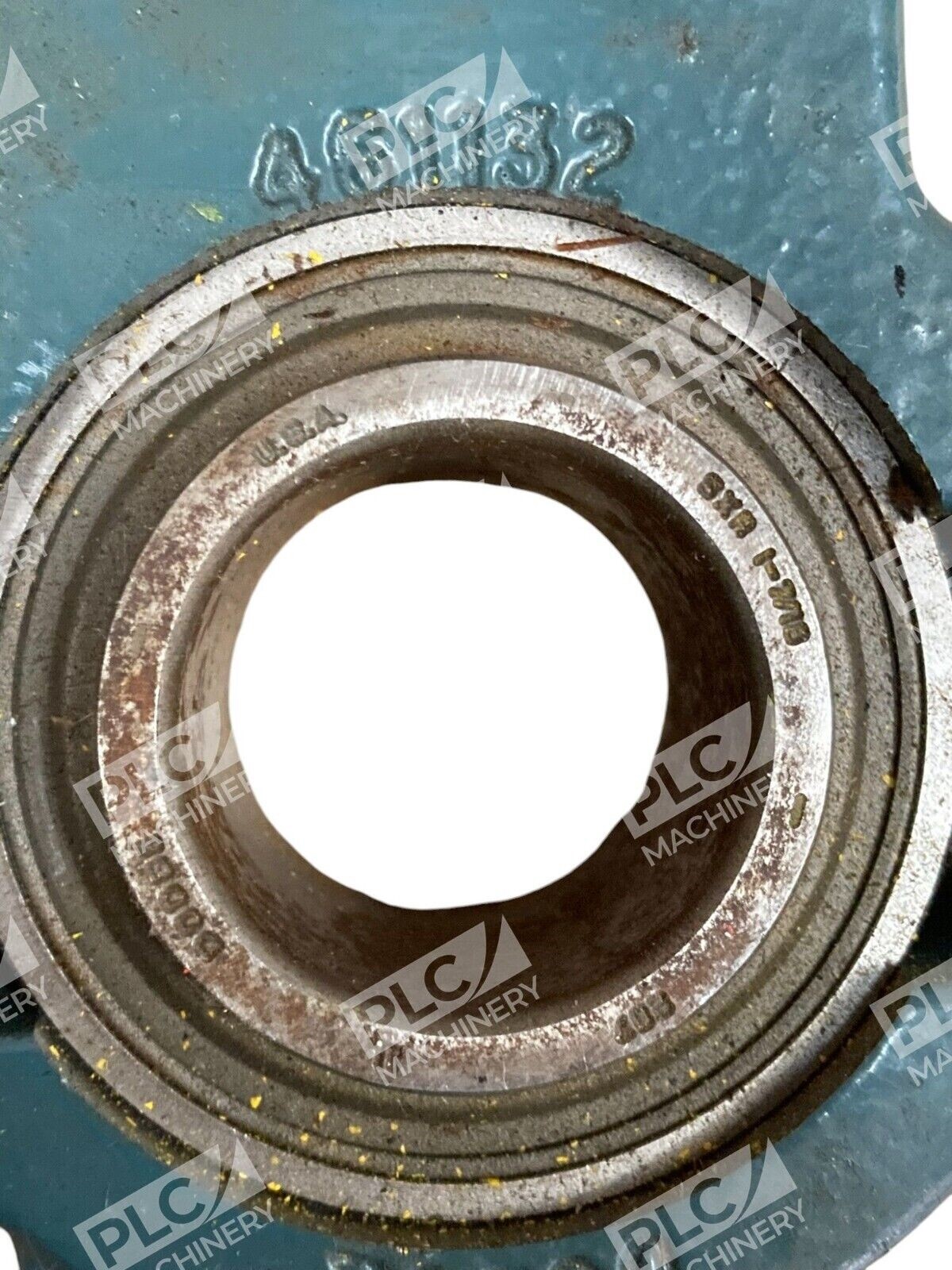

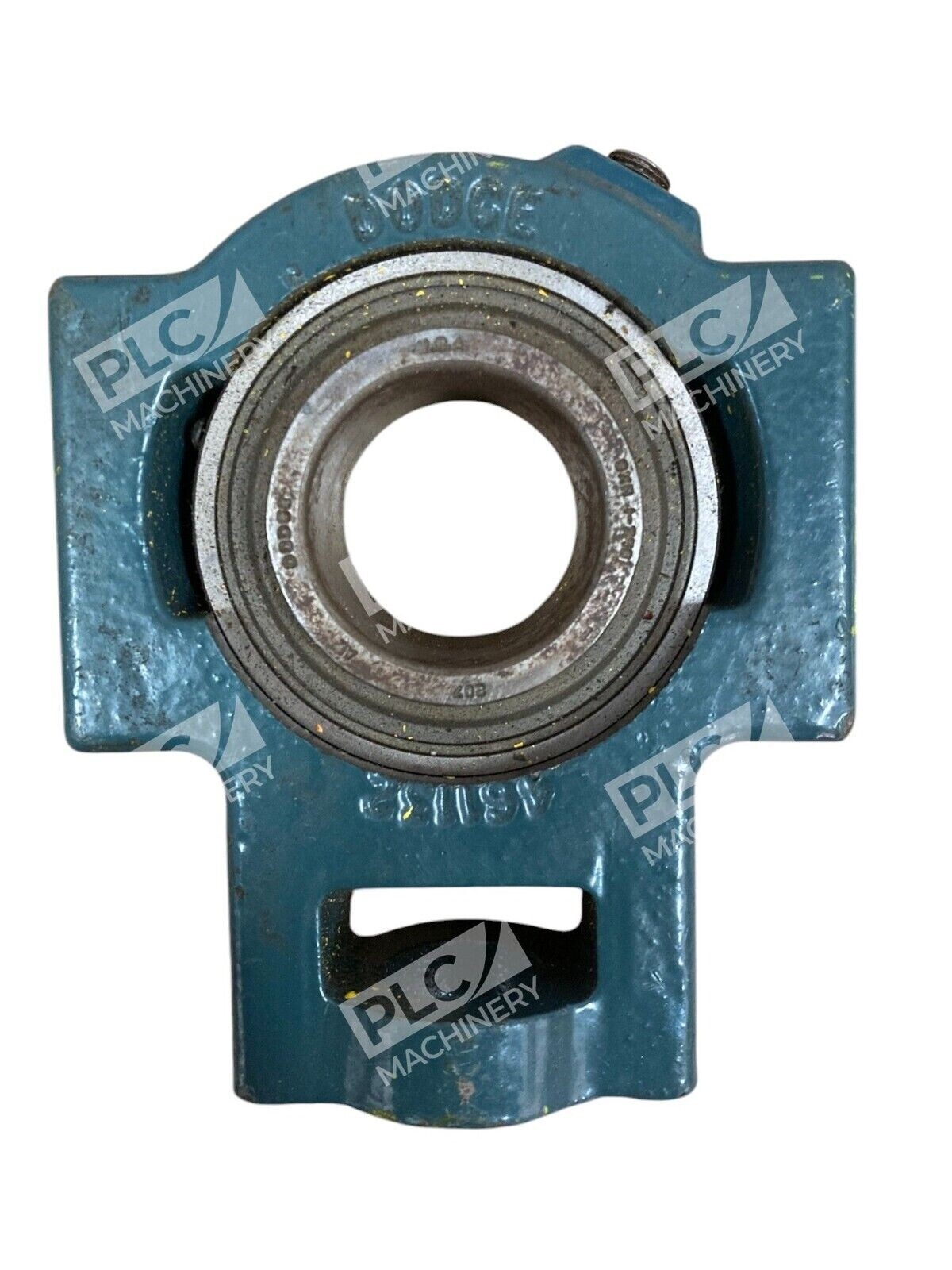

The Dodge 461132 is an SXR-series take-up bearing designed for reliable shaft support in industrial machinery. This unit features a robust cast iron housing paired with a ball bearing type design, making it suitable for various general-purpose and driven-shaft applications. The 1-7/16″ bore size and heavy-duty construction ensure dependable performance in industrial automation and conveyor systems.
Key Features
- SXR eccentric collar design enables 360° full shaft contact with no shaft marring or fretting corrosion
- 5759 lbs dynamic load capacity for side-mount installation
- SC 1-7/16″ interchangeable housing compatible with 207 insert
- Ball bearing type with anti-rotation device to prevent insert slippage
- Cast iron construction for durability and corrosion resistance
- Quarter-turn eccentric collar locking mechanism for quick installation
Technical Specifications
- Bore Size: 1-7/16″
- Housing Type: Cast Iron
- Bearing Type: Ball
- Series: SXR (Eccentric Collar)
- Slot Spacing: 3-1/2″
- Slot Width: 17/32″
- Dynamic Load Capacity (Side Mount): 5759 lbs
- Weight: 1.96 lbs
- Insert Compatibility: SC 1-7/16 / 207
- Condition: Used
Typical Applications
The Dodge 461132 take-up bearing is commonly found in conveyor systems, pump supports, fan assemblies, and general industrial machinery requiring shaft alignment and load distribution. The eccentric collar mounting system makes it ideal for installations where precision shaft positioning is required without dismantling the entire assembly.
Compatibility & Replacements
Compatible With
- Baldor-Dodge industrial motor and pump systems
- Standard 1-7/16″ diameter shafts
- SC-series mounting frames with 3-1/2″ slot spacing
- Legacy conveyor and driven-equipment assemblies
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The Dodge 461132 may replace equivalent SXR take-up bearings with matching 1-7/16″ bore and SC housing series ratings, but cross-reference with your original equipment documentation.
Works With
- Dodge SXR-series mounting systems
- Interchangeable with similar eccentric collar take-up frames
- Standard industrial motor couplings and shaft arrangements
